DOCUMENT VERSION 1

Instruction Manual

MODEL : AB-5688LCM

8x8 HDMI MATRIX SWITCHER

HDMI Matrix Switcher Series

Thank you for purchasing the AB-5688 HDMI Matrix Switcher. You will find this unit easy to

install and highly reliable but it is essential that you read this manual thoroughly before

attempting to use 8x8 HDMI Matrix switcher.

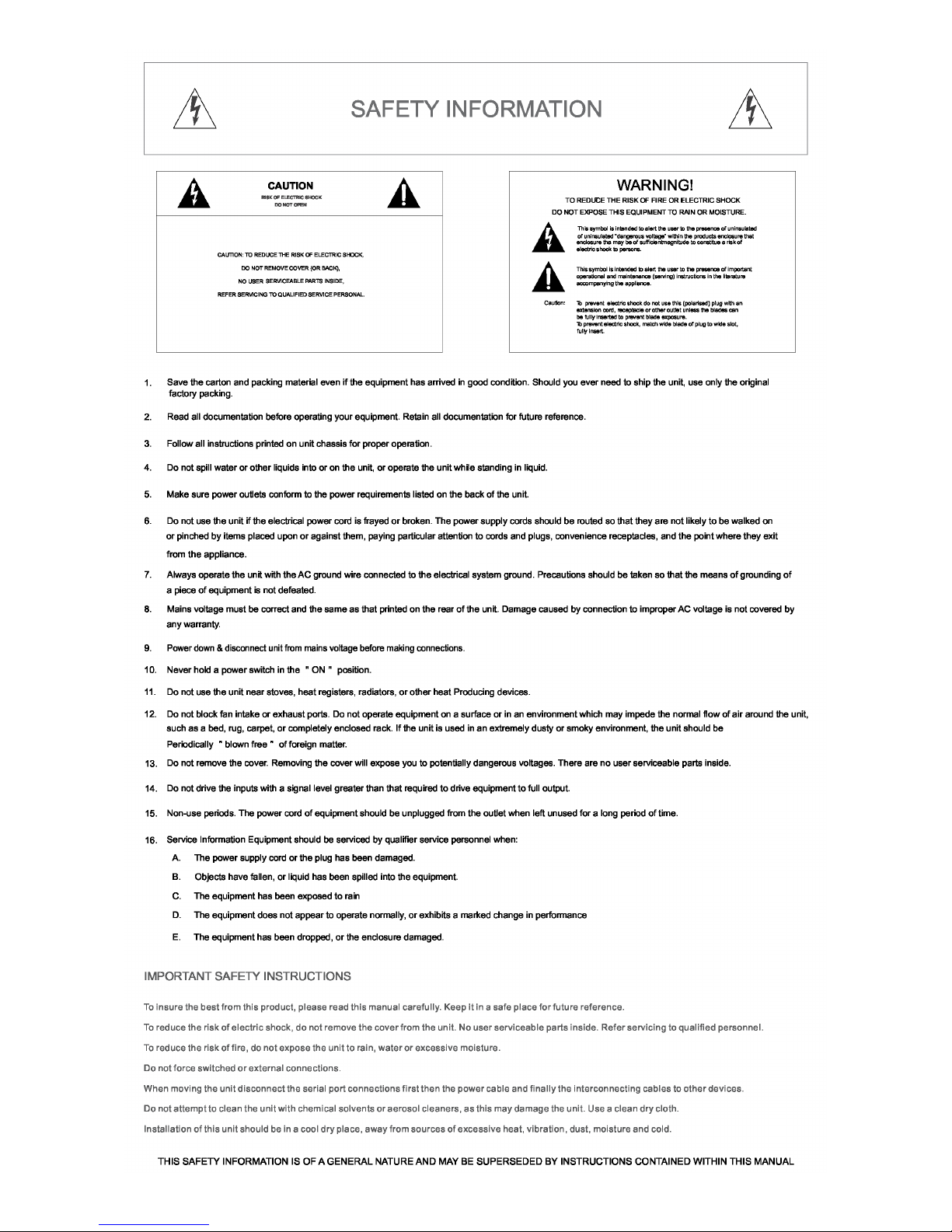

TABLE OF CONTENTS 03

INTRODUCTION AND PACKAGE CONTENTS 04

FEATURES 05

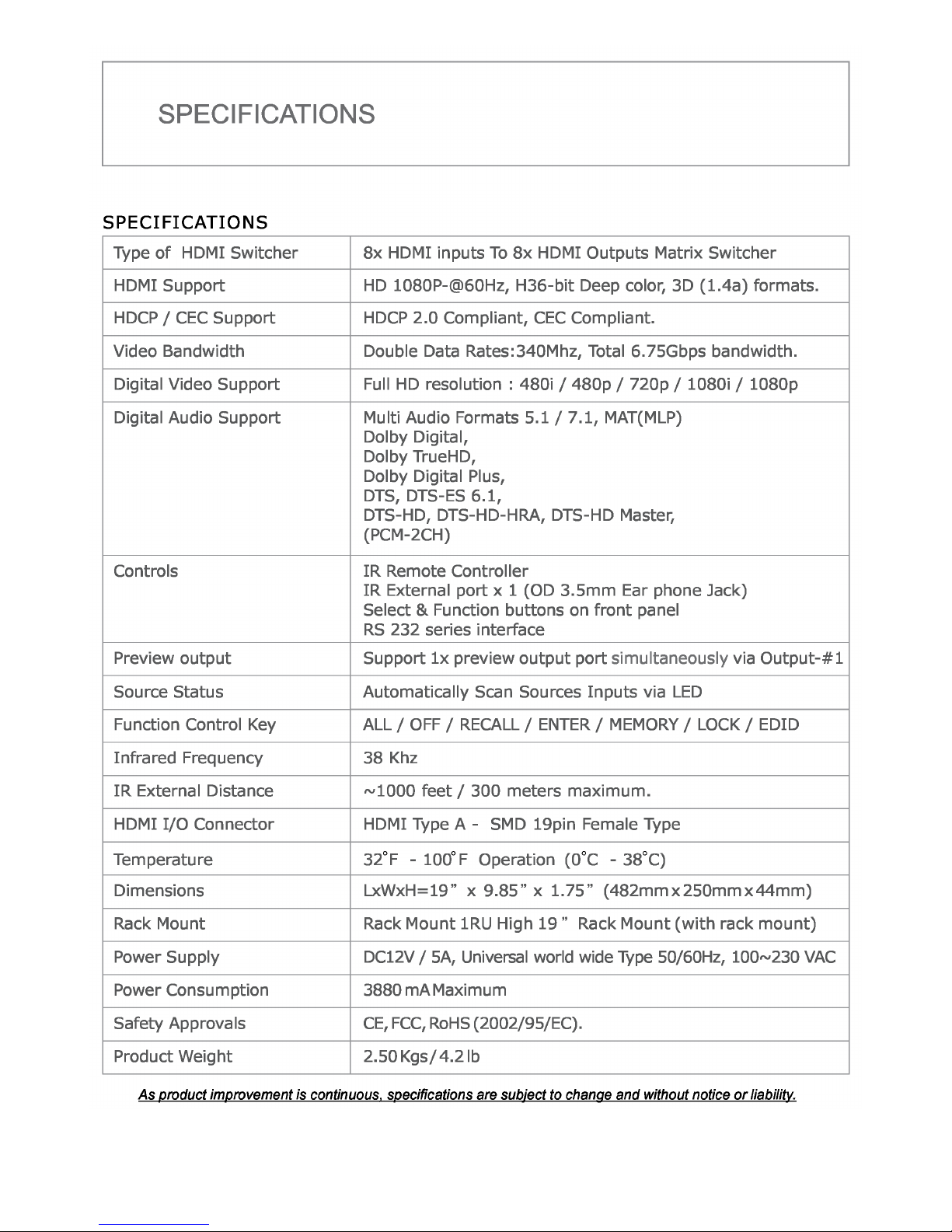

SPECIFICATIONS 06

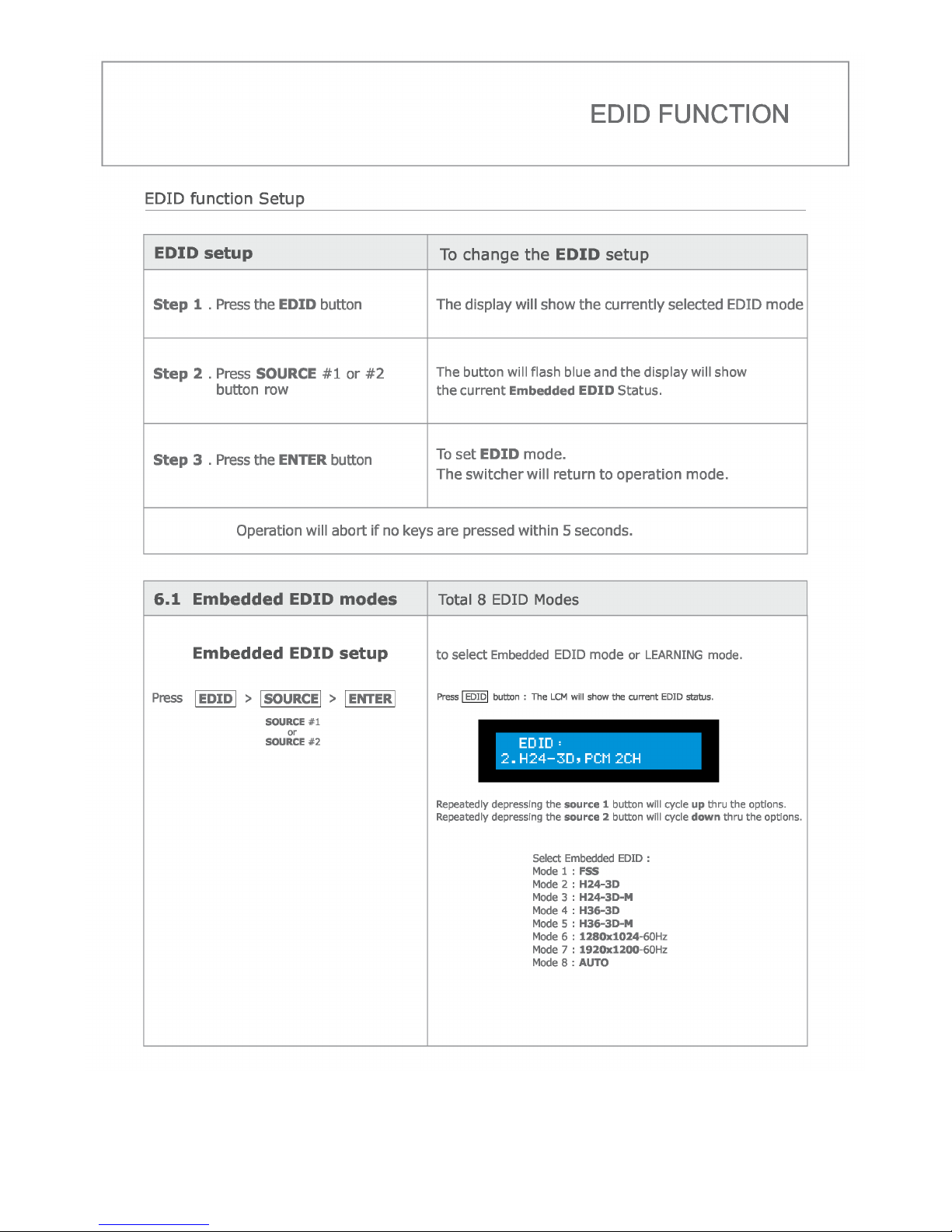

EDID FUNCTION - EDID SETUP 07

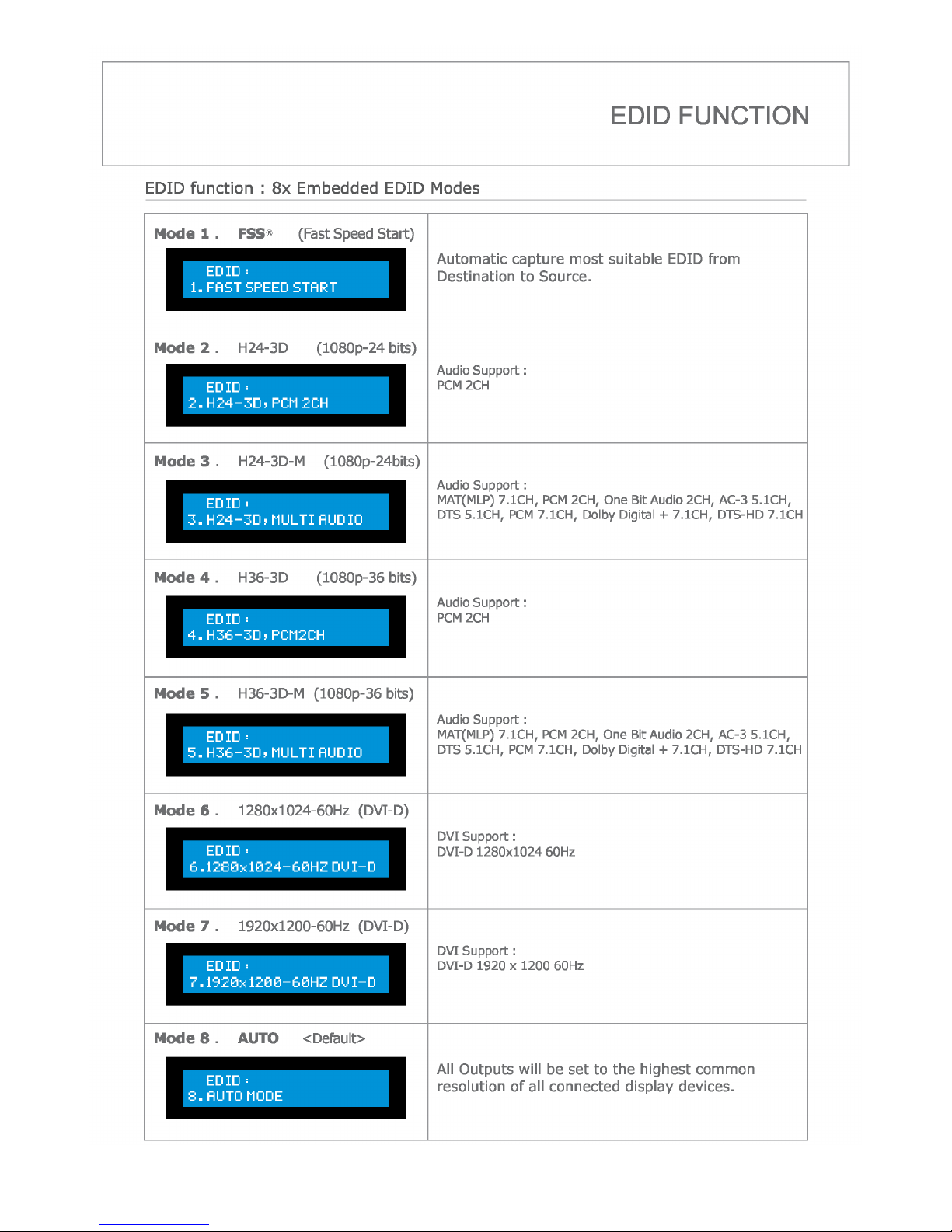

EDID FUNCTION - EMBEDDED EDID 08

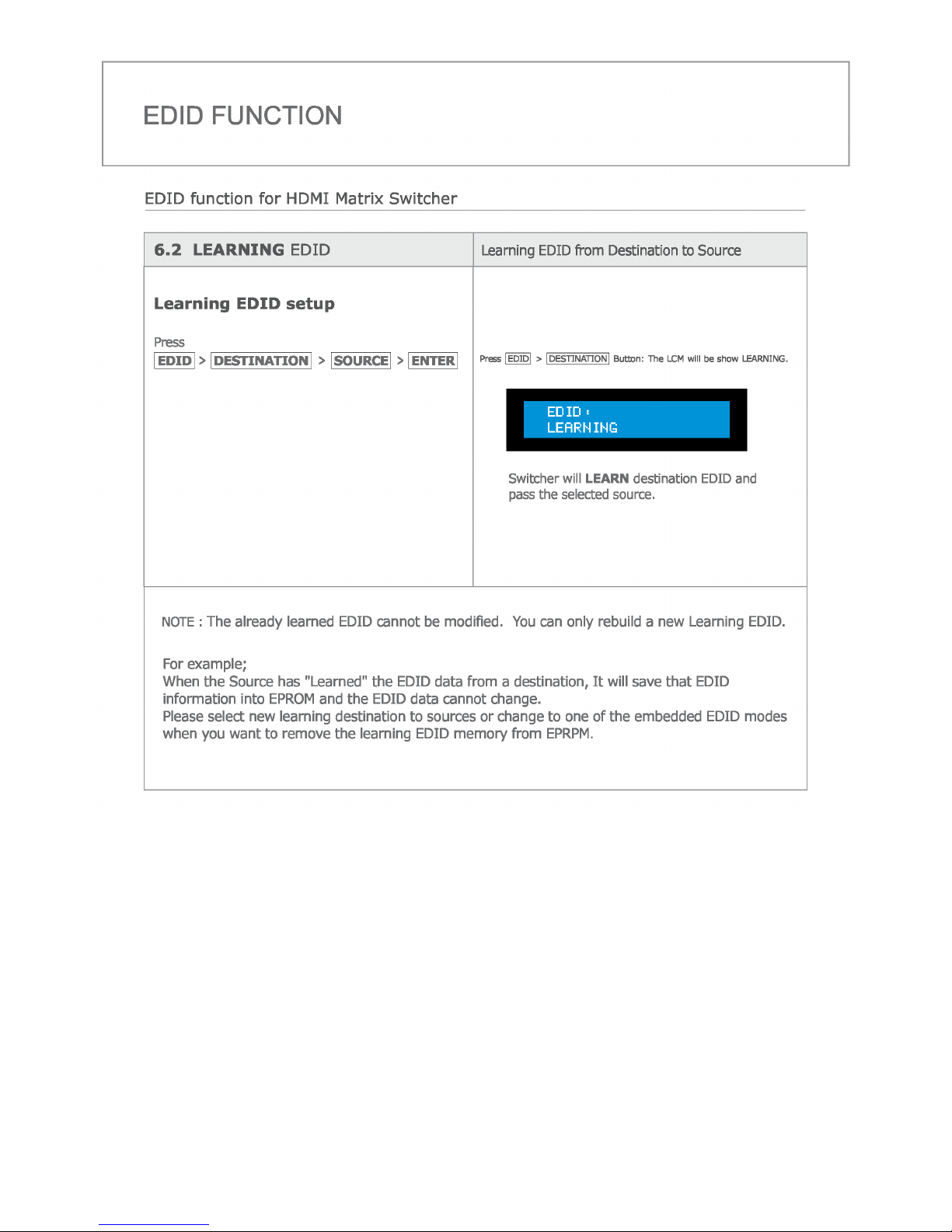

EDID FUNCTION - LEARNING EDID 09

EDID FUNCTION - LEARNING EDID 10

EDID FUNCTION - EDID SETUP 11

FRONT PANEL - 1 12

FRONT PANEL - 2 13

FRONT PANEL - 3 14

REAR PANEL 15

TYPICAL APPLICATION HDMI IN/OUT 16

TYPICAL APPLICATION HDBaseT TX/RX connection 17

IR REMOTE CONTROL 18

IR REMOTE CONTROL - IR DATA CODE 19

IR EXTERNAL INSTALL 20

CEC FUNCTIONS 21

RS232 PROTOCOL 22

LIMITED 23

AB-5688 INSTRUCTION & OPERATION MANUAL PAGE 3

INTRODUCTION

The AB-5688 is high-performance 8x8 matrix routing switcher for HDMI signals. This switcher supports

data rates up to 6.75 Gbps, enabling 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any HD

display. High Definition Digital signals can be selected and distributed to any 8 outputs simultaneously.

R R

The Switcher is certified as being fully HDMI and HDCP compliant, with RoHS,CE,FCC certification.

Support high resolution HDMI sources routed to HDMI displays, monitors, projector, or audio receivers.

The EDID can be selected between seven (8) different modes. Control is provided via Front panel push

buttons, IR remote or via RS-232. An RS232 Windows GUI interface is provided for matrix routing.

PACKAGE CONTENTS

1. Main console unit

2. Operating Instructions

3. IR Remote Controller (SW-5688)

4. 19 inch Ear mount bracket (Part # 1U-440L)

5. IR Extender receiver (SB-100)

6. CD Contents: This manual, Windows GUI

7. RS232 Cable

8. Power Supply 12VDC, 5A Universal Type 50/60Hz, 100~230 VAC

PAGE 4 AB-5688 INSTRUCTION & OPERATION MANUAL

FEATURES

1. 8x HDMI digital source devices matrix switched to 8x HDMI devices.

2. HDMI digital video w/embedded audio, DVI format and CEC/HDCP 2.0 compliant

3. Seven (7) function key control and worldwide EDID modes for HDTV resolutions.

(8)

4. Link speeds of up to 6.75 Gbps (link clock rate of 340Mb Hz), Support HDMI 1.4a 3D formats.

5. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and

HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p

6. Compatible with all HDMI source devices, PC monitors, Plasma HD display,

HDTV and audio receivers/amplifiers.

7. Digital Video TMDS formats Resolutoin up to 1080P-60 with Deep color 36-bit.

8. Digital Audio Support: - Dolby TrueHD, Dolby Digital, Dolby Digital

Plug/ex, - DTS, DTS-HD, DTS-HD Master, DTS-

EX - PCM, PCM2, LPCM2..

9. Various User Interface control:

Windows based GUI control via RS232 port

Front Panel push button

IR wireless remote control

Third party RS232 controller (via simple ASCII)

10. Support worldwide control functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK

11. Support EDID modes :

Internal modes: AUTO/1080P-2CH/1080P-5.1/1080P-7.1/1080i-2CH/720P-2CH

External modes: Passing mode.

12. Automatic scanning input & output status via LED show on front panel.

13. Support preview output port simultaneously output #1.

14. Support IR Remote and IR Extender with distance up to ~ 1000' (300M) Maximum.

15. EDID configuration via Internal modes.

16. Consumer Electronic Control (CEC) switch all open or OFF The

Switcher will remember that last state during a power cycle. When

power is removed and resorted, the last configuration will be invoked.

AB-5688 INSTRUCTION & OPERATION MANUAL PAGE 5

PAGE 6 AB-5688 INSTRUCTION & OPERATION MANUAL

AB-5688 INSTRUCTION & OPERATION MANUAL PAGE 7

PAGE 8 AB-5688 INSTRUCTION & OPERATION MANUAL

AB-5688 INSTRUCTION & OPERATION MANUAL PAGE 9

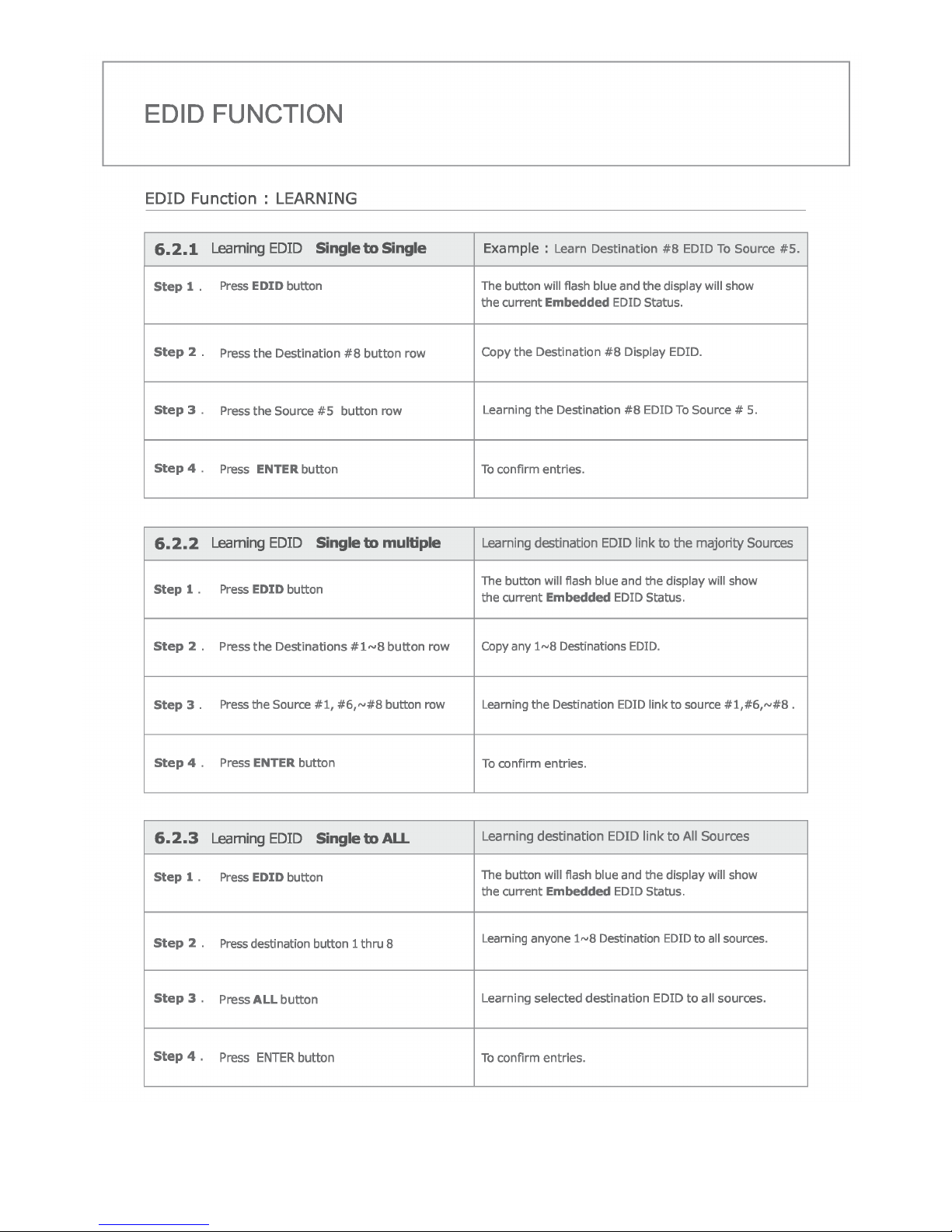

PAGE 10 AB-5688 INSTRUCTION & OPERATION MANUAL
