Wireless Multimedia Keyboard & Mouse
User Manual
shintaro.com.au
SHWKBM
Introduction 4
Specications 4
Setup Instructions 5
Key Description 6
Troubleshooting 7
FCC Information 9
Contents
shintaro.com.au
Wireless Multimedia Keyboard & Mouse
4
Introduction
The Shintaro SHWKBM Wireless Multimedia Keyboard and Mouse lets you take
complete control of your desktop with features such as one touch buttons that take
you directly to your favourite multimedia activities - navigate music and video clips,
surf the web, and start many of the programs you use most. Please carefully read the
information and instructions contained in this manual to ensure reliable and hassle free
usage.
Specifications
Dimensions: (L / W / H)
Keyboard: 483 x 183 x 45, Mouse: 115 x 65 x 40
Keyboard:
2.4 GHz radio frequency with USB Receiver
Working Range: 10 metres effective working range
Keyboard requires 2x AAA batteries
Compatible with Windows 2000, XP, Vista, 7 and Mac OS 9.0 or above
10 million key stroke life
107 keys (US Version) + 21 Internet/Multimedia Hot Keys
Mouse:
Requires 2x AA batteries
5

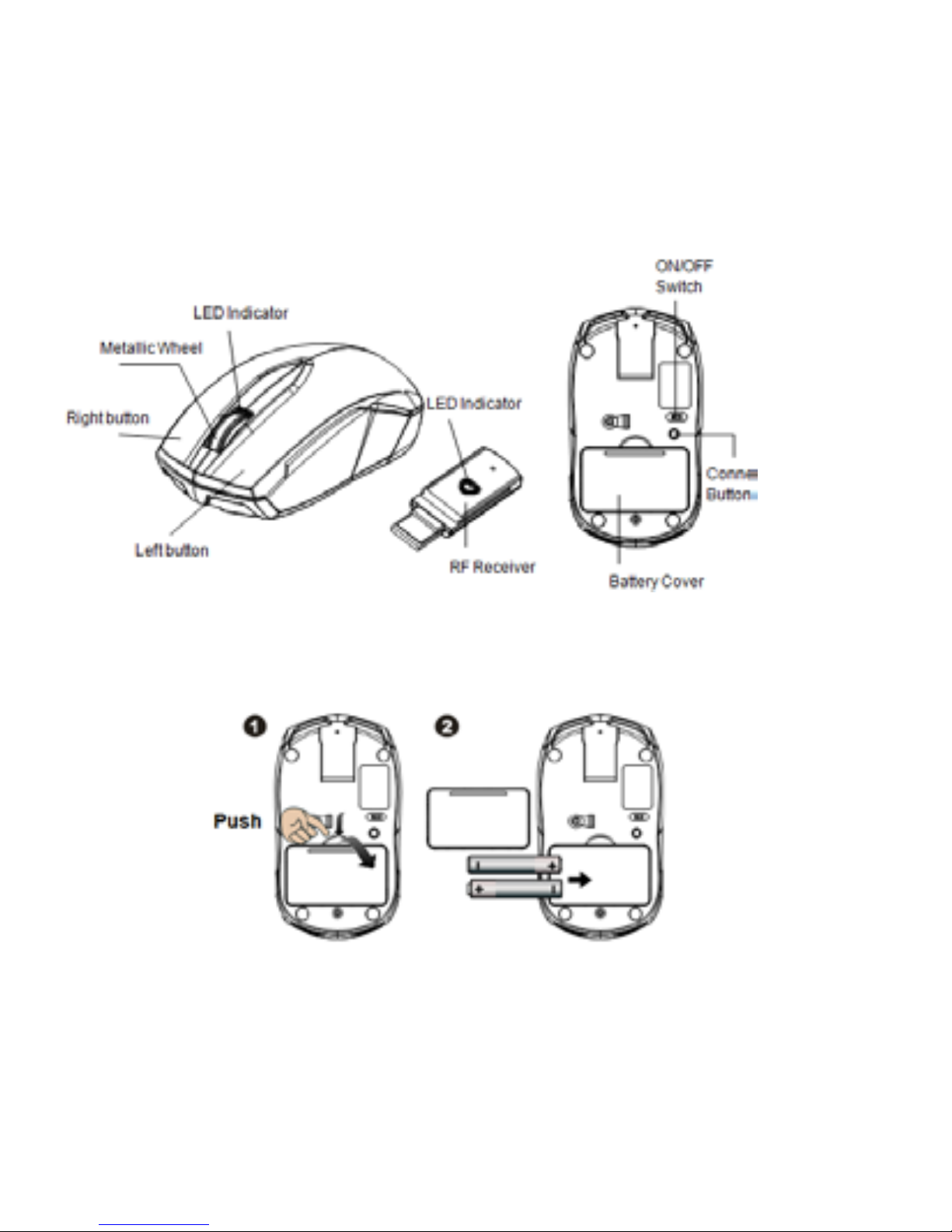

Setup Instructions
Pull the battery cover backward1.
Insert the batteries as shown inside the battery compartment2.
Replace the cover3.
6

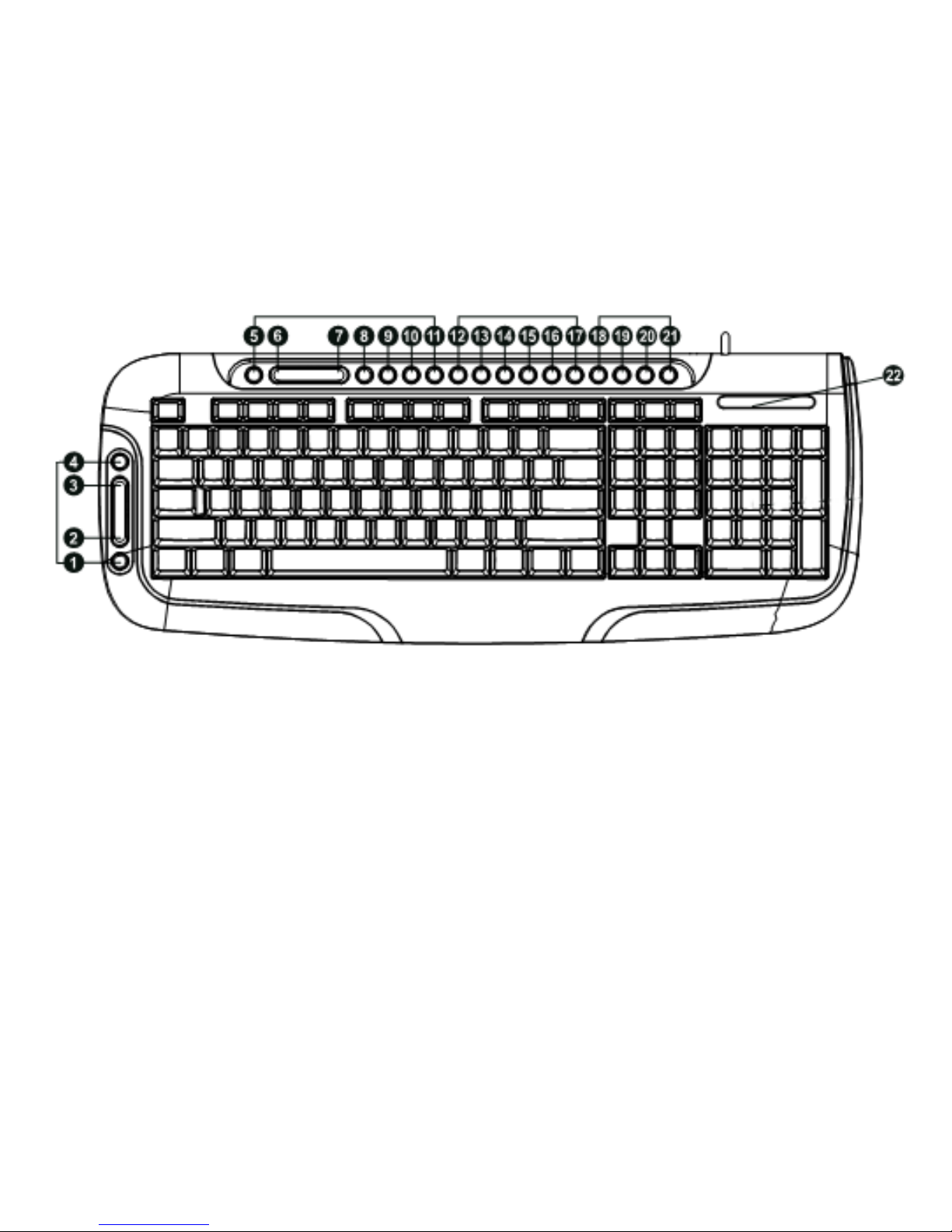

Keyboard Buttons
1. Stop
2. Zoom -
3. Zoom +
4. Media Player On
5. Key Lock
6. Voice -
7. Voice +
8. Mute
9. Play/Pause
10. Previous
11. Next
12. Home Page
13. Outlook
14. My Favourites
15. Refresh
16. Search
17. Previous Page
18. Next Page
19. Web Stop
20. My Computer
21. Calculator
22. LED Indicator
7
Setup the Connection between the Receiver and the Mouse, Keyboard.
Plug the RF receiver into the USB port of your computer.1.
Insert the batteries into the mouse and keyboard, then follow the steps2.
below.
If the mouse or the keyboard is not working, please put them into pair3.
mode.
Pairing: Re-plug the receiver into the USB port of your computer, then4.
press connect button of the mouse and keyboard. If the mouse or
keyboard do not work after 10 seconds, pair them again. (The receiver
has auto pairing function).

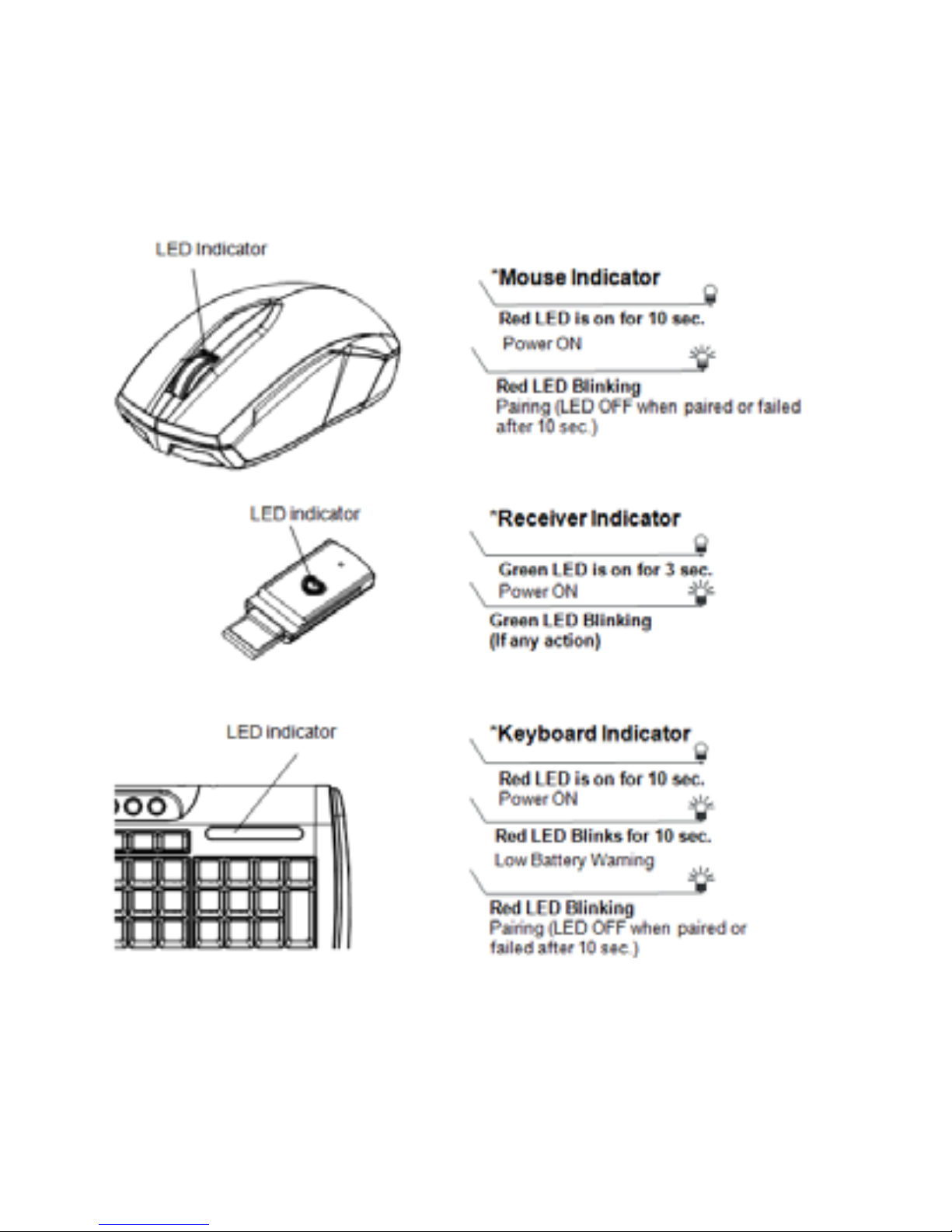

The LED indicator on receiver ashes when the mouse is moving or 5.
when the keyboard is in use.
When the battery of the keyboard is low, the Low Power indicator will6.
blink.
8
9
FCC Information
The Federal Communication Commission Radio Frequency Interference
Statement includes the following paragraph:
The equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna•
Increase the separation between the equipment and receiver•
Connect the equipment to an outlet on a circuit different from that to which•
the receiver is connected
Consult the dealer or an experienced radio/TV technician for help•
www.shintaro.com.au
