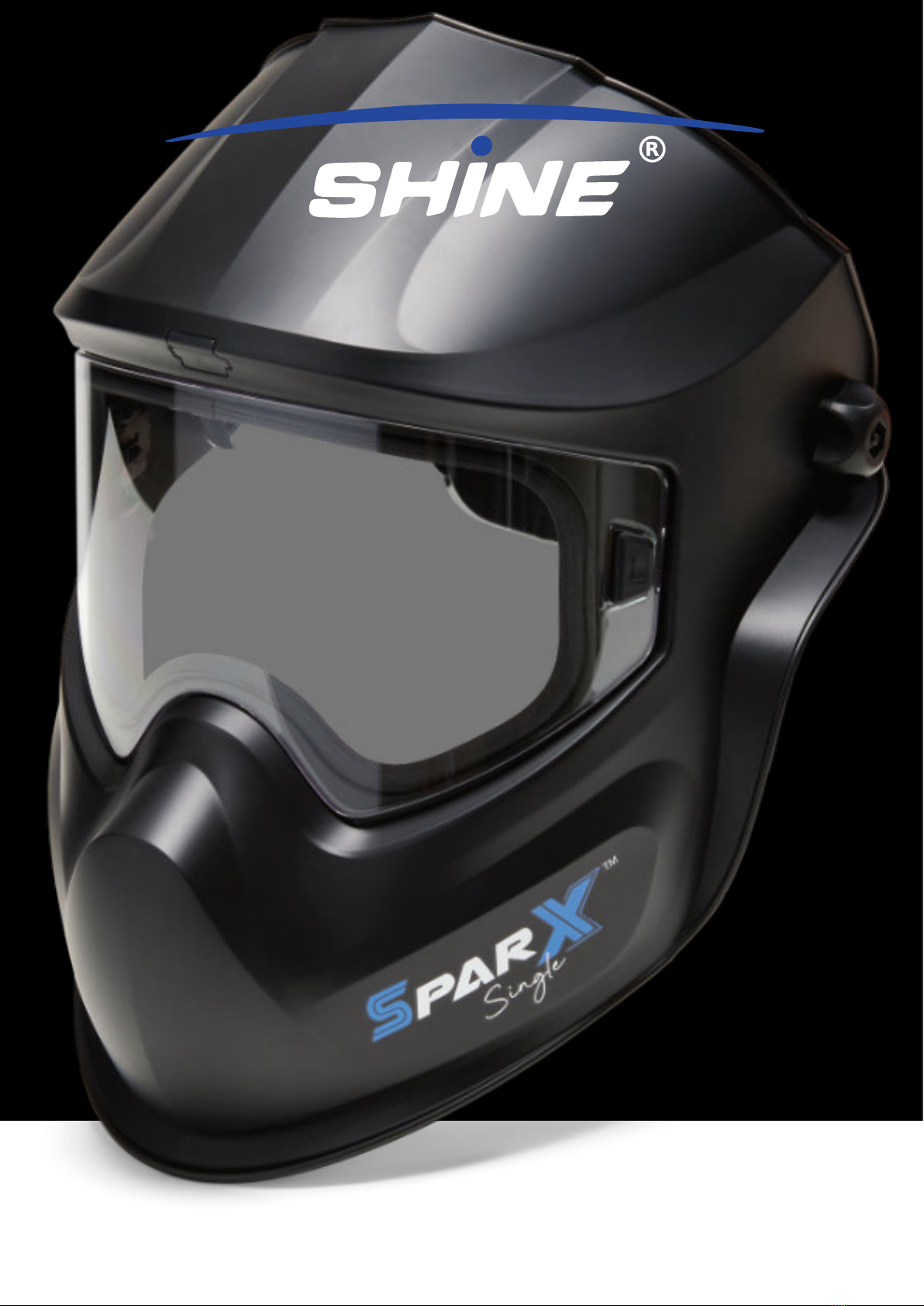

SparX Single
Professional Quality Grinding/Welding Helmet
WARNING Read and Understand All Instructions Before
Using the Equipment.
SAFETY WARNINGS
This helmet can only resist a certain amount of heat. Please do
not place hot electrode holders inside the helmet and please do
not place the helmet near naked ames or hot work surfaces.
Scratched or damaged visors and lenses must always be
replaced if broken, damaged or covered with spatter to the extent
that vision is impaired.
The user should conduct daily regular checks to ensure no
damage is evident. Materials that may get in contact with the
wearers skin could cause Allergic reactions to susceptible
individuals. Eye-protectors against high speed particles worn
over standard ophthalmic spectacles may transmit impacts, thus
creating a hazard to the wearer.
We recommend a use of the helmet and visors for a period of 5
years. The duration of use depends on various factors such as
use, cleaning storage and maintenance.
Please check regularly of the consumable components and
replace if serviceability or visibility is suspected to be affected, and
nally dispose when critical components not offered as spares
are suspected to be damaged or if serviceability is affected.
• This helmet is not suitable for laser welding.
• Never place this helmet on a hot surface.
• This helmet will not protect against explosive devices
or corrosive liquids.
• Do not make any modications to either the lens or
helmet, unless specied in this manual.
• Do not use replacement parts other than those speci
ed in this manual. Unauthorized modications and re
placement parts will void the warranty and expose the
operator to the risk of personal injury.
• Do not immerse the helmet in water.
• Do not use any solvents on the lter screen or helmet
components.
• Storing temperature: -20 °C ~ +85 °C (- 4 °F ~ +185
°F). The helmet should be stored in dry cool and dark
area, when not using it for a long time.
• Clean the lens surface regularly; do not use strong
cleaning solutions. Regularly replace the cracked/
scratched/pitted front lens.
CONTENTS
1. Instructions for use
2. Standards
3. Range of application
4. Preoperation and operation
5. Service and maintenance
6. Replacing the large visor
7. Replacing the outer ip visor
8. Part list and assembly
9. Shade calculation
10. Helmet marking explanation
1. INSTRUCTIONS FOR USE
Information manual for the Sparx Single welder protective helmets
comply with Paragraph 1.4 of Appendix II of the EC Regulations.
Sparx Single helmets offer permanent protection against UV/IR
rays, also face and eye protection from sparks caused by the
welding process.
Do not look directly at the welding rays with unprotected eyes
when the arc strikes. This can cause painful inammation of the
cornea and irreparable damage to the lens of the eye leading to
cataracts.
2. STANDARDS
The SparX single design and manfucaturing process complies
with CE EN175B EN166.
