Shenchen Precision Pump N6 Series Manuel utilisateur

Shenchen Precision Pump

Manual of N6 Series

DOMINIQUE DUTSCHER SAS

Warning

Tubing may have crack due to wear. It results in the overflow of

fluid from tubing. In that time human body and instruments may be hurt. Must

check usually and change tubing in time.

Please connect directly the power line to the wall socket, and avoid

using the extension electric line.

If power line or plug have wear and other damage, please unplug it.

If following situations happened, please turn off the pump, take off

the power plug.

1. Fluid splash on the pump.

2. You think the pump need to maintain or repair.

The user’s power socket must have ground wire, and have reliable

grounding.

Note: When connect foot pedal switch or external control, must turn off the

pump.

DOMINIQUE DUTSCHER SAS

Catalog

1. N6 Series Product Introduction....................................................................- 1 -

2. N6 Series Product Appearance.....................................................................- 1 -

3. N6 Series Keypad Instruction...................................................................... - 2 -

4. N6 Series Operation Interface......................................................................- 3 -

5. N6 Series Technical Specification..............................................................- 11 -

6. N6 Series Main Functions & Features....................................................... - 12 -

7. Product Dimension ....................................................................................- 13 -

8. External Control Instruction...................................................................... - 14 -

9. Maintenance................................................................................................-19-

10. Warranty and After Sales Service............................................................ - 20 -

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-1-

1. N6 Series Product Introduction

N6 series products with 303 stainless steel housing, 3.2 inch LCD screen

display; support variety of external control, RS232/RS485 communication,

standard MODBUS protocol (RTU mode), meet different requirements.

Suitable head: DZ25-3L, DZ25-6L, YZ35

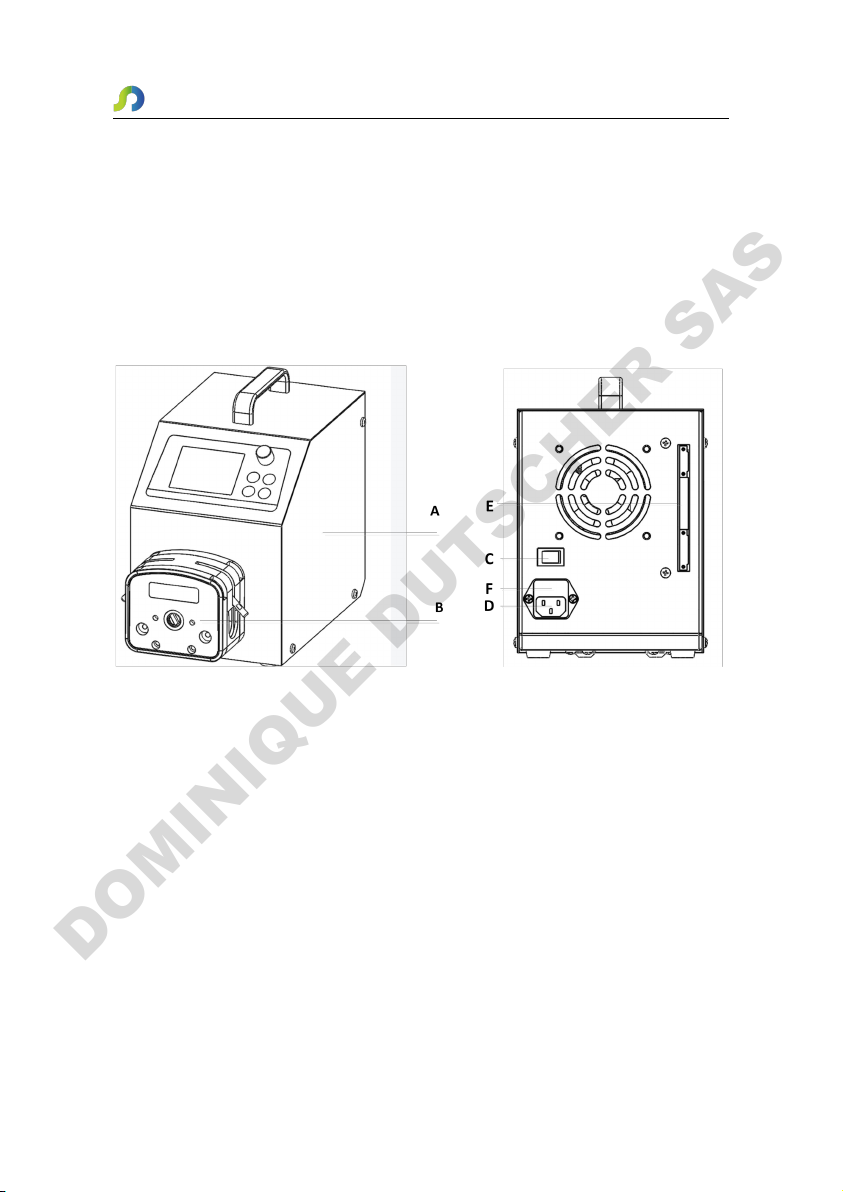

2. N6 Series Product Appearance

A——Drive

B——Pump head

C——Power switch

D——Power socket

E——External control interface

F——Fuse

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-2-

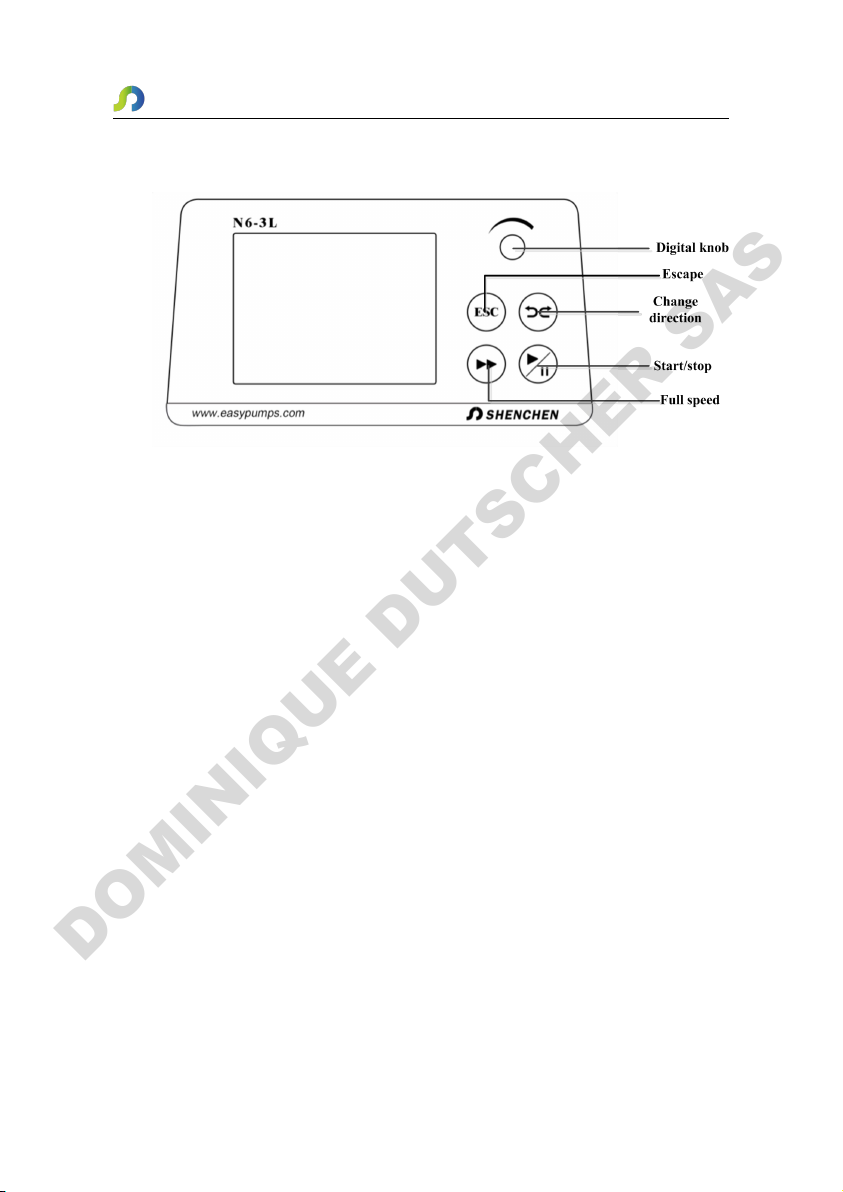

3. N6 Series Keypad Instruction

Start/stop button: Press this button, the pump start running. Press this button

again, pump stop running.

Change direction button: Press this button to change the pump running

direction.

Full speed button: When the pump is stop or in transferring state, press this

button, pump will run with full speed. This function used for fast fill liquid into

tube or wash the tube. In dispensing function, this button is invalid.

Digital knob: Turn this knob to adjust the speed/flow rate. When the pump is in

stop status, press this knob to enter menu interface, turn and press the knob to

set the parameters.

ESC button: In menu interface, press this button back to previous menu. In

stop status, press this button more than 5 seconds, to check the pump SN code

and programme version.

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-3-

4. N6 Series Operation Interface

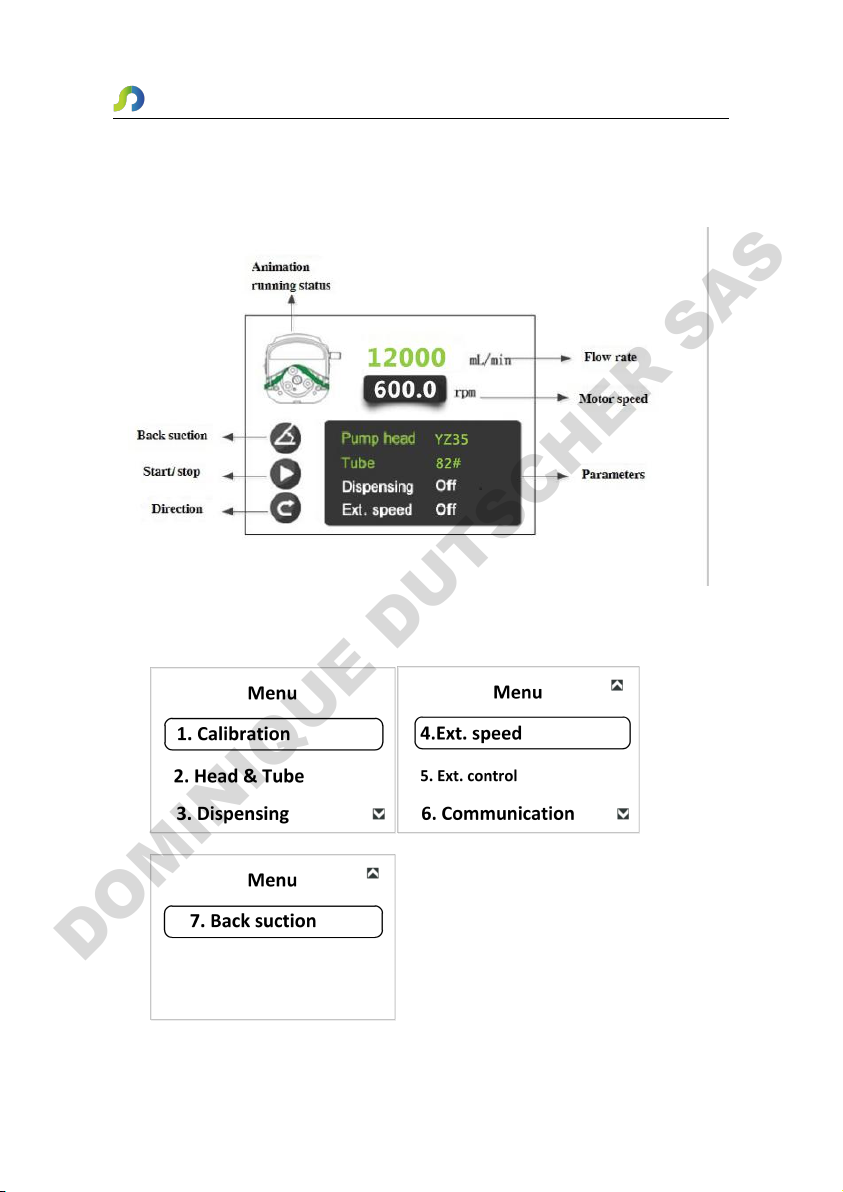

4.1 Main Interface

4.2 Menu Setting Interface

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-4-

Steps:

A. Press [digital knob] in the main interface to enter the menu setting interface,

press again to select the setting parameters.

B. Turn the [digital knob] to move up and down to select the parameter to be set.

C. Press [ digital knob] to enter the next setting parameters interface.

D. Press [ESC] to back to main interface.

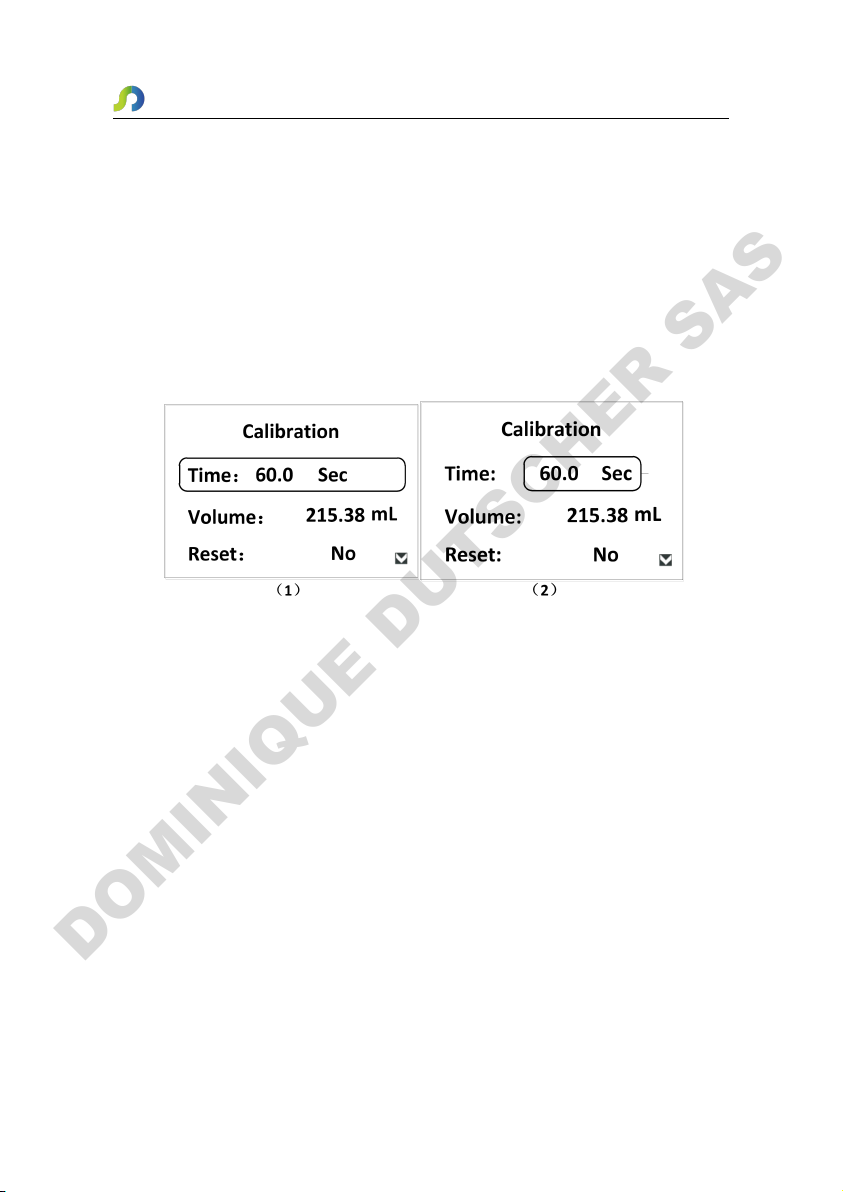

4.2.1 Calibration Interface

Steps:

A. After entering this interface, the test time defaults to 60 seconds, and the actual

liquid volume defaults to the liquid volume displayed according to the current set

flow rate.

B. Press the [digital knob] key to select the test time. In the (1) state, turn the [knob],

move the cursor to the [volume] line, and then press the [Start] button to start the

pump for calibration. A countdown is displayed at the test time.

C. You can also switch to the (2) state by pressing the [ digital knob] in the (1) state,

then turn the [digital knob] in the (2) state to set the test time.

D. After the countdown is over, the cursor jumps directly to the actual liquid volume,

then turn the knob enters the actual liquid volume.

E. After enter the actual volume, press the [ digital knob] to confirm the entry. The

‘Calibration finished!’ dialog box will pop up. Press the knob again back to

calibration interface.

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-5-

F. Reset function: Select ‘Yes’ and press[ digital knob], the ‘Reset calibration

finished!’ dialog box will pop up, the calibrate factor been restored.

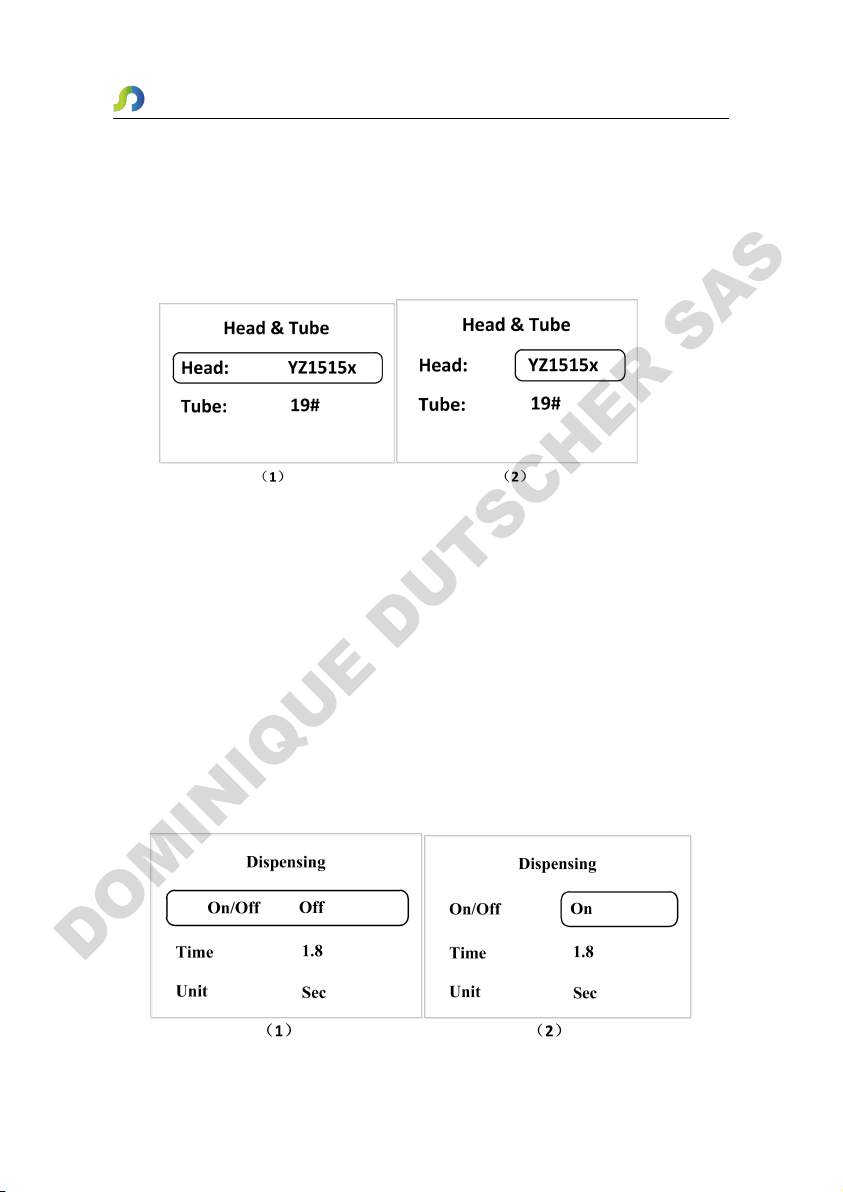

4.2.2 Select Pump Head & Tube Interface

Steps:

a. Select the pump head model by pressing the [ digital knob] in Head & Tube

interface. In the (1) state, turn the [digital knob] to move the cursor up and down to

select set pump head or tube size.

b. In the (1) state, press the [digital knob] to switch to the (2) state.

c. In the (2) state, turn the [digital knob] to select the pump head model.

e. In the (2) state, press the [digital knob] or [ESC] to return to the (1) state and

confirm the selected pump head or tube size.

4.2.3 Dispensing Interface

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-6-

Steps:

A. Press [digital knob] in the dispensing interface, the interface turn to (1) state.

Turn the knob to select setting On/Off, Time or Unit.

B. In (1) state, press the knob change the interface to (2) state.

C. In (1) state, press [ESC] back to menu interface.

D. In (2) state, turn knob to turn On/off dispensing function, or set the dispensing

time(0.1-9999s), or set the time unit ( second, minute, hour).

E. In (2) state, press knob or [ESC] back to (1) state and confirm the setting

parameters.

Note: 1. After turn on the dispensing function, the pump will stop automatically

when reach the setting time.

2. After turn on the dispensing function, external control speed is invalid.

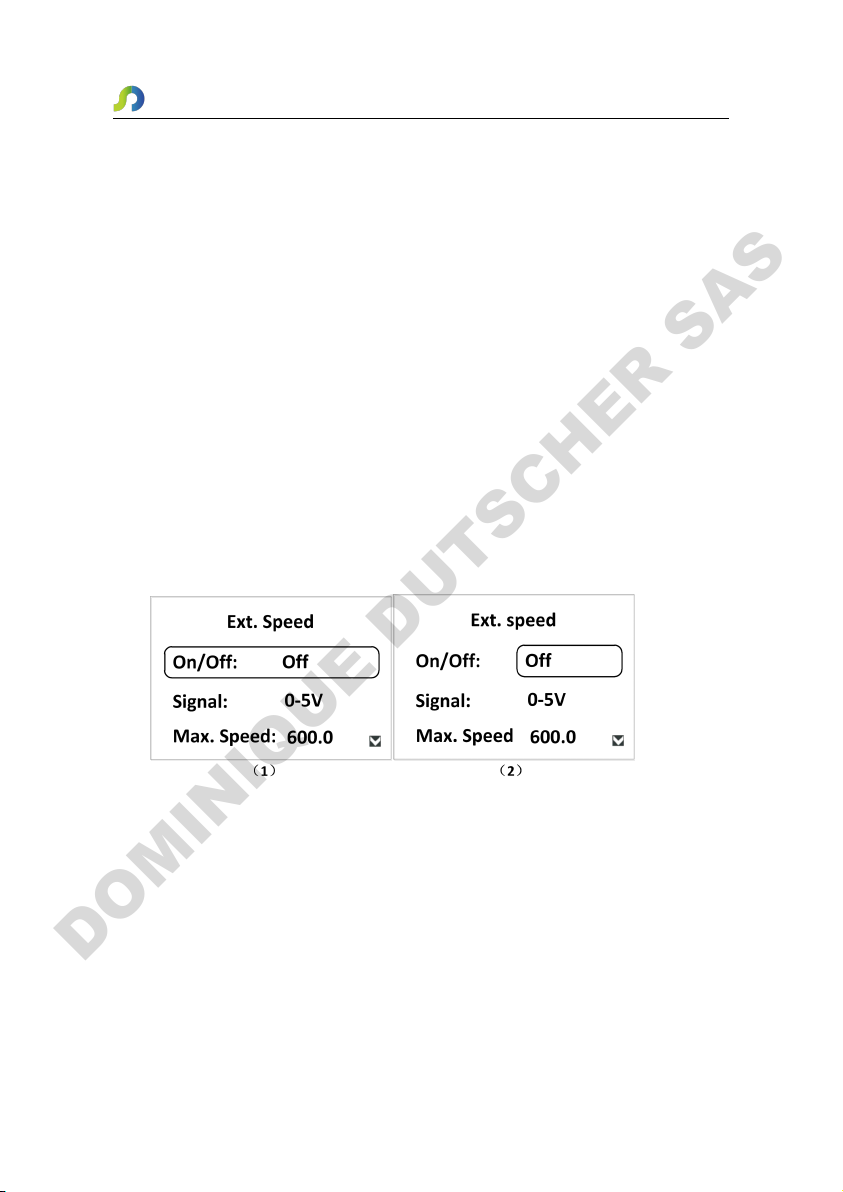

4.2.4 External Control Speed Interface

Steps:

A. Press [ digital knob] on the external control speed interface to select the external

control speed. In the (1) state, turn the knob to move up and down to select the

external control speed, signal type or maximum speed.

B. In the (1) state, press knob to the (2) state.

C. In the (1) state, press the [ESC] back to menu interface.

D. In the (2) state, turn the [digital knob] to select the external control speed control

on/off or select the signal type: 0-5V/0-10V/4-20mA or select the maximum speed.

DOMINIQUE DUTSCHER SAS

Shenchen Pump N6 Series

-7-

E. In the (2) state, press the [digital knob] or [ESC] to return to the (1) state and

confirm the selected item.

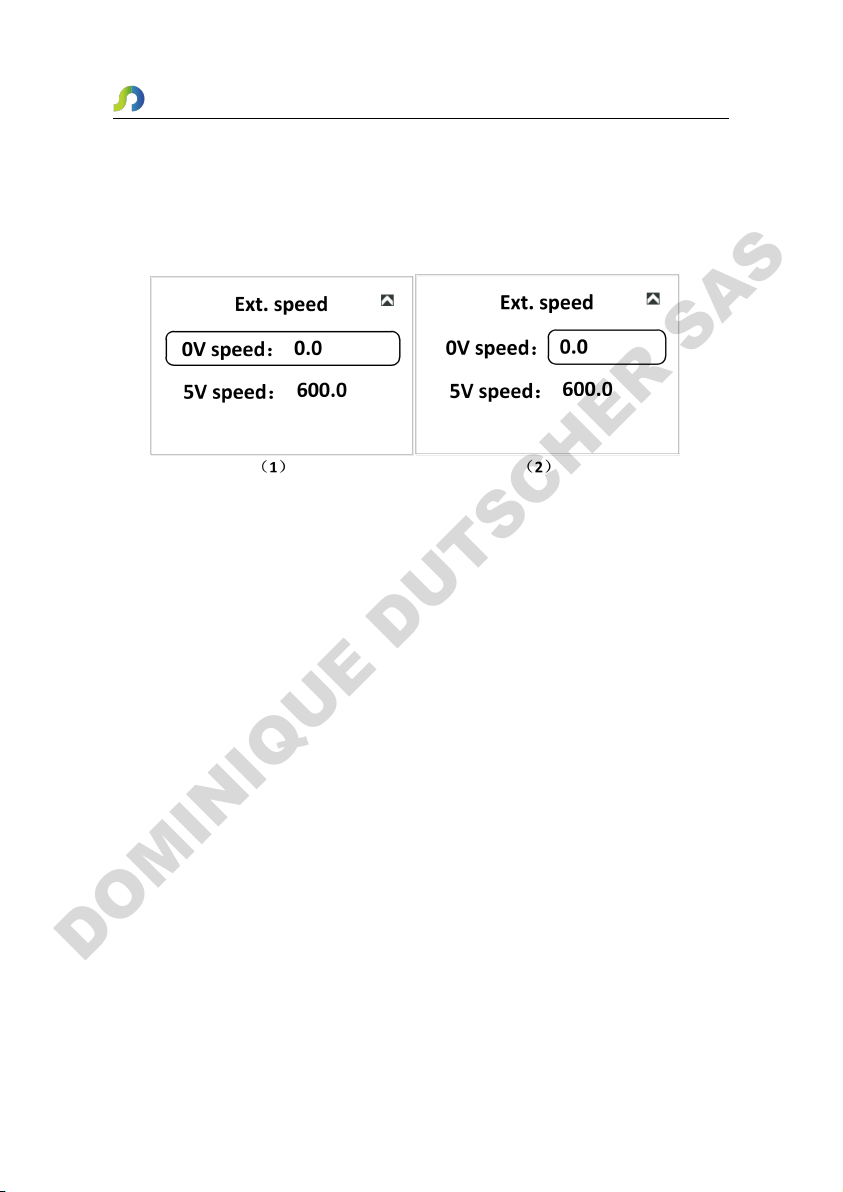

F. In the (1) state, turn the [ digital knob] clockwise to enter the external control

speed customization interface, as shown below:

G. In the (1) state, turn the [digital knob] to select (4mA corresponding speed: 0) or

(20mA corresponding speed: 600).

H. In the (1) state, press the [digital knob] to the (2) state.

I. In the (1) state, press the [ESC] to return to the [Setup Menu Selection Screen]

J. In the (2) state, turn the [digital knob] to set the corresponding speed for each part.

K. In the (2) state, press the [digital knob] or the [ESC] to return to the (1) state and

confirm the selected item.

External control speed limit

Select external control signal according to external input signal, 0-5V, 0-10V,

4-20mA for option. External control speed can set the maximum speed, when the

maximum speed is 600rpm, the analog signal voltage range has a linear relationship

with the motor speed.

If the maximum speed is not 600 rpm, the motor speed will be limited by the analog

signal. When the motor speed and the analog signal amount reach the set maximum

speed according to the corresponding proportional relationship, then when the analog

signal amount is increased, the motor speed is set by The operation at a fixed

maximum speed does not follow the increase of analog signal quantity. For example:

DOMINIQUE DUTSCHER SAS
