ShelterLogic 70443 Manuel utilisateur

.800.524.9970

12x12x8 House Style #70443

Grey /w

Please read instructions completely before assembly

17Wood Street

West Haven, CT

06516

1-70443 8/26/04

PAGE 1

Manufactured Under

U.S. Patent’s

D415,571 D409,310

D430,306 D414,564

Other Patents Pending

11-Pc 4Ribs

Description Part # Qty.

13347

13342

13341

13346 4

Cross Rail Swedged Ends

Cross Rail Plain Ends 24"L

24"L

13344

13345

4-Way Side Connectors

4-Way Top Connectors

13301

13303

13302

3-Way Side Connectors

3-Way Top Connectors 13304 2

13305 2

All-Weather Cover 13380 1

2 Zipper Door 10012 1

Back Panel 10011 1

Bent Corner Leg 13309 4

Swedged Middle Tube 32.3"L

39"L

Swedged Rafter Pole

Swedged Rafter Pole 23.4"L

Swedged Side Pole 22"L

Description Part # Qty.

4-Way Cover Rail Clamp 13201 8

3-Way Cover Rail Clamp 13202 8

1/4” x 1 7/8" Bolts 3032 8

1/4” x 1 5/8” Bolts 10115 20

1/4” Nuts 1010 28

Turnbuckles 1/4" 704

1011

PAGE 2

.800.524.9970

Frame Assembly Overview

847

Gasket 1/4"

Temporary 15 ”Auger Anchors

Cable - 1 ’ Lengths

Cable Clamps

847

Cable 52" Length 12178 4

13347

13303

13301

13347

13302

13304

13303

13305

13304

13302

13342

12178

13341

13309 13344 13345

13346

13344

13345

13341

13303

13345

13344

13347 1334713342 13342

13303

13301

13302

13301

13303

13304

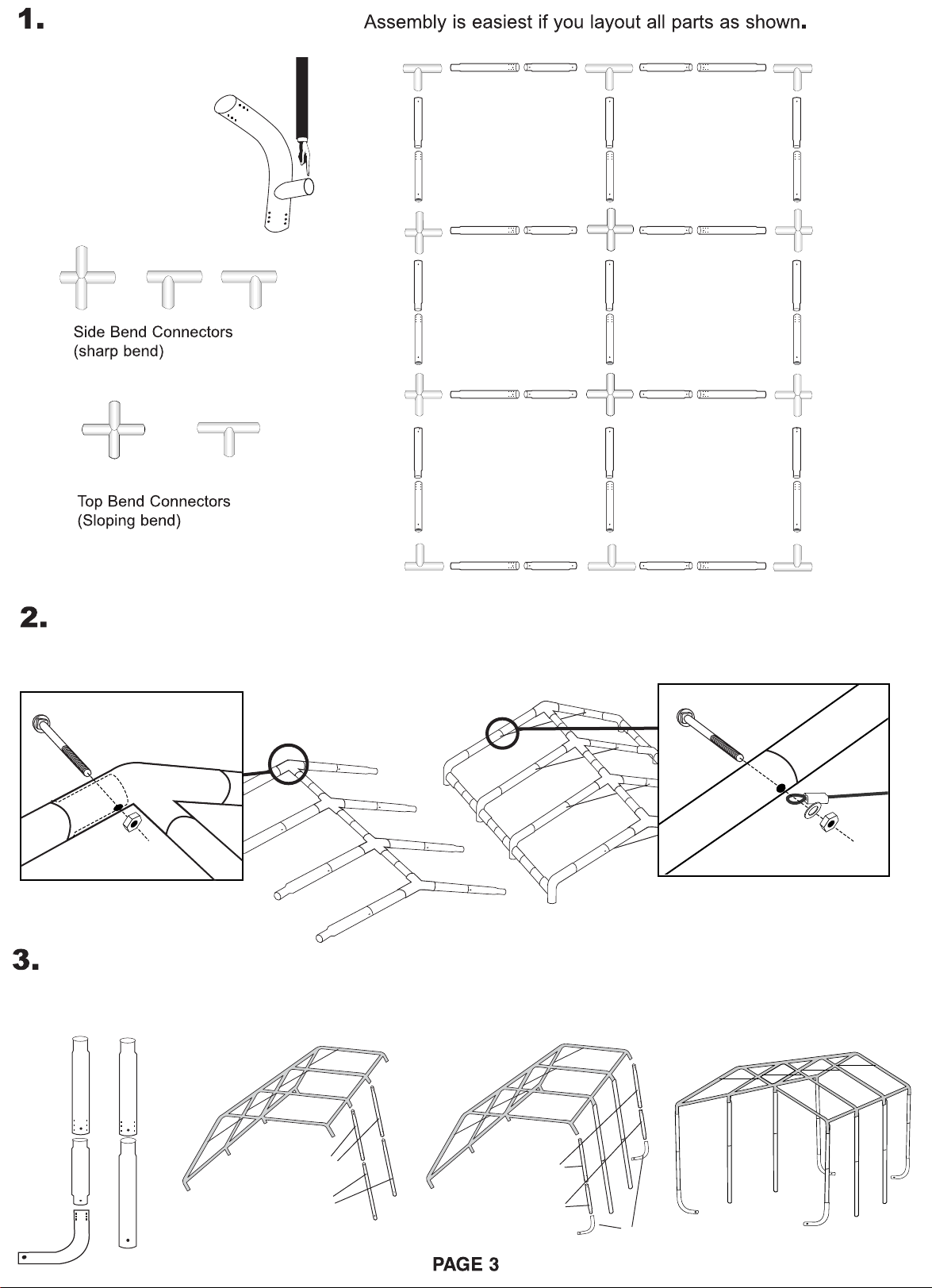

assembly together as shown in Fig. 1A. Assemble each side of the roof as shown in Fig. 2. Note: Bolts are not

required for these connections. Install #12178 truss brace roof cables as shown in Fig. 2A.

Start with center, Fig. 1, using layout shown in diagram above. Bolt roof

Assemble corner leg poles as shown in Fig. 3 and set aside. Assemble

middle leg poles as shown in Fig. 4. Insert middle leg pole assembly as shown in Fig. 5, then the corner leg

assembly as shown in Fig. 6. Repeat step 3 at opposite side. Note: No bolts are required for these connections.

13347

13341

13309

13347

13346

13347

13346

13347

13341

13309

Note:

When Installed the welded socket

for the cross rail must be below the

bend

Layout Roof Parts

Assemble Roof

Attach Uprights

13305

Fig. 3

Fig. 4

Fig. 5 Fig. 6

Fig. 7

Fig. 1

Fig. 2

Note: Install all carriage bolts

with nut toward center of frame.

Fig. 1A

Fig. 2A

10115

1010

3032

12178

1010

1011

13347 1334713342 13342

13345

13344

13345

13344

13345

13344

13345

13344

13345

13344

13345

13344

13345

13344

13345

13344

Anchors must be placed

inside of shelter.

Be sure to thread cable

through the hole in the

corner leg bend, through

the eye of the anchor, and

secure with clamp.

Fig. 8

Fig. 9

4. Anchor Shelter

Place the frame in its final position and check that it measures 12'

in width and is square across opposite corners. See Fig. 8 below.

Screw the (4) 15" temporary augers into the earth at the four

corners. Secure with cable and clamp as shown in Fig. 9.

Attention: 15" augers are for temporary use only! We recommend

32" augers, 6-8 minimum for use in a permanent installation.

5. Install Door & Back Panel

Starting from the peak, remove the cross pole from the 3-way top connector. Place exposed rope at the top of

the panel over the 3-way connector and under the cross pole as shown in Fig. 10. Replace the cross pole. At

each corner, remove the cross pole and fold the fabric around to the inside placing the 3-way socket through

the opening in the fabric as shown in Fig. 11. Tighten the panel by inserting 'S' hooks into the holes in the corner

legs, pulling and tying off as shown in Fig. 12. Repeat step 5 for 2 zipper door.

12'

Fig. 10 Fig. 11

Fig. 12

1.800.524.9970

13344 13345

middle leg

clamps

corner leg

clamps

Fig. 13

Fig. 14

Fig. 15

10115

1011

1010

13202

13201

1011

1010

Fig. 16

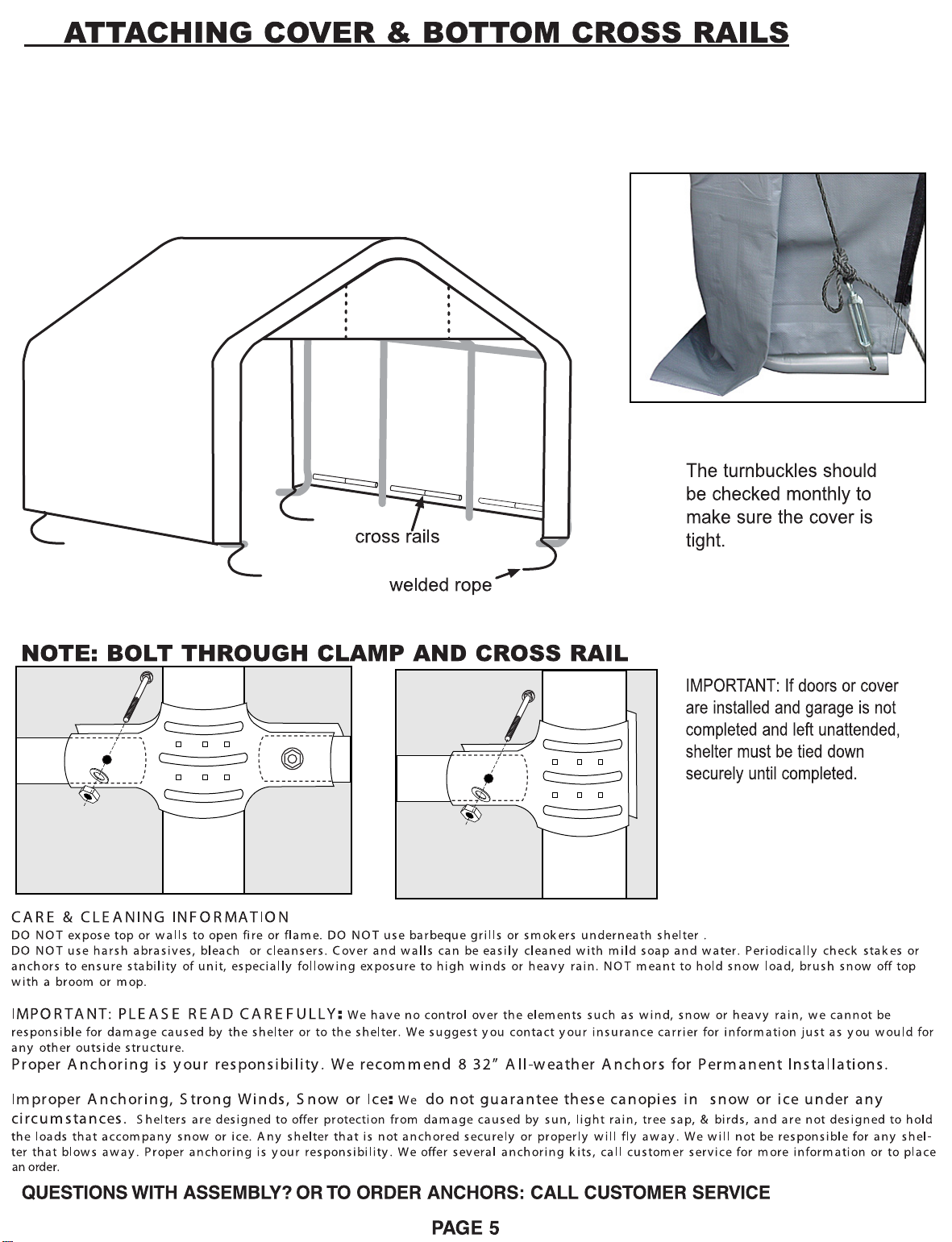

Pull cover over frame. The welded-in ropes should be at the front and back corners of the garage. Note: The pocket at the

base, running along the sides of the cover, should be on the inside. Loosen the (4) turnbuckles and tie the ropes loosely to

each one. Insert turnbuckles into holes at each corner leg as shown in Fig. 14.

Assemble cross-rail poles as shown in Fig. 13. Slide assembled poles through fabric pockets at each leg and secure with half

clamps as shown in Fig. 15 (middle legs) and Fig. 16 (corner legs). Note: Push down on cross rails to tighten cover before

tightening bolts completely. Tighten turnbuckles to make final adjustments to cover.

Outside Corner View

1.800.524.9970
