COLOUR TELEVISION

OPERATION MANUAL

MODEL IA7

sx-51A8

(OPTIONAL

TELETEXT FACILITY)

(TELETEXT MODEL)

Dear SHARP Customers

a radio receiver.

Before using this COLOUR TELEVISION RECEIVER please read this Operation Manual carefully. Be

sure to save this manual for future use, especially SX51A7owners that may update to the Teletext option.

This manual covers two models, the SX51A8which is fitted with teletext facilities and the SX51A7 which

is sold without the Teletext facilities but can be updated to the SX51A8 model with Teletext at a later

date by purchasing the Teletext kit (No. AN222TX) from the retailer and having it installed for a fee

at a SHARP service centre.

NOTE: As purchased, the SX51A7 remote control Teletext buttons will be inoperative until the Teletext

kit has been installed in your TV.

Controls & Terminals

Opening the door

Press the upper centre of the door as

illustrated, opening it slightly. Hook your

finger inside and pull open.

1 Behind the Door 1

I I

-Remote control sensor

Red I green power

indicator

Power on/off butto-

Channel selector up (A)/dow

(V) buttons

Volume. channel tunin

and picture adjustment

buttons

I I

1 I Sh P i *.i QESET 3 MODE \.‘A/\ \/CH/\

BL’JE

t3ACh Oi

Blueback (on /off) butrow

Picture mode select button

(contrast, colour, brightness)

Preset button

Fine tuning button

kip/Call button

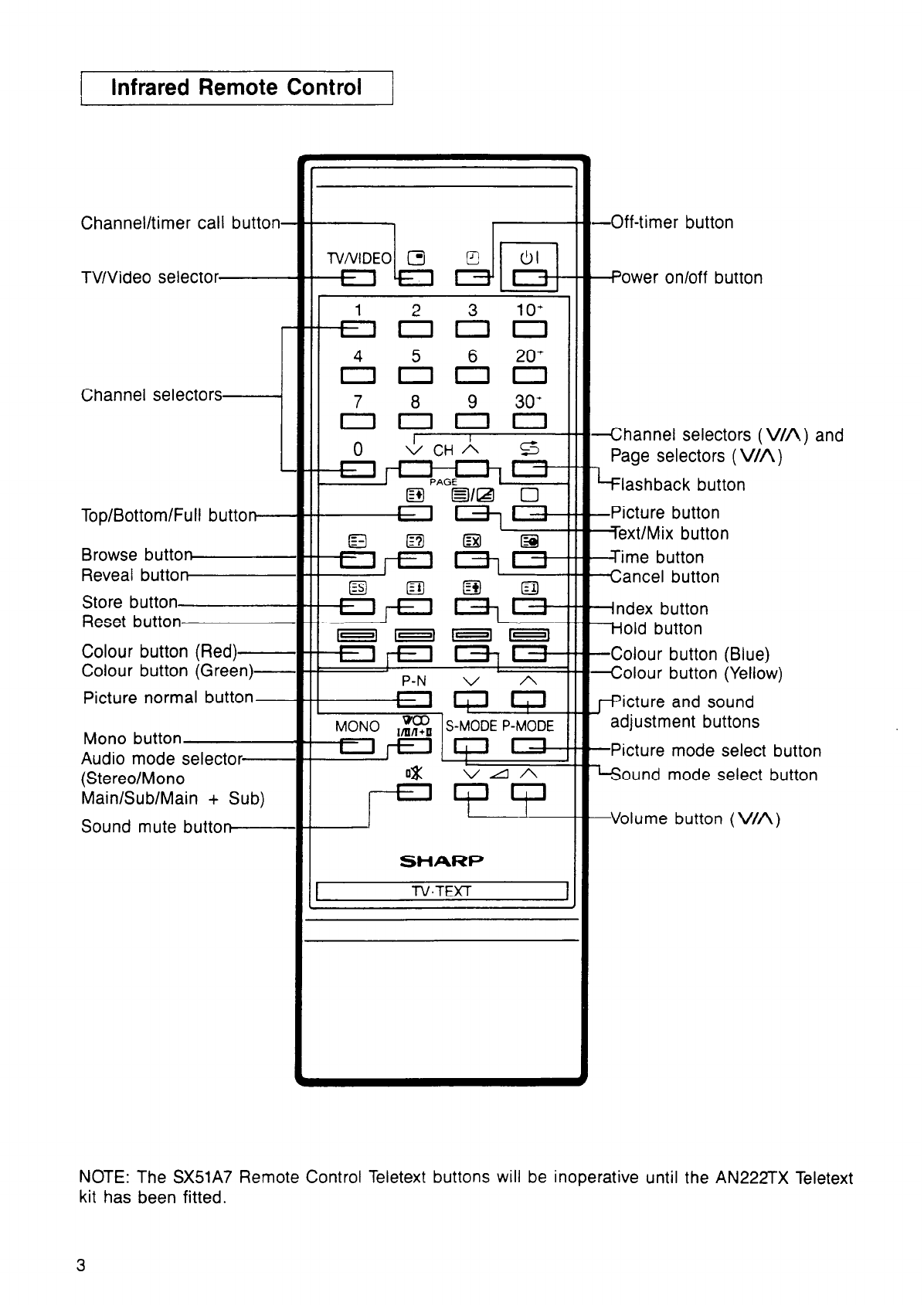

1 Infrared Remote Control

Channel/timer call button-

TV/Video selector

Channel selectors

Top/Bottom/Full button---

Browse butto-

Reveal buttor+----

Store button

Reset button

Colour button (Red)-

Colour button (Green)-

Picture normal button-

Mono button

Audio mode selector-

(Stereo/Mono

Main/Sub/Main + Sub)

Sound mute button--- J I I

SHARP

TV.TEXT I

-Off-timer button

--Power on/off button

-Channel selectors (V/A) and

Page selectors (V/A)

4 lashback button

-Picture button

IextlMix button

-Time button

-Cancel button

--Index button

Hold button

-Colour button (Blue)

-Colour button (Yellow)

picture and sound

adjustment buttons

-Picture mode select button

‘Sound mode select button

-Volume button (V/A)

NOTE: The SX51A7 Remote Control Teletext buttons will be inoperative until the AN222TX Teletext

kit has been fitted.

1 Back 1

Battery mounting

. Insert two AA or UM-3 1.W batteries as

illustrated and replace the cover.

Notes

The infrared transmitter requires 3 volts for

operation. If the transmitter operating

power is insufficient, replace the batteries.

Position the positive and negative sides of

the batteries properly. Use of batteries other

than those specified may make the remote

control transmitter inoperative.

---_

====

----

---_

==-- ====

----

ntenna terminal

ain power on/off button

CAUTION:

Remove the power plug from the power point if

the TV is not to be used for an extended period.

)‘ideo Input terminal

I Video output terminal

Audio output terminals

@Power source and TV system

This TV set can be operated on 240V AC,

50 Hz. It is designed exclusively for PAL-B

(Australian STD) broadcast systems.

(Back) @ Power Supply “On/Off” with 2-Colour

(Red/Green) Power Indicator

When the main power on/off button (&I ) at

the rear of the set is pressed, the TV set

will be in standby with the power indicator

illuminated red. Then, when the power

on/off button behind the door or on the

(Behind the Door) remote control is pressed, the power

indicator will turn green and a picture will

appear on the screen. The channel

programme number is also displayed in the

upper right corner of the screen. Press the

power on/off button (01) behind the door

or on the remote control to return the set

(Infrared Remote Control) to standby mode (the power indicator will

4 # be illuminated red).

NOTE:

TV/VIDEO 0

on&i If the TV fails to turn ON, please check that

the Child Lock mode has not been

&&&I previously engaged (see page 22).

&A&

ISAGiEl

P-MODE V/IA @ Sound volume “(V 4 A)”

The volume can be adjusted by pressing

a volume button on the set or on the remote

control. Press the Voiume (A) button to

increase the volume and the Volume (V)

button to decrease the volume. The volume

level is indicated by the number of

rectangles “I n . . ” displayed after the

“ 4 ” in the screen.

VAA

VCHA 04 Channel Selection “ V CH A”

The channel number is displayed on the

screen when the Channel selector Up (A)

button or Down (V) button is pressed on the

I I set or on the remote control.

When the Channel (A) button is pressed, the

channel number will change as follows:

AiS&& 1.2.3...38.39.1.2... Each time the Channel (V)

button is pressed, the channel number will

AA&& change as follows: 39.38.37 .... 2.1.39.38 .....

Channel lSA6z5 The Channel selector buttons on the

remote control can also be pressed to

select V CH A

buttons A &I directly select the desired channel. If the

factory preset channel frequencies do not

& match your local channel frequencies, refer

to Presetting the Channels.

_------------_--___------------------~~

Channel Selection Using the Infrared Remote Control

Channel to be selected Channel selector button to be pressed.

Channel 1 - 9 Press the & - & buttons.

Channel 10 - 19 Press the & button (“l-” displayed for about 6 seconds), and

then the& - & button.

Note: Be sure to press the buttons within 5 seconds after the

& button is pressed. because the & button is

cancelled in about 6 seconds.

Channel 20 - 29 Press the ‘O’ button (‘12-” displayed for about 6 seconds), and

then the&e& button.

Note: Refer to the note for Channel 10 - 19.

Channel 30 - 39 Press the & button (“3-” displayed for about 6 seconds on the

screen), and then the ,$-A button.

Note: Refer to the note for Channel 10 - 19.

Notes:

11) The selected channel number will appear on the screen for about 3 seconds before it

disappears and the TV screen returns to its normal state.

12) When the Channel selector (A) or (V) button on the TV set or on the remote control

is held down, the channel number changes once per second. Release the Channel (A)

or (Vj button when the desired channel number appears on the screen.

1. SKIP FINE PRESET P-MODE @ - @ Presetting the Channels

oop (AUTO SEARCH TUNING SYSTEM)

Note: Most channels are preset at the factory.

CALL To avoid unnecessary resetting, check the

(ON SCREEN) tuning of all channels before resetting them.

1 1. Press the Preset button behind the door

VHF-L 111... . . . . . . . .

“1 1

and the band, VHF or UHF, that you wish to

M mory TV preset. Press the button once for the VHF

band. Press again for the UHF band. Press

station again when you have finished presetting the

Band lndicato

(VHF-L, VHF-H, UHF) Channel channel. (VHF-L l-5, VHF-H 5a-11, UHF

Number 28-69).

2. VCHA

UHF 111. . ... ... 1

:hannel

elect

uttons

,,39 I

UHF 111 I

. . . . . . ..-

(green- red- green)

SKIP FINE PRESET P-MODE

SKIP FINE PRESET P-MODE V/1/Y VCHA

2. Select the channel number (l-39) you

wish to store with the Channel selector

(A) button on the TV or the remote

control.

3. Next press the Volume up (A) or down,

(V) button on the TV. The band

indicator will turn red and the TV will

begin to search for a television

broadcast. The band indicator will turn

green when television broadcast has

been found.

4. Repeat steps 2 and 3 to preset the

other channels.

5. Press the reset button to return to the

normal mode. A green channel number

will be displayed on the screen for a

short period.

a- @ Fine tuning

When receiving a channel that is weak

the signal can sometimes be improved

by turning off the Automatic Fine

Tuning (AFT). By pressing the FINE

button and at the same time pressing

either the (A) or (V) volume buttons.

Fine tune the channel to your

preference. The AFT will now be turned

off and this will be indicated by the

channel turning yellow. Toturn the AFT

back on first press the preset button

until the band indicator and the picture

is visible, then press both the FINE and

either the (A) or (V) volume buttons

momentarily. Press the preset switch

until the band indicator disappears.

The AFT will now be turned on and this

will be indicated by the channel

number turning green.

SKIP FINE PRESET P-MODE

oopn

CALL

SKIP FINE PRESET P-MODE

000

SKIP FINE PRESET P-MODE

1. SKIP FINE PRESET P-MODE @ -@ Resetting Skipped Channels

CALL

2. VCHA I

3 SKIP FINE PRESET P-MODE

ml I

5. SKIP FINE PRESET P-MODE

00~0

CALL

@ - @ Skipping Channels

The Channel selector (A) button and (V

button on the set and remote control normally

cycle through all the channels, 1 through 39

If you wish, you can set the TV so that onl)

selected channels are tuned in while other

perhaps empty channels, are skipped.

Press the Preset button.

Select a channel number you wish to skif

with the Channel selector (A) or (V

button on the TV set or remote control.

Press the Skip button. The displayed than

nel number will turn from green to red.

Repeat steps 2 and 3 if you wish to skip

other channels.

Press the Preset button again to return tc

normal mode. A green channel number wili

be displayed on the screen.

Note:

Ifyou select the channels to be skipped with the

Channel select buttons on the remote control,

the channel number will be displayed in red.

Press the Reset button.

Select a skipped channel number, displayed

in red, with the Channel selector (A) or (V)

button on the set or on the remote

control.

Press the Skip button, the displayed

channel number will turn green, and the

channel will no longer be skipped.

Repeat steps 2 and 3 for any other

channels you wish to stop skipping.

Press the Preset button again to return

to normal mode.

Notes:

1) It is most practical to start this process at

channel number 1, and repeat as needed up

to channel number 39.

2) The n/ will return to normal mode if you do

not proceed to the next step within about 10

seconds after pressing the Preset button. If it

does, press the Preset button again to execute

the following step.

3. When the received broadcast signal is weak,

the picture may appear in black and white only

or you may be able to preset the channel. In

this case, please check the antenna or consul?

your appliance store.

1.2

FINE PRESET P-MODE

P-MODE V/1A

(ON SCREEN)

Contrast Mark

f---e

Decrease Increase

Colour Mark

f---e

Decrease Increase

Brightness Mark

(ON SCREEN)

Contrast Mark

@ I I I I I I I I I ¤==~.==.‘=

----_)

Decrease Increase

6 Additional Picture Adjustments

(Contrast, Colour, Brightness)

Press the Picture mode (P-MODE) button

behind the door or the Picture mode

(P-MODE) button on the remote control.

l ON-SCREEN

Contrast Mark @ -99 Red

Colour Mark @ n -- Green

Brightness Mark -lG.- l mmGreen

When you press the Picture mode

(P-MODE) button two times the Colour

Mark will change from green to RED; when

You press the Picture mode

(P-MODE) button three times the

Brightness Mark will change from green to

RED.

Press the P-mode control until the control

you wish to adjust is red in colour. Press

the volume (A) or (V) or the (A) or the

(V) button on the remote control to adjust

the picture to your liking.

Note:

The display will disappear after about 6 seconds.

Adjust the mode you selected with the Mode

button within this time.

4. When you press only the Adjustment (I‘ V

or (A”) buttons without pressing the

Picture mode (P-MODE) button on the

remote control you can adjust the

contrast with one touch).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp TV

Sharp

Sharp CX68KF5 Manuel utilisateur

Sharp

Sharp 20N-S100S Manuel utilisateur

Sharp

Sharp LC-60LE925E Manuel utilisateur

Sharp

Sharp 20SL43 Manuel utilisateur

Sharp

Sharp 28LF-96EC Manuel utilisateur

Sharp

Sharp CX51N3 Manuel utilisateur

Sharp

Sharp 21BM2GMK2 Manuel utilisateur

Sharp

Sharp LC-32DH57E-BK Manuel utilisateur

Sharp

Sharp 21F-PA18 Manuel utilisateur

Sharp

Sharp LC-43CUG8462ES Manuel utilisateur

Sharp

Sharp LC-32A40L Manuel utilisateur

Sharp

Sharp LC-22LE250V Manuel utilisateur

Sharp

Sharp AQUOS LC-55N7004U Manuel utilisateur

Sharp

Sharp LC-37D40U Manuel utilisateur

Sharp

Sharp AQUOS LC-22SB24U Manuel utilisateur

Sharp

Sharp LC-32LE154V Manuel utilisateur

Sharp

Sharp LC32DV24U - 31.5" LCD TV Manuel utilisateur

Sharp

Sharp 54CS-05S Manuel utilisateur

Sharp

Sharp AQUOS LC-60LE830M Manuel utilisateur

Sharp

Sharp 81GF-63E Manuel utilisateur

Sharp

Sharp 21C-FX1C Manuel utilisateur

Sharp

Sharp 32U-S50 Manuel utilisateur

Sharp

Sharp 37DM-23S Manuel utilisateur

Sharp

Sharp 14V-R70M Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
