Sharp 51GT-25S Manuel utilisateur

51GT-25S

GA-1 CHASSIS

MODEL 51GT-25S

Issued: 15th Nov ‘00

SERVICE MANUAL

SHARP CORPORATION

PAL SYSTEM COLOUR TELEVISION

SESG51GT25S00

In the interests of user safety (required by safety

regulations in some countries) the set should restored

to its original condition and only parts identical to

those specified should be used.

This document has been published to

be used for after sales service only.

ELECTRICAL SPECIFICATION........................3

IMPORTANT SERVICING NOTES ..................4

SERVICE ADJUSTMENTS...............................5

PRINTED WIRING BOARDS...........................12

SOLID STATE DEVICE BASE DIAGRAM.......20

SCHEMATIC DIAGRAM, WAVE FORMS........21

TROUBLESHOOTING TABLES......................28

PARTS ALLOCATION TABLES.......................16 PART LIST.......................................................30

BLOCK DIAGRAM...........................................26

CONTENTS

REMOTE CONTROL

All manuals and user guides at all-guides.com

all-guides.com

51GT-25S

Use this page to keep any special servicing information as Thecnical Report (Bulletin), Technical Information, etc.

If only part number changes are required, just change part number directly on Part List Section.

If you need more information, please refer to the Technical Report (Bulletin).

SERVICE MANUAL UPDATE LOG SHEET

Part #

Technical Report #

Technical Bulletin # Cause / Solution Page # Application

Data /Serial #

All manuals and user guides at all-guides.com

51GT-25S

ELECTRICAL SPECIFICATIONS

•Power Input .......................220V-240 Volts AC 50Hz

•Power Consumption

•Audio Power Output Rating .....................4W (MPO)

Speaker..........................16Ω4W, 10cm Round, 1pc

Normal Operation....................................54W

Stand-by Operation.................................7.0W

•White Level

Set the brightness control, with no signal connected, so that the CRT cathode current is 600mA. The maximum

correction applied to each cathode current to achieve a screen temperature of 8550 degrees K-1 MPCD should not

exceed 15% of its original value.

X=0.290 Y=0.300

WARNING

The chassis in this receiver is partially live, always use an isolation transformer when

servicing this chassis.

To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer

servicing to qualified service personnel.

Convergence.........................Self Converging System

Focus....................................Bi-Potencial Electrostatic

Sweep Deflection...........................................Magnetic

Specifications are subject to change without prior notice.

•Aerial Input Impedance

VHF/UHF...........................75 ohm Unbalanced

•Tuning Ranges ............48.25MHz thru 855.25 MHz

VHF.............CH02-CH12, S41-S41

UHF........................... CH21-CH69

•Picture Intermediate Frecuency..............38.9MHz

•Sound Carrier Trap.............................33.4MHz

•Adjacent Sound Carrier Trap................40.4MHz

•Adjacent Picture Carrier Trap...............31.9MHz

All manuals and user guides at all-guides.com

51GT-25S

IMPORTANT SERVICING NOTES

SERVICING OF HIGH VOLTAGE SYSTEM AND CRT

Only qualified service personnel are allowed to carry out mintenance and repair of this receiver.

It is important that the static charge is removed from the high voltage system when carrying out

work on the receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated

lead) from the CRT cavity connector to the CRT ground tag. This must be carried out with the AC

supply disconnected from the reciver.

Note the following:

•The CRT in this receiver employs Integral Implosion Protection.

•If the CRT has to be changed it MUST be replaced with the correct type for continued safe

working

•DO NOT lift the CRT by its neck.

•When handing the CRT, ensure that shatterproof goggles are worn.

•Ensure that the CRT is discharge before handling.

X-RAY

This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions

and servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem

when in close proximity to the receiver for long periods of time. To reduce any risks associated with

this, please observe the following precautions:

1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 29 KV,

(at a instantaneous beam current of 1100µΑ).

2. Ensure that during normal operation the EHT does not exceed 26KV±1.5KV (at a beam current of

1000µΑ). This level has been pre-set in the factory. Always check that this level has not been

exceeded after carrying out any repair on the receiver..

3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may

cause excessive x-ray radiation.

BEFORE RETURNING THE RECEIVER TO THE CUSTOMER

In addition to the above checks, the following should also be carried out before returning the receiver

to the customer.

1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or

pinched by any other parts.

2. Ensure that all protective devices are in good condition. These will include non-metallic control

knobs, insulating fish papers, cabinets backs, compartment covers or shieds, mechanical insulators,

etc.

All manuals and user guides at all-guides.com

51GT-25S

REMOTE CONTROL

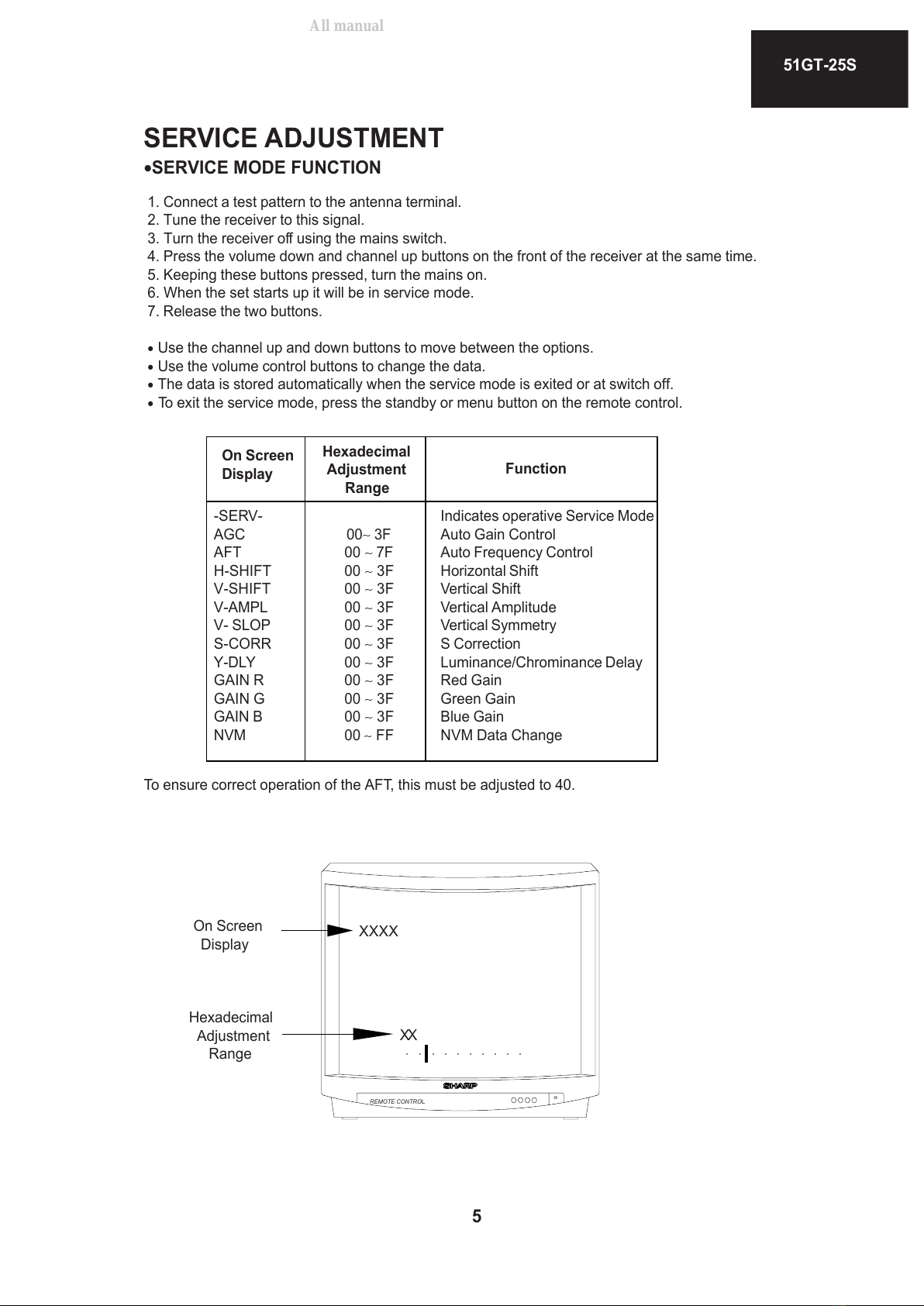

SERVICE ADJUSTMENT

•SERVICE MODE FUNCTION

1. Connect a test pattern to the antenna terminal.

2. Tune the receiver to this signal.

3. Turn the receiver off using the mains switch.

4. Press the volume down and channel up buttons on the front of the receiver at the same time.

5. Keeping these buttons pressed, turn the mains on.

6. When the set starts up it will be in service mode.

7. Release the two buttons.

•Use the channel up and down buttons to move between the options.

•Use the volume control buttons to change the data.

•The data is stored automatically when the service mode is exited or at switch off.

•To exit the service mode, press the standby or menu button on the remote control.

To ensure correct operation of the AFT, this must be adjusted to 40.

-SERV-

AGC

AFT

H-SHIFT

V-SHIFT

V-AMPL

V- SLOP

S-CORR

Y-DLY

GAIN R

GAIN G

GAIN B

NVM

00∼ 3F

00 ∼ 7F

00 ∼3F

00 ∼FF

Indicates operative Service Mode

Auto Gain Control

Auto Frequency Control

Horizontal Shift

Vertical Shift

Vertical Amplitude

Vertical Symmetry

S Correction

Luminance/Chrominance Delay

Red Gain

Green Gain

Blue Gain

NVM Data Change

On Screen

Display

Hexadecimal

Adjustment

Range

Function

XXXX

On Screen

Display

Hexadecimal

Adjustment

Range

○ ○ ○ ○○○○○○○

All manuals and user guides at all-guides.com

51GT-25S

Adjustment of Data within the NVM memory

To access the NVM memory, press the channel up button on the remote control until the NVM setting is

reached. Note that the NVM address is shown in green and the NVM value is shown in red.

Each of the NVM values are stored as a hexadecimal code, each code comprises of two hexadecimal

numbers. Each of these numbers will break down into bit four binary code as in the example below.

Hex code A 5

Binary code 1010 0101

Button on remote to toggle Bit 7654 3210

In the example given above, the hexadecimal code is A5, the binary equivalent is 1010 0101. The remote

control button to toggle each bit on or off (1 or a 0) is shown below the binary code. Therefore to change this

to A6, remote control buttons 1 then 0 would have to be pressed.

NVM LIST DESCRIPTION

PAGE ADDRESS DESCRIPTION VALUE

00 RTEMP: TEMPERATURE RED 15

01 GTEMP: TEMPERATURE GREEN 18

02 BTEMP : TEMPERATURE BLUE 0E

03 VSHIFT: VERTICAL SHIFT 22

04 HSHIFT: HORIZONTAL SHIFT 22

05 VTAMP: VERTICAL AMPLITUDE 0A

06 VSLOPE: VERTICAL SLOPE 12

07 _DELA : LUMA DELA 08

08 _DELA _S: LUMA DELA SECAM 08

09 S_CORR: S-CORRECTION 00

0A E_CAG : CAG ADJUSTEMENT VALUE 0A

0B EA_OPT: TV OPTIONS

0: FP: S STEM B/G (0)- B/G+L, MESSAGE RECHERCHE

1: AV FRONTAL: NOT INCLUDED(0), INCLUDED(1)

2: TUNING LOCK (HOTEL): LOCKED+SWITCH-ON PR1(1)

NO LOCKED (0)

3: UHF-ONL : BAND UHF(1) ALL BANDS(0)

4: PAL ONL (1), PAL+ SECAM(0)

5: CHILD LOCK: CHILD LOCK ACTIVE(1)

CHILD LOCK NO ACT(0)

6: AUTO FIRST: TUNING FIRST MENU: AUTO (1)

MANUAL (0)

7: ING_OSD: OSD_ENGLISH(1) OSD-S MBOL(0)

0C EAFT: AFT ADJ FOR B/G & L S STEMS 40

0D EAFT_: AFT ADJ FOR L' S STEMS 1F

0E EVOLMAX: MAX. VOLUME LIMIT FF

0F CHECKSUM: SIGNATURE A5

10 RTEMP2: TEMPERATURE RED 15

11 GTEMP2: TEMPERATURE GREEN 18

12 BTEMP2: TEMPERATURE BLUE 0E

13 VSHIFT2: VERTICAL SHIFT 22

14 HSHIFT2: HORIZONTAL SHIFT 22

15 VTAMP2: VERTICAL AMPLITUDE 0A

16 VSLOPE2: VERTICAL SLOPE 12

17 _DELA 2: LUMA DELA 08

18 _DELA _S2: LUMA DELA SECAM 08

All manuals and user guides at all-guides.com

all-guides.com

51GT-25S

PAGE ADDRESS DESCRIPTION VALUE

19 S_CORR2: S-CORRECTION 00

1A E_CAG2: CAG ADJUSTEMENT VALUE 0A

1B EA_OPT2: TV OPTIONS

0: FP: S STEM B/G (0)- B/G+L, MESSAGE RECHERCHE

1: AV FRONTAL: NOT INCLUDED(0), INCLUDED(1)

2: TUNING LOCK (HOTEL): LOCKED+SWITCH-ON PR1(1)

NO LOCKED (0)

3: UHF-ONL : BAND UHF(1) ALL BANDS(0)

4: PAL ONL (1), PAL+ SECAM(0)

5: CHILD LOCK: CHILD LOCK ACTIVE(1)

CHILD LOCK NO ACT(0)

6: AUTO FIRST: TUNING FIRST MENU: AUTO (1)

MANUAL (0)

7: ING_OSD: OSD_ENGLISH(1) OSD-S MBOL(0)

1C EAFT2: AFT ADJ FOR B/G & L S STEMS 40

1D EAFT2_L: AFT ADJ FOR L' S STEMS 1F

1E EVOLMAX2: MAX. VOLUME LIMIT FF

1F CHECKSUM: SIGNATURE A5

20 RTEMP3: TEMPERATURE RED 15

21 GTEMP3: TEMPERATURE GREEN 18

22 BTEMP3: TEMPERATURE BLUE 0E

23 VSHIFT3: VERTICAL SHIFT 22

24 HSHIFT3: HORIZONTAL SHIFT 22

25 VTAMP3: VERTICAL AMPLITUDE 0A

26 VSLOPE3: VERTICAL SLOPE 12

27 _DELA 3: LUMA DELA PAL 08

28 _DELA _S3: LUMA DELA SECAM 08

29 S_CORR3: S-CORRECTION 00

2A E_CAG3: CAG ADJUSTEMENT VALUE 0A

2B EA_OPT3: TV OPTIONS

0: FP: S STEM B/G (0)- B/G+L, MESSAGE RECHERCHE

1: AV FRONTAL: NOT INCLUDED(0), INCLUDED(1)

2: TUNING LOCK (HOTEL): LOCKED+SWITCH-ON PR1(1)

NO LOCKED (0)

3: UHF-ONL : BAND UHF(1) ALL BANDS(0)

4: PAL ONL (1), PAL+ SECAM(0)

5: CHILD LOCK: CHILD LOCK ACTIVE(1)

CHILD LOCK NO ACT(0)

6: AUTO FIRST: TUNING FIRST MENU: AUTO (1)

MANUAL (0)

7: ING_OSD: OSD_ENGLISH(1) OSD-S MBOL(0)

2C EAFT3: AFT ADJ FOR B/G & L S STEMS 40

2D EAFT3_L: AFT ADJ FOR L' S STEMS 1F

2E EVOLMAX3: LMAX. VOLUME LIMIT FF

2F CHECKSUM: SIGNATURE A5

30 FT1_I_NVM-T1_I_NVM-1: LENGTH TABLE FF

31 CHECKSUM: SIGNATURE 1 A5

32 EAGING,AGING_ON (AGING MODE) FF

33 VOLOFFSET: VOLUME OFFSET 05

34 EAVOL: VOLUME VALUE (DECIMAL) 02

35 CONT: CONTRAST 33

36 COLOR: COLOR SATURATION 17

37 BRIGHT: BRIGHTNESS 1F

38 LUPK: 0,0,P5,P4,P3,P2,P1,P0

LUMA PEAKING VALUE LUPK

39 E_P_ACT: CURRENT PROGRAMME 01

3A E_START: TV STATUS 00

All manuals and user guides at all-guides.com

51GT-25S

PAGE ADDRESS DESCRIPTION VALUE

3B N_HUE: HUE CORRECTION 07

3C CONT2: CONTRAST 33

3D COLOR2: COLOR SATURATION 17

3E BRIGHT: BRIGHTNESS 1F

3F LUPK2: 0,0,0,0,0,P2,P1,P3

LUMA PEAKING VALUE LUPK

40 DK_OPTION: OPTION FOR DK S STEM

[X X X X X X X DK_S]

41 HCR1_NVM: END OF HORIZONTAL CLAMP PULSE 13

42 OSD_WORD: OSD STATUS

(1=RT/0=OT,1=NO WHITE BARS IN MENU

CLOCK-D.C.-,PIN OPTION,R830-D.C.-,

FRONT LOCK,AV LOCK,

E_NORMALIZADO PICTURE)

43 OP_TXT_S S: TELETEX S STEMS OPTIONS

(X X X X X X FLOF TOP)

44 HCR0_NVM: BEGINING OF HORIZONTAL CLAMP PULSE. 00

45 EVTH_L: L-L’ VOLTAGE 1F

46 EVTL_L: L-L’ VOLTAGE 1F

47 SDV0_TXT: VERTICAL S NC DELA FOR TXT. 1E

48 S_SPEED: SEARCH SPEED FOR ALL BANDS 0F

49 SU_SPEED: SEARCH SPEED FOR UHF 5 A

4ASVL_SPEED: SEARCH SPEED FOR VHL 0F

4B SVH_SPEED: SEARCH SPEED FOR VHH 3C

4C L_RANGE: RESERVED 2F

4D EPSW: PASSWORD ACTIV 00

4E EPSW1: PASSWORD 1R DIGIT 00

4F EPSW2: PASSWORD 2§ DIGIT 00

50 EPSW3: PASSWORD 3R DIGIT 00

51 EPSW4: PASSWORD 4§ DIGIT 00

52 LANGUAGE: CHARACTER SET (FOR TXT) 01

53 OSD_WORD1: bit 0: SIZE OSD PROG: 0=14”, 1=21”

bit 1: TIMING FOR OSD ON SCREEN

bit 2: CHARACTER SET FOR TXT ENABLED (MENU)

54 HOTEL: FOR HOTEL MODE 2 : FRONTAL BUTTONS

DISABLED, SWITCH ON WITH SSW PULSE

55 IFS_SCRT: CONTROL FOR IFS IN SCART MODE. 01

56 HOTEL2: HOTEL MODE FOR S.E.I.S.

VCR CONSTANT FOR ALL PROGRAMS

57 B_CONTROL2: OSO,VSD,CB,BLS,BKS,CS1,CS0,BB 9 A

58 B_CONTROL3: HOB,BPS,ACL,CMB,AST,CL2,CL1,CL0 24

59 V_ZOOM: VERTICAL ZOOM 0D

5 A V_SCROLL: VERTICAL SCROLL 20

5B B_CONTROL0: INA,INB,INC,CCC_D,FOA,FOB,XA,XB 1 A

5C B_CONTROL1: FORF,FORS,DL,STB,POC,CM2,CM1,CM0 C0

5D B_CONTROL5: EVG,HCO,LBM,VID,STM,NCIN,VIM,AKB 26

5E B_CONTROL6: IFS,AFW,IE_1,COR,RBL,MAT,PRD,SBL 3C

5F B_CONTROL7: 0,0,0,HBL,GAI,IE_2,DS,DSA 00

60 V_SCCON: SANDCASTLE CONTROL REGISTER 00

61∼ FF RESERVED ---

00 ∼ 9F RESERVED ---

A0 10

A1 02

A2 00

A3 30

A4 04

PAGE MEMOR FOR LIST MODE PROGRAM 0

All manuals and user guides at all-guides.com

51GT-25S

PAGE ADDRESS DESCRIPTION VALUE

A6 10

A7 02

A8 00

A9 30

AA 04

PAGE MEMOR FOR LIST MODE PROGRAM 1

AC 10

AD 02

AE 00

AF 30

B0 04

PAGE MEMOR FOR LIST MODE PROGRAM 2

B2 10

B3 02

B4 00

B5 30

B6 04

PAGE MEMOR FOR LIST MODE PROGRAM 3

B8 10

B9 02

BA 00

BB 30

BC 04

PAGE MEMOR FOR LIST MODE PROGRAM 4

BE 10

BF 02

C0 00

C1 30

C2 04

PAGE MEMOR FOR LIST MODE PROGRAM 5

C4 10

C5 02

C6 00

C7 30

C8 04

PAGE MEMOR FOR LIST MODE PROGRAM 6

CA 10

CB 02

CC 00

CD 30

CE 04

PAGE MEMOR FOR LIST MODE PROGRAM 7

D0 ∼ FF RESERVED FF

{

Page 100

{

Page 200

{

Page 300

{

Page 400

DEFAULT LIST MODE PAGES MEMORIZATION NOTE:

In page memory for LIST MODE, every digit is written in one nibble (4 bits).

The default values for programs 0∼7 are as follows: 100, 200, 300, 400.

Example: Program 0

NVM Position: A0 A1 A2 A3 A4 A5

{

NVM Value:

All manuals and user guides at all-guides.com

51GT-25S

Fig. 4

c) When ∨button is pressed, upper picture scanning increases and

lower picture scanning decreases.

d) Adjust the vertical symmetry to obtain symmetrical scanning between

upper and lower picture (Fig.4).

1. HOR SHIFT

a) Receive Philips pattern signal.

b) When ∧button is pressed, picture moves to the left.

c) When ∨button is pressed, picture moves to the right.

d) Adjust the horizontal location to obtain picture centering (Fig.1).

•GEOMETRY ADJUSTMENT PROCEDURE

2. VERT SHIFT

a) Receive Philips pattern signal.

b) When ∧button is pressed, picture moves up.

c) When ∨button is pressed, picture moves down.

d) Adjust the vertical location to obtain picture centering (Fig.2).

3. VERT AM

a) Receive Philips pattern signal.

b) When ∧button is pressed, vertical size of picture increases.

c) When ∨button is pressed, vertical size of picture decreases.

d) Adjust the vertical size to obtain picture overscan (Fig.3).

Fig. 2

Fig. 1

4. VERT SLOP Fig. 3

a) Receive Philips pattern signal.

b) When ∧button is pressed, upper picture scanning decreases and

lower picture scanning increases.

••

•PIF/AGC Adjustment ••

••

•Screen Adjustment

3. Focus Adjustment

Set contrast to 10/10, brightness to 5/10 and

colour 0/10.

Apply mains voltage of 220V AC/50HZ to TV.

Receive Philips pattern signal to a level between

60 and 80 dBµV.

Adjust focus potentiometer to obtain

maximum definition.

1. AFT Adjustment

AFT must be adjusted to a fixed value of 40.

Receive the «COLOUR BAR» signal (Channel E-

12). Signal strength: 57 dBµV.

2. RF-AGC Cut-In Adjustment (I2C BUS)

Switch set OFF and ON again, setting is now

memorized.

Enter into Service Mode.

Push CH ∧until AGC appears on screen.

Push key of R/C.Setting is made

automatically. During this setting the colour bar

shall go from red to yellow. When setting is

finished, colour bar disappears and B-STOP

(bus stop)is shown on screen.

4. G2 Adjustment

the screen VR of FBT.

5. Check BKGD. If it is necessary adjust BKGD

according to instructions detailed in the next

page.

Apply mains voltage of 220V AC/50HZ to TV.

Receive the «MONOSCOPE» pattern signal to a

level between 60 and 80 dBµV.

Enter into Service Mode. Press the TEXT key of

R/C and set to level.

Set to the point where the raster disappears on

All manuals and user guides at all-guides.com

Autres manuels pour 51GT-25S

Table des matières

Autres manuels Sharp TV

Sharp

Sharp 1T-C32BC2KE1FB Manuel utilisateur

Sharp

Sharp 32C230 Manuel utilisateur

Sharp

Sharp 29H-FD1A Manuel utilisateur

Sharp

Sharp 21J-FG1RU Manuel utilisateur

Sharp

Sharp LC-40CFG6021KF Manuel utilisateur

Sharp

Sharp Aquos LC-46D84X Manuel utilisateur

Sharp

Sharp cx68n5 Manuel utilisateur

Sharp

Sharp LC-40LE340E Manuel utilisateur

Sharp

Sharp AQUOS LC-40UI7252E Manuel utilisateur

Sharp

Sharp 21LF-90C Manuel utilisateur

Sharp

Sharp 21HM-10F Manuel utilisateur

Sharp

Sharp 32U-F500 Manuel utilisateur

Sharp

Sharp LC-43SFE7451E Manuel utilisateur

Sharp

Sharp 40BJ2I Manuel technique

Sharp

Sharp 27U-F500 Manuel utilisateur

Sharp

Sharp DV-5407S Manuel utilisateur

Sharp

Sharp Aquos LC-24LE150M Manuel utilisateur

Sharp

Sharp LC-22DV510E Manuel utilisateur

Sharp

Sharp 37DT-25S Manuel utilisateur

Sharp

Sharp 27R-S480 Manuel utilisateur

Sharp

Sharp 20AG1-SS Manuel utilisateur

Sharp

Sharp LC-40LE730E Manuel utilisateur

Sharp

Sharp 32SF670 Manuel utilisateur

Sharp

Sharp LC-32CFE6131K Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
