27R-S50

25R-M100

25R-S100

SUPPLEMENT

MODELS

27R-S50

25R-M100

25R-S100

COLORTELEVISION

SHARP CORPORATION

SERVICE MANUAL

SUPPLEMENT

REF. No. DESCRIPTION OLD PARTS NEW PARTS [A][B] Effective Price Avail- Sup-

from Code able plier

C735 Capacitor VCCCPA1HH680J+ 1 – Jul/2002 – – –

D717 Diode RH-EX0616GEZZ 1 – Jul/2002 – – –

D732 Diode VHD1SS119//-1 1 – Jul/2002 – – –

IC703 I.C. VHiSE125N//-1 1 – Jul/2002 AK – X

JA144 Junper QJUM-1001CEFW 1 – Jul/2002 AA – J

JA156 Junper QJUM-1001CEFW 1 – Jul/2002 AA – J

JA242 Junper QJUM-2001CEFW 1 – Jul/2002 AA – J

JA345 Junper QJUM-3001CEFW 1 – Jul/2002 AA – J

JA716 Junper QJUM-7001GEFW 1 – Jul/2002 AA – J

Q702 Transistor VS2SC3198-Y-1+ 1 – Jul/2002 – – –

Q703 Transistor VS2SB709AR/-1 1 – Jul/2002 – – –

Q704 Transistor VS2SD601AR/-1 1 – Jul/2002 AC – J

Q705 Transistor VS2SC3198-Y-1+ 1 – Jul/2002 AA – J

R717 Resistor VRD-RA2EE102J 1 – Jul/2002 – – –

R721 Resistor VRD-RM2HD104J 1 – Jul/2002 – – –

R725 Resistor RS-RG2HC821J+ 1 – Jul/2002 – – –

R731 Resistor VRS-SV2HC821J 1 – Jul/2002 AA – J

R733 Resistor VRD-RA2EE394J VRS-SV2HC332J 1 – Jul/2002 AA – J

R735 Resistor VRS-CY1JF332J 1 – Jul/2002 – – –

R736 Resistor VRD-RM2HD184J VRS-SV2HC222J 1 – Jul/2002 AA – J

R738 Resistor RVR-M4588CEZZ+ 1 – Jul/2002 – – –

R739 Resistor VRD-RM2HD332J 1 – Jul/2002 – – –

R741 Resistor VRN-RA2BK682F 1 – Jul/2002 – – –

R745 Resistor VRD-RA2BE393J 1 – Jul/2002 AA – J

R746 Resistor VRS-CY1JF562J 1 – Jul/2002 AA – J

R747 Resistor VRS-CY1JF682J 1 – Jul/2002 AA – J

R748 Resistor VRS-CY1JF000J 1 – Jul/2002 AA – J

S82N727R-S50/

OUTLINE

As from the July 2002 production, the +B voltage of the above models needs no adjustment.This Supplement has been

issued to inform you of the related modifications as shown below.

The Serial No. 27R-S50(107891012~)/Serial No. 25R-M100(107826492~)/Serial No. 25R-S100(107801965~).

2~3

1234567891011 12 13 14 15 16 17 18 19 20

MODEL 27R-S50 SCHEMATIC DIAGRAM: MAIN-1 Unit

1234567891011 12 13 14 15 16 17 18 19 20

MODEL 25R-M100 SCHEMATIC DIAGRAM: MAIN-1 Unit

4~5

1234567891011 12 13 14 15 16 17 18 19 20

MODEL 25R-S100 SCHEMATIC DIAGRAM: MAIN-1 Unit

6~7

1234567891011 12 13 14 15 16 17 18 19 20

PRINTEDWIRING BOARD ASSEMBLIES

(27R-S50/25R-M100)

8~9

PWB-A: MAIN Unit (Wiring Side)

1234567891011 12 13 14 15 16 17 18 19 20

10~11

PRINTEDWIRING BOARD ASSEMBLIES

(25R-S100)

PWB-A: MAIN Unit (Wiring Side)

27R-S50

25R-M100

25R-S100

SUPPLEMENT

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

D JAPAN P SEMEX TQ1370-S

Aug. 2002 Printed in Japan

SK. KD

Autres manuels pour 27R-S50

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp TV

Sharp

Sharp 21S-FX10F Manuel utilisateur

Sharp

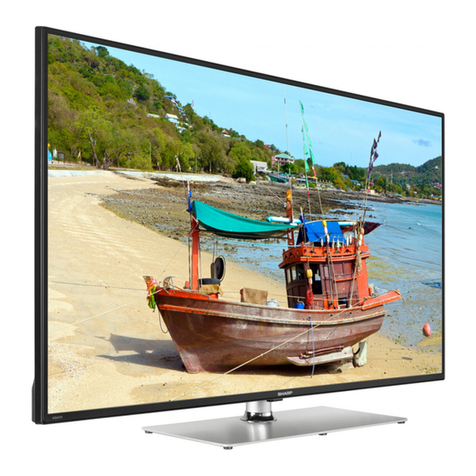

Sharp LC-42LE756EN Manuel utilisateur
