Sharp 26SL71 Manuel utilisateur

26SL71

29SL81

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its

original condition and only parts identical to those specified should be used.

S60B526SL71//

MODELS

SHARP CORPORATION

OUTLINE

SERVICE MANUAL

26SL71

29SL81

COLOR TELEVISION

Chassis No. SN-91A

POWER POWER PUSH OPEN MTS STEREO

This Service Manual covers the modifications from Models 26SL70 and 29SL80. For data and information

not discussed here, please refer to the 26SL70/29SL80 Service Manual (S69J129SL80//).

26SL71

29SL81

LIST OF CHANGED PARTS

Ref. No. Description Current (26SL70) New (26SL71) Note

PRINTED WIRING BOARD ASSEMBLIES

PWB-A Main Unit DUNTK9806WEV1 DUNTKA270WEV0

MAIN UNIT

IC751 I.C. VHiKA7809Pi-1 VHiKA7809AP-1 or VHiKA7809Pi-1

IC2001 I.C. RH-iX3256CEZZ RH-iX3366CEZZ

IC2101 I.C. VHiM24C01B/-1 VHiBR24C02/-1

L2040 Coil RCiLB0159CEZZ RCiLB0131CEZZ

J799 Resistor – VRD-RA2BE102J Added

RJ15 Resistor VRS-CY1JF000J – Abolished

RJ16 Resistor VRS-CY1JF000J – Abolished

R2016 Resistor – VRS-CY1JF223J Added

R2017 Resistor – VRS-CY1JF223J Added

R2023 Resistor – VRS-CY1JF223J Added

R2030 Resistor VRS-CY1JF103J – Abolished

R2033 Resistor VRS-CY1JF102J – Abolished

P704 Plug QPLGN0304CEZZ QPLGN0360CEZZ or QPLGN0304CEZZ

POWER UNIT

IC5771 I.C. VHiKA7809Pi-1 VHiKA7809AP-1 or VHiKA7809Pi-1

P5701 Plug QPLGN0404CEZZ QPLGN0460CEZZ or QPLGN0404CEZZ

SUPPLIED ACCESORRIES

Infrared R/C Unit RRMCG1339CESA RRMCG1573CESA

Operation Manual TiNS-6556GJZZ TiNS-7033GJZZ

PACKING PARTS

Packing Case SPAKC0108GJZZ SPAKC0129GJZZ

CABINET PARTS

1 Front Cabinet Ass'y CCABA0008WEH0 CCABA0008WEH3

1-4 Button, Power JBTN-0106GJSA JBTN-0106GJSB

1-6 Door GDORF0102GJSA GDORF0102GJSB

26SL71

29SL81

LIST OF CHANGED PARTS

Ref. No. Description Current (29SL80) New (29SL81) Note

PICTURE TUBE

DY601 Deflection Yoke RCiLH0119MEZZ RCiLH0104GJZZ

PRINTED WIRING BOARD ASSEMBLIES

PWB-A MAIN Unit DUNTK9806WEV2 DUNTKA270WEV1

MAIN UNIT

IC751 I.C. VHiKA7809Pi-1 VHiKA7809AP-1 or VHiKA7809Pi-1

IC2001 I.C. RH-iX3256CEZZ RH-iX3366CEZZ

IC2101 I.C. VHiM24C01B/-1 VHiBR24C02/-1

L2040 Coil RCiLB0159CEZZ RCiLB0131CEZZ

J799 Resistor – VRD-RA2BE102J Added

RJ15 Resistor VRS-CY1JF000J – Abolished

RJ16 Resistor VRS-CY1JF000J – Abolished

R2016 Resistor – VRS-CY1JF223J Added

R2017 Resistor – VRS-CY1JF223J Added

R2026 Resistor VRD-RA2BE682J VRD-RA2BE562J

R2033 Resistor VRS-CY1JF102J – Abolished

P704 Plug QPLGN0304CEZZ QPLGN0360CEZZ or QPLGN0304CEZZ

POWER UNIT

IC5771 I.C. VHiKA7809Pi-1 VHiKA7809AP-1 or VHiKA7809Pi-1

P5701 Plug QPLGN0404CEZZ QPLGN0460CEZZ or QPLGN0404CEZZ

SUPPLIED ACCESORRIES

Infrared R/C Unit RRMCG1339CESA RRMCG1573CESA

Operation Manual TiNS-6556GJZZ TiNS-7033GJZZ

PACKING PARTS

Packing Case SPAKC0008GJZZ SPAKC0130GJZZ

CABINET PARTS

1 Front Cabinet Ass'y CCABA0007WEH0 CCABA0007WEH3

1-4 Button, Power JBTN-0005GJSA JBTN-0005GJSB

1-6 Door GDORF0001GJSA GDORF0001GJSB

26SL71

29SL81

121110987654321

7001GEFW

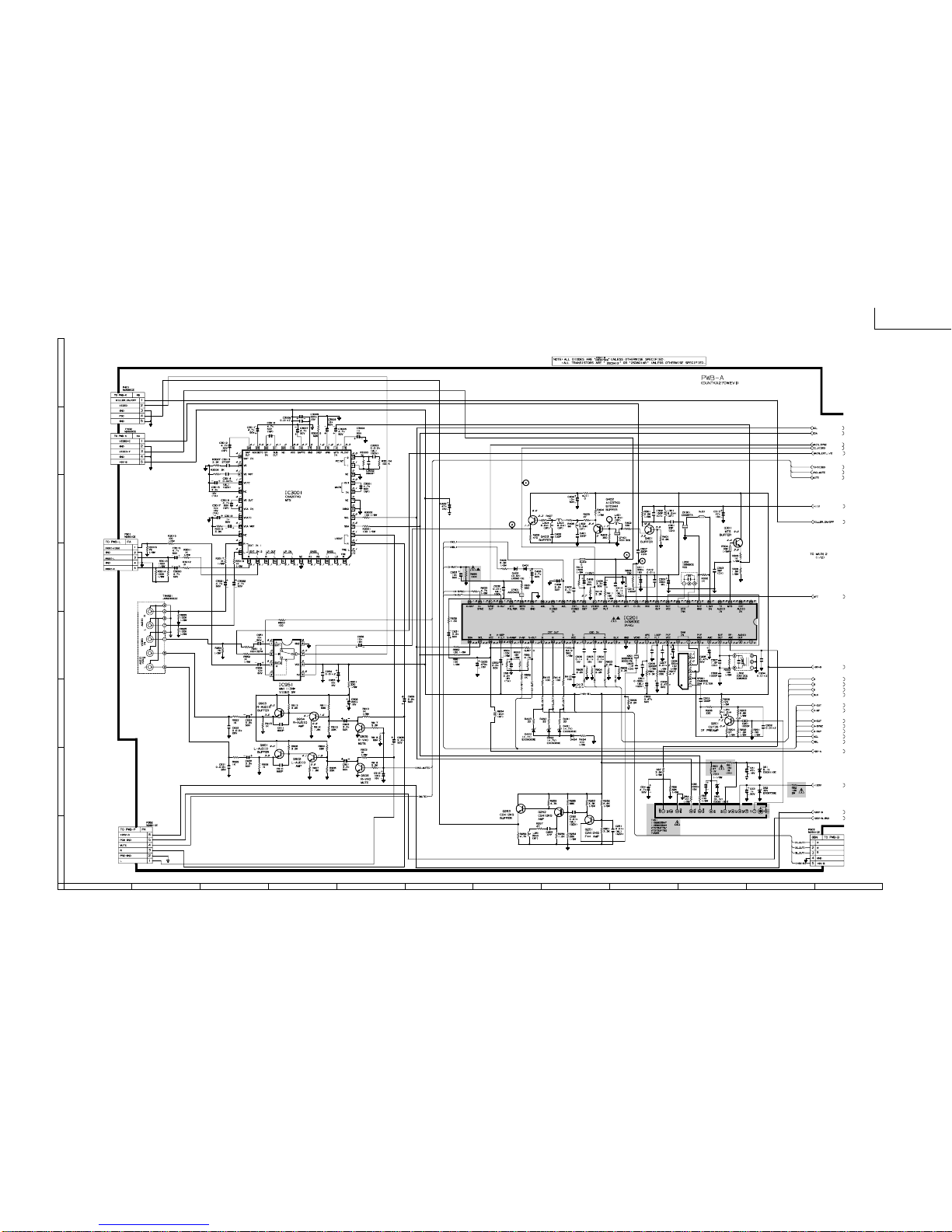

MODEL 26SL71 SCHEMATIC DIAGRAM:MAIN-1 Unit

26SL71

29SL81

121110987654321

MODEL 26SL71 SCHEMATIC DIAGRAM:MAIN-2 Unit

26SL71

29SL81

121110987654321

7001GEFW

MODEL 29SL81 SCHEMATIC DIAGRAM:MAIN-1 Unit

26SL71

29SL81

121110987654321

MODEL 29SL81 SCHEMATIC DIAGRAM:MAIN-2 Unit

26SL71

29SL81

654321

SCHEMATIC DIAGRAM: POWER Unit

26SL71

29SL81

654321

PRINTED WIRING BOARD ASSEMBLIES

PWB-A: MAIN Unit (Wiring Side)

26SL71

29SL81

PWB-A: MAIN Unit (Component Side)

654321
