233

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

SPEAKER SYSTEMS

MODEL

RSP-ZA007WJN2

OUTLINE

SPEAKER SET

Speaker System for the PLASMA DISPLAY TV

[Appropriate Model]

This speaker system is for exclusive use with models PZ-43HV2/43HV2E/43HV2U

Mark Ref. No. Part No. ★Description Code Mark Ref. No. Part No. ★Description Code

234

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics

identified in this manual: electrical components having such features

are identified by "å" in the Replacement Parts Lists.

The use of a substitute replacement part which does not have the

same safety characteristics as the factory recommended replace-

ment parts shown in this service manual may create shock, fire or

other hazards.

"HOWTO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the

following informations.

1. MODEL NUMBER 2. REF.NO.

3. PART NO. 4. DESCRIPTION

5. CODE 6. QUANTITY

NOTES

•Parts marked by "NSP" are generally unavailable because they are

not in our Master Spare Parts List.

•The åmark found on some component parts indicates the

importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical

designation.

in USA: Contact your nearest SHARP Parts Distributor.

For location of SHARP Parts Distributor,

Please call Toll-Free; 1-800-BE-SHARP

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100.

MARK ★: SPARE PARTS-DELIVERY SECTION

Mark Ref. No. Part No. ★Description Code Mark Ref. No. Part No. ★Description Code

CABINET APRTS LIST

RSP-ZA007WJN2 J Speaker Set (L, R) CS

NSP 1 9GJSNK2590 – Cabinet —

NSP 2 9GJSXB1447 – Baffle Assy —

3 9GJSWN1689 J Network Assy BC

NSP 4 9GJSAN3077 – Model Label —

5 9GJSBA1091 J Flanged Anchor Bolt AL

6 9GJSBN1002 J Serrated Flanged Nut AE

7—

8 9GJSEC1596 J Gasket(∗)AE

9 9GJSEC1587 J Gasket(∗)AE

10 9GJSEC1589 J Gasket(∗)AG

11 9GJSKX1077 J In-Put Terminal AT

NSP 12 9GJSME3291 – Stamped Serial Label —

NSP 9GJSRW1088 – –Serial Label —

NSP 13 9GJSMV2111 – Acoustic Absorbent —

14 9GJSNA1410 J Metal Rinforce AL

9GJA142CU6151F

J Speaker(Woofer) BC

9GJFK26AP0269F

J Speaker(Tweeter) BA

9GJAPZ30P080FMC

J Screw(∗)AD

9GJBPZ30P160FZK

J Screw(∗)AD

9GJBPZ40P080FMC

J Screw(∗)AD

9GJBPZ40P160FMC

J Screw(∗)AD

21 9GJSEC1605 J Gasket(∗)AL

22 9GJSEC1606 J Gasket(∗)AG

23 9GJSEC1607 J Gasket(∗)AL

235

654321

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

I N

Gray with White Line Gray with White Line

Gray with White Line

Gray Gray

Gray

1.8

1.0mH

Woofer

Tweeter

CABINET PARTS AND DIMENSIONS

SCHEMATIC DIAGRAM

Network Assy (9GJSWN1689)

(Unit : mm)

(631.4)

108

(108)

418

103.5

101

White Line

Mark Ref. No. Part No. ★Description Code Mark Ref. No. Part No. ★Description Code

236

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

PACKING PARTS LIST

9GJSEA1588 J Spacer Set AW

NSP 9GJSEC1608 –Spacer —

NSP 9GJSHC1785 –Sheet —

9GJSHC1783 J Protection Sheet AL

9GJSHD1051 J Spacer AN

9GJSHG2406 J Packing Case AT

9GJSME3280 J Side Pad Assy AW

9GJSHB1102 J Side Pad1 AL

9GJSHB1103 J Side Pad2 AL

9GJSHB1104 J Side Pad3 AL

NSP 9GJSME3292 –Stamped Serial Label —

NSP 9GJSRW1089 –Serial Number Label —

SUPPLIED ACCESSOPIES

9GJSEA1584 J Speaker Wire Set AS

9GJSDS1131 J Speaker Wire AN

9GJSDS1132 J Speaker Wire AN

NSP 9GJSHL1178 –Polyethylen Bag S1 —

NSP 9GJSEA1582 –Accsessories Assy —

9GJSEA1578 J Bracket Set AZ

9GJSHL1326 Polyethylen Bag S1 AD

9GJSNA1406 J Bracket AU

9GJSEA1579 J Bracket(R) Set AX

9GJSHL1326 Polyethylen Bag S1 AD

9GJSNA1407 J Bracket(R) AW

9GJSEA1580 J Bracket(L) Set AX

9GJSHL1328 J Polyethylen Bag S1 AD

9GJSNA1408 J Bracket(L) AW

NSP 9GJSEA1583 –Screw Set —

9GJCMZ50P120FZ

J Screw AD

9GJSBA1160 J Bolt AG

9GJSEX1015 J Hexagon Lench AL

9GJSHL1326 J Polyethylen Bag S1 AD

9GJSHL1327 J Polyethylen Bag S1 AD

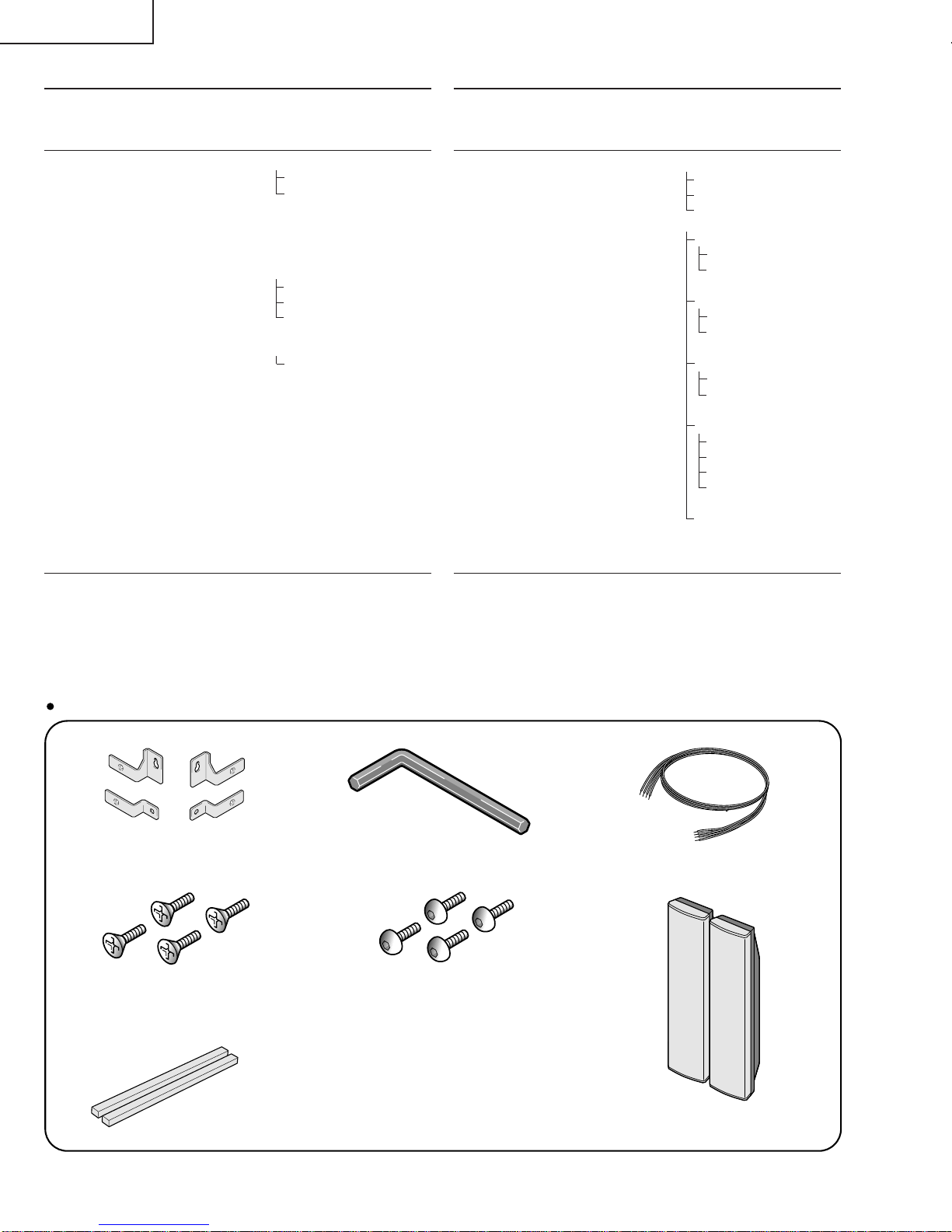

Two speaker cablesFour speaker brackets

Four screws for speaker bracket Four screws for speaker bracket

Hexagon wrench

Two speakers

Two spacers for speakers

Accessories

237

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

Spacer

(9GJSHD1051)

Side Pad Assy (9GJSME3280)

Protection Shest S4 (PZ-43HV2E)

(9GJSHC1782)

Protection Shest S5 (PZ-43HV2/43HV5U)

(9GJSHC1783)

Spacer Set (PZ-43HV2/43HV2U)

(9GJSEA1588)

Paking Case

(9GJSHG2406)

Serial No.Label

(9GJSRW1089)

Accsessories Assy

(9GJSEA1582)

Spacer

(9GJSHD1051)

Side Pad Assy

(9GJSME3280)

Spaker Wire Set

(9GJSEA1584)

Speaker Set

PACKING OFTHE SET

PZ-43HV2, PZ-43HV2E

PZ-43HV2U

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

TQ1452-S

Mar. 2003 Printed in Japan

SY.KG

Design and Production Information

Design : Japan

Production : Japan
