Sharp SJ-P43N-SL Manuel utilisateur

SJ-P43N/43N

SJ-P47N/47N

SERVICE MANUAL

S6516SE47ATUFT

SHARP CORPORATION

TABLE OF CONTENTS

page

CAUTIONS AND INFORMATIONS ..................................................................................................................2

SPECIFICATIONS ............................................................................................................................................3

DESIGNATION OF VARIOUS PARTS .............................................................................................................5

DIMENSIONS ...................................................................................................................................................6

LIST OF ELECTRICAL PARTS ........................................................................................................................9

WIRING DIAGRAM.........................................................................................................................................10

FUNCTIONS ...................................................................................................................................................14

ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS .............................................................18

COOLING UNIT ..............................................................................................................................................25

REPLACEMENT PARTS LIST .......................................................................................................................27

Refrigerant; HFC-134a

Refer to "HFC-134a COOLING UNIT" Service Manual for handling this refrigerant.

DESTINATION .........................F

In the interests of user-safety (Required by safety regulations in some

countries) the set should be restored to its original condition and only

parts identical to those specified should be used.

REFRIGERATOR-FREEZER

MODELS

SJ-P43N-SL

SJ-43N-BE

SJ-P47N-SL

SJ-47N-BE

SJ-P43N

SJ-P47N

SJ-43N

SJ-47N

SJ-P43N/43N

SJ-P47N/47N

Some household cleaning chemicals may affect the internal

food liner and plastic parts resulting in splitting or cracks

occurring.

When cleaning all plastic parts inside this refrigerator, only

use diluted dishwashing liquid(soapy water). Make sure that

all plastic parts are thoroughly rinsed with water after cleaning.

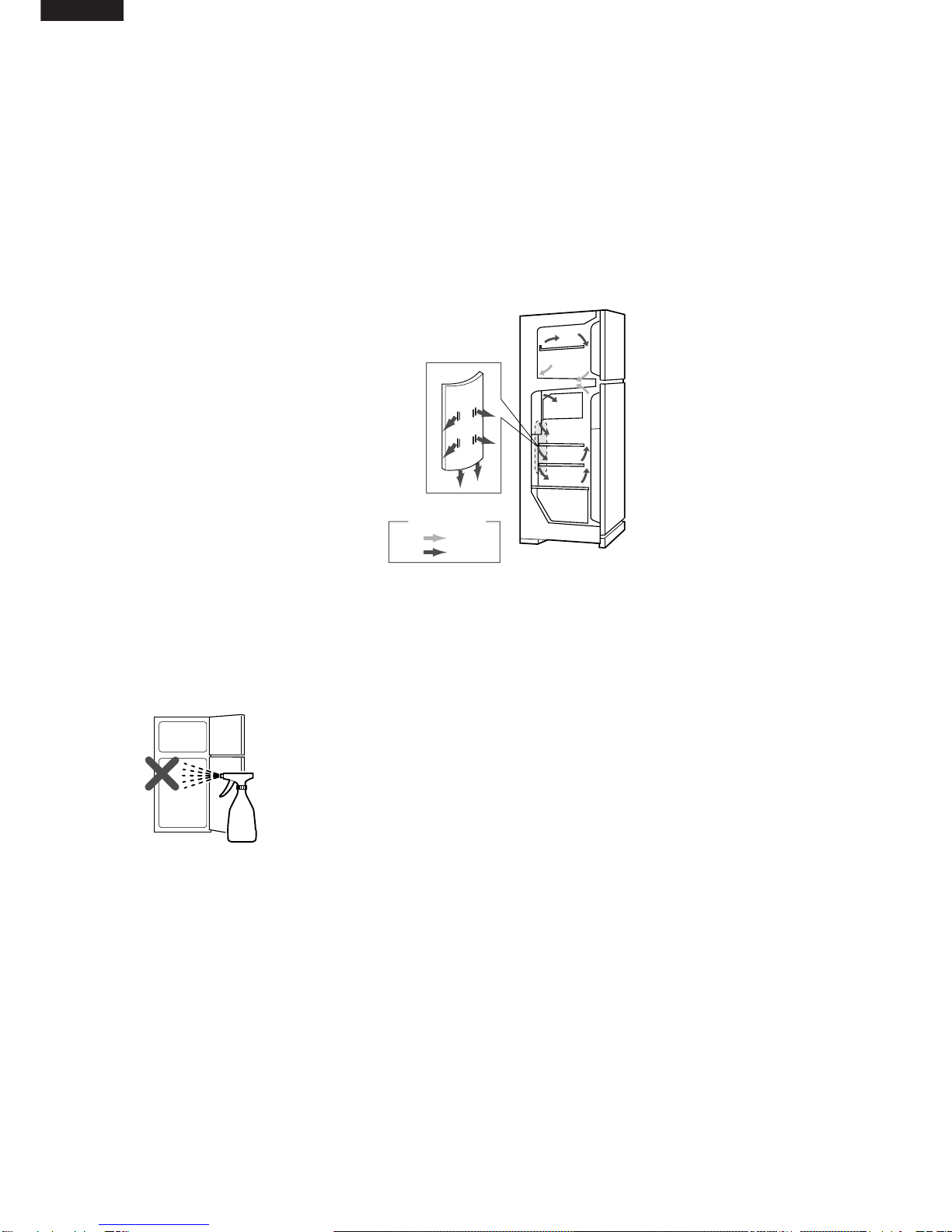

CAUTIONS AND INFORMATIONS

1. Some foods froze in the refrigerator compartment.

2. Some plastic parts were cracked or split.

Cracking or crunching sound;

Sound produced by expansion and contraction of inner walls and internal parts during cooling.

Squeaking sound;

Sound produced by expansion and contraction of internal parts.

Sound of flowing fluid (gurgling sound, fizzing sound);

Sound of refrigerant flowing in pipes (sound may become louder from time to time).

3. IT IS NORMAL for the refrigerator to produce the following sounds.

Do not place food directly in front of

cold air outlet.

This may lead to the food freezing.

OUT

cold air flow

In case of following troubles, the cause is not related with the failure of refrigerator.

Please mention the correct way to the customer for the use of refrigerator when the repairing.

SJ-P43N/43N

SJ-P47N/47N

SPECIFICATIONS

Items SJ-P43N SJ-43N SJ-P47N SJ-47N

Type 2-Door 2-Door

Outer dimensions Height 1700mm(66.9") 1820mm(71.7")

(Including spacer) Width 680mm(26.8") 680mm(26.8")

Depth 660mm(26.0") 660mm(26.0")

Rated storage volume 347 liter (12.3cu.ft) 384 liter (13.6 cu.ft)

(Rated volume) F: 99liter (3.5 cu.ft) F: 99 liter (3.5 cu.ft)

R: 248 liter(8.8 cu.ft) R: 285 liter(10.1 cu.ft)

Gross volume 370 liter (13.1cu.ft) 407 liter (14.4 cu.ft)

F: 107liter (3.8 cu.ft) F: 107 liter (3.8 cu.ft)

R: 263 liter(9.3 cu.ft) R: 300 liter(10.6 cu.ft)

Defrosting System Heater system

Start Automatic

Finish Automatic

Temperature control Automatic (Adjustable)

No-frost freezer Yes

Interior lamp 1

Caster 2

Evaporating pan 1

Refrigerator R glass shelf ass'y 2 - 2 -

Compartment Refrigerator tray(plastic) - 2 - 2

V glass shelf ass'y 1 - 1 -

Vegetable tray(plastic) - 1 - 1

Vegetable case 1

V parting plate 1

R door pocket 1

Egg tray 1

R door pocket S 2

Bottle pocket 1

Bottle stopper 1

Door pocket 1

Fresh case 1

Freezer Freezer tray 1

Compartment Ice cube maker Twin ice cube maker

Ice storage box 1

Door pocket 2

Deodorizing unit 2 ( Honeycomb type)

Plasmacluster Yes No Yes No

RATING

Items SJ-P43N SJ-43N SJ-P47N SJ-47N

Rated voltage (V~) 110

Rated frequency (Hz) 60

Climate class ST

Rated input (W) 129

Rated input of heating elements (W) 128

Refrigerant (Charging quantity) [Non-flammable]

HFC-134a(105g)

Insulation Blowing Gas

[Flammable]

Cyclo pentane (HC)

Net Weight (kg) 70 66 72 68

PLUG TYPE

Plug cord 2 pin

Plug type A-1

Destination mark F

SJ-P43N/43N

SJ-P47N/47N

COLOR

Items -BE -SL

Outside color Beige Silver

Inside color White

SJ-P43N/43N

SJ-P47N/47N

DESIGNATION OF VARIOUS PARTS

Upper hinge cover

Hot pipe

Freezer temp. control knob

Hot pipe

Foot cover

Adjustable leg ass’y

Fan motor

Defrost thermostat

Evaporator

Defrost heater

Damper thermostat

Ionizer

(Only for SJ-P43N,SJ-P47N)

Refrigerator temp. control knob

Drain pipe

Vegetable case

Compressor

Starting relay, Overload relay(Protector)

Caster

Freezer

compartment

Refrigerator

compartment

Mark: Cold air flow

Evaporating pan

Defrost timer

Panel P.W.B

(Only for SJ-P43N,SJ-P47N)

Main P.W.B

(Only for SJ-P43N,SJ-P47N)

The names in parenthesis are the denominations

used in the REPLACEMENT PARTS LIST.

1. Freezer temp. control knob

2. Freezer shelf(Freezer tray)

3. Ice cube maker

4. Ice cube box(Ice storage box)

5. Deodorizing unit

6. Fresh case

7. Refrigerator temp. control knob

8. Light(Lamp)

9. Refrigerator shelf

(R grass shelf ass'y / Refrigerator tray)

10. Lever (V-tray control knob)

(Only for SJ-43N,SJ-47N)

11. Shelf

(V grass shelf ass'y / Vegetable tray)

12. Vegetable crisper(Vegetable case)

13. Divider(V parting plate)

14. Evaporating pan

15. Casters

16. Foot cover(Ventilating grille)

17. Adjustable feet(Adjustable leg ass'y)

18. Fan switch

19. Fan & light switch

20. Utility pocket(Door pocket)

21. Magnetic door seal(Door packing)

22. Egg holder(Egg tray)

23. Egg pocket(R door pocket)

24. Small pocket(R door pocket S)

25. Bottle guard(Bottle stopper)

26. Bottle pocket

27. Plasmacluster panel

(Only for SJ-P43N,P47N)

Figure D-1. External Description

Plasmacluster

Figure D-2. Constructions

SJ-P43N/43N

SJ-P47N/47N

DIMENSIONS

OUTER DIMENSIONS AND CLEARANCE

Fig. E-1(SJ-P43N,SJ-43N)

Fig. E-2(SJ-P47N,SJ-47N)

680 680

470

660

more than

more than 60

more than

5951022.5

1700

16 9.5

1260

1320

1210

(Unit : mm)

1: Not include the handle

more than 660

more than

680

5951142.5

1820

680

470

more than 60

more than

16 9.5

1260

1320

1210

(Unit : mm)

1: Not include the handle

SJ-P43N/43N

SJ-P47N/47N

INNER DIMENSIONS

The dimensions between shelves can be changed by setting the shelves on the other rails.

Fig. E-3(SJ-P43N)

Fig. E-4(SJ-43N)

502

321

531

502

518

242

510

526

225

232

112

246

307

349

188

229

210

118

(172.5)

(133)(172)

226

126

539

536

508.5

(Unit: mm)

502

321

531

524

502

518

242

510

526

225

232

112

246

269

320

188

229

210

118

(168.5)

(125)

(165)

226

126

526

508.5

(Unit: mm)

SJ-P43N/43N

SJ-P47N/47N

(Unit: mm)

502

321

502

518

531

524

526

242

510

225

232

112

246

269

320

188

229

210

118

(218.5)

(175)

(185)

226

126

526

628.5

(Unit: mm)

307

349

(183)

(192)

307

(222.5)

536

539

502

321

502

518

531

526

242

510

225

232

112

246

188

229

210

118

226

126

628.5

Fig. E-5(SJ-P47N)

Fig. E-6(SJ-47N)

SJ-P43N/43N

SJ-P47N/47N

LIST OF ELECTRICAL PARTS

ITEMS TYPE NAME RATING SPECIFICATIONS

Thermostat MM1-8149 125V 6A (At normal notch)

250V 3A ON/OFF : -20 / -25˚C

Defrost thermostat S101 250V 8A Open/Close : 8 / 1˚C

Thermo. fuse SF70E 250V 10A Working temp. : 70˚C

Fan motor 3R00171 110-120V 60Hz Working with ø100 fan

Defrost heater MM1-4266 115V 94.5Ω140W at 115V

Door switch DSD-5 125V 0.5A 4 terminals push-button type

Damper thermostat MM1-6173 — Open/Close : 5 / 0˚C

Defrost timer TMDFX04FB2 110-127V Integration type

50/60Hz Cycle time : 12h/10h(50/60Hz)

Delay time : 4m48s/4m(50/60Hz)

Lamp socket — 250V 1A E-12(Hard plastic body type)

Lamp — 110V 15W E-12

Compressor FL1568PF 110V/60Hz Cooling capacity : 210W (60Hz)

Main coil : 1.99Ω

Aux. coil : 3.27Ω

(at 75˚C)

Starting relay P5T0SAT — 5.6 Ω

Overload relay(Protector) 3.6C36C1 — Open/ Close : 130/60˚C

Running Capacitor — 250V 14µF—

Ionizer-K

(Plasmacluster unit)

FTRN-A014CBKZ DC12V 3.5kV p-p

(Only for SJ-P43N,P47N)

Common

Main coil

Aux. coil

SJ-P43N/43N

SJ-P47N/47N

WIRING DIAGRAM

Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.

Figure W-1. Wiring Diagram (SJ-P43N,P47N)

Figure W-2. Wiring Diagram (SJ-43N,47N)
