Sharp SJ-GC440VBK Manuel utilisateur

SJGC480VSL

SERVICE MANUAL

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

Refrigerator-freezer

MODELS

SJ-

GC440V

-BK/SL

SJ-

GC480V

-BK/SL

SJ-SC440V-BE/SL/WH

SJ-SC480V-BE/SL/WH

No.S2115SJ39CSUMT

DESTINATION E

[1] INSTALATION ………………………………… 2

[2] SPECIFICATIONS ……………………………… 3

[3] FICHE …………………………………………… 5

[4] DESIGNATION OF VARIOUS PARTS ……… 6

1. EXTERNAL DESCRIPTION ……………… 6

2. CONSTRUCTIONS ………………………… 7

[5] DIMENSIONS…………………………………… 8

1. OUTER DIMENSIONS AND CLEARANCE 8

2. INNER DIMENSIONS ……………………… 10

[6] LIST OF ELECTRICAL PARTS ……………… 11

[7] WIRING DIAGRAM …………………………… 12

1. WIRING DIAGRAM ………………………… 12

2. ELECTRIC ACCESSORIES LAYOUT …… 13

3. CIRCUIT DIAGRAM ………………………… 14

PRECAUTIONS FOR USING LEAD-FREE SOLDER

…… 15

[ 8 ] FAILURE DIAGNOSIS ……………………… 16

1. OUTLINE OF CONTROL ………………… 16

CHECK MODE OF DEFROST HEATER (Forced Defrosting)

… 16

RE-SETTING OF MICROCOMPUTER AT POWER FAILURE

… 17

DIAGNOSIS METHOD OF FAILURE AROUND PWB

… 17

5. METHOD OF STOPPING

THE DOOR ALARM TEMPORARILY …… 18

6. SELF-DIAGNOSIS MODE ………………… 18

CONVERSION TABLE BETWEEN

TEMPERATURE AND RESISTANCE VALUE

… 19

[ 9 ] ASSEMBLING PROCEDURES OF

MAIN PARTS AND CAUTIONS ……………… 20

FAN LOUVER AND E.V COVER ASSEMBLY

… 20

2. R CONTOROL COVER ASSEMBLY …… 22

3. R SHOWER DUCT ASSEMBLY ………… 25

4. DEFROST HEATER ASSEMBLY ………… 26

[10] COOLING UNIT ……………………………… 28

1. COOLING UNIT ……………………………… 28

2. LOCATION …………………………………… 29

Parts Guide

CONTENTS

Refer to "REFRIGERATING-CYCLE REPAIR MANUAL" for handling this refrigerant.

Refrigerant; R600a

SJGC480VSL

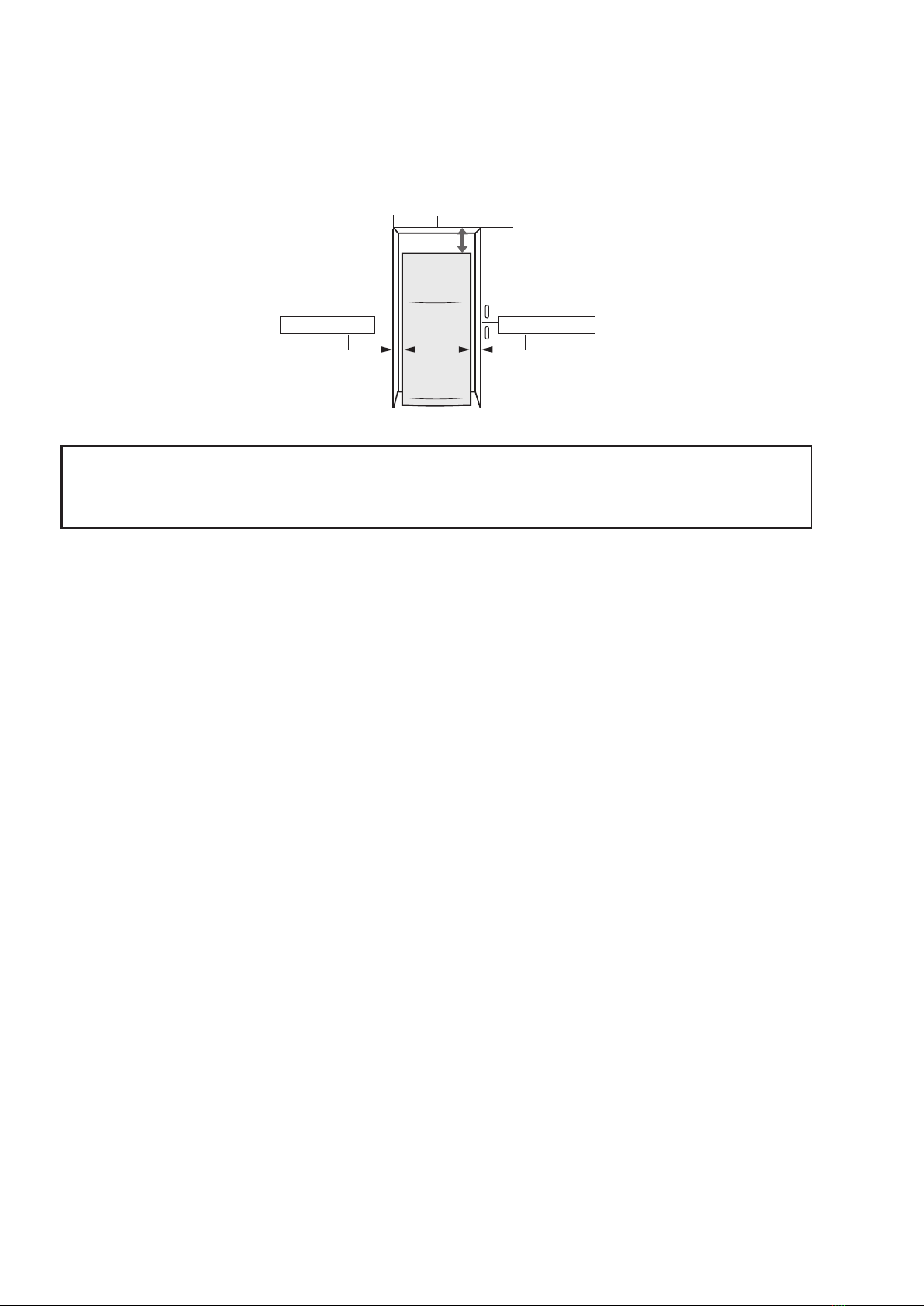

[1] INSTALATION

2. INSTALATION

Free standing type

•To ensure adequate ventilation for this refrigerator, install with 6 cm space at the rear and both sides, with a

minimum space of 9 cm above the refrigerator.

•This refrigerator shall be used under the ordinary place condition between +5 ºC and +43 ºC of ambient

temperature, and also not be left under -10 ºC for long days.

•To be used this refrigerator within the range of the rated voltage±6%.

6cm or more 6cm or more

9cm or more

SJGC480VL

[2] SPECIFICATIONS

Items SJ-GC440V SJ-SC440V SJ-GC480V SJ-SC480V

Type 2 Door

Outer dimensions Height 1670 mm ( 65.7 ") 1770 mm ( 69.7 ")

Width 644 mm ( 25.4 ") 644 mm ( 25.4 ")

Depth 688 mm ( 27.1 ") 682 mm ( 26.9 ") 688 mm ( 27.1 ") 682 mm ( 26.9 ")

Rated storage volume Total 363 liter ( 12.9 cu.ft) 393 liter ( 13.9 cu.ft)

Freezer 99 liter ( 3.5 cu.ft) 99 liter ( 3.5 cu.ft)

Refrigerator 264 liter ( 9.4 cu.ft) 294 liter ( 10.4 cu.ft)

Rated gross volume Total 400 liter ( 14.1 cu.ft) 431 liter ( 15.2 cu.ft)

Defrosting System Heater system

Start Automatic

Finish Automatic

Door material Glass Steel Glass Steel

Temperature control Automatic (Adjustable)

No-frost freezer Yes

Interior lamp (refrigerator) 1

Evaporating pan 1 (unremovable)

Freezer Compartment F-shelf 1

Ice cube maker Twin ice cube maker

Ice storage box 1

Freezer bar 1

RF door pocket 1

Refrigerator Compartment Fresh case 1

Fresh door 1

R glass shelf ass'y 2

V glass shelf ass'y 1

Vegetable case 1

Divider 1

Egg tray 1

R door pocket 1

RF door pocket 1

Utility pocket 2

Utility pocket L ―1

Bottle pocket 1

Tube stand 1

Plasmacluster unit 1

Deodorizing unit (Honeycomb type) 1

R ATING

Items SJ-GC440V SJ-SC440V SJ-GC480V SJ-SC480V

Rated voltage (V~) 220-240

Rated frequency (Hz) 50

Climate class SN-T

Rated current (A) 0.45-0.50

Rated input of heating systems (W) 125 -148

Defrosting input (W) 125 -148

Refrigerant (Charging quantity) [Flammable] R600a(50g)

Insulation blowing gas [Flammable] Cyclo pentane (HC)

Net Weight (kg) 68 64 70 66

SJGC480VSL

PLUG TYPE

Plug cord 2pin+Earth

Plug type CS

Destination mark E

COLOR

Items -BK -SL -WH -BE

Outside color Black Silver White Beige

Inside color White White White White

Receptacle

SJGC480VL

[3] FICHE

THE FICHE(according to ANNEX : 94/2/EC)

NO. Items Description Remark

1Trade mark

2Model name SJ-GC440V SJ-SC440V SJ-GC480V SJ-SC480V

3Type Category;7 Category;7 Category;7 Category;7 fridge/freezer

4Energyefciencyclass A+ A+ A+ A+ A++/A+/A~G

5Eco-award mark ― ― ― ― 880/92

6Energy consumption

(230V 50Hz at 25°C)

348 348 350 350 EN153:2006

kWh/year kWh/year kWh/year kWh/year

7Net storage volume of fresh

food storage compartment

264L 264L 294L 294L

Net storage volume of frozen

food

(4star compartment)

99L 99L 99L 99L

9Star rating of frozen food

compartment

10 No frost No frost No frost No frost No frost

11 Temperature rise time 14h 14h 14h 14h at 25°C

12 Freezing capacity 4.75kg/24h 4.75kg/24h 4.75kg/24h 4.75kg/24h at 25°C

13 Climate class SN-T SN-T SN-T SN-T

14 Noise 37dB(A)

re 1 pw

37dB(A)

re 1 pw

37dB(A)

re 1 pw

37dB(A)

re 1 pw 86/594/EEC

(96/57/EC)

15 Tier 4 4 4 4

SJGC480VSL

[4] DESIGNATION OF VARIOUS PARTS

1. EXTERNAL DESCRIPTION

The names in parenthesis “[ ]” are the denominations used in the PARTS GUIDE.

1. Freezer shelf [Fshelf]

2. Ice cube maker

3. Ice cube box [Ice storage box]

4. Fresh case & door

5. Refrigerator light [Lamp]

6. Freezer temp. control knob

7. Refrigerator temp. control knob

8. Refrigerator shelf [R glass shelf ass'y] (2 pcs.)

9. Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear,thus indirectly cooling

the refrigerator compartment.In this way,food is

refrigeratedgently,withoutexposingittocoldairow.

10. Fruit and Vegetable shelf [V glass shelf ass'y]

11. Fruit and Vegetable crisper [Vegetable case]

12. Divider [V parting plate]

13. Adjustable feet [Adjustable leg] (2 pcs.)

14. Foot cover [Base cover]

15. Magnetic door seal [Door packing] (2 pcs.)

16. Freezer bar

17. Door pocket [RF door pocket] (2 pcs.)

18. Refrigerator pocket [R door pocket]

19. Egg holder [Egg tray]

20. Utility pocket (2 pcs.)

21. Utility pocket (large)

(Only for SJ-GC480V,SJ-SC480V)

•Donotreplacetherightandleftpositionoftheutility

pocket and the utility pocket (large).

22. Bottle pocket

23. Tube stand

Prevents bottles etc. from falling.

Stick-type food products stored inside.

SJ-GC480V

SJ-SC480V

13 13 15

SJ-GC440V,SJ-SC440V

SJGC480VL

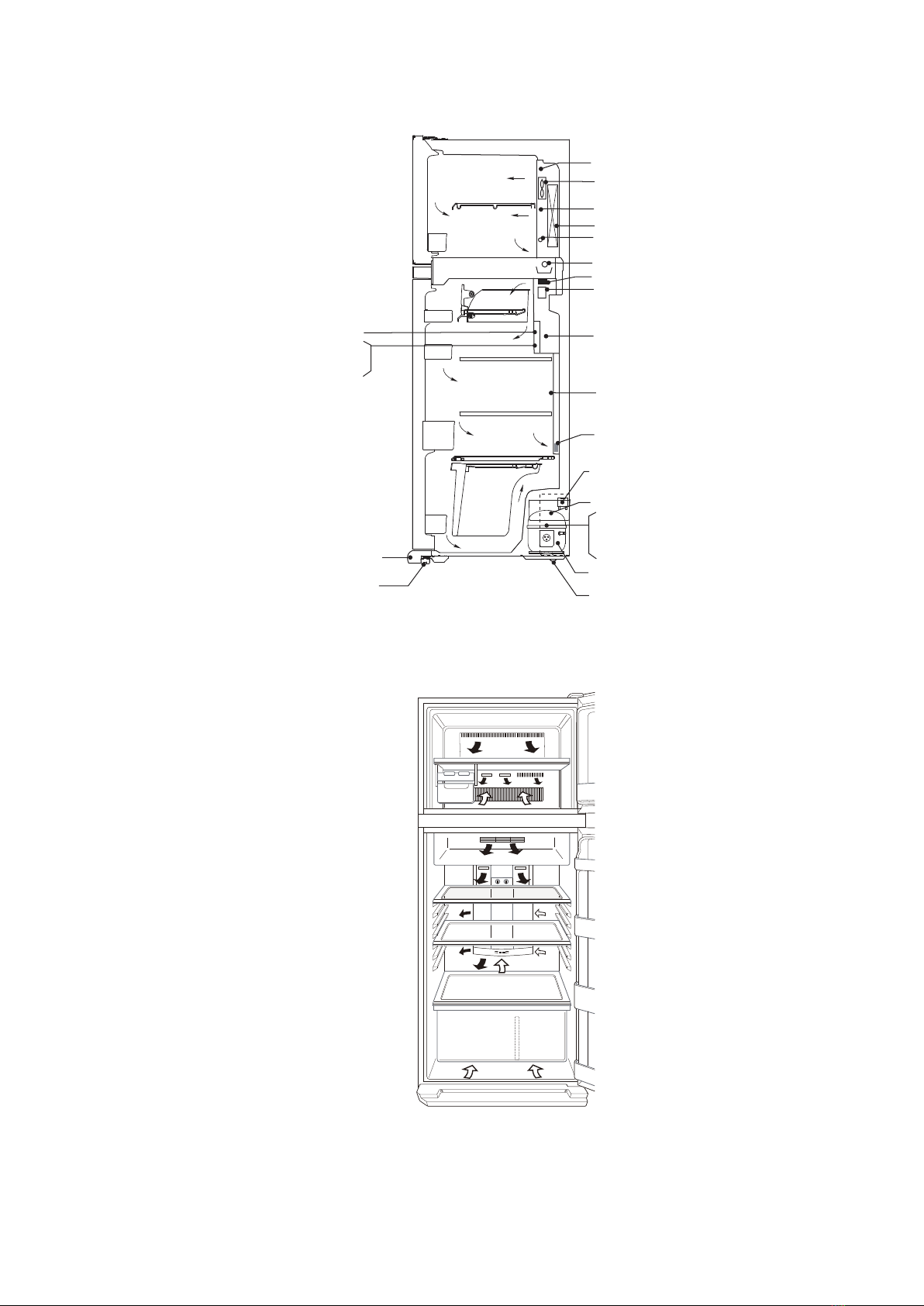

2. CONSTRUCTIONS

Cold air flow

Evaporator

Fuse ass'y

Damper ass'y

Freezer

compartment

Refrigerator

compartment

Defrost heater

R-thermistor

Aluminum panel

F-thermistor

DEF-thermistor

Deodorizer

F fan motor

Main PWB ass'y

Caster

Foot cover

Evaporating pan

Running capacitor

Refrigerator temp. control knob

Lamp

Freezer temp. control knob

Adjustable leg ass'y

Compressor

Starting relay

Overload relay(Protector)

Plasma cluster

SJGC480VSL

[5] DIMENSIONS

1. OUTER DIMENSIONS AND CLEARANCE

1. SJ-GC440V

2. SJ-GC480V

This model is Free standing type.

(Not built-in type.)

644 644

1110

410

132

688

710

60 60

0331

0721

0761

6701 425

more than

This model is Free standing type.

(Not built-in type.)

644 688

710

644

1110

410

132

60 60

0331

0721

0771

425

6711

SJGC480VL

3. SJ-SC440V

4. SJ-SC480V

This model is Free standing type.

(Not built-in type.)

644 644

1103

403

132

682

703

60 60

0331

7021

0761

6701 425

more than

This model is Free standing type.

(Not built-in type.)

644 682

703

644

1103

403

132

60 60

0331

0721

0771

425

6711

SJGC480VSL

2. INNER DIMENSIONS

The dimensions between shelves can be changed by setting the shelves on the other rails.

1. SJ-GC440V/SC440V

2. SJ-GC480V/SC480V

4782

135

465

485

495

497

280

445

472

218

460

116

465

295

200

193

230

268

140

225

305

318

125

135

116

4590350360

101

190

280

157205146

520

497

480

497

495

473082

135

465

472

218

213

116

460

465

280

445

295

200193

230

268

125

4591145260430

213

135

116

101

140

225

305

318

157205246

620

190

280

485
