Sharp Carousel RK49S30 Manuel utilisateur

For Sharp Carousel®Built-in Kit

Models RK49S27 or RK49S30

S = STAINLESS

THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE

OVENS TO BE INSTALLED ABOVE ANY ELECTRIC WALL OVEN.

PLEASE SEE THE OPERATION MANUAL REGARDING APPROVED

BUILT-IN APPLICATIONS.

IMPORTANT:

This Built-in Kit is designed for and approved only for those

Sharp Microwave Ovens specifying Built-In Kit RK49S27 or

RK49S30. Refer to instruction manual for approved models.

PLEASE READ THESE INSTRUCTIONS

THOROUGHLY

BEFORE BEGINNING INSTALLATION!

• Be sure to DISCONNECT THE PLUG of the microwave

oven from the electrical outlet before installing the Built-in

Kit. Remove the Carousel turntable from the oven cavity.

• Because the kit includes metal parts, due caution should

be used in handling and installation to avoid the possibil-

ity of injury.

ITEM PART NAME QTY

AFRONT FRAME

RK49S27: FDECAB233MRK0

RK49S30: FDECAB235MRK0

B BACK FRAME

RK49S27: FDECAB234MRK0

RK49S30: FDECAB236MRK0

C EXHAUST DUCT ASSEMBLY

PDUC-B194MRP0

D SCREW D: XTSS740P20000 2

E SCREW E: XOPS740P16000 4

INSTALLATION INSTRUCTIONS

A B

V-cut

indicates

center of

duct

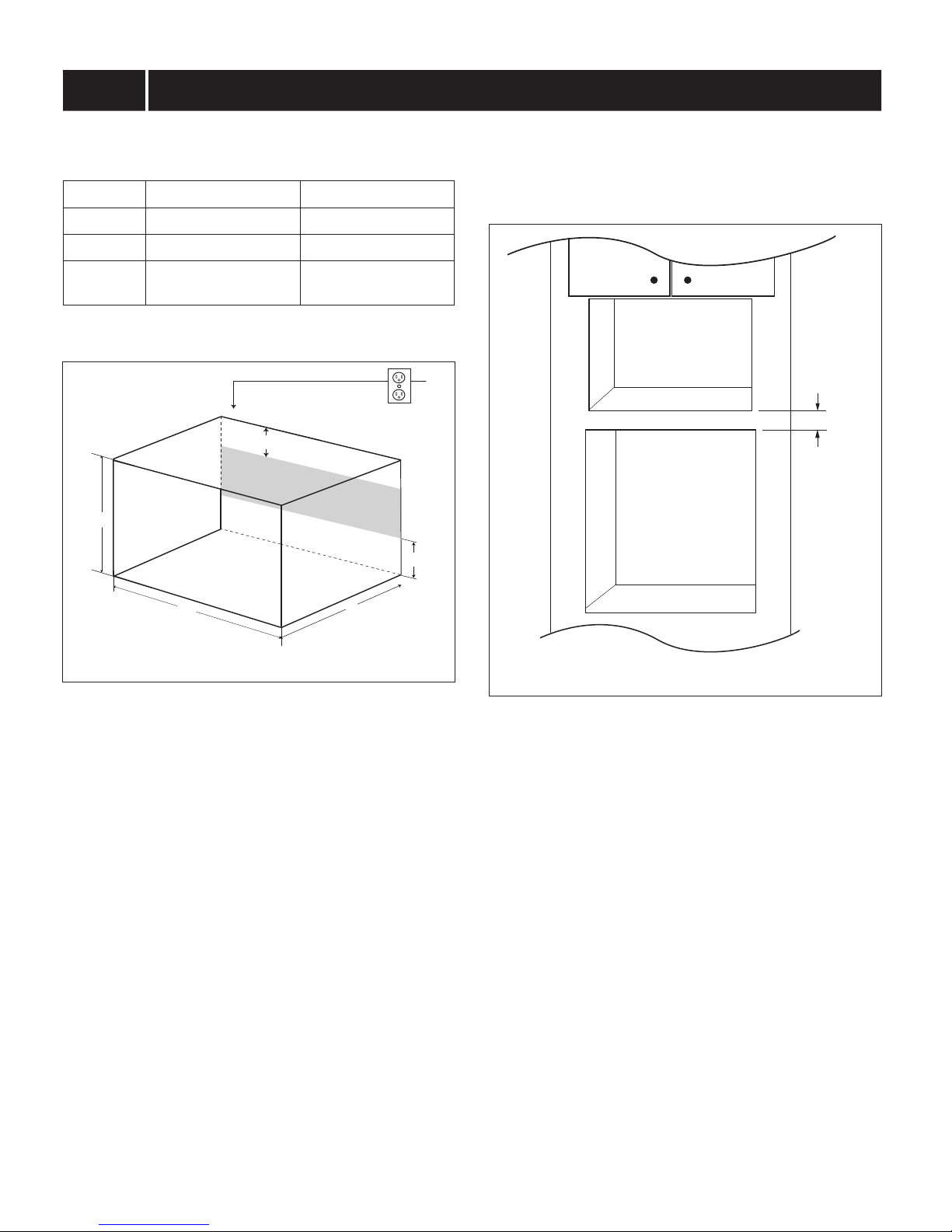

The opening in the wall or cabinet must be within the

following dimensions:

Cut Out RK49S27 RK49S30

Height (A) 14

1/2" to 15

3/4"14

1/2" to 15

3/4"

Width (B) 24

11/16" to 25

5/16"24

13/16" to 26

3/4"

Minimum

Depth (C) 20" 20"

Outlet should NOT be in the shaded area as indicated on

Sketch 1.

SKETCH 1

NOTES

• Please allow minimum 3" wood gap between the

microwave oven cutout and the appliance cutout below

the microwave oven. See Sketch 2

3" Min.

Microwave cutout

Wall oven cutout

SKETCH 2

• If the dimension of DEPTH (C) is more than 21", the outlet

location may be any area on the rear wall.

• The oor of the opening should be constructed of plywood

strong enough to support the weight of the oven and oor

load (about 100 pounds). The oor should be level and

90˚ with the face of the cabinet for proper installation and

operation of the oven. Be sure to check the local building

code as it may require that the opening be enclosed with

sides, ceiling and rear partition. The proper functioning of

the oven does not require the enclosure.

STEP 1 CABINET OR WALL OPENING

1. Place the EXHAUST DUCT ASSEMBLY in the center of

the opening. Align the front edge of the duct with the front

of the cabinet.

2. Secure the EXHAUST DUCT ASSEMBLY with two

SCREWS D. See Sketch 3.

STEP 2 EXHAUST DUCT ASSEMBLY INSTALLATION

Exhaust duct

assembly, align

to front edge of

cabinet

Screw D

SKETCH 3

1. Place the oven adjacent to the wall or cabinet opening.

Plug the POWER CORD into the electrical outlet.

2. Carefully guide the assembled oven into the prepared

opening. Slide the oven on the EXHAUST DUCT

ASSEMBLY. See Sketch 4. Avoid pinching the cord

between the oven and the wall. Adjust the position of

the oven so that the feet of the oven are tted into the

recesses of the EXHAUST DUCT ASSEMBLY and door

will open properly. See Sketch 5.

SKETCH 4

Exhaust

duct

assembly

Foot

Duct recess

SKETCH 5

STEP 3 FRAME INSTALLATION

For any other assistance or information about this kit,

please call Sharp’s Customer Assistance Center at

1-800-BE-SHARP (1-800-237-4277)

SHARP ELECTRONICS CORPORATION

100 Paragon Drive, Suite #100, Montvale, New Jersey 07645 TINSEB556MRR0

STEP 3 FRAME INSTALLATION

3. BACK FRAME INSTALLATION: Position back frame equal

space top to bottom, side to side. Mark for 4 holes, center

punch and pre-drill with 1/16" drill bit. Secure frame with

4 SCREWS (E). See Sketch 6.

Equal gap top, bottom

Equal gap

side to side

Mounting holes

Screw E

SKETCH 6

4. FRONT FRAME INSTALLATION: Place the FRONT

FRAME onto the BACK FRAME and align ball studs

and receivers. Secure the FRONT FRAME to the BACK

FRAME by rmly pushing the front frame onto the back

frame engaging the four (4) snap attachments. See

Figure 7.

Snap

Attachment

SKETCH 7
