Sharp AQUOS LE810 Mode d’emploi

AQUOS

LE810/820

QUATTRON LED REPLACEMENT

LC-60LE810/820

Ver. FF

AQUOS

LE810/820

QUATTRON LED REPLACEMENT

LEDKIT60LE8X

(1) Side LED Strip

(2)Top or Bottom LED Strip

Kit Part number: LEDKIT60LE8xKit Part number: LEDKIT60LE8xLEDKIT60LE8xLEDKIT60LE8x

(1) Wiring Harness

LEDKIT60LE8x

Tools and Additional Requirements

•Very clean work space, no animals or pets. (Clean room preferred).

•ESD safe work station with grounding strap.

•Bright work lamp (for visibility and dust inspection).

•#2 Philips Screwdriver / Bit for clutched power screwdriver (Unit

disassembly).

•#1 Philips Screwdriver / Bit for clutched power screwdriver (Panel

disassembly).

•Needle Nose Pliers (disconnect and reconnect LED PWB’s / harnesses).

•#0-1 Standard Blade screwdriver (Assist with harnesses removal).

•Rubber Gloves. (powder less)

Time Study

Unit disassembly = 20 minutes.

Front glass panel and front cab removal = 10 minutes.

Panel disassembly / separation = 10 minutes.

Harness inspection = 5 minutes.

LED swap test 5 minutes each. Can be up to 20 minutes for all 4 LED

strips. (10 minute average)

Install new LED assembly = 5 minutes.

Re-assemble entire set = 40 minutes.

Total process time = 1hour 40 minutes

Unit Disassembly

Remove 1 machine

screws. (red)

Remove AC cord Cover.

Disconnect AC cord from

power unit.

Unit Disassembly

Remove 20 machine

screws (red). (Green)

denotes long screw.

Remove 5 plastic screws.

(yellow)

Lift off Back Cover.

Remove 3 machine

screws from support

cover. (orange)

Remove (4) stand screws

and lift set off stand.

(not illustrated)

Support Cover

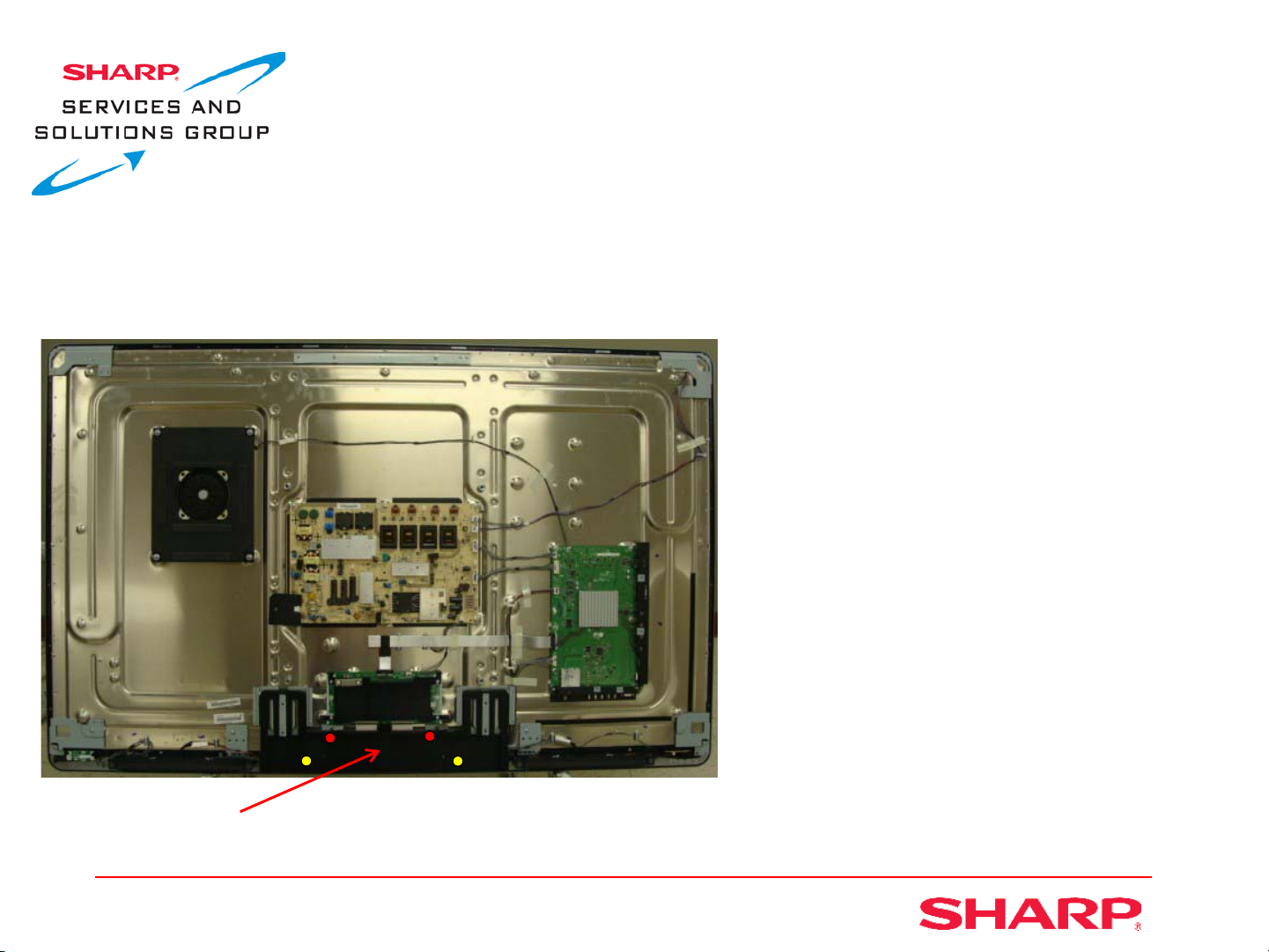

Unit Disassembly

Remove 2 silver machine

screws from stand cover

(red).

Remove 2 plastic screws

from stand cover.

(yellow)

Lift off stand cover.

Stand Cover

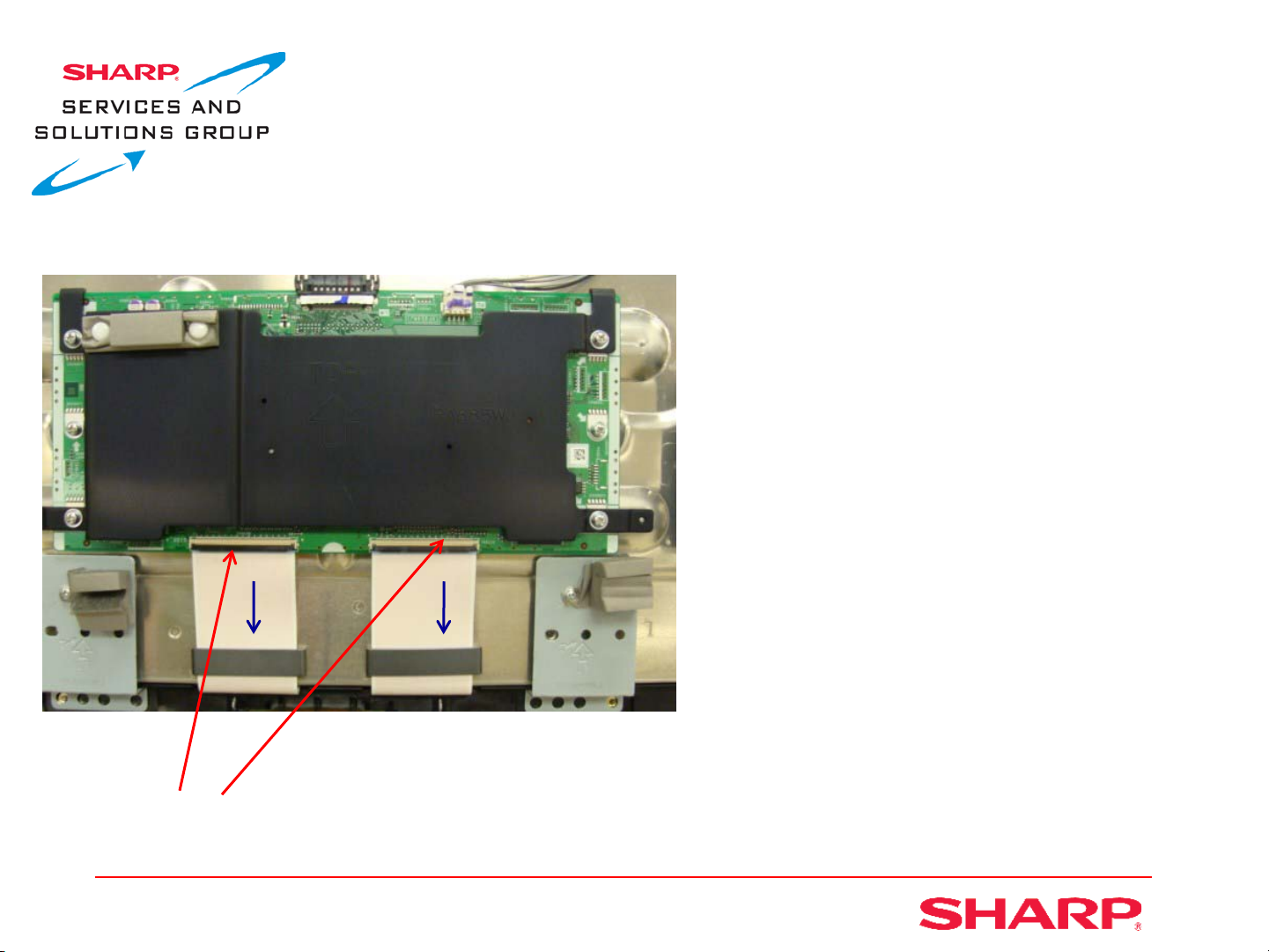

Unit Disassembly

Disconnect and remove 2

FPC’s that connect

between the T-Con and

LCD panel.

See FPC detail on next

slide.

Gently pull and guide the

FPC through the ferrite

holder. The FPC’s should

be free and ready for

panel separation.

Remove FPC X2

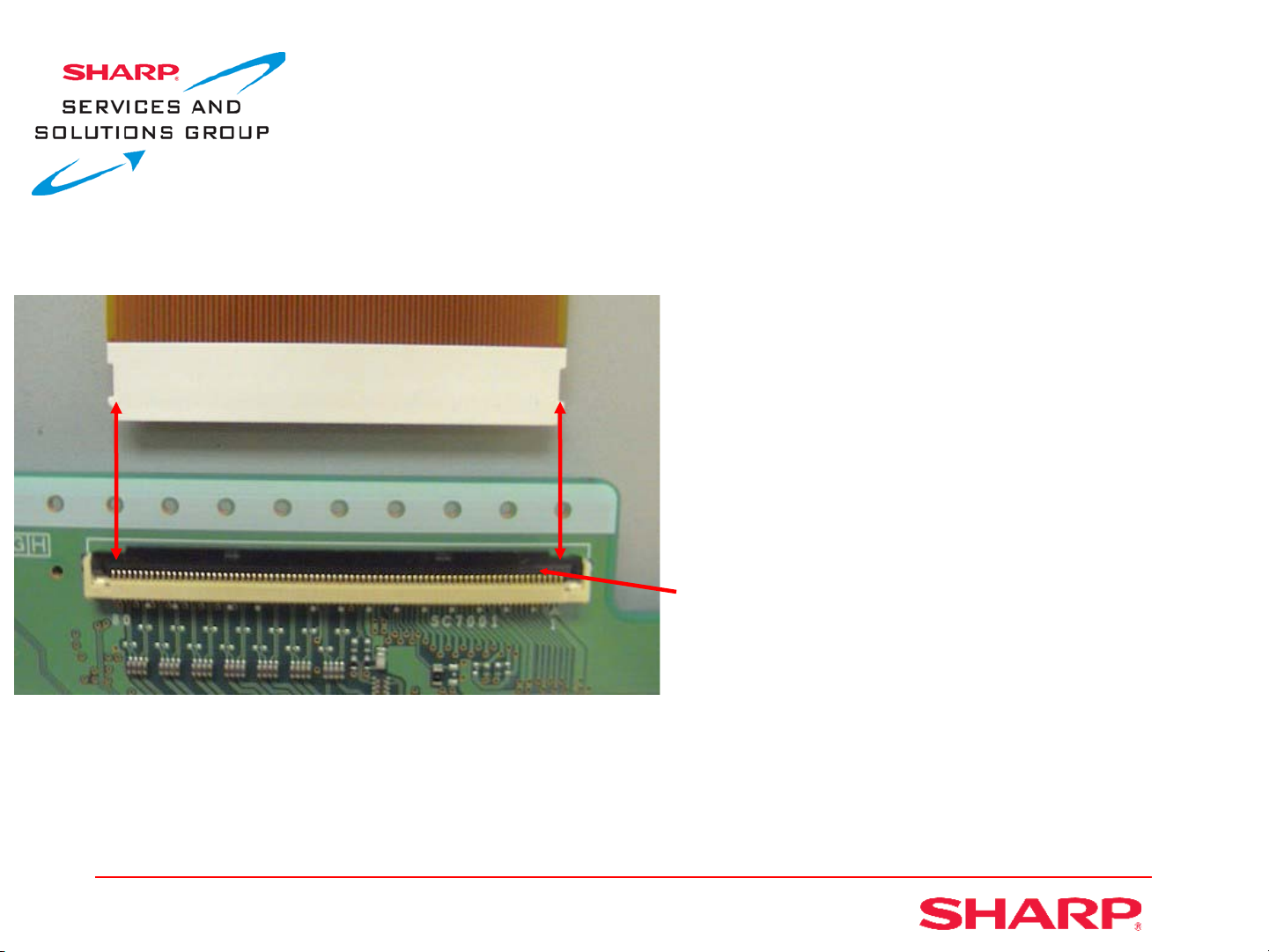

FPC Detail

FPC Removal

Swing lock up

Lift FPC up and off connector.

FPC Installation

Insert FPC into connector and

verify that the FPC is

“hooked” into the connector

before locking.

Next, swing lock down.

Removing Front Glass Panel

Remove the 4 LCD fixing

angles.

Remove 25 screws and

remove front glass panel

assembly.

The LE810 uses the same

procedure without the

front glass panel.

LCD Fixing Angle
