Quick Start Guide

Q5000 Series TV

LC-32Q5220U

LC-32Q5230U

LC-32Q5240U

LC-32Q5250U

LC-32Q5270U

LC-32Q5280U

LC-32Q5290U

LC-32Q5200U

LC-32Q5100U

All material in this Quick Start Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US and In-

ternational copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any

manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd., is a violation of Hisense Company Ltd.

rights under the aforementioned laws.

No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or other-

wise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd. Requests

for permission to store, reproduce, transmit or distribute materials may be made in writing to the following address:

USA: Hisense USA Corporation

7310 McGinnis Ferry Road

Suwanee, GA 30024

CANADA: Hisense Canada Co., Ltd

2283 Argentia Road, Unit 16

Mississauga, ON, Canada L5N 5Z2

MEXICO: Hisense Mexico S. de R.L. de C.V.

Blvd. Miguel de Cervantes Saavedra No 301

Torre Norte Piso 2, Col. Ampliación Granada

Miguel Hidalgo, Ciudad de México, C.P. 11520

“Sharp™”, “Aquos™”, “Quattron™” and any and all other Sharp product names, logo’s, slogans or marks are registered trademarks

owned exclusively by Sharp Corporation.

"Hisense™", and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks and intellectual property

rights of Hisense Company Ltd. and its subsidiaries.

This product is sold to you under one or more license agreements between Sharp Corporation and Hisense International (Hong Kong)

America Investment Co. Ltd. All other trademarks are the property of their respective holders.

Table of Contents

Register Your TV! .....................................................................................................................1

Packaged Contents ..................................................................................................................2

Buttons and Ports on the TV ....................................................................................................3

Attach the TV Stand or Wall Mount Bracket .............................................................................4

Connect Devices to your TV.....................................................................................................6

Establish a Network Connection...............................................................................................8

Buttons on your TV Remote ...................................................................................................10

Begin Using your Remote....................................................................................................... 11

Power on the TV.....................................................................................................................12

Complete the First-Time Setup Menu.....................................................................................13

Begin to Enjoy your TV...........................................................................................................14

Product Specications............................................................................................................15

Quick Problem-Solving Tips ...................................................................................................16

Certication and Compliance..................................................................................................17

Congratulations on the purchase of your new TV! This Quick Start Guide will walk you through a few easy steps to set up

your TV. For detailed instructions, access the User Manual on the support pages listed below.

Because we value your business, we want to keep you in the know of 'all things SHARP'. Using your mobile phone, scan the Registration

page QR code to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning

app.

Country Customer Care Center SHARP Support Page REGISTER YOUR TV

U.S.A • Phone: 1-888-935-8880

• Hours of Operation:

Monday - Friday:

Monday - Friday 9:00-18:00

9 AM to 9 PM EST

Saturday - Sunday: 9 AM to 6 PM EST

• Service Email: [email protected]

http:// www.sharptvusa.com

/support

www.sharptvusa.com/

support/productreg.asp

No need to register

CANADA • Phone: 1-855-271-6271

• Hours of Operation:

Monday - Friday: 8 AM to 8 PM EST

• Service Email: [email protected]

http://www.sharp-canada.

ca/support/

MEXICO • Phone: 01-800-999-7277

• Hours of Operation:

• Service Email: [email protected]

http://www.SHARPTV.com.

mx/support/

http://www.SHARPTV.

com.mx/support/product

Reg.asp

*Scan to download user

manual

Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your TV. Images throughout this

document are for illustrative purposes only and may differ from the actual product.

Packaged Contents

Your package in which you purchased your new TV contains the following items:

TV X 1 base stands X 2

screws X 4 Remote Control X 1

AAA batteries X 2 Quick Start Guide(this document) X 1

Important Safety information and Warranty Card X 1

IMPORTANT:

To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.

· Please check foam for accessories before discarding.

· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.

· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.

Required tools and devices

Wireless router (not included) for Internet connectivity

Phillips screwdriver (not included) to secure the TV stand

HDMI and other types of cables (not included) to connect external devices to the TV

Wall mount bracket (not included) if you prefer to mount the TV to the wall

Buttons and Ports on the TV

Back View of the TV TV Side View

VIDEOL R

ANT/CABLEAV IN

ARC

HDMI 2HDMI 1

DIGITAL

AUDIO OUT

LAN

USB

DC 5V

.5A (MAX)

AUDIO

OUT

STEP 1. Attach the TV Stand or Wall Mount Bracket (not included)

Attach the TV Stand

CAUTION:

Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.

The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the

TV screen from getting scratched or damaged by any hard objects. In addition, DO NOT exert pressure on the front of the TV at any

time because it could crack.

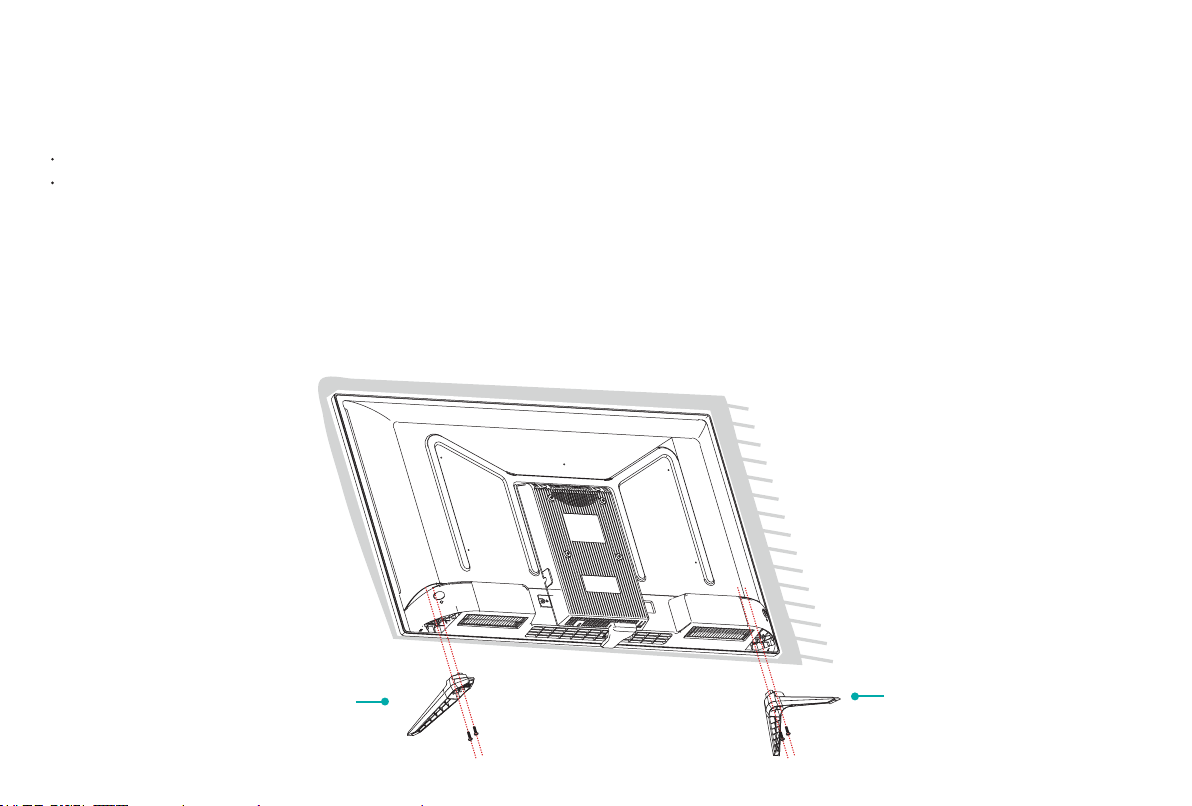

To attach the left and right leg that forms the stand:

1. Carefully place your TV face-down on a soft, flat surface to prevent the TV from being damaged or the screen from getting scratched.

2. Remove the 2 stands from the foam and then insert the stands into the bottom slots of the TV.

3. Use the 4 screws in the accessory bag to secure the base stand to the TV tightly.

Screws: ST4×12F

Base Stand Base Stand

Attach the Wall Mount Bracket (not included)

Before you begin the third-party manufacturer instructions, be

sure to do the following things:

1.Place the TV face down on a clean, safe and cushioned surface.

2.Remove the TV stand if you already attached it.

3.Place the spacers (not included) in the corresponding bracket

holes.

CAUTION:

• Whenyouattachthemount,be suretousethespacers

(providedbythethird-partymanufacturer)betweentheTV

and the bracket.

Screw

(not provided)

Bracket

(not provided)

Spacer

(not provided)

• To preventinternaldamagetotheTVandensureitis

mountedsecurely,besuretousefixingscrews(not

provided)thatare8-10mminlengthwhenmeasuredfrom

the attaching surface of the mounting hook.

Rear cover of the TV Spacer

Screw

Wall mount bracket

8.0 - 10.0 mm

Wall mount hole pattern

VESA (mm) 100 × 100

Wall mount screw size (mm) M4

Follow instructions provided with the Wall mount bracket.

To complete the installation, please contact the wall-mount

manufacturer or the retailer from which you purchased the TV.

The selected screws are 8.0 - 10.0 mm in length when

measured from the attaching surface of the rear cover.

NOTE: The diameter and length of the screws differ

dependingonthewallmountbracketmodel.

STEP2.ConnectDevicestoyourTV

Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect

the quality of the picture image and color.

TV label Port Cable External Equipment Brief Description

ANT/CABLE

Antenna

VHF/UHF Antenna

ANT OUT

Connect an outdoor VHF/UHF antenna.

HDMI

DVD Player/Recorder

Set-top Box

Satellite Receiver

Satellite

antenna

cable

VCR

Video

Camera

Connect a High Denition Multimedia Interface

(HDMI) cable from an external device.

AV IN

VIDEO Yellow

Connect a composite video cable and left-right

audio cables from an external AV device.

LWhite

RRed

DIGITAL AUDIO OUT

SpeakerAudio Amplier

Connect an optical cable from an external

digital audio system.

USB

Connect a USB device for browsing photos,

music and movies.

The unit only recogonizes a USB Memory Stick.

TV label Port Cable External Equipment Brief Description

AUDIO

OUT

Connect headphones to hear audio from the

TV.

Headphones with microphones are not

supported.

Connect an audio adapter (not provided) from

an external analog audio system.

LAN

Connect an Ethernet cable to access a network

or the Internet. The TV also has a wireless

connectivity feature.

White

Red

Speaker Audio Amplier
