SERVICE MANUAL

No. S97Q7LC37DW99

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the

safety and performance of the set.

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

TopPage

LC-37DW99U

LCD COLOR TELEVISION

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-

inal condition and only parts identical to those specified should be used.

In this Service Manual, only parts in the LCD module are shown. For the other points, refer to the LC-37DW99U

(S77L3LC37DW99) Service Manual and LC-32/37D62U (S17A9LC32D62U) Service Manual.

OUTLINE

SUPPLEMENT

LC-37DW99U

LC-37DW99U Service Manual

OUTLINE AND ADJUSTMENT

[1] Outline

In this Service Manual, only parts in the LCD module are shown. For the other points, refer to the LC-37DW99U (S77L3LC37DW99) Service Manual

and LC-32/37D62U (S17A9LC32D62U) Service Manual.

[2] Adjustment

When replacing the LCD control PCB, follow these steps to adjust VCOM.

1) Enter the adjustment process mode.

2) Select the item [VCOM ADJ] on the page 3/26 using the CH ( )/( ) keys on the remote controller.

3) Press the Enter key to check that the adjustment pattern is displayed.

4) Adjust the flicker in the middle of the screen to minimum using the VOL (+)/(-) keys on the remote controller.

5) Press the Enter key to turn off the pattern.

6) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the

power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)

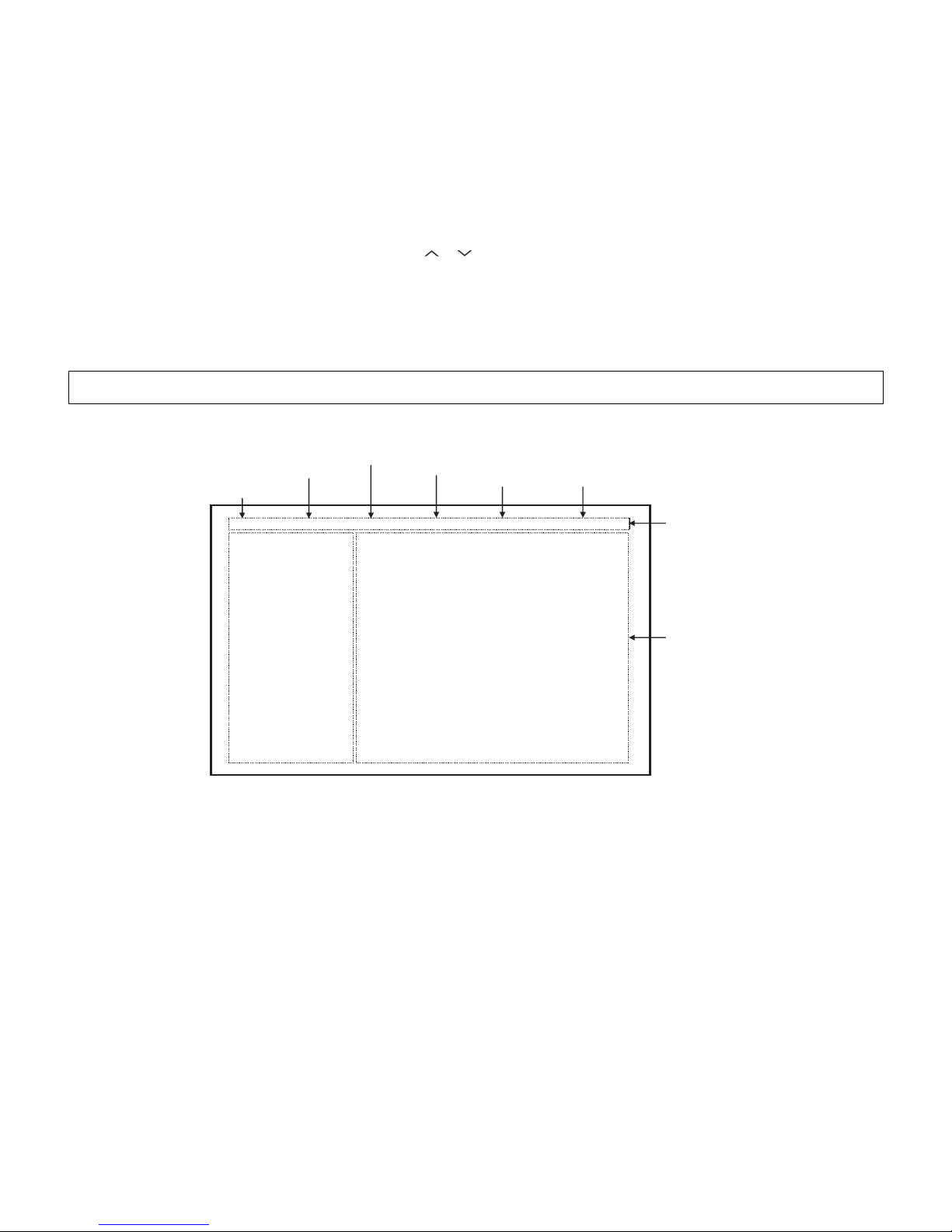

Description of display

CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode.

If the settings are tampered in this mode, unrecoverable system damage may result.

(3) Current selected input

(2) Current page title

(4) Current color system

(1) Current page/ (5) Destination (6) LCD Panel size/Speaker type

Total pages

1/26 [INFO] INPUT5 AUTO USA 37_UNDER

MAIN Version 0.90 ( U 2006/11/21 1A)

BOOT Version D62U B 1.01

Monitor Version 0.9

EQ DATA CHECKSUM ROM (8) Parameters

TEMPERATURE 7B

LAMP ERROR 0

NORMAL STANDBY CAUSE

ERROR STANDBY CAUSE 1) 0 2) 0 3) 0

0H 0M 0H 0M 0H 0M

4) 0 5) 0

0H 0M 0H 0M

(7) Adjustment

process menu

header

PARTS GUIDE

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

LC-37DW99U

PartsGuide

[1] LCD MODULE Assembly

CONTENTS

No. S97Q7LC37DW99

LC-37DW99U

LCD COLOR TELEVISION

MODEL

LC-37DW99U

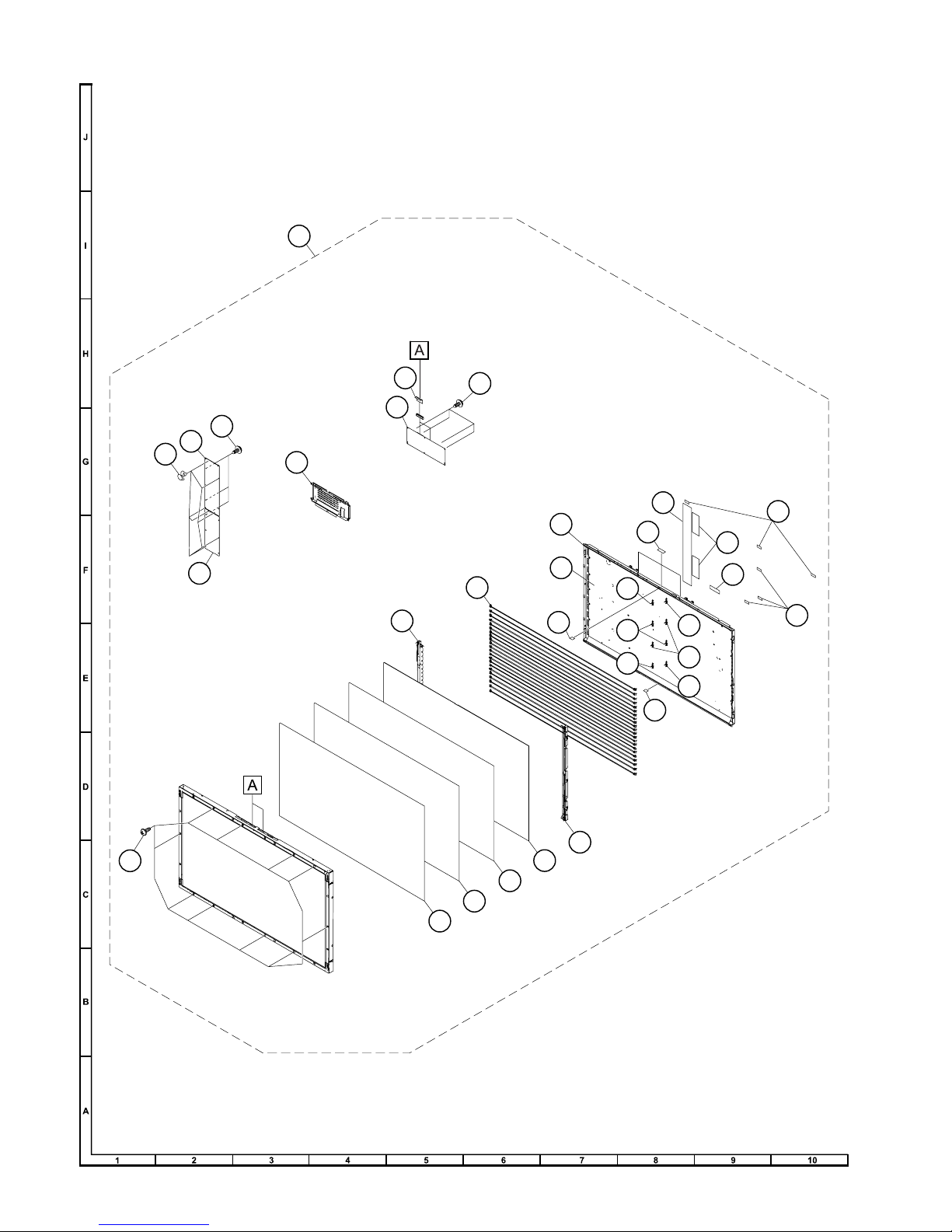

[1] LCD MODULE Assembly

7-13

7-18

7-19

7-1

7-3 7-5

7-6

7-7

7-8

7-7

7-3

7-2

7-4

7-11

7-10

7-15

7-14

7-17

7-20

7-14

7-12

7-9

7-16

7-8

LC-37DW99U

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[1] LCD MODULE Assembly

1R1LK370D3LZ20Z EC N J LCD Module Ass'y

2QPWBM0327TPZZ AG N J CS-FPC, x2

3CPWBX3520TPXF BR N J LCD CONTROL Unit

4CSLDMA804WJ01 AM N J Shield Case Ass'y

5XBPS730P06WS0 AA J Screw (for INV, LCD CONTROL), x14

6XBBSN30P14000 AA J Screw (for Vessel), x10

7-1 CANGK3681TP02 BN N J Chassis Ass'y

7-2 CLMPCA008WJ01 N J Lamp Unit, x10

7-3 LHLDZ3254TPZZ AC N J Sheet Holder, x2

7-4 LHLDZ3382TPZZ AM N J holder, x2

7-5 LHLDZ3385TPZZ AE N J Lamp clip, x2

7-6 LHLDZ3386TPZZ AE N J Lamp clip, x2

7-7 LHLDZ3628TPZZ AE N J Lamp clip, x2

7-8 LHLDZ3629TPZZ AE N J Lamp clip, x2

7-9 POFMD0111TPZZ BR N J Polarized light reflection sheet

7-10 PREFL2367TPZZ AT N J Reflection Mirror

7-11 PSLDK2717TPZZ BC N J Diffusion Panel

7-12 PSLDK2718TPZZ AX N J Diffusion Sheet, x2

7-13 PSPAZB030WJKZ AB N J Spacer, x10

7-14 PZETE4257TPZZ AA N J Tape, x6

7-15 PZETE4258TPZZ AB N J Tape, x3

7-16 PZETKA184WJKZ AK N J Insulation Sheet

7-17 PZETKA201WJKZ AC N J Insulation Sheet, x2

7-18 RUNTKA275WJZZ BK N J INVERTER Unit A

7-19 RUNTKA276WJZZ BG N J INVERTER Unit B

7-20 TCAUZA031WJZZ AB N J Caution Label

LC-37DW99U

No Part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any from or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP CORPORATION

AV Systems Group

CS Promotion Center

Yaita,Tochigi 329-2193, Japan

TQ2331-S YK. DS
