Sharp SJC118 Manuel utilisateur

SAFETY PRECAUTIONS................................1-3

HOW TO USE.....................................................4

CLEANING..........................................................5

BEFORE REQUESTING SERVICE....................6

WARNINGS........................................................

PART NAMES AND FUNCTIONS...................8-9

TEMPERATURE ADJUSTMENT......................10

SPECIFICATIONS.............................................

CHEST FREEZER

Refrigerant; R600a

Insulation blowing gas; Cyclopentane

WARNING

Repairs should be performed by qualified service personnel only.

Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of

obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacture.

Do not damage the refrigerant circuit.

Do not use electrical appliance inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacture.

SJC118

SJC128

SJC168

SJC178

SJC218

SJC228

SJC318

SJC328

SJC518

SJC528

substances into the unit as it could result

to explosion an fire.

it could result

to short-

on the power

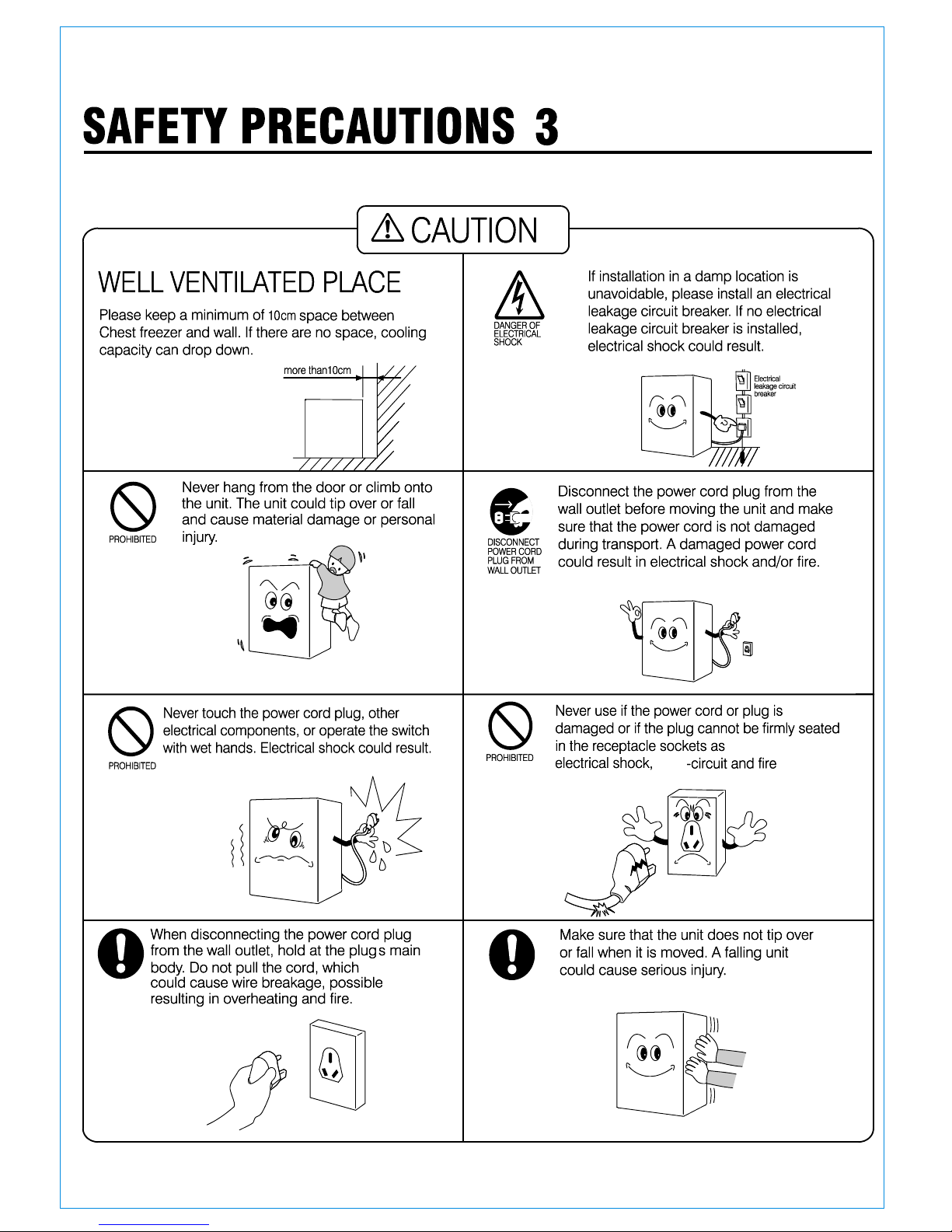

Please throughly study these SAFETY PRECAUTIONS before operating the unit.

it could result to

short

’

WARNING

To prevent any electrical shock hazards or injury by rotating circulation fan, always

disconnect the power cord plug from the wall outlet before cleaning.

Wipe with a soft, dry cloth.If very soiled, wipe with a cloth that has been moistened with a mild detergent.

Then wipe cleanly with damp cloth.

WARNING: Do not splash water directly onto the cooler and do not wash with water.

Short-circuit and electrical shock could result.

Clean the cooler regularly to keep it clean at all times.

Never use polishing powder, soap powder, benzine,oil

or hot water as these will damage the exterior plastic

components.

Detach the door and wipe cleanly with a dry cloth.

Please stick wood between door and chest freezer.

children from trapping inside.

Please do not put chest freezer near where children can play, to prevent

Remove all items from the compartment and disconnect the power cord plug

from the wall outlet.

Clean the compartment interior and wipe away all water.

To prevent mold formation and bad odor, leave the door open to dry the

compartment completely.

Sudden power failure

Keep opening and closing of the door to a minimum to prevent cold air form escaping.

Covering exterior glass surfaces with a blanket, etc. Will further help to maintain a low

temperature.

Announced power suspension

In case of a long power suspension, place dry ice in the freezer compartment.

Keep opening and closing of the door to a minimum.

Avoid placing new items into the cooler as this will raise the temperature inside the compartment.

Nature of malfunction

(as accurately as possible)

Product number

Serial number

(inscribed on shipping label)

Year and date of purchase

Customer's name, address,

phone number

Desired date for service visit

①④

⑤

⑥

②

③

feel hot, because chest freezer inside has a pipe for radiating and preventing

The heat has no effect on inside goods.

Model N :

Fast freezing lamp

Run lamp

Power lamp

Temperature Control Volume

Wheel

Drain cap

Lock

Handle

Door

Model

LED

Lamp

Handle

Key

Basket

SJC118

1 1 1 1

SJC128

1 1 1 1

SJC168

1 1 1 1

SJC178

1 1 1 1

SJC218

1 1 1 1

SJC228

SJC318

SJC328

SJC518

SJC528

1 1 1 1

1 1 1 2

1 1 1

2 2 2 3

SJC118 SJC128 SJC168 SJC178 SJC218

SJC228 SJC318 SJC328 SJC518 SJC528

Once press the button and the light will be ON, then the freezer will be in the state of Fast Freezing.

Once finished, please turn OFF the button otherwise the compressor will keep running and the food will be damaged.

Keep the key out of reach of children and not in the vicinity of the freezer.

Never touch the interior of the freezer chamber or frozen foods in the compartment with wet hands as this

could result in frostbite.

To adjust the temperature inside the freezer/cooling compartment,

use the control dial on front-bottom side of the chest freezer.

Normally use chest freezer with temperature MID.

If the cooling performance is inadequate, turn the temperature

control dial in the direction of MAX. If too cold, turn

dial in direction of MIN.

The above image is for reference only, configuration is subject to actual product.

FAST

FREEZING

Model

Rated

Voltage/

Freguency

Dimensions

(mm)(W H D)

220

240V/50Hz

574 x x

564 845

220

240V/50Hz

754 x x

564 845

220

240V/50Hz

950 x x

564 845

1116 664

220

240V/50Hz

535 740

220

240V/50Hz

SJC118

SJC168

SJC218

SJC318

SJC518

x x

Model

Rated

Voltage/

Freguency

Dimensions

(mm)(W H D)

220

240V/50Hz

574 x x

564 845

220

240V/50Hz

754 x x

564 845

220

240V/50Hz

950 x x

564 845

1116 644

220

240V/50Hz

535 740

220

240V/50Hz

SJC128

SJC178

SJC228

SJC328

SJC528

x x
