Names and Locations

Using the Copier Function

Using the Scanner

Function

Using the Fax Function

Troubleshooting

Removing Paper Jams

Quick Guide

Print Cartridges

DX-C200

Table of Contents

Names and Locations

Exterior• 3

Interior• 4

C• ontrol Panel 5

Initial Screen and Basic Operation• 7

Advanced Photocopy Settings• 9

Initial Screen and Basic Operation• 12

Advanced Scan Settings• 18

Initial Screen and Basic Operation for Sending a Fax

• 19

Advanced Scan Settings• 22

Error and Status Messages on the Screen

• 23

Printing or Scanning Problems• 27

Fax Transmission Problems• 28

Paper Jam Positions• 29

Removing from the Fusing Unit• 30

Removing from the Tray• 32

Removing from the Transfer Unit• 33

Removing from the ADF• 34

Before Replacing Print Cartridges• 37

Replacing Print Cartridges• 38

Using the Copier Function

Using the Scanner Function

Using the Fax Function

Troubleshooting

Removing Paper Jams

Print Cartridges

Names and Locations

Exterior

Output Tray for the ADF

Originals scanned with the ADF are

output here.

Output Tray/Top Cover

Printed paper is output here. Open here

to replace the print cartridges.

Front Cover

Open this cover to replace the waste

toner bottle or remove jammed paper.

USB Flash Disk Port

Insert a USB ﬂash disk for using the Scan to USB function or

connect a digital camera using a USB cable for PictBridge

printing.

Tray 1

Tray 2 (option)

Control Panel

Input Tray for the ADF

Place stacks of originals here. They will feed in

automatically.

ADF (Auto document feeder)

Cover

Open this cover to remove originals jammed in

the ADF.

Exposure Glass

Open the cover and place originals here sheet

by sheet.

CES406

CES141 CES142

Names and Locations

Print Cartridges

Load from the machine rear, in the order of

cyan (C), magenta (M), yellow (Y), and

black (K).

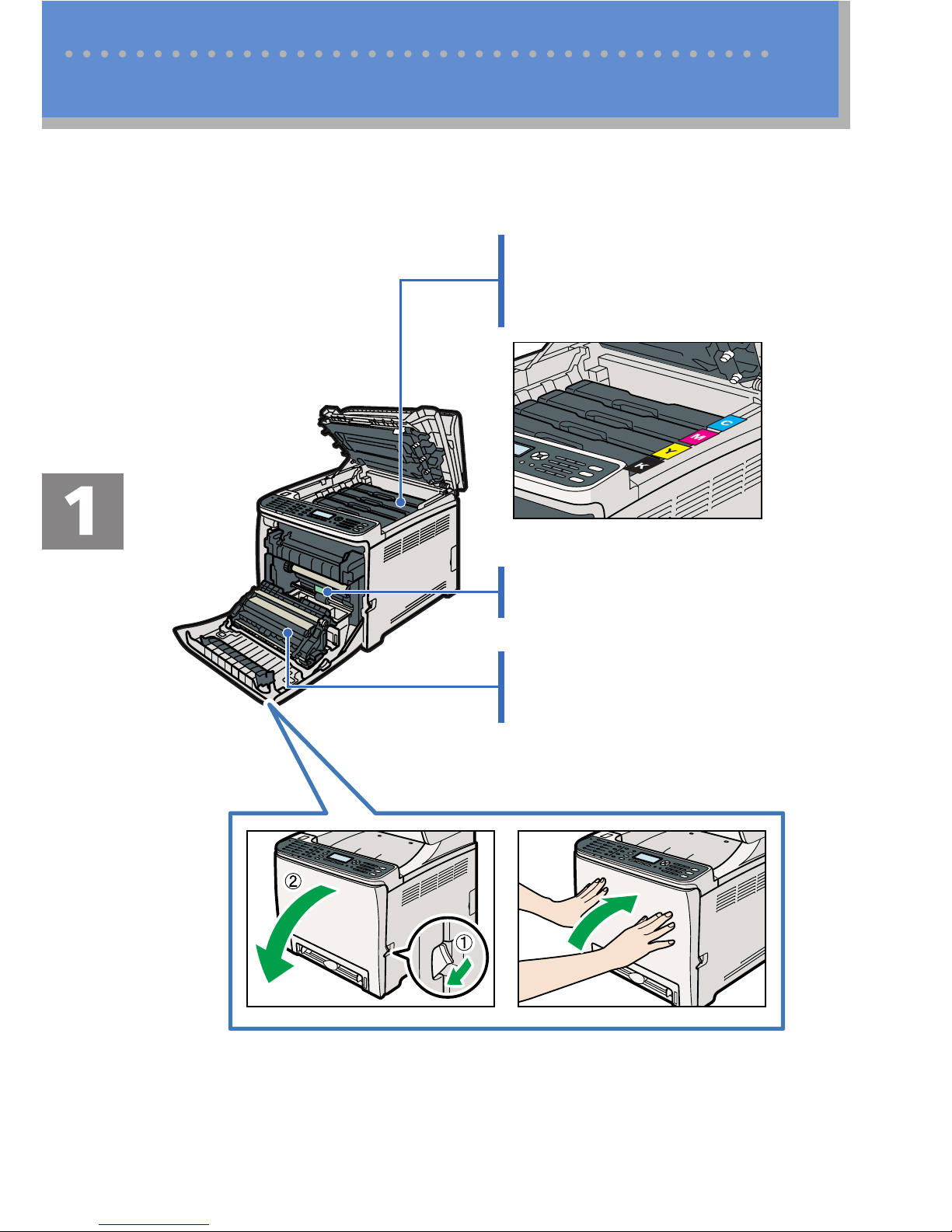

Interior

Waste Toner Bottle

Collects excess toner during printing.

Transfer Unit

Remove this unit when replacing the waste

toner bottle.

Names and Locations

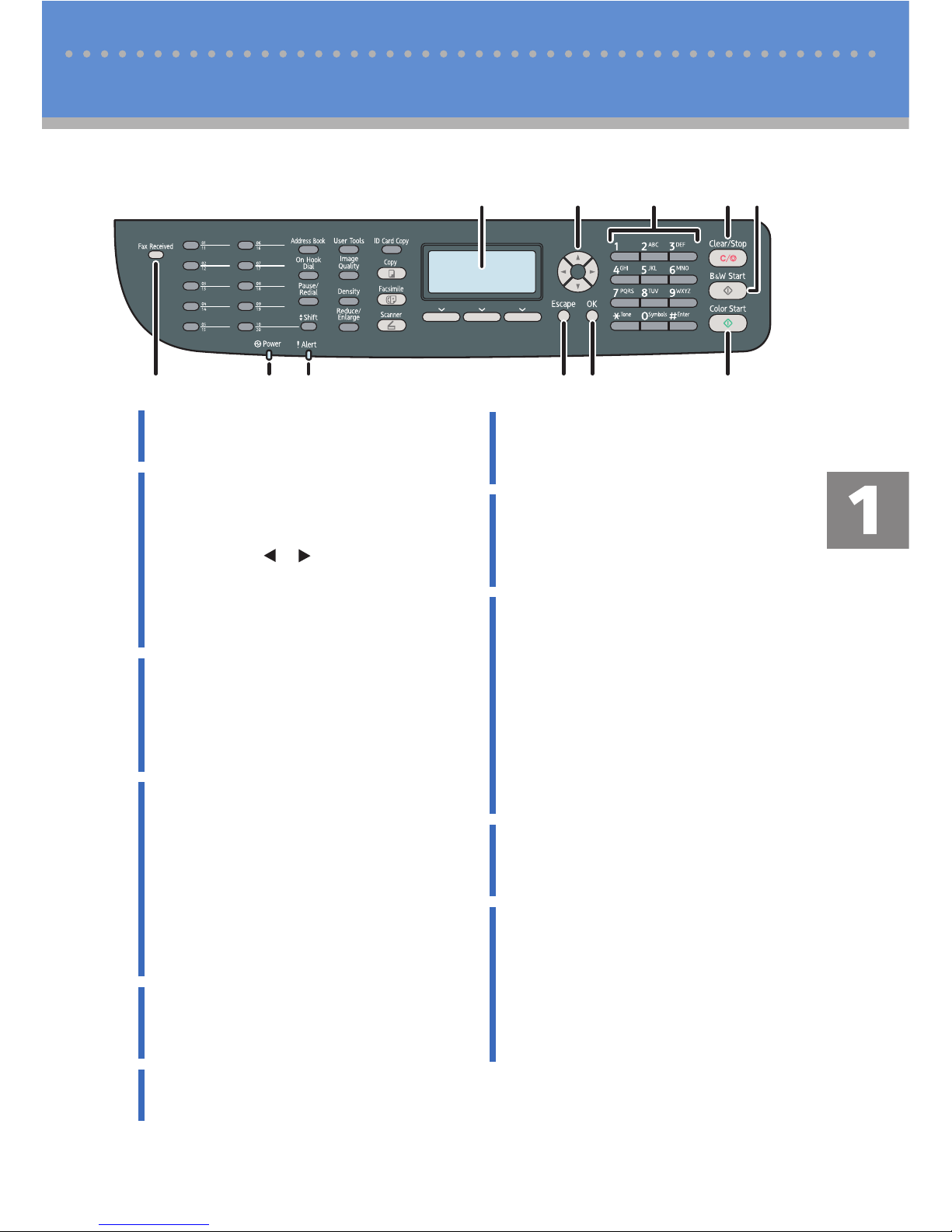

Control Panel

1Screen

Displays current status and messages.

2Scroll keys

Press to move the cursor in the direc-

tions indicated by each scroll key.

Pressing the [ ][ ] keys while the

machine is in standby mode will dis-

play the menu for conﬁguring the set-

tings of the machine’s current opera-

tion mode (copier, scanner, or fax).

3Number keys

Use to enter numerical values when

specifying settings such as fax num-

bers and copy quantities, or enter let-

ters when specifying names.

4[Clear/Stop] key

• While the machine is processing a

job: press to cancel the current job.

• While conﬁguring the machine: press

to cancel the current setting and re-

turn to standby mode.

• While in standby mode: press to

cancel temporary settings such as

the image density or resolution.

5[B&W Start] key

Press to scan or copy in black and

white, or start sending a fax.

6[Color Start] key

Press to scan or copy in color.

7[OK] key

Press to conﬁrm settings or enter the

next level of the menu tree.

8[Escape] key

Press to cancel the last operation or

exit to the previous level of the menu

tree.

9Alert indicator

Flashes yellow when the machine will

require maintenance soon (such as

replacing consumables), or lights up

red when a machine error occurs.

When an alert is issued, check the

messages on the screen and follow

the instructions as provided in “Error

and Status Messages on the Screen”

on page 23.

10 Power indicator

Remains lit while the power is on. It is

unlit when the power is off.

11 Fax Received indicator

Lights up when received faxes that

have not been printed out exist in the

machine’s memory. Flashes when the

machine is unable to print out the fax-

es due to machine errors such as an

empty paper tray or a paper jam.

CES403

12345

67891011

Names and Locations

Control Panel

1One Touch buttons

Press to select a scan or fax Quic

Dial destination.

2[Address Book] key

Press to select a scan or fax destina-

tion from the Address Book.

3[On Hook Dial] key

Press to use on-hook dialing to chec

the destination’s status when sending

a fax.

4[User Tools] key

Press to display the menu for conﬁgur-

ing the machine’s system settings.

5[Image Quality] key

Press to select scan quality for the

current copy, scan, or fax job.

6[ID Card Copy] key

Press to enter ID card copy mode for

the current job.

7[Copy]/[Facsimile]/

[Scanner] key

Press to switch the machine’s opera-

tion mode.

8Selection keys

Press the key that corresponds to an

item shown on the bottom line of the

screen to select it.

9[Density] key

Press to adjust image density for the

current copy, scan, or fax job.

10 [Reduce/Enlarge] key

Press to specify the reduction/en-

largement ratio for the current copy

job, or the document size for the cur-

rent scan job.

11 [Pause/Redial] key

Press to insert a pause in a fax number,

or display the last used scan or fax

destination.

12 [Shift] key

Press to switch between Quick Dial

numbers 1 to 10 and 11 to 20 when

specifying a scan or fax destination

using the One Touch buttons.

CES404

2534 61

891011

Using the Copier Function

Initial Screen and Basic Operation

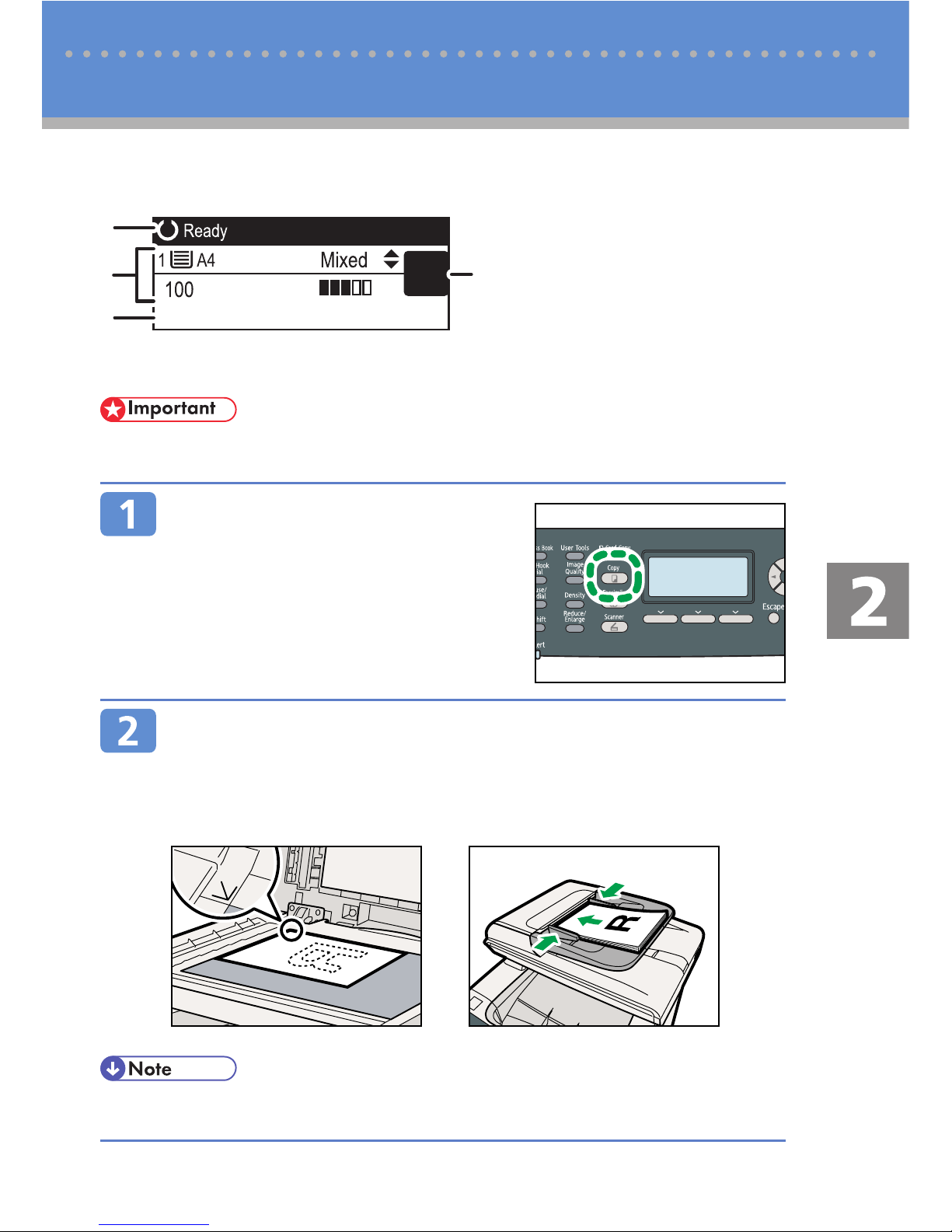

The following is the initial screen in copier mode.

1. Current status or messages

2. Current settings

3. Selection key items

If function names appear here,

press a corresponding selec-

tion key to use that function.

4. Copy quantity

The original in the ADF takes precedence over the original on the exposure glass if you•

place originals both in the ADF and on the exposure glass.

Press the [Copy] key.

CES174

Place the original face down on the exposure glass or face

up in the ADF.

Lift the ADF carefully without holding the input tray. Otherwise, the ADF

might be damaged.

Exposure Glass ADF

CES070

CES109

If necessary, conﬁgure advanced photocopy settings. For more details, see “Advanced Pho-•

tocopy Settings” on page 9.

CES250

[] 14

Using the Copier Function

To make multiple copies, enter the number of copies using

the number keys

The maximum number of copies is 99.•

Press the [B&W Start] or [Color

Start] key.

CES169

To cancel photocopying, press the [Copy] key, press the [Clear/Stop] key, and then press•

[Yes] for conﬁrmation.

You can change the paper tray for the current job by pressing the [• ][ ] keys. If tray 2

is installed, you can select to change the paper tray automatically according to the paper

size (A4 or Letter).

If a paper jam occurs, printing stops after the current page has been printed out. After the•

jammed paper is removed, printing restarts from the jammed page automatically.

If a scanning jam occurs in the ADF, copying is canceled immediately. In this case, copy the•

originals again starting from the jammed page.

For information about originals, see “Getting Started”,• User Guide.

For information about removing jammed paper, see “Removing Paper Jams” on page 29.•

Initial Screen and Basic Operation

Using the Copier Function

❖Making Enlarged or Reduced Copies

You can specify the reduction or enlargement ratio for the current job. There are two

ways to set the scaling ratio: using a preset ratio or manually specifying a custom

ratio.

Press the [Reduce/Enlarge] key.1.

Press [Reduce] or [Enlarge], press the [2. ][ ][ ][ ] keys to select the desired ratio,

and then press the [OK] key.

If [Zoom] has been selected, specify the desired ratio using the number keys, and then3.

press the [OK] key.

❖Copying Multiple Pages onto One Sheet

This function is only available when the original is set in the ADF, not when it is set on the•

exposure glass.

To use this function, the paper size used for printing copies must be set to A4, Letter, or Legal.•

You can set 2-in-1/4-in-1 copy mode for the current job.

Press the [Reduce/Enlarge] key.1.

Press [Reduce], press the [2. ][ ][ ][ ] keys to select [Comb. 2 on 1] or [Comb. 4

on 1].

Press the [3. ][ ] keys to select the desired printout format, and then press the [OK]

key.

The following types of printout format can be selected depending on your preference.

Printout formats for 2-in-1 copying

[Portrait] [Landscape]

CES033 CES034

Printout formats for 4-in-1 copying

[Portrait: L to R] (Left to Right) [Landscape: L to R] (Left to Right)

CES035

CES037

[Portrait: T to B] (Top to Bottom) [Landscape: T to B] (Top to Bottom)

CES036 CES038

Advanced Photocopy Settings

CES125

CES126

CES127

CES128

Using the Copier Function

❖Making 2-sided Copies

This function is only available when the original is set in the ADF, not when it is set on the•

exposure glass.

Paper must be fed from tray 1 or tray 2, not from the bypass tray. In addition, paper size must•

be A4, B5, Letter, Legal, Executive, 8" x 13", 8 1/2" x 13", Folio, or 16K, and paper type must

be thin, plain, middle thick, recycled, color, preprinted or prepunched.

You can set the machine to copy in 2-sided copy mode.

Press the [Copy] key.1.

Press the [2. ][ ] keys.

Press the [3. ][ ] keys to select [2 Side Copy], and then press the [OK] key.

Press the [4. ][ ] keys to select the printout format, and then press the [OK] key.

Press the [User Tools] key to return to the initial screen.5.

“2 Sided Copy” appears on the display, indicating that the machine is now in 2-sided

copy mode.

The following types of printout format can be selected depending on your prefer-

ence.

Printout formats for Top-to-Top copying

[Top to Top ] [Top to Top ]

Printout formats for Top-to-Bottom copying

[Top to Bottom ] [Top to Bottom ]

After this function is set, all subsequent copies will be 2-sided, unless you cancel the setting•

by selecting [Off] for [2 Side Copy].

Advanced Photocopy Settings

Autres manuels pour DX-C200

Table des matières

Autres manuels Sharp Photocopieuse

Sharp

Sharp AR-5316E Guide de configuration

Sharp

Sharp AL-1640 - B/W Laser - Copier Manuel utilisateur

Sharp

Sharp AR-1118 Manuel utilisateur

Sharp

Sharp MX-2300N Guide Instructions d'utilisation

Sharp

Sharp AL-1000 Series Manuel utilisateur

Sharp

Sharp AL-1000 Series Manuel utilisateur

Sharp

Sharp AR-201 Manuel utilisateur

Sharp

Sharp AL-1000 Series Manuel utilisateur

Sharp

Sharp AR-153E N Manuel utilisateur

Sharp

Sharp AL-1611 Manuel utilisateur

Sharp

Sharp AL-1640 - B/W Laser - Copier Manuel utilisateur

Sharp

Sharp AR-RP3 Manuel utilisateur

Sharp

Sharp DX-C310 Operation Manuel utilisateur

Sharp

Sharp SF-7400 Manuel utilisateur

Sharp

Sharp AR-M208 Manuel utilisateur

Sharp

Sharp SF-2220 Manuel utilisateur

Sharp

Sharp AJ-6000 Manuel utilisateur

Sharp

Sharp SF-2314 Manuel utilisateur

Sharp

Sharp SF-7350 Manuel utilisateur

Sharp

Sharp AR-121E Manuel utilisateur

Sharp

Sharp AR-150 SERIES Manuel utilisateur

Sharp

Sharp AR-505 Manuel utilisateur

Sharp

Sharp AR-C330 Key operators Manuel utilisateur

Sharp

Sharp AR-281 Manuel utilisateur

Manuels Photocopieuse populaires d'autres marques

Canon

Canon iR1210 Manuel de référence

Ricoh

Ricoh FW740 Manuel utilisateur

Minolta

Minolta CF910 Manuel utilisateur

Ricoh

Ricoh B003 Manuel utilisateur

Xerox

Xerox EC70 Manuel utilisateur

Oce

Oce 9800 Manuel utilisateur

Olivetti

Olivetti d-Copia 1800 Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Canon

Canon iR5000i Manuel utilisateur

Telecrane

Telecrane F25 Manuel utilisateur

Xerox

Xerox WorkCentre Pro 40 Manuel utilisateur

Canon

Canon NP6317 Comment utiliser

Ricoh

Ricoh Di-C1 Manuel utilisateur

Mita

Mita MIP-2400 Manuel

Muratec

Muratec MFX-C2280 Manuel utilisateur

Ricoh

Ricoh FT5034C Manuel utilisateur

Minolta

Minolta EP4000 Manuel utilisateur

Ricoh

Ricoh V-C3 Guide d'installation
