Sharp PV300G Manuel utilisateur

Contents

Welcome! 4

Open & Close the Display 5

Prior to Using Your Device 6

Remove and Replace the Back Cover 6

Insert and Remove the SIM Card 6

Insert and Remove the Memory Card 7

Formatting the Memory Card 7

Insert and Remove the Battery 8

Charge the Battery 8

Device Controls 10

Phone Controls 12

Volume Controls 13

Wireless Controls 13

Display Controls 14

Mini Media Player Controls 14

Setting Up Your Device 15

Bluetooth®Technology Setup 15

Themes 16

Font Size 16

Backlighting 17

Device Privacy Code 17

Key Guard Mode 17

Sound Profiles 18

Alarm Clock 18

Location Based Services 19

Application Customization 20

The Device Interface 20

The Jump Screen 20

Indicators 21

Menus 22

Quick Jump 22

Quick Find 23

Empty Trash 23

Type and Edit Text 23

Navigate in Text Boxes 23

Delete Text 24

Cut, Copy, Paste, Undo 24

Check Spelling 24

2



AutoText & Spelling 25

Type Special Characters 26

Using the Applications 26

Instant Messaging

Sign On 26

Send an Instant Message 26

Switch Between IM Conversations 27

Phone

Make a Phone Call 27

Use Bluetooth Hands-Free Headset or Car Kit 28

Answer a Phone Call 28

Add a Number to Your Speed Dial List 28

Checking Your Voice Mail 29

Change Your Phone Ringtone 29

Import Contacts from Your SIM Card 29

Text Messaging

Send a Text Message 29

Picture Messaging

Send a Multimedia Message 30

Send an Audio Postcard 31

Address Book

Add a Contact to the Address Book 32

Assign a Contact as a “Favorite” 33

Address Book Tabs 33

Communicate with a Contact 33

Set and Send “My vCard” 34

Send any Contact’s vCard 34

Opera Mini™ Web Browser

Browse the Web 35

Set a Speed Dial Icon 35

Toolbars 35

Settings 36

Planning

Alarm Clock 37

Calendar 37

Notes 38

To Do 38

Camera

Albums 39

Take a Photo 40

Capture Video 41

Send Media Files via Bluetooth or MMS Message 41

Use Photo for Caller ID or Key Guard Background 42

3



Media Player

Copy Music or Video to the Memory Card 42

Play Music or Video Using the Media Player 43

Listen Using Stereo Bluetooth Headset 43

Create a Playlist 44

Games 44

Calculator 45

Keyboard Shortcuts 46

Handling and Safety Precautions 47

Regulatory and Compliance Information 50

90 Day Limited Warranty 53

4



Welcome!

Thank you for buying the PV300G. Your device will open up a whole new way

of communicating, staying organized and connecting to your world.

Designed to seamlessly connect to wireless 3G networks, your PV300G

delivers information to you faster than ever. An intuitive phone interface and

Bluetooth compatibility are only the beginning. Effortlessly exchange instant

messages, browse the Internet, and send multimedia messages. Capture the

moments of your life with the 3.2 megapixel camera and video recorder. A

fully functional media player lets you take your favorite tunes and videos

along for the ride while video streaming capability allows you to check out

those videos your friends are all talking about. Personal information

management (PIM) applications keep you organized and on track.

Here’s what you’ll find in the box:

PV300G device

SIM card*

Removable battery

microSD Card *

USB cable

Battery charger (wall adapter)

Hands-free stereo headset

5



Protective sleeve

•Start Guide

•Reference Guide (on www.pcdphones.com)

•Recycle bag

If any of these items are missing, please contact Customer Service.

*May not be included with all models.

Open & Close the Display

To open the display, press your left thumb on the lower-left corner of the

display and gently push up in a clockwise direction. Alternatively, use your

right index finger to push down gently on the upper-right corner of the

display. The display will spring smoothly into the open position.

The normal operating position of the device is horizontal, with the trackball

on the right, as shown above.

To close the display, reverse the motion to pivot the display counter-

clockwise and snap it into the closed position.

9Always carry your device in the sleeve to protect the display from

scratches!

6



Prior to Using Your

Device

Before you use your device, do the following:

•Insert the SIM Card

•Insert and charge the Battery

The following sections walk you through the above actions in addition to

providing other information about these elements.

This section also contains instructions on how insert the memory card.

Remove and Replace the Back Cover

In order to access the SIM card, memory card and battery, you must

remove the back cover of the device. To do this, turn the device over. With

the camera at the top, slide the battery cover to the right by carefully

pressing the raised dotted lines on the cover with your left thumb. Lift the

cover to remove it.

To replace the back cover, align the back cover with the body of the device

and slide it into place. Take the reverse steps to remove the back cover.

Insert and Remove the SIM Card

The SIM card slot is located just to the left of the battery slot. To access it,

do the following:

1. If the battery is installed, remove the battery by following the steps in

“Insert and Remove the Battery” on page 8.

7



2. Hold card with gold contacts facing down and card notch facing to the

upper right. Slide the card into the slot and push to lock in place.

3. To remove the SIM card, use your finger to press down gently and slide

the card right. When it’s free of the slot, lift the card to remove it.

Insert and Remove the Memory Card

Your device includes a slot for a Micro Secure Digital (microSD™) flash

memory card. The memory card is not required for the device to function

and can be inserted at any time.

The memory card slot is located next to the battery as shown below.

1. To insert the memory card, hold the card with the gold contacts facing

down and the card notch facing to the right. Insert the card into the slot

and push to lock into place.

2. To remove the memory card, push the card in slightly and release; the

card should spring partly out of the slot. Pull the card free of the device.

! Forcing the memory card out before pushing to release it may cause the

card or slot to break.

Formatting the Memory Card

For optimal performance, it is recommended that you format the memory

card on the device. Please note that formatting the card will permanently

erase all items that are on the card.

1. Press JUMP to go to the Jump screen. Press MENU to open the

menu, then select Settings >Memory Card.

2. The Memory Card screen displays the card space and format. You can use

the Card Name field to give the card a unique identifier.

8



3. Select the Format Now button to format the card. This action will erase all

card contents.

Insert and Remove the Battery

To replace your rechargeable battery, or if you need to insert or remove

your SIM card, first you will need to remove the installed battery. Begin by

powering down your device:

1. Press and hold the power button for three seconds to power down.

2. Remove the back cover following the steps on page 6.

3. Push the battery in slightly (1) using protrusion at the lower right hand

corner of the battery then lift the battery (2) from that same edge to

remove it.

4. Insert the battery with the notched edge first (the edge with the gold

contacts) and then push the battery down to lock into place.

5. Replace the back cover.

Charge the Battery

Your device comes with a removable, rechargeable lithium-ion battery.

When you first receive your device, it is important that you fully charge the

battery as described below.

! Only use the charger and battery provided with your device or you risk

damaging your device.

! Do not insert battery chargers from into the stereo headset jack.

If you attach your device to your computer via USB, be aware that the

power received may not be enough to charge your device. For example,

when computers are in “sleep” mode, only a trickle charge may be supplied

via USB. In this situation you could lose more power than you gain. To

connect the device to your computer, insert the USB plug into your device’s

USB port with the icon on the top of the plug.

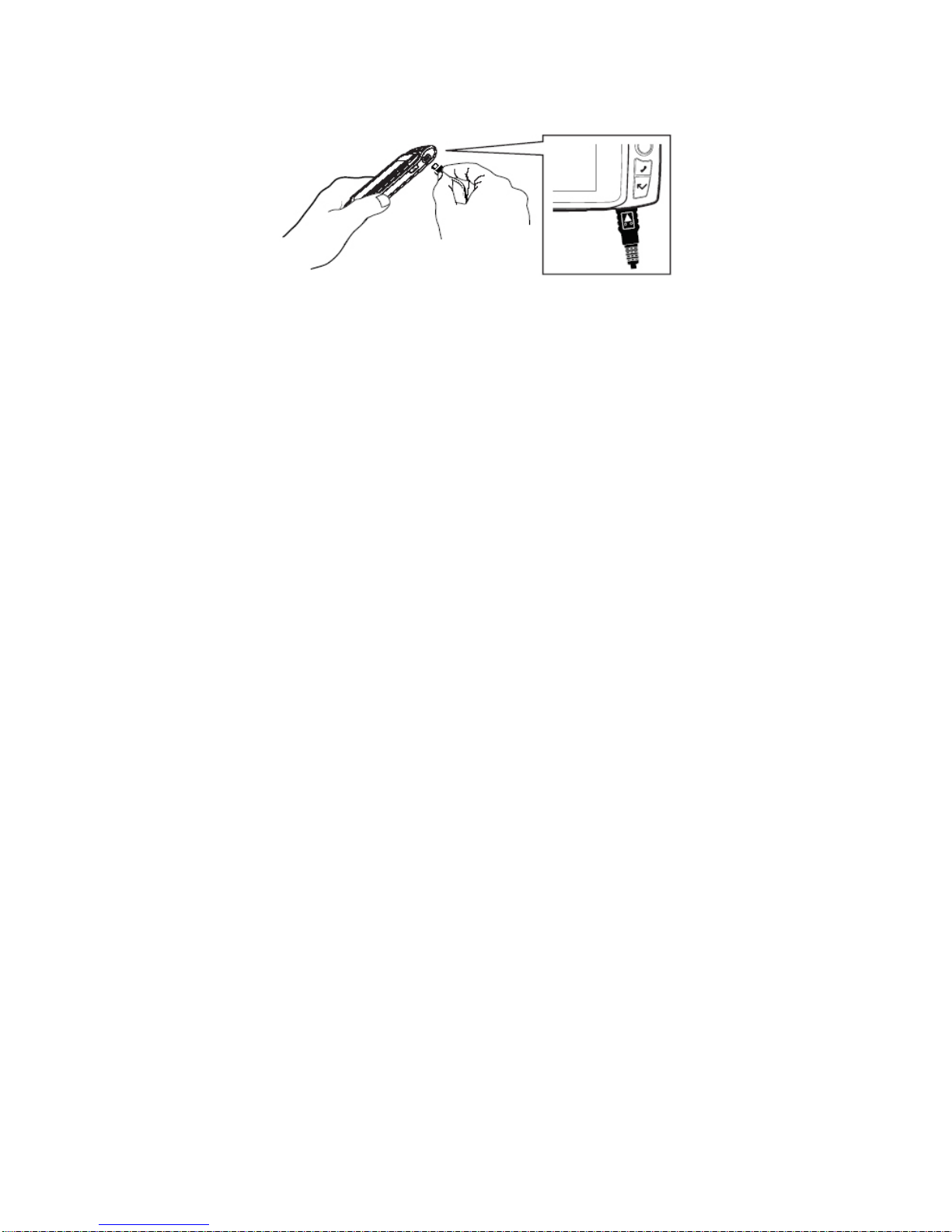

1. Locate the battery charger that came in the box with your device. Insert

the charger’s USB plug into your device’s USB port, which is next to the

power button. Make sure the icon is on the top of the plug.

9



Now plug the power cord into a standard electrical wall outlet.

An orange charge indicator light will go on and a lightning bolt icon will

appear over the battery icon in the title bar, indicating the charger is

connected and the battery is charging. If your device has discharged

completely, it may take up to 15 minutes before you see any indication of

charging on the screen. When the battery is fully charged, the indicator

turns green. If any error occurs when charging, the indicator turns red.

2. Put the device in a safe place and let the battery charge for at least four

hours with the device powered on.

As the device is charging, the bars in the battery icon fill repeatedly from

left to right. When your device is fully charged, the lightning bolt icon will

disappear and the bars will stop moving and remain in the filled position.

9It is recommended that you charge your device nightly. If you plan to

leave it unattended for an extended period of time, be aware that the

battery may discharge within a few days if it is turned on and not

attached to the charger.

10



Device Controls

MENU button – Press MENU to open a list of actions you can take on

the current screen.

JUMP button – Press JUMP to go back to the Jump screen, your

starting point for launching all the device applications.

CANCEL button – Press CANCEL to dismiss any changes you have

made to a screen or dialog box.

DONE button – Press DONE to go back through the screens you were

previously viewing, until you reach the Jump screen. On a screen or in a

dialog box, press DONE to save your changes and dismiss the screen or

dialog box. Press and hold DONE to enter power-saving keyguard mode.

SEND/END buttons – When the buttons are lit, use them to initiate/end a

call. When unlit, press to page up or to page down.

TRACKBALL – Press the trackball to select a highlighted item or press

and hold to open a pop-up menu. Roll the trackball to reverse or advance

the current selection through the “selectable” items on a screen. Rolling the

trackball left or right with a folder highlighted opens/collapses folder

contents. Adjust trackball speed and acceleration from the Jump Menu >

Settings > Trackball & D-Pad screen. Read what the trackball colors

mean during sleep in “Trackball light indicators” on page 22.

Table des matières

Autres manuels Sharp Téléphone portable

Sharp

Sharp Aquos phone SL Manuel de service

Sharp

Sharp 802 Manuel utilisateur

Sharp

Sharp Au Aquos R3 SHV44 Guide de configuration

Sharp

Sharp SX833 Manuel utilisateur

Sharp

Sharp GX-31 Manuel utilisateur

Sharp

Sharp SE-02 Manuel utilisateur

Sharp

Sharp SHV44 Guide de démarrage rapide

Sharp

Sharp Docomo AQUOS Ever SH-02J Manuel utilisateur

Sharp

Sharp SH9010C Manuel utilisateur

Sharp

Sharp AQUOS wish Manuel utilisateur

Sharp

Sharp SH002 Instructions de montage

Sharp

Sharp STYLE SH-05B Guide d'installation

Sharp

Sharp sh906i Mode d’emploi

Sharp

Sharp Aquos D10 Manuel utilisateur

Sharp

Sharp Aquos R compact Guide de démarrage rapide

Sharp

Sharp SoftBank 932SH Manuel utilisateur

Sharp

Sharp Aquos U SHV37 Guide d'installation

Sharp

Sharp 770SH Manuel utilisateur

Sharp

Sharp HRO00058 Manuel utilisateur

Sharp

Sharp GX27 Manuel utilisateur

Sharp

Sharp Aquos Phone Ex Manuel utilisateur

Sharp

Sharp Docomo AQUOS Ever SH-04G Manuel utilisateur

Sharp

Sharp SX862 Manuel utilisateur

Sharp

Sharp AQUOS PHONE CL IS17SH Manuel de service

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
