CHAPTER 1. REMOVING THE REAR

COVER

1. REMOVING THE REAR COVER

1) Remove the two screws .

2) Remove the rear cover .

2. REPLACING THE REAR COVER

Install the rear cover in the reverse order of removing.

CHAPTER 2. REMOVING THE TOP

CABINET

1. REMOVING THE TOP CABINET

1) Open the printer cover .

2) Lift the pop-up display unit .

3) Remove the three screws .

4) Slightly lift and slide the top cabinet, and remove the grounding

wire .

Note: Do not pull up the top cabinet unit the grounding wire

and connector cables from the top Cabinet are re-

moved.

5) Remove the following cable between the top cabinet and the

main PWB.

Cable between the MAIN PWB and the CKDC PWB.

2. REPLACING THE TOP CABINET

Install the top cabinet in the reverse order of removing.

CHAPTER 3. REMOVING THE LCD

UNIT

1. REMOVING THE LCD UNIT

1) Remove the top cabinet from the bottom cabinet.

2) Remove the LCD flat cable and the earth wire from the

CKDC PWB .

3) Remove the two screws from the LCD HINGE .

4) Remove the LCD unit from the top cabinet.

Insert a flat-bladed screwdriver into the right and left mounting

areas and remove.

5) With a flat-bladed screwdriver, remove the two latches of each

of the LCD rear cabinet and the LCD filer .

Turn of A and B when you remove it.

2. REPLACING THE LCD UNIT

Install the LCD unit in the reverse order of removing.

CHAPTER 4. REMOVING THE

PRINTER UNIT

1. REMOVING THE PRINTER UNIT

1) Remove the top cabinet.

2) Remove the two screws fixed on the printer unit.

3) Remove the screw fixed on the earth wire .

4) Remove the printer cable from the MAIN PWB (CN9).

2. REPLACING THE PRINTER UNIT

Install the printer unit in the reverse order of removing

LCD volum PWB

LCD HS unit

LCD back light

CHAPTER 5. REMOVING THE

STANDARD DRAWER

unit (For KA,KB version)

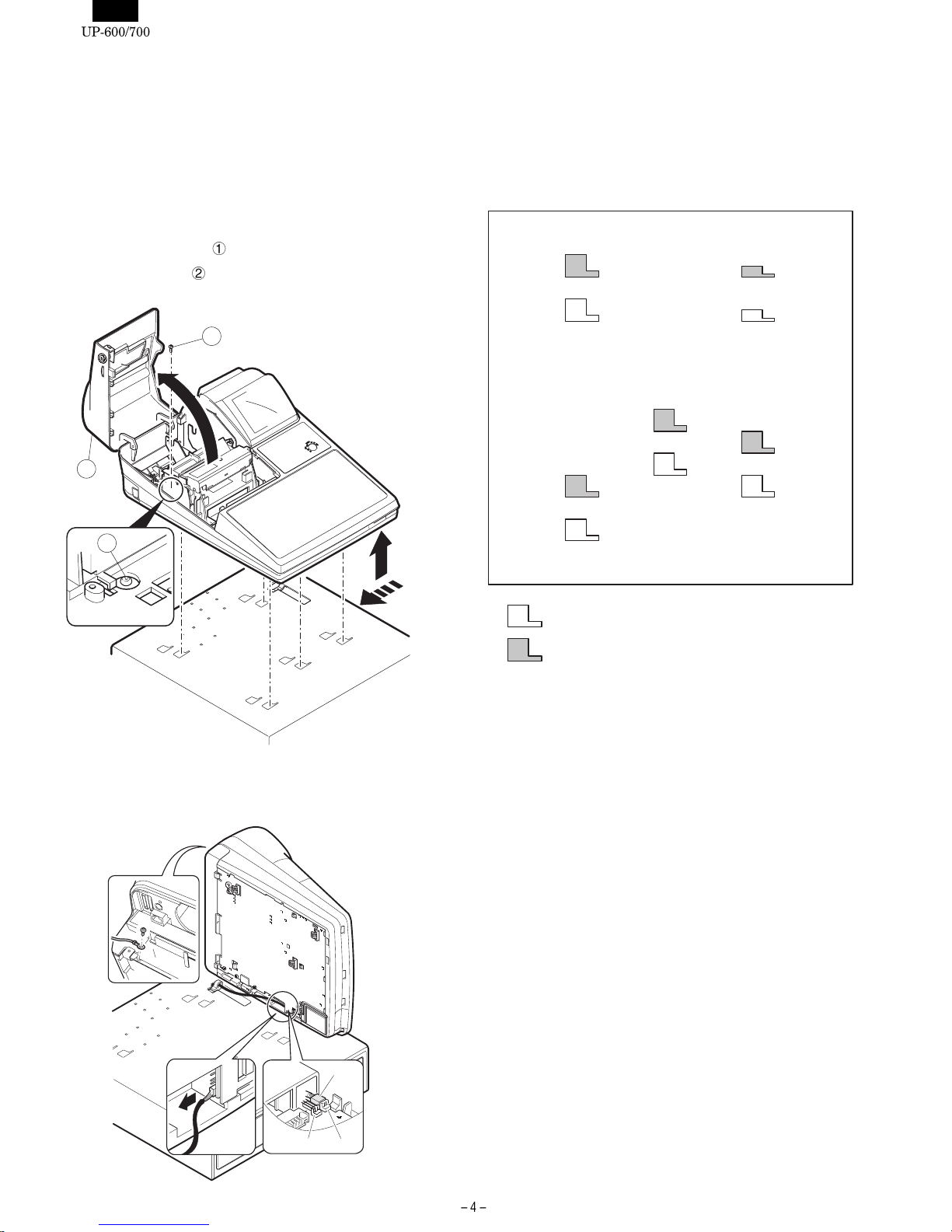

1. REMOVING THE STANDARD DRAWER

UNIT

1) Open the printer cover .

2) Remove the screw fixed on the drawe unit.

3) Stand the main drawer sideways as illusted above, and re-

move the drawer connector from the MAIN PWB (CN:5 ).

2. REPLACING THE STANDARD DRAWER

UNIT

Install the standard drawer unit in the reverse order of removing

The drawer top has the following holes with which the drawer position

can be changed.

DRCN2

CN4CN5

: Standard position

: Rear position

CHAPTER 6. EXPANSION RAM

BOARD :

UP-S02MB/04MB

1) Open the ROM/RAM case .

2) Install the two spacers on the ROM/RAM PWB unit .

3) Connect the UP-S02MB/04MB to the ROM/RAM PWB unit

(CN:303)

NOTE: The UP-S02MB/S04MB has an electric double layer ca-

pacitor (C21). When removing it after using, use caution

not to bring it close to any conductor.

CHAPTER 7. IN-LINE I/F : UP-E10IN

1) Remove the top cabinet.

2) Install the spacer on the MAIN PWB .

3) Connect the UP-E10IN to the MAIN PWB (CN:304).

4) Fix the UP-E10IN to the spacer with a screw .

5) Pass the TCP/IP cable through the two standard holder

and one core to the following PWB.

UP-E10IN side : CN3, MCR POLE RELAY PWB side :

CN504

7) Remove the rear cover.

8) Connect the LAN cable to the LAN connector .

9) Install the core to the LAN cable .

NOTE: Install the ferrite core in a position less than 50 mm from

the cabinet.

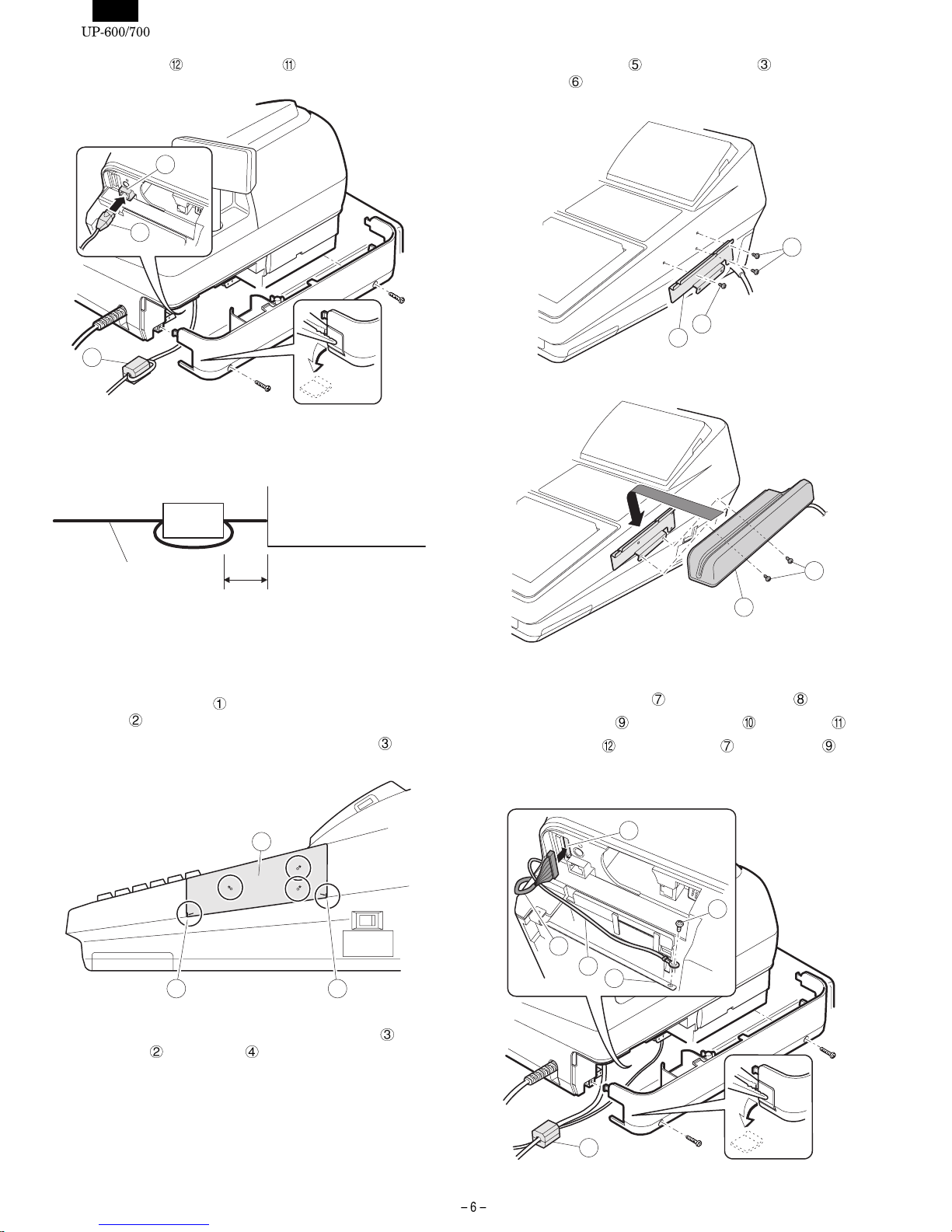

CHAPTER 8. MCR UNIT : UP-E13MR

1) Align the MCR sheet with the positioning line of the top

cabinet .

2) Mark 3 points of the asterisk mark on the MCR sheet .

3) Aligning with the markings, secure the MCR angle 1 to the

top cabinet with 3 screws .

4) Install the MCR unit to the MCR angle 1 and secure with

2 screws .

5) Remove the rear cover.

6) Connect the MCR cable to the MCR connector .

7) Fix the earth wire to the main chassis with a screw .

8) Install the core to the MCR cable and earth wire with

two wire bands.

IN-LINE cable

Cabinet

Within 50mm

Core

2 2

910

NOTE: Install the ferrite core in a position less than 50 mm from

the cabinet.

CHAPTER 9. POLE DISPLAY UNIT :

UP-P16DP

1) Remove the rear cover.

2) Connect the display cable to the POLE connector .

3) Fix the earth wire to the main chassis with a screw .

4) Install the core to the display cable and earth wire .

Secure the core with two wire bands.

NOTE: Install the ferrite core in a position less than 50 mm from

the cabinet.

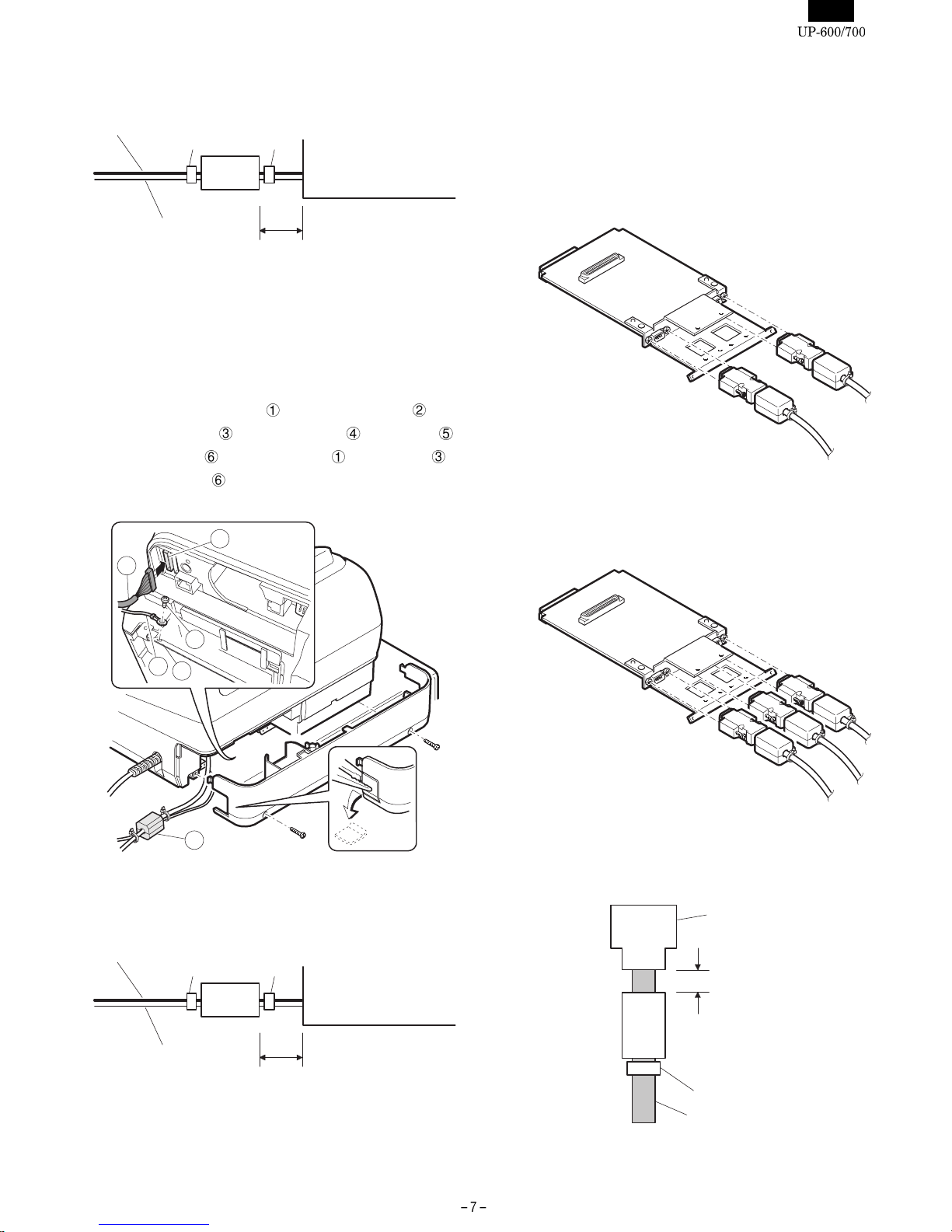

CHAPTER 10. RS-232 I/F :ER-A5RS ,

EFT & RS-232 I/F:

ER-01EF

1) Connect the extrnal cables to the I/F board.

<ER-A5RS>

•Install the core (RC0RF6700BHZZ) to the cable with a band.

<ER-01EF>

•Install the core (RC0RF6700BHZZ) to the cable with a band.

NOTE: Install ferrite core in a position less than 10 mm from the

D-sub connector.

Earth wire

Cabinet

MCR cable Wire bandWire band

Core

Within 50mm

Earth wire

Cabinet

MCR cable Wire bandWire band

Core

Within 50mm

Cable

Core

Wire band

D-sub connector

Within 10mm

2) Remove the rear cover.

3) Insert the I/F PWB to the connector of the MAIN PWB

4) Fix the I/F angle to the main chassis with two screws .

CHAPTER 11. HAND SCANNER :

ER-A6HS1

1) Remove the rear cover.

2) Connect the scanner cable to the RS232 CH1 connector.

3) Change the slide switch to the +5V side of the RS232 Relay

PWB unit.

+5V CI

S401
