Sharp ViewCam VL-E610S Manuel utilisateur

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

Page

1. SPECIFICATIONS ...........................................................................................................................1-1

2. PART NAMES AND FUNCTION......................................................................................................2-1

3. DISASSEMBLY OF THE SET..........................................................................................................3-1

4. MECHANISM ADJUSTMENT ..........................................................................................................4-1

5. ADJUSTMENT OF VCR...................................................................................................................5-1

6. SYSTEM BLOCK DIAGRAM........................................................................................................... 6-1

7. SCHEMATIC DIAGRAMS ............................................................................................................... 7-1

8. SEMICONDUCTOR LEAD IDENTIFICATION ................................................................................ 8-1

9. PRINTED WIRING BOARD ASSEMBLIES..................................................................................... 9-1

10.REPLACEMENT PARTS LIST...................................................................................................... 10-1

11.PACKING OF THE SET ................................................................................................................ 11-1

12.AC ADAPTER ............................................................................................................................... 12-1

S68R5VL-E610S

CONTENTS

SERVICE MANUAL

VL-E610S

VL-E610H

VL-E660S

VL-E96E

VL-E98E

In the interests of user-safety (Required by safety regula-

tions in some countries) the set should be restored to its

originalconditionandonlypartsidenticaltothosespecified

be used.

MODELS

LIQUID CRYSTAL CAMCORDER 8 PAL

LIQUID CRYSTAL CAMCORDER PAL MODELS VL-E610S/E610H/E660S/E96E/E98E

SHARP CORPORATION

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

1. SPECIFICATIONS

Signal System: PAL standard

Recording System: 2 rotary heads, helical scanning system

Cassette: 8 mm video tape, MP type

Recording/Playback Time: 120 minutes (P5-120)

Tape Speed: 20.051 mm/second

Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor with approx.

320,000 pixels including optical black

Lens: 16 ×power zoom lens (F1.4, f=4.0-64.0 mm) and full-range auto focus

Lens Filter Diameter: 46 mm

Monitor: 3" (7.5 cm)—full-color LCD screen (TFT active matrix)

Microphone: Electret monaural microphone

Color Temperature Compensation: Auto white balance

Minimum Illumination: 0.8 lux* (5 lux measured by EIA standard) (with gain-up, F1.4)

Video Output Level: 1.0 Vp-p 75-ohm unbalanced

Audio Output Level: –8 dBs, impedance less than 2.2 kohms

Speaker Output: 200 mW

Power Requirement: DC 3.6V

Power Consumption:

E610S/E610H/E96E:4.8W (during camera recording in full auto mode

with zoom motor off, and backlight in normal mode)

E660S/E98E:4.9W (during camera recording in full auto mode with zoom

motor off, Extend Zoom, DIS and Snapshot functions off, and backlight

in normal mode)

Operating Temperature: 0°C to + 40°C (32°F to 104°F)

Operating Humidity: 30% to 80%

Storage Temperature: –20°C to +60°C (–4°F to 140°F)

Dimensions (approx.): 182 mm (W) ×109 mm (H) ×99 mm (D)

Weight (approx.): 690g

(without battery pack, lithium battery, video cassette, and lens cap)

*(VL-E610S, VL-E660S, VL-E96E)

Specifications are subject to change without notice.

Battery Pack BT-H22

DC Output: 3.6V

Dimensions (approx.): 2 1/8" (W) ×3/4" (H) ×2 7/32" (D)

[54 mm (W) ×19 mm (H) ×

56 mm (D)]

Weight (approx.): 0.30 lbs (136 g)

AC Adapter/Battery Charger

UADP-0280TAZZ

UADP-0281TAZZ(VL-E610H)

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 4.5 V

Power Consumption: 16 W

Dimensions (approx.): 75 mm (W) ×51 mm (H) ×

130 mm (D)

Weight (approx.): 220 g

1-1

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

2-1

2. PART NAMES AND FUNCTION

For details on the use of each control.

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

2-2

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-1

3. DISASSEMBLY OF THE SET

3-1. Removal of the camera section

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.

1.Removeonescrew((d)XiPSF20P04000),onescrew((b)LX-HZ0018TAFF),twoscrews((a)LX-HZ0018TAFN),andpull

out the camera front cabinet (1).

(1)

Camera front cabinet

(a)

(d)

(b)

(a)

Pull out

2.Remove the connector (1 pc.).

Tilt frame C

Connector

Note:

When assembling the camera rear cabinet, lay the FPC

between the camera shield case and the tilt frame C, and

insert it into the connector.

* Remove the Camera rear cabinet, after removing the

connector.

4. Firstly,removetheCCDconnectorfromtheCameraPWB,thenremoveonescrew((c)LX-HZ0045TAFN),thereverse

side in this figure (Not remove the lens holder in this section).

CCD connector

3.Removeonescrew((b)LX-HZ0018TAFF),onescrew((d)XiPSF20P04000)andtwoscrews((a)LX-HZ0018TAFN)and

pull out the camera rear cabinet (2) backwards.

(b)

(2)

Camera rear cabinet

(a)

Pull out

(d)

(c)

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-2

5. Pulling the lens holder, and pull out the lens upwards. Then, remove the lens connector.

Note:

Be careful so as not to damage the FPC since the camera

PWB unit is connected to the lens unit with the FPC

attached.

7. Remove the camera PWB unit and the lens unit together, opening two claws of the battery holder outward.

Lens holder

Lens connector

Pull out

6. Remove one connector and two screws ((b)LX-HZ0018TAFF) and pull out the lens unit from the tilt frame C.

Connector

Pull out

(b)

Tilt frame C

Claw

Open

Remove

Open

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-3

3-2. Disassembly of the VCR main body

1. Removal of the VCR lid shaft

(1)Remove one screw ((j)LX-HZ0063TAFC). Area A

(2)Bringthejig(example:slottedprecisionscrewdriver)intocontactwiththeremovalgrooveoftheVCRlidshaft,andslide

the screwdriver with care to prevent injuring the VCR lid and frame V.

Frame V

VCR lid shaft

VCR lid

(3)Pull out the VCR lid shaft head which projects beyond the surface of the VCR lid.

VCR lid shaft

2. Disassembly of the cabinet L

(1)Slide the “VCR lid knob” in the arrow direction, and slide the VCR lid in the arrow direction as far as the cabinet L

fastening screw is visible. (Left figure) Since the connector of the microphone is still connected, take care to prevent

excessively sliding the VCR lid. VCR lid

(2)Remove five screws ((b)LX-HZ0018TAFF).

(b)

(j)

VCR lid knob

Detail of area A

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-4

(3)Turn the tilt frame C so that the screwdriver can be easily inserted, and remove two screws ((i)XiPSN20P04000).

Tilt frame C

(i)

(4)Remove one screw ((i)XiPSN20P04000). (i)

(5)Remove the cabinet L to the midway, and disconnect the FPC connector. Cabinet L

FPC connector

3. Removal of the VCR lid

(1)Disconnect the microphone connector.

Microphone connector

Area B

Microphone connector

(2)Remove the connector cable from the hole of the microphone wire spacer.

Microphone wire spacer

Microphone connector

Detail of area B

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-5

(3)Remove the microphone wire spacerfromtheFrameV.

Microphone connector

Microphone wire spacer

Detail of area B

Frame V

(4)Pull out the microphone wire cable with care to prevent it from interfering with the mechanical parts, and remove the

VCR lid.

Caution for installation of the VCR lid

When installing the VCR lid, move the VCR lid in the arrow direction, keeping the VCR lid parallel to the main body as

shown below.

4. Removal of the tilt unit

(1)Remove three screws ((b)LX-HZ0018TAFF).

Remove one screw ((d)XiPSF20P04000).

Disconnect three connectors.

Remove the tilt unit from the cabinet of the main body.

(b)

(d)

(b)

Tilt frame V

Tilt frame C

Battery terminal unit

VCR lid

VL-E610S/VL-E610H

VL-E660S/VL-E96E

VL-E98E

3-6

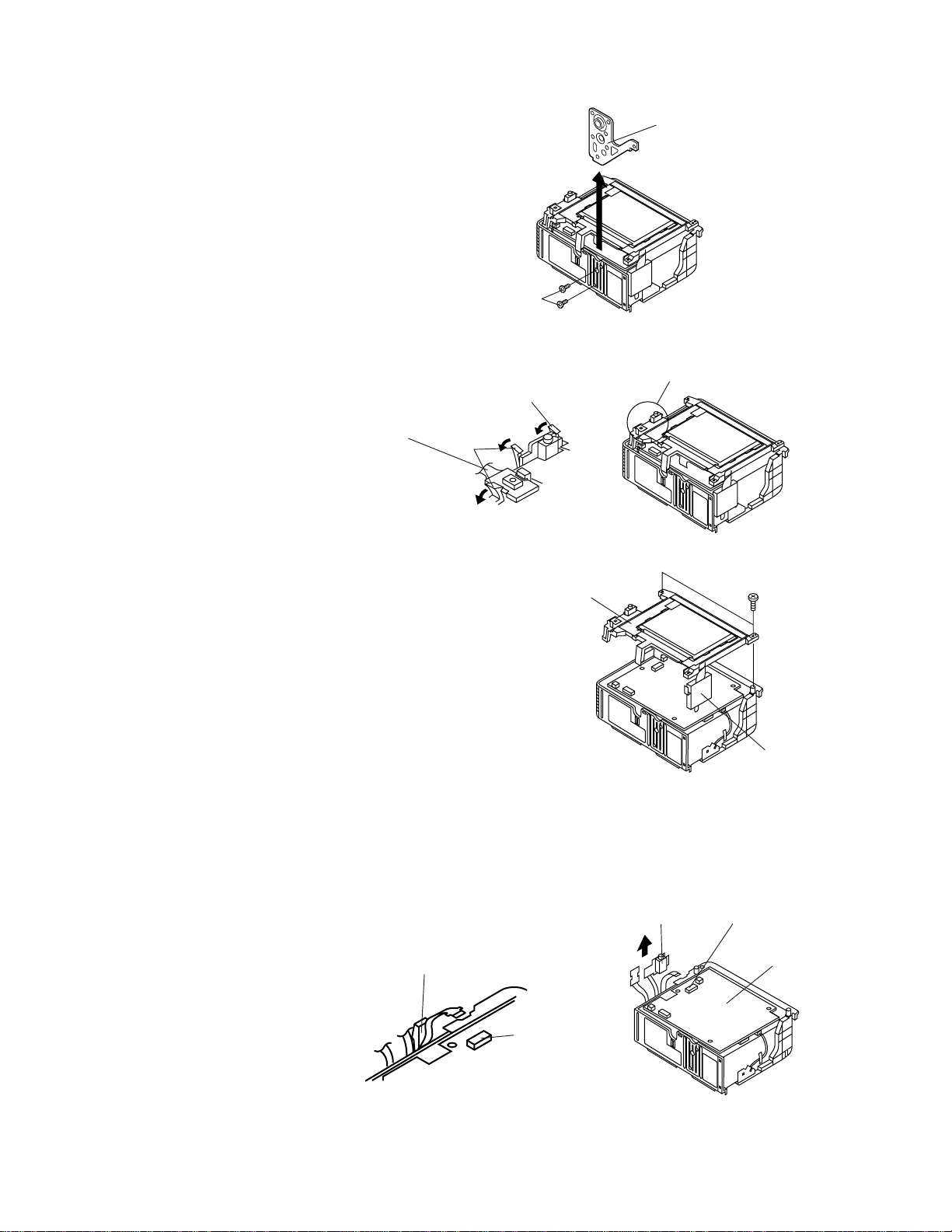

5. Disassembly of the LCD holder

(1)Remove two screws ((d)XiPSF20P04000), pull out the tripod angle.

(2)Remove the remote control ray reception PWB from the LCD, (Distorting the claw (snap-fit type) of the LCD holder,

release its engagement.)

Claw

Remote control ray reception PWB

(3)Removetwoscrews((b)LX-HZ0018TAFF) andtwoconnectors,andremove theLCDunit(withinverter) fromthemain

body.

Remote control ray reception section

Tripod angle

(d)

Claw

(b)

LCD unit

(4)DisconnecttheconnectorwhichconnectstheLi/RCunittothemainPWB,andslidetheLi/RCunitinthearrowdirection

from the frame V.

Note:

When connecting the FPC, pass it through the inside of rib of frame V (to prevent the FPC from being jammed).

Inverter transformer

Main PWB

Connector

Li/RC unit

Connector

Frame V rib
