OPERATION MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE MANEJO
MANUALE DI ISTRUZIONI
BRUKSANVISNING
GEBRUIKSAANWIJZING
KÄYTTÖOHJE
EL-1611P
ELECTRONIC PRINTING CALCULATOR
DRUCKENDER TISCHRECHNER
CALCULATRICE IMPRIMANTE ÉLECTRONIQUE
CALCULADORA IMPRESORA ELECTRÓNICA
CALCOLATRICE ELETTRONICA STAMPANTE
ELEKTRONISK SKRIVANDE OCH VISANDE RÄKNARE
ELEKTRONISCHE REKENMACHINE MET AFDRUK
ELEKTRONISESTI TULOSTAVA LASKIN
ENGLISH .................................................... Page 1
CALCULATION EXAMPLES ..................... Page 89
DEUTSCH .................................................. Seite 12
RECHNUNGSBEISPIELE ......................... Seite 89
FRANÇAIS ................................................. Page 23
EXEMPLES DE CALCULS ........................ Page 90
ESPAÑOL ................................................... Página 34
EJEMPLOS DE CALCULOS ..................... Página 90
ITALIANO ................................................... Pagina 45
ESEMPI DI CALCOLO ............................... Pagina 91
SVENSKA ................................................... Sida 56
GRUNDLÄGGANDE RÄKNEEXEMPEL ... Sida 91
NEDERLANDS ........................................... Pagina 67
REKENVOORBEELDEN ........................... Pagina 92
SUOMI ........................................................ Sivu 78
LASKENTAESIMERKKEJÄ ....................... Sivu 92
This equipment complies with the requirements of Directive 89/336/EEC as amended by 93/68/EEC.
Dieses Gerät entspricht den Anforderungen der EG-Richtlinie 89/336/EWG mit Änderung 93/68/EWG.
Ce matériel répond aux exigences contenues dans la directive 89/336/CEE modifiée par la directive
93/68/CEE.
Dit apparaat voldoet aan de eisen van de richtlijn 89/336/EEG, gewijzigd door 93/68/EEG.
Dette udstyr overholder kravene i direktiv nr. 89/336/EEC med tillæg nr. 93/68/EEC.
Quest’ apparecchio è conforme ai requisiti della direttiva 89/336/EEC come emendata dalla direttiva
93/68/EEC.
∏ ÂÁηٿÛÙ·ÛË ·˘Ù‹ ·ÓÙ·ÔÎÚ›ÓÂÙ·È ÛÙȘ ··ÈÙ‹ÛÂȘ ÙˆÓ Ô‰ËÁÈÒÓ Ù˘ ∂˘Úˆ·˚΋˜ ∂ÓˆÛ˘
89/336/∂√∫ fiˆ˜ Ô Î·ÓÔÓÈÛÌfi˜ ·˘Ùfi˜ Û˘ÌÏËÚÒıËΠ·fi ÙËÓ Ô‰ËÁ›· 93/68/∂√K.
Este equipamento obedece às exigências da directiva 89/336/CEE na sua versão corrigida pela directiva
93/68/CEE.
Este aparato satisface las exigencias de la Directiva 89/336/CEE modificada por medio de la 93/68/CEE.
Denna utrustning uppfyller kraven enligt riktlinjen 89/336/EEC så som kompletteras av 93/68/EEC.
Dette produktet oppfyller betingelsene i direktivet 89/336/EEC i endringen 93/68/EEC.
Tämä laite täyttää direktiivin 89/336/EEC vaatimukset, jota on muutettu direktiivillä 93/68/EEC.
1
Page
OPERATING CONTROLS ....................................................... 2
INK ROLLER REPLACEMENT ................................................ 3
PAPER ROLL REPLACEMENT ............................................... 5
POWER SUPPLY ..................................................................... 7
ERRORS .................................................................................. 9
SPECIFICATIONS .................................................................... 10
RESETTING THE UNIT ........................................................... 11
CALCULATION EXAMPLES .................................................... 89
TAX RATE CALCULATIONS .................................................... 98
Thank you for your purchase of the SHARP electronic printing
calculator, model EL-1611P.
To insure trouble-free operation of your SHARP calculator, we
recommend the following:
1. The calculator should be kept in areas free from extreme
temperature changes, moisture, and dust.
2. A soft, dry cloth should be used to clean the calculator. Do
not use solvents or a wet cloth.
3. Since this product is not waterproof, do not use it or store it
where fluids, for example water, can splash onto it.
Raindrops, water spray, juice, coffee, steam, perspiration,
etc. will also cause malfunction.
4. If service should be required, use only a SHARP servicing
dealer, a SHARP approved service facility or SHARP repair
service.
5. If you pull out the power cord to cut electricity completely or
replace the batteries, the presently stored tax rate will be
cleared.
ENGLISH
OPERATIONAL NOTES CONTENTS
2
OPERATING CONTROLS
POWER ON KEY / CLEAR / CLEAR ENTRY KEY:
Clear – This key also serves as a clear key for the
calculation register and resets an error condition.
Clear entry – When pressed after a number and before a
function, clear the number.
POWER OFF KEY:
When this key is pressed, the power is turned off.
PRINT KEY:
To save paper you can only print what is displayed, even
in non-print mode.
Pressing after the entry of a number will print the entry
with the symbol “#” even in non-print mode.
Pressing will insert a separator into a number entry
such as a code, date, etc. Separators are displayed as a
period and dashes but printed as periods.
MEMORY + KEY / PRINT ON / OFF KEY:
Pressing selects print mode or non-print mode.
Cause the calculator to operate in a display / print or
display only mode, depending upon the calculator’s
present state.
“P” on the display: Print mode.
“NP” on the display: Non-print mode.
MEMORY – KEY / DECIMAL SELECTION KEY:
Pressing sets the number of decimal places in
the result.
“F” on the display:
The answer is displayed in the floating decimal system.
“3, 2, 1, 0” on the display:
Presets the number of decimal places in the answer.
“A” on the display (Add mode):
The decimal point in addition and subtraction entries is
automatically positioned to the 2nd digit from the lowest
digit of entry number. Use of the add mode permits
addition and subtraction of numbers without entry of
the decimal point. Use of , and will
automatically override the add mode and decimally
correct answers will be printed.
PRE-TAX KEY
3
TAX-INCLUDING KEY / TAX RATE SET KEY:
You can set the tax rate by pressing . (A
maximum of 4 digits excluding the decimal point can be
stored as the tax rate.)
2nd FUNCTION KEY:
To use the functions shown above the keys, such as
“DEC”, press the key first. (When the key is
pressed, “2nd” will appear at the top of the display.)
Example: To change decimal place setting from F to 2
,
PAPER FEED KEY:
When pressed, the paper tape advances.
DISPLAY:
F: Floating decimal mode TAX+: Incl. tax
3, 2, 1, 0: Preset decimal mode TAX–: Pre-tax
A: Add mode TAX : Tax rate
P: Print mode M: Memory
NP: Non-print mode –: Minus
2nd: functions are available E: Error
•For illustration purposes, all the relevant symbols are visible
in the display above. However, in actual use, this would never
happen.
If printing is blurry even when the ink roller is in the proper
position, replace the roller.
Ink roller: Type EA-732R
WARNING
APPLYING INK TO WORN INK ROLLER OR USE OF
UNAPPROVED INK ROLLER MAY CAUSE SERIOUS
DAMAGE TO PRINTER.

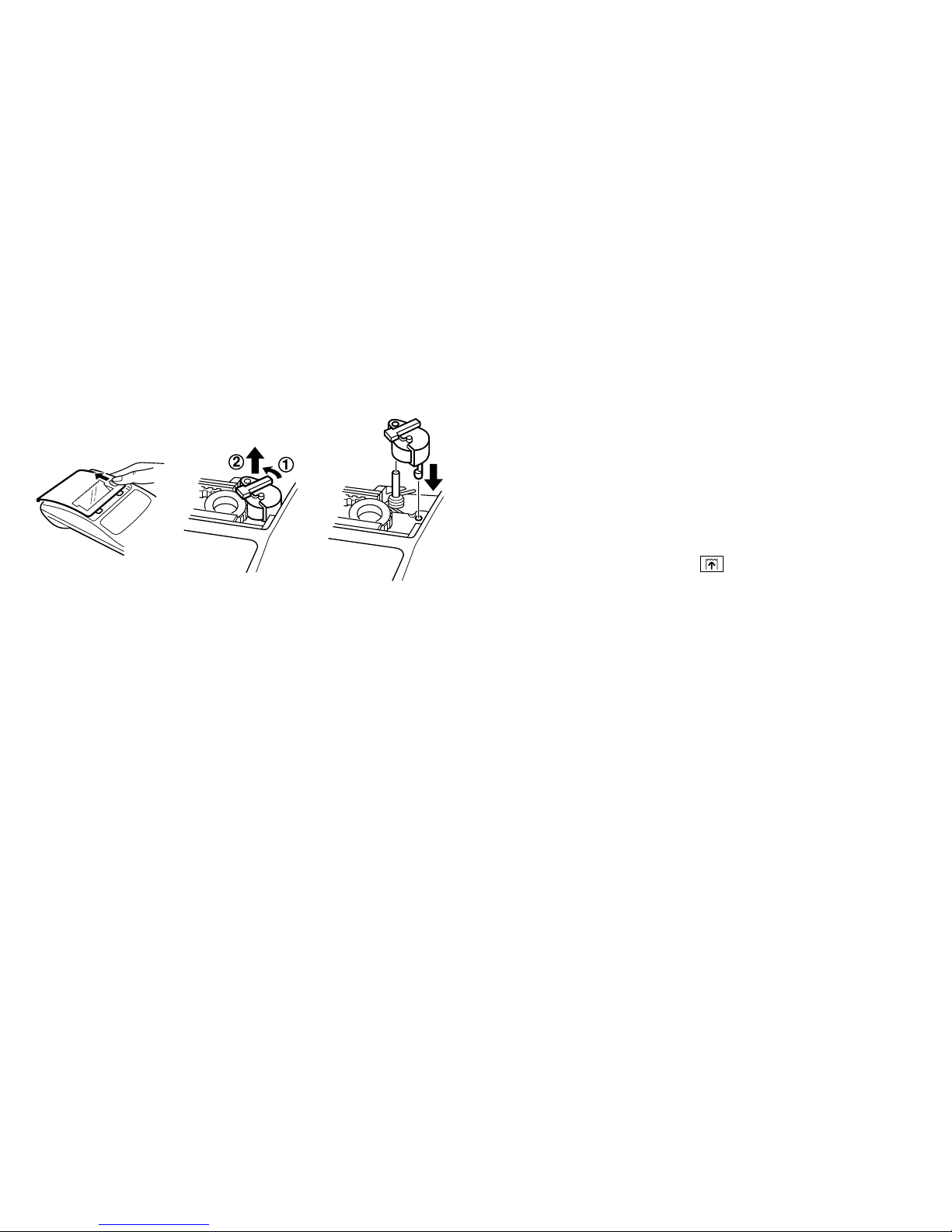

1) Turn the power off.
2) Remove the printer cover. (Fig. 1)
3) Remove the ink roller by turning it counterclockwise and
pulling it upward. (Fig. 2)
4) Install the new ink roller and press it in the correct position.
Make sure that the ink roller is securely in place. (Fig. 3)
5) Put back the printer cover.
INK ROLLER REPLACEMENT
4
Fig. 1 Fig. 2 Fig. 3
Cleaning the printing mechanism
If the print becomes dull after long time usage, clean the
printing wheel according to the following procedures:
1) Remove the printer cover and the ink roller.
2) Install the paper roll and feed it until it comes out of the front
of the printing mechanism.
3) Put a small brush (like a tooth brush) lightly to the printing
wheel and clean it by pressing .
4) Put back the ink roller and the printer cover.
Notes: •Never attempt to turn the printing belt or restrict its
movement while printing. This may cause incorrect
printing.
•Do not rotate the printing mechanism manually, this
may damage the printer.
5

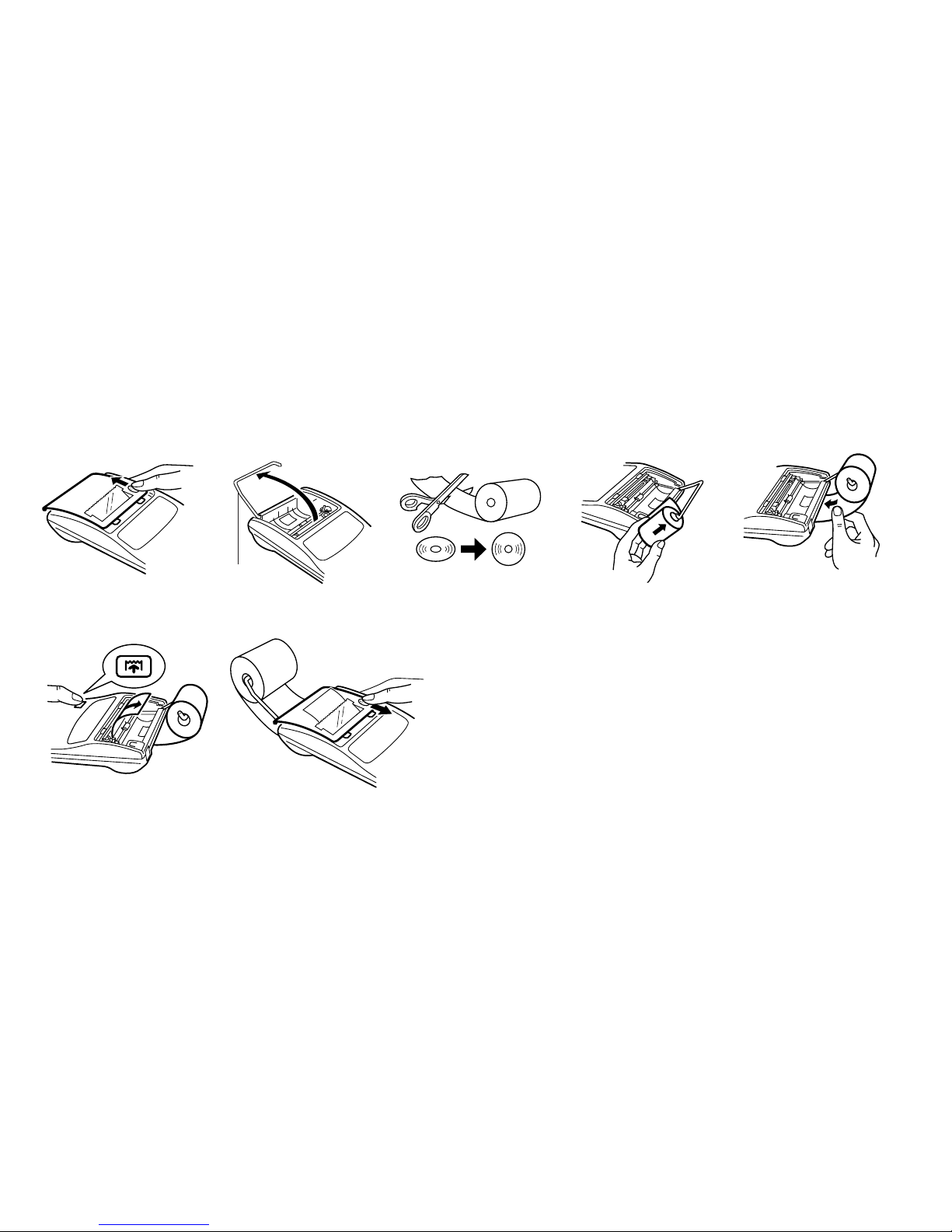

PAPER ROLL REPLACEMENT
Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.
♦When using the paper roll that is less than or equals to 25 mm (31/32") in outside diameter:
Paper roll : Type EA-7100P
STEP 1 STEP 2 STEP 3
STEP 4
leading edge
Paper
cutter
Note: Paper tape replacement rolls are available where the EL-1611P calculator is sold.
6
♦When using the paper roll that is 12mm (15/32") in inside diameter and up to 80mm (3-5/32") in outside diameter:
Caution: •Never use the supplied paper (25 mm (31/32") in
outside diameter) in the holder.
•When replacing the paper, touching the inside of the
printer may damage it.
•The calculator has a free-paper mechanism. When
drawing out the paper tape, pull it straight forward on
the paper cutter side.
STEP 1 STEP 2 STEP 3 STEP 4
Paper holder
STEP 5 STEP 6
7
This calculator operates on dry batteries.
The calculator can also be operated on AC power through use
of an AC adaptor.
BATTERY OPERATION
If the display becomes dim or the printer stops before or during
printing, the batteries should be replaced.
Battery: Heavy-duty manganese battery, size AA (or R6) ×4
1. Turn off power by pressing .
2. Remove the battery cover by sliding it in the direction of the
arrow on the cover.
3. Replace the batteries. Be sure that the “+” and “–” marks on
the battery correspond to the “+” and “–” marks in the
calculator. Always put back the 4 batteries at the same time.
4. Put back the battery cover.
POWER SUPPLY 5. After the replacement, press and in this order to
clear the calculator.
When the batteries are correctly installed “0.” will be
displayed. (If the display is blank, displays any other symbol
or the keys become inoperative, remove the batteries and
install them again. Press and in this order and
check the display again.)
Note: Due to solvent leakage of the battery, keeping a used
battery in the battery compartment may result in damage
to the calculator. Remove a used battery promptly.
Battery cover
8
AC POWER OPERATION (OPTION)
AC adaptor: Model EA-28A
When the AC adaptor is connected to the calculator, the power
source is automatically switched over from dry batteries to AC
power source.
HOW TO CONNECT THE AC ADAPTOR
Make sure that you turn the calculator’s power off when
connecting or disconnecting the AC adaptor.
To connect the AC adaptor, follow steps ➀and ➁.
To disconnect the AC adaptor, simply reverse the procedure.
➀
➁
AC adaptor
connecting
terminal
Notes: •When the calculator is not in use, be sure to remove
the adaptor from the calculator and the wall outlet.
•Never use any other AC adaptor except EA-28A.
CAUTION
Use of other than the AC adaptor EA-28A may apply
improper voltage to your SHARP calculator and will cause
damage.
Autres manuels pour EL1611P - 12 Digit Hand Held Calculator AC/DC...
4
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Sharp Calculatrice
Sharp
Sharp Elsi Mate EL-R297 Manuel utilisateur
Sharp
Sharp EL-801 Manuel utilisateur
Sharp
Sharp EL 2196BL - Heavy Duty Color Printing... Manuel utilisateur
Sharp
Sharp EL-5100S Manuel utilisateur
Sharp
Sharp EL1611P - 12 Digit Hand Held Calculator AC/DC... Manuel utilisateur
Sharp
Sharp EL9900C - Graphing Calc With 2 Sided Keypad Lrg 22 CHAR/8 Line Display... Manuel utilisateur
Sharp
Sharp ELSIMATE EL-339S Manuel utilisateur
Sharp
Sharp WriteView EL-W535XG Manuel d'installation
Sharp
Sharp COMPET-23 Manuel utilisateur
Sharp
Sharp WriteView EL-W531X Manuel utilisateur
Sharp
Sharp EL-2630PIII Manuel utilisateur
Sharp
Sharp EL-377TB - 10-Digit With Puncuation Twin Power/Glass Top Design... Manuel utilisateur
Sharp
Sharp EL-509W Manuel utilisateur
Sharp
Sharp COMPET CSA-2130 Manuel utilisateur
Sharp
Sharp COMPET QS-2122H Manuel utilisateur
Sharp
Sharp EL1801PIII - Printing Calculator, 12-Digit Manuel utilisateur
Sharp
Sharp Elsi Mate EL-331W Manuel utilisateur
Sharp
Sharp EL-500W Manuel utilisateur
Sharp
Sharp Elsi Mate EL-2135 Manuel utilisateur
Sharp
Sharp EL-2607P Manuel utilisateur
