Thank you for your purchase of the SHARP electronic printing

calculator, model EL-1611E.

To insure trouble-free operation of your SHARP calculator, we

recommend the following:

1. The calculator should be kept in areas free from extreme

temperature changes, moisture, and dust.

2. A soft, dry cloth should be used to clean the calculator. Do not

use solvents or a wet cloth.

3. Since this product is not waterproof, do not use it or store it

where fluids, for example water, can splash onto it. Raindrops,

water spray, juice, coffee, steam, perspiration, etc. will also

cause malfunction.

4. If service should be required, use only a SHARP servicing

dealer, a SHARP approved service facility or SHARP repair

service.

5. If you pull out the power cord to cut electricity completely or

replace the batteries, the presently stored tax rate will be

cleared.

ENGLISH

OPERATIONAL NOTES CONTENTS

EL-1611E(LXO)-Eng 07.10.16, 10:40 AM1

OPERATING CONTROLS



POWER ON KEY / CLEAR / CLEAR ENTRY KEY:

Clear – This key also serves as a clear key for the calculation

Clear entry – When pressed after a number and before a

function, clear the number.

POWER OFF KEY:

When this key is pressed, the power is turned off.

PRINT KEY:

To save paper you can only print what is displayed, even in

non-print mode.

Pressing after the entry of a number will print the entry

with the symbol “#” even in non-print mode.

Pressing will insert a separator into a number entry such

as a code, date, etc. Separators are displayed as a period

and dashes but printed as periods.

MEMORY + KEY / PRINT ON / OFF KEY:

Pressing selects print mode or non-print mode.

Cause the calculator to operate in a display / print or display

only mode, depending upon the calculator’s present state.

“P” on the display: Print mode.

“NP” on the display: Non-print mode.

MEMORY – KEY / DECIMAL SELECTION KEY:

Pressing sets the number of decimal places in the

result.

“F” on the display:

The answer is displayed in the floating decimal system.

“3, 2, 1, 0” on the display:

Presets the number of decimal places in the answer.

“A” on the display (Add mode):

The decimal point in addition and subtraction entries is

automatically positioned to the 2nd digit from the lowest

digit of entry number. Use of the add mode permits

addition and subtraction of numbers without entry of the

decimal point. Use of , and will automatically

override the add mode and decimally correct answers will

be printed.

CONVERSION KEY (TO THE EURO CURRENCY) :

EL-1611E(LXO)-Eng 07.11.13, 1:15 PM2

CONVERSION KEY (TO A NATIONAL CURRENCY) /

CONVERSION RATE SETTING KEY:

You can set the exchange rate by pressing . (A

maximum of 6 digits excluding the decimal point can be

stored as the exchange rate.)

2nd FUNCTION KEY:

To use the functions shown above the keys, such as “DEC”,

press the key first. (When the key is pressed,

“2nd” will appear at the top of the display.)

Example: To change decimal place setting from F to 2

PAPER FEED KEY:

When pressed, the paper tape advances.

DISPLAY:

F: Floating decimal mode : Euro Currency Symbol

3, 2, 1, 0: Preset decimal mode :

National Currency Symbol

A: Add mode M: Memory

P: Print mode –: Minus

NP: Non-print mode E: Error

2nd: functions are available

•For illustration purposes, all the relevant symbols are visible in

the display above. However, in actual use, this would never

happen.

If printing is blurry even when the ink roller is in the proper position,

replace the roller.

Ink roller: Type EA-732R

WARNING

APPLYING INK TO WORN INK ROLLER OR USE OF

UNAPPROVED INK ROLLER MAY CAUSE SERIOUS

DAMAGE TO PRINTER.

1) Turn the power off.

2) Remove the printer cover. (Fig. 1)

3) Remove the ink roller by turning it counterclockwise and pulling

it upward. (Fig. 2)

4) Install the new ink roller and press it in the correct position.

Make sure that the ink roller is securely in place. (Fig. 3)

5) Put back the printer cover.

INK ROLLER REPLACEMENT

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM3

Fig. 1 Fig. 2 Fig. 3

Cleaning the printing mechanism

If the print becomes dull after long time usage, clean the

printing wheel according to the following procedures:

1) Remove the printer cover and the ink roller.

2) Install the paper roll and feed it until it comes out of the front of

the printing mechanism.

3) Put a small brush (like a tooth brush) lightly to the printing

wheel and clean it by pressing .

4) Put back the ink roller and the printer cover.

Notes: •Never attempt to turn the printing belt or restrict its

movement while printing. This may cause incorrect

printing.

•Do not rotate the printing mechanism manually, this may

damage the printer.

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM4

PAPER ROLL REPLACEMENT

Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.

♦When using the paper that is less than or equals to 25 mm (31/32") in outside diameter:

Paper roll : Type EA-7100P

STEP 1 STEP 2 STEP 3

STEP 4

leading edge

Paper

cutter

Note: Paper tape replacement rolls are available where the EL-1611E calculator is sold.

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM5

♦When using the paper that is 12mm (15/32") in inside diameter and up to 80mm (3-5/32") in outside diameter:

Caution: •Never use the supplied paper (25 mm (31/32") in outside

diameter) in the holder.

•When replacing the paper, touching the inside of the

printer may damage it.

•The calculator has a free-paper mechanism. When

drawing out the paper tape, pull it straight forward on the

paper cutter side.

STEP 1 STEP 2 STEP 3 STEP 4

Paper holder

STEP 5 STEP 6

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM6

This calculator operates on dry batteries.

The calculator can also be operated on AC power through use of

an AC adaptor.

BATTERY OPERATION

If the display becomes dim or the printer stops before or during

printing, the batteries should be replaced.

Battery: Heavy-duty manganese battery AA (or R6) ×4

1. Turn off power by pressing .

2. Remove the battery cover by sliding it in the direction of the

arrow on the cover.

3. Replace the batteries. Be sure that the “+” and “–” marks on the

battery correspond to the “+” and “–” marks in the calculator.

Always put back the 4 batteries at the same time.

4. Put back the battery cover.

POWER SUPPLY 5. After the replacement, press and in this order to clear

the calculator.

When the batteries are correctly installed “0.” will be displayed.

(If the display is blank, displays any other symbol or the keys

become inoperative, remove the batteries and install them

again. Press and in this order and check the display

again.)

Note: Due to solvent leakage of the battery, keeping a used

battery in the battery compartment may result in damage to

the calculator. Remove a used battery promptly.

Battery cover

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM7

AC POWER OPERATION (OPTION)

AC adaptor: Model EA-28A

When the AC adaptor is connected to the calculator, the power

source is automatically switched over from dry batteries to AC

power source.

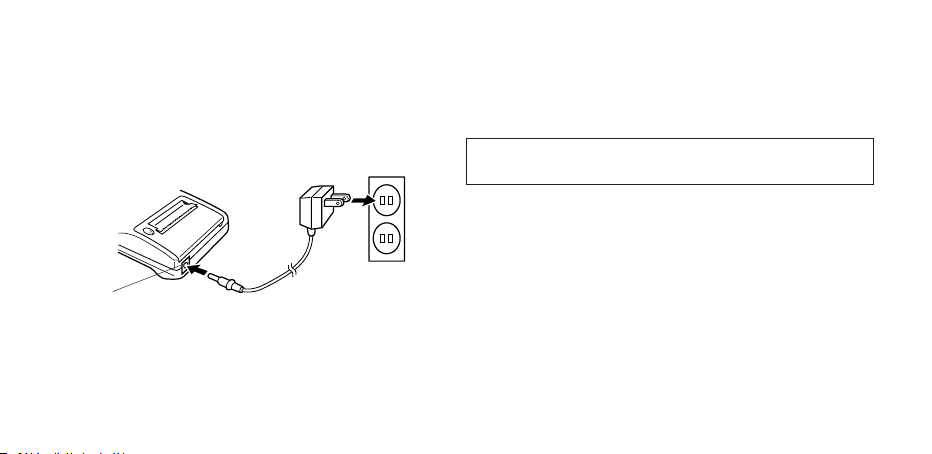

HOW TO CONNECT THE AC ADAPTOR

Make sure that you turn the calculator’s power off when connecting

or disconnecting the AC adaptor.

To connect the AC adaptor, follow steps ➀and ➁.

To disconnect the AC adaptor, simply reverse the procedure.

Notes: •When the calculator is not in use, be sure to remove the

adaptor from the calculator and the wall outlet.

•Never use any other AC adaptor except EA-28A.

CAUTION

Use of other than the AC adaptor EA-28A may apply improper

voltage to your SHARP calculator and will cause damage.

➀

➁

AC adaptor

connecting

terminal

EL-1611E(LXO)-Eng 07.10.14, 4:48 PM8
