How to Use the Online Manual

Scan

Troubleshooting

Index

INDEX

CONTENTS 1

This Online Manual provides instruction for the operation of your new unit. Please read the following explanation of how

to use the Online Manual, and then search for the information that you need.

For more information about computers, operating systems and Acrobat Reader, please refer to the relevant manual or

help file.

How to Control the Online Manual

Following links

Links can connect parts of a document to other parts for further information. In this document, green colored letters are linked areas.

To follow a link, select a hand tool ( ), a zoom tool or a selection tool. Position the pointer over the linked area on the page until the pointer

changes to a hand with a pointing finger ( ). Then click the link.

Using Bookmarks

This online manual has Bookmarks on the main pages of each section. You can move to the desired pages by simply clicking its bookmark.

How to Print Out the Online Manual

n order to print out a hard copy of the Online Manual for your reference, go to Acrobat Reader, click the "File" menu, and

select "Print". After specifying the printer setting, click the "Print" ("OK" on Windows 95/98/Me/NT 4.0) button to print.

Note

In this online manual, screen images and operating procedures are mainly for Windows XP. With other versions of

Windows, some screen images may be different from those in this manual.

INDEX

CONTENTS

Click this button to display the Table of

Contents of the Online Manual. From the Table

of Contents you can jump to various pages.

Click this button to display the Index of the

Online Manual. From the Index you can

jump to various pages.

Takes you forward page by page.

Takes you back page by page. To return to the previous link,

click the ( ) button on the menu bar of the Acrobat Reader.

How to Use the Online Manual

INDEX

CONTENTS 2

The flow chart shown below provides printing overview.

Reference: For more information on printing, see Basic Printing.

* The multi-bypass tray can be used on the 1457/1555, and the single bypass can be used on

the 1045/1217/1255/1456. For the procedures for loading paper in each type of tray, see

"LOADING PAPER" in the Operation Manual.

Caution

!When the paper source is the paper tray or multi-bypass tray, verify that the paper has been loaded before starting

printing.

!Ensure printing has been completed before turning the power off. Do not remove the power cord before turning

the unit off.

When printing from paper tray or multi-bypass tray

* When printing from single bypass*

Prepare the document you intend to print

Send print data from your computer

Printing

Exit printing

Load a single sheet of paper into the single bypass

Reference:

For more detail, refer to the "BYPASS FEED (including special paper)" in

the Operation Manual.

Open the printer driver setup screen and set the print preferences

Reference:

Printer Driver Settings, Printing a Watermark, Fitting the Printed Image to the Paper,

Printing Multiple Pages on One Page,Two-sided Printing (1555 only)

Printing Overview

INDEX

CONTENTS 3

This is a printing example using WordPad to print a document onto A4 size paper.

1Start WordPad, make a new file, and enter the text

you intend to print.

2Select "Print" from the application's "File" menu.

3Make sure that "SHARP AL-XXXX" is selected as

the current printer. If you intend to change any print

setting, click the "Preferences" button to open the

printer driver setup screen.

On Windows 95/98/Me/NT 4.0, click the "Properties" button.

Reference: Printer Driver Settings, Printing a Watermark, Fitting the

Printed Image to the Paper, Printing Multiple Pages on

One Page, Two-sided Printing (1555 only)

4Click the "Print" button in the "Print" dialog box.

On Windows 95/98/Me/NT 4.0, click the "OK" button.

Printing starts according to your preferences.

If you are using the single bypass (1045/12171255/

1456), wait until the single bypass indicator blinks after

"P" blinks in the unit display, and insert the sheet of

paper in the single bypass.

Reference: See "BYPASS FEED (including special paper)" in the

Operation Manual for more details on inserting paper.

Note

Windows 2000 does not have the "Preferences"

button on this dialog box. Switch to the desired

tab by clicking it to specify printer settings.

Click here.

Identify the current printer

in this box.

2Click this button to change

any print preference.

Click here.

Basic Printing

INDEX

CONTENTS 4

You can open the printer driver and change the printer driver settings from the Windows "start" button. Settings adjusted

in this way will be the initial settings when you print from an application. (If you change the settings from the printer

driver setup screen at the time of printing, the settings will revert to the initial settings when you quit the application.)

Reference: Basic Printing

Windows 2000/XP

1Click the "start" button, and then click "Control

Panel".

On Windows 2000, click the "Start" button and select

"Settings".

2Click "Printers and Other Hardware", and then click

"Printers and Faxes".

On Windows 2000, click "Printers".

3Click the "SHARP AL-XXXX" printer driver icon and

select "Properties" from the "File" menu.

4Click the "Printing Preferences" button in the

"General" tab.

The printer driver setup screen will appear.

Reference: Printer Driver Settings

Windows 95/98/Me/NT 4.0

1Click the "Start" button, select "Settings" and then

click "Printers".

2Click the "SHARP AL-XXXX" printer driver icon and

select "Properties" from the "File" menu.

3On Windows 95/98/Me, click the "Setup" tab.

The printer driver setup screen will appear.

Reference: Printer Driver Settings

Note

On Windows NT 4.0, select "Document Defaults"

to open the printer driver setup screen.

Starting the Printer Driver Using the "Start" Button

INDEX

CONTENTS 5

To view Help for a setting, click the ( ) button in the upper right-hand corner of the window and then click the setting.

Note

The AL-1555 printer driver setup screen is shown below. The settings (Document Style) and the image of the unit

will vary depending on the model.

Tab

Index which allows you to

switch between the various

setup screens.

( ) button

Click this button and then click a

setting to view Help for the setting.

Check button

Allows you to select one

item from a list of options.

"OK" button

Click this button to save

your settings, and exit the

dialog box.

The settings you made at

"N-Up Printing", "Document

Style" (1555 only), "Fit To

Paper Size", "Image

Orientation" and "Watermark"

are shown in this image.

The tray selected in

"Paper Selection" in the

"Paper" tab appears in

blue. You can also click

on a tray to select it.

"Cancel" button

Click this button to exit the dialog

box without making any changes to

the settings.

"Apply" button

Click to save your settings

without closing the dialog box.

Drop-down list

Allows you to make one

selection from a list of choices.

Check box

Click this option to activate/

deactivate each function.

You can also view Help by

right-clicking the setting

with the mouse.

Windows NT 4.0 does not

have the "Apply" button

on each screen.

The "Apply" button does

not appear when you

open this window from an

application.

Note

SHARP AL-1555 Printing Preferences

Printer Driver Settings

INDEX

CONTENTS 6

To print a watermark, for example "CONFIDENTIAL", on your document, refer to the following steps. Open the printer

driver and click the "Watermarks" tab.

Reference: See Basic Printing for details on how to open the printer driver.

How to Print a Watermark

From the "Watermark" drop-down list, select the watermark, for example "CONFIDENTIAL", you wish to print on your

document, and start printing.

For details on watermark settings, view printer driver Help.

Reference: Printer Driver Settings

Print sample

Printing a Watermark

INDEX

CONTENTS 7

This printer driver can adjust the zoom ratio for printing according to the paper loaded in the unit.

Follow the steps shown below to use this function. The instruction below assumes that you intend to print an A4 size

document onto an A5 size paper.

1Click the "Paper" tab in the printer driver setup

screen.

2Select the paper size for the print data from "Paper

Size".

3Check the "Fit To Page" box.

4Select the paper size for "Fit To Paper Size", which

corresponds to the size of paper in the unit.

Now, the printed image will automatically fit the paper

set in the unit.

Note

The "Fit To Paper Size" setting is not available when "N-Up Printing" is selected.

Reference: Printing Multiple Pages on One Page

Print A4 on

Paper Size: A4

Fit To Paper Size: A5

A4 size document

(Paper Size)

A5 size paper

(Fit To Paper Size)

Fitting the Printed Image to the Paper

INDEX

CONTENTS 8

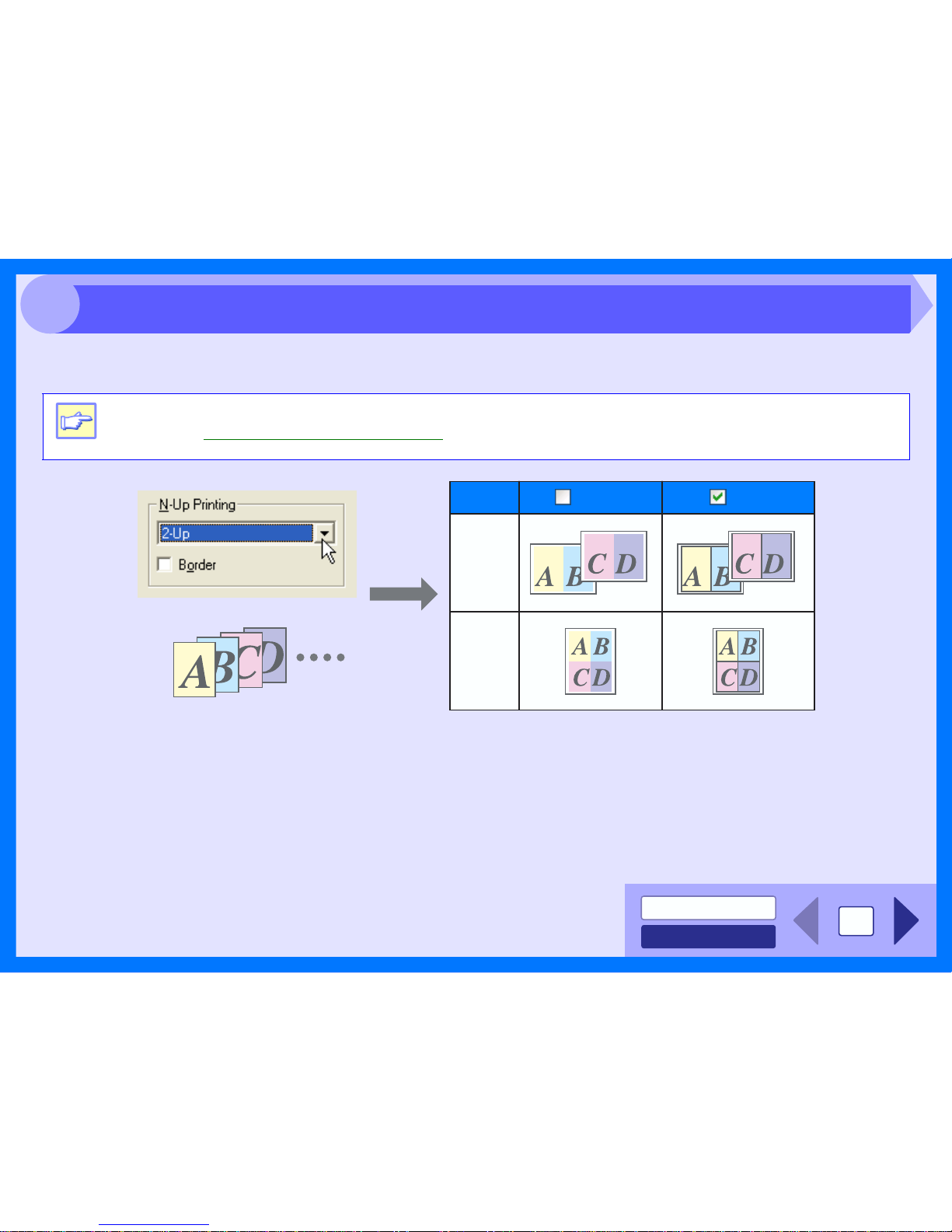

This feature allows you to print two or four document pages onto a single page.

To use this function, open the printer driver setup screen, select "2-Up" or "4-Up" for "N-Up Printing" on the "Main" tab.

If you select the "Border" checkbox, border lines will be printed on each page.

Note

The "N-Up Printing" setting is not available when "Fit To Paper Size" is selected.

Reference: Fitting the Printed Image to the Paper

"2-Up"

"4-Up"

BorderBorderN-Up

Printing Multiple Pages on One Page

Autres manuels pour AL-1045

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sharp Imprimante tout-en-un

Sharp

Sharp AR-5316 X Manuel utilisateur

Sharp

Sharp MX-2300N Guide Manuel utilisateur

Sharp

Sharp Advanced MXM565N Manuel utilisateur

Sharp

Sharp MX-B382 Manuel utilisateur

Sharp

Sharp MX-3500N Manuel utilisateur

Sharp

Sharp MX 5500N - Color Laser - Copier Manuel utilisateur

Sharp

Sharp MX-C250F Manuel utilisateur

Sharp

Sharp AL-1655CS Manuel utilisateur

Sharp

Sharp MX-M850 Manuel utilisateur

Sharp

Sharp AL-1651CS Manuel utilisateur

Sharp

Sharp MX-B382 Manuel utilisateur

Sharp

Sharp MX-M753 Manuel utilisateur

Sharp

Sharp DX-C401 - Color Laser - All-in-One Manuel utilisateur

Sharp

Sharp AR-MM9 Manuel utilisateur

Sharp

Sharp AR-M155X Manuel utilisateur

Sharp

Sharp MX-B467F Manuel utilisateur

Sharp

Sharp AL-2050CS Digital Multifunctional System... Manuel utilisateur

Sharp

Sharp MX-4100N/5000N Manuel utilisateur

Sharp

Sharp Advanced MXM365N Manuel utilisateur

Sharp

Sharp MX-3111U Manuel utilisateur

Sharp

Sharp MX-2610N Manuel utilisateur

Sharp

Sharp MX-M1204 Manuel utilisateur

Sharp

Sharp MX-M264U N Manuel utilisateur

Sharp

Sharp AR-M237 IMAGERs Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
