USER MANUAL

Raptor V1.0

2.4G Digital Wireless System

Thank you for choosing Shanren products

We focus on developing intelligent professional cycling equipment

This manual includes instructions for the installation and use of the Shanren intelligent bicycle

accessories as well as the warranty information. Please read this carefully and save it for future

reference. If you do not understand the information in this manual or you have a question about our

product that this manual does not cover, please contact us.

Contents

·Safety and general guidelines

·Accessories List

·Installation

·Screen illustrations

·Initialization/Reset

·How to use

·Specifications

·Warranty Card

General guidelines and warning

·Please read the safety instructions carefully and keep it for future reference.

·Be aware of all warnings and instruction signs marked on the products.

·In order to protect your eyes, do not look directly into any light.

·Keep out of the reach of children.

·Always keep the product away from moisture or getting wet.

·Take ample care to never drop the product.

·Always keep this product away from all kinds of heat sources.

·In order to avoid electric shock, do not use any kind of plug without it being earthed.

·Do not insert objects or pour liquid into this product through any apertures on bezels.

·Do not attempt to repair the product yourself or by any other unqualified person.

·Contact a dealer near you for service.

·Ware a helmet and reflective vest while riding. Always comply to local laws and regulations.

·As a precaution, always inform others of your intended whereabouts before setting out.

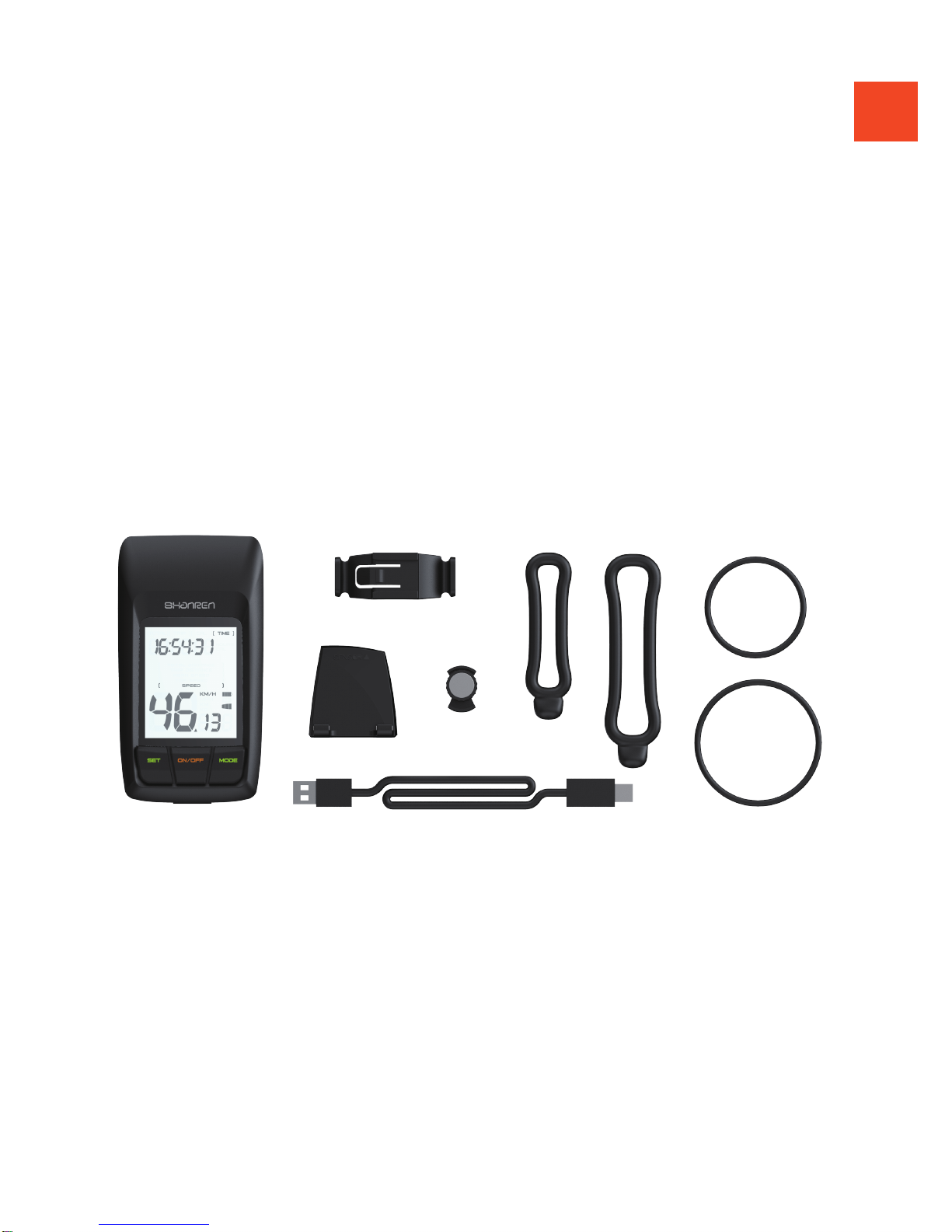

Accessories list

1. Main Unit(Raptor)

2. Bracket

3. USB Wire

4. Speed Sensor

5. Magnet

6. Sensor Rubber Ring

7. Bracket Rubber Ring

Main Unit

Bracket

Speed Sensor

Magnet

USB Wire

Bracket Rubber Ring Sensor Rubber Ring

Installation

Click!

1.Position the bracket to the

handlebar on either side of the

stem

2.Fit the bracket on handlebar

with rubber ring

3.Aim the main unit toward the

base

4.Slide the main unit into the

bracket until it snaps up

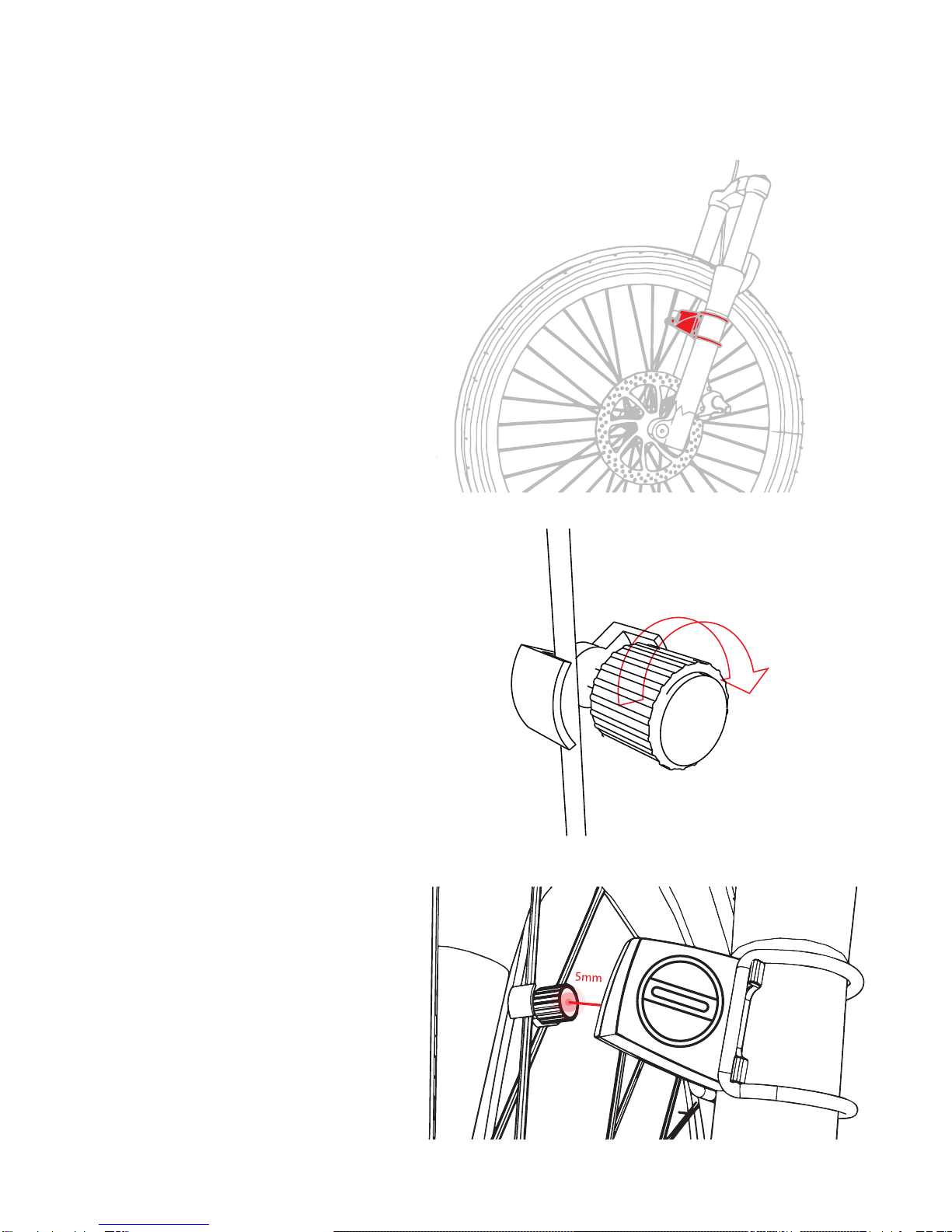

5.Mount the wheel sensor on the fork blade

6.Remove the magnet and install on the spoke, facing the

'sensor' mark.

7.Adjust the magnet until it is 3-5mm from the sensor, then

tighten it.

Screen illustrations

Time and calorie symbols

Speed and distance symbols

Battery power indicator

Charging indicator

Bicycle light work mode indicator

Speed and distance display

Time and calorie display

Hour

K calorie

Speed and distance unit

Initialization/Reset

Press and hold the “MODE” and “SET” buttons for more than 2 seconds to enter the

initial setting

（2）Select kilometers/miles:

Press SET and select KM/H or MPH;

press MODE to confirm.

（3）Set body weight:

Press SET to set weight,

press MODE to confirm.

Select Confirm Select Confirm

*Choose KM/H the body weight unit is KG,

select MPH the body weight unit is LB.

（4）Set clock:

Press SET to set the time,

press MODE to confirm.

Select Confirm

（5）Searching for speed sensor:

The sensor was synchronized with this unit before shipment, search the sensor ID

only when a sensor is used or after sensor battery (CR2032) replacement.

Press MODE button to complete setting, the main unit start to work.

The screen will display ‘Pair’ when the main unit is waiting for the speed sensor

signal.

①If it connects successfully, the screen will display ‘SUCC’and main unit will start

performing its functions

②If the connection times out, the main unit will enter the working state.

Connecting Connected

Select Confirm

（1）Set wheel circumference:

Press SET to preset values.There are 4

presets for each wheel setting, press

MODE to confirm.

ETRTO Tire size C(mm)

47-305 16x1.90 1272

47-406 20x1.75 1580

37-540 24x1

3/8

1948

47-507 24x1.75 1900

37-584 26x1

3/8

2086

37-590 26x1

3/8

2100

40-559 26x1.50 2030

42-559 26x1.60 2025

47-559 26x1.75 2050

50-559 26x2.00 2075

54-559 26x2.10 2100

57-559 26x2.25 2120

57-584 27

1/2

x2.25 2128

28-630 27x1

1/4

2174

32-630 27x1

1/4

2220

40-635 28x1

1/2

2265

ETRTO Tire size C(mm)

32-622 28x1.25, 700x32C 2170

35-622 28x1.35, 700x35C 2185

37-622 28x1.40, 700x35C 2200

37-622 28x1.40, 700x37C 2200

40-622 28x1.50, 700x38C 2220

42-622 28x1.60, 700x40C 2230

47-622 28x1.75 2250

50-622 29x2.00 2280

54-622 29x2.10 2295

57-622 29x2.25 2288

60-622 29x2.35 2330

23-571 650x23C 1973

18-622 700x18C 2102

20-622 700x20C 2100

23-622 700x23C 2125

25-622 700x25C 2135

28-622 700x28C 2150

How to use

Press and hold the ON/OFF button for more than 3 second to start.

The screen flashes the following data when main unit is in motion:

（1）[SPEED] Current speed is updated on every second

（2）Five stages battery indicator.

（3）Charging indicator：Indicates when charging status

（4）Bike light work mode indicator.

（5）[TIME] Clock time is displayed as ‘hh:mm:ss’ 24 hours format.

1.When main unit display [TRIP], press SET button more than 2 seconds, trip riding time,trip distance and

average speed data are cleared at the same time.

2.When main unit display [CAL]，press SET button more than 2 seconds, calories data is cleared.

3.When main unit display [TRIP DISTANCE], press MODE button more than 2 seconds, trip distance data, trip

riding time, average speed are cleared at the same time.

4.When main unit display [TOP SPEED]，press MODE button more than 2 seconds, top speed data is cleared.

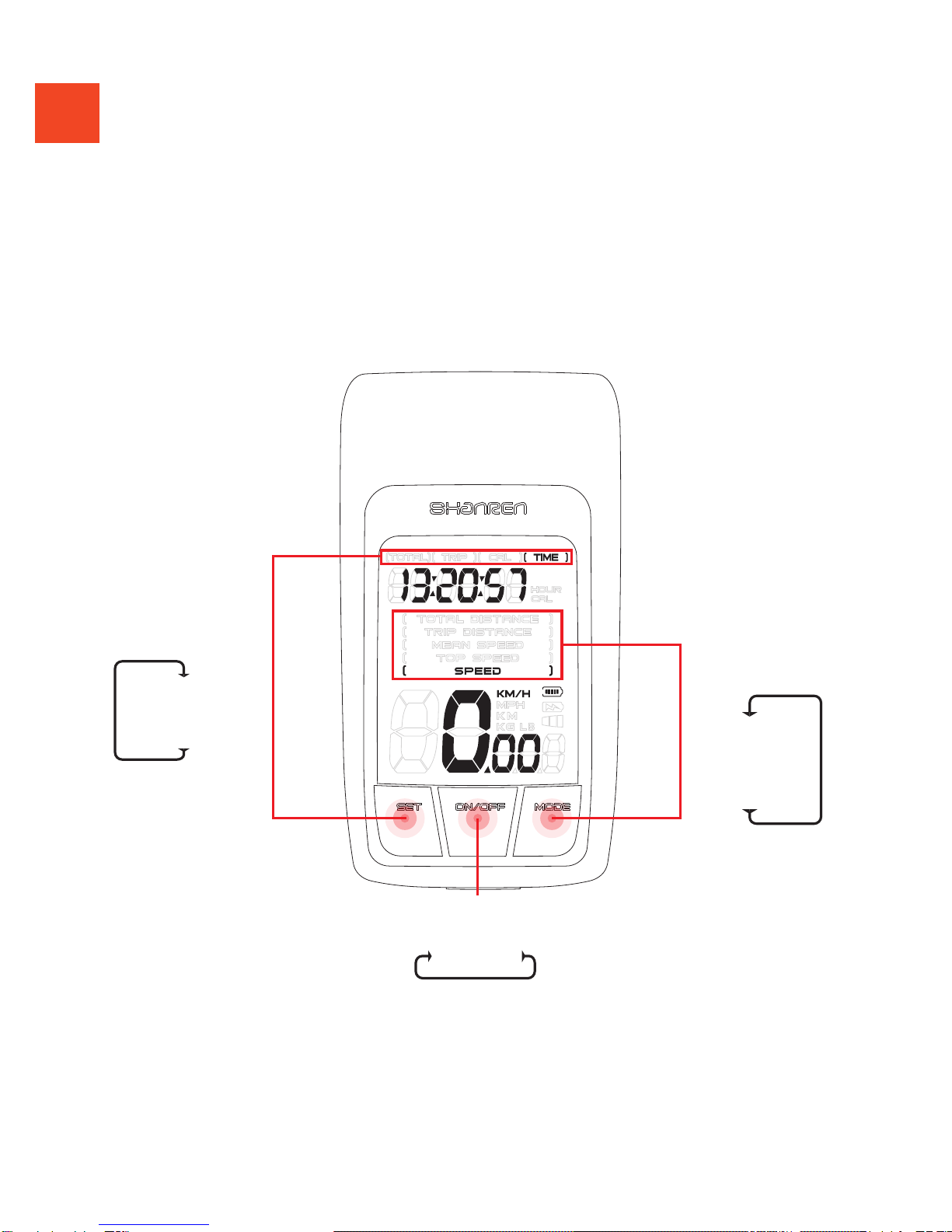

Press SET button switch

the measurement data Press MODE button

switch the measurement

data

Press ON/OFF button switch the

bicycle light mode

Clock

Trip riding time

Total riding time

Calories Speed

Top speed

Average speed

Trip distance

Total distance

High Low Off
