M833811-00 Shadin Avionics
INSTALLATION MANUAL
AIS-380 FUEL FLOW ADAPTER
Shadin Avionics 6831 Oxford Street St. Louis Park, MN 55426 USA
1.3 SPECIFICATIONS
Physical Specifications
Dimensions: 1.57H x 6.90L x 4.24W (inches)
Weight: 0.7 lbs.
Electrical and Functional
Power Supply Voltage: +28VDC Nominal
Supply Current: 100mA at 28VDC
Environmental RTCA/DO-160F
Categories: [A4X]BBB[R(B,B1) U2(F, F1)]XXXXXXZ[BXX]AZ[CC][RR]M[XXJ33]XXAX
Operating Temperature: -40°to +70°C
Operating Altitude: Up to 42,000 ft.
Storage Temperature: -55°to +85°C
In-Flight loss of Cooling: Equipment can run indefinitely with no cooling
Regulatory: TSO-C44c INCOMPLETE SYSTEM
Software: DO-178B Level C
MIL-HDBK-217 MTBF: Greater than 20,000 hours
MTBF Definition:
Mean time between failures (MTBF) is calculated following MIL-HDBK-217 guidance as a starting point, when
available field or vendor data is used in place of MIL-HDBK-217 predictions. The AIS-380 prediction is for an
environment of airborne, inhabited, cargo. At 20°C the prediction is 36,367 hours and at 40°C it is 22,607
hours.

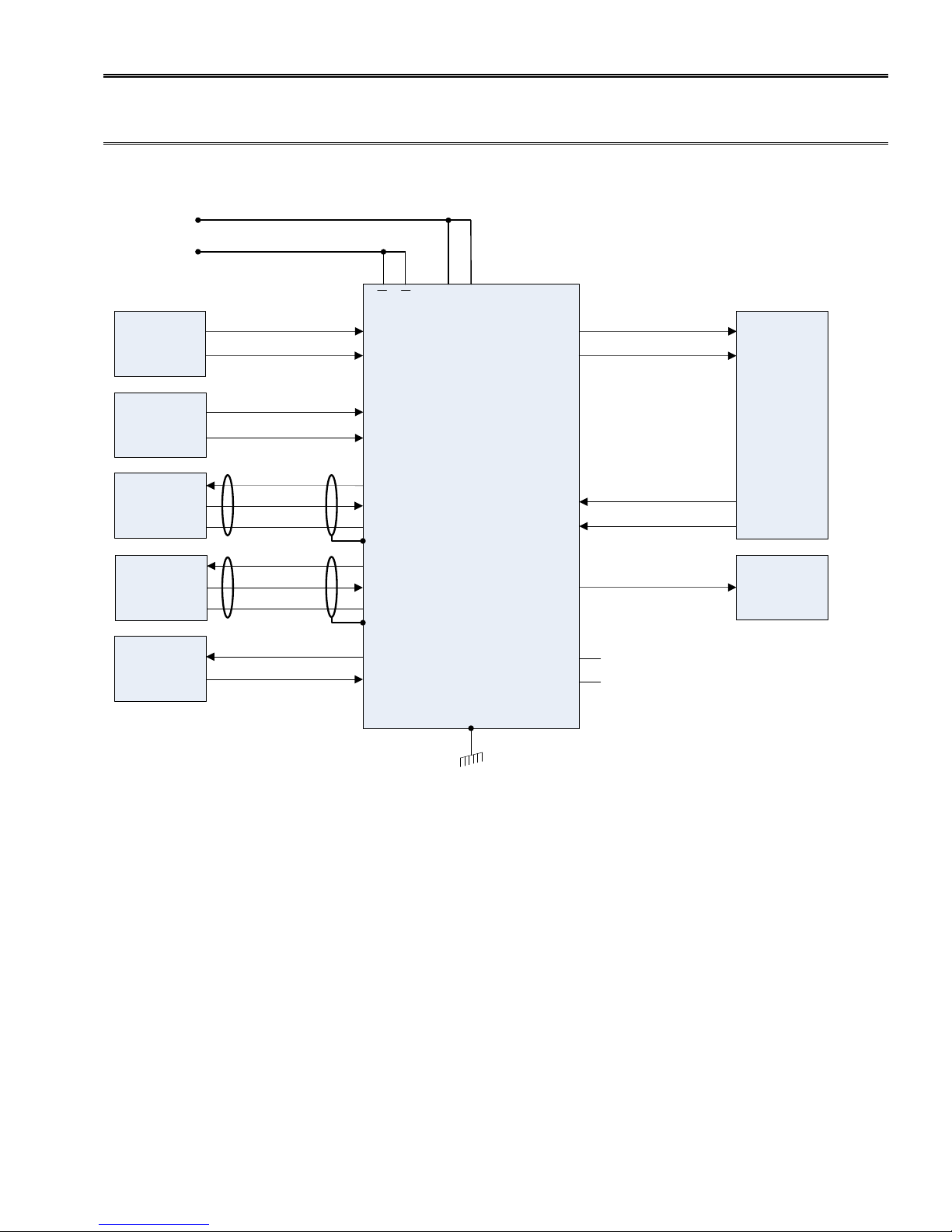

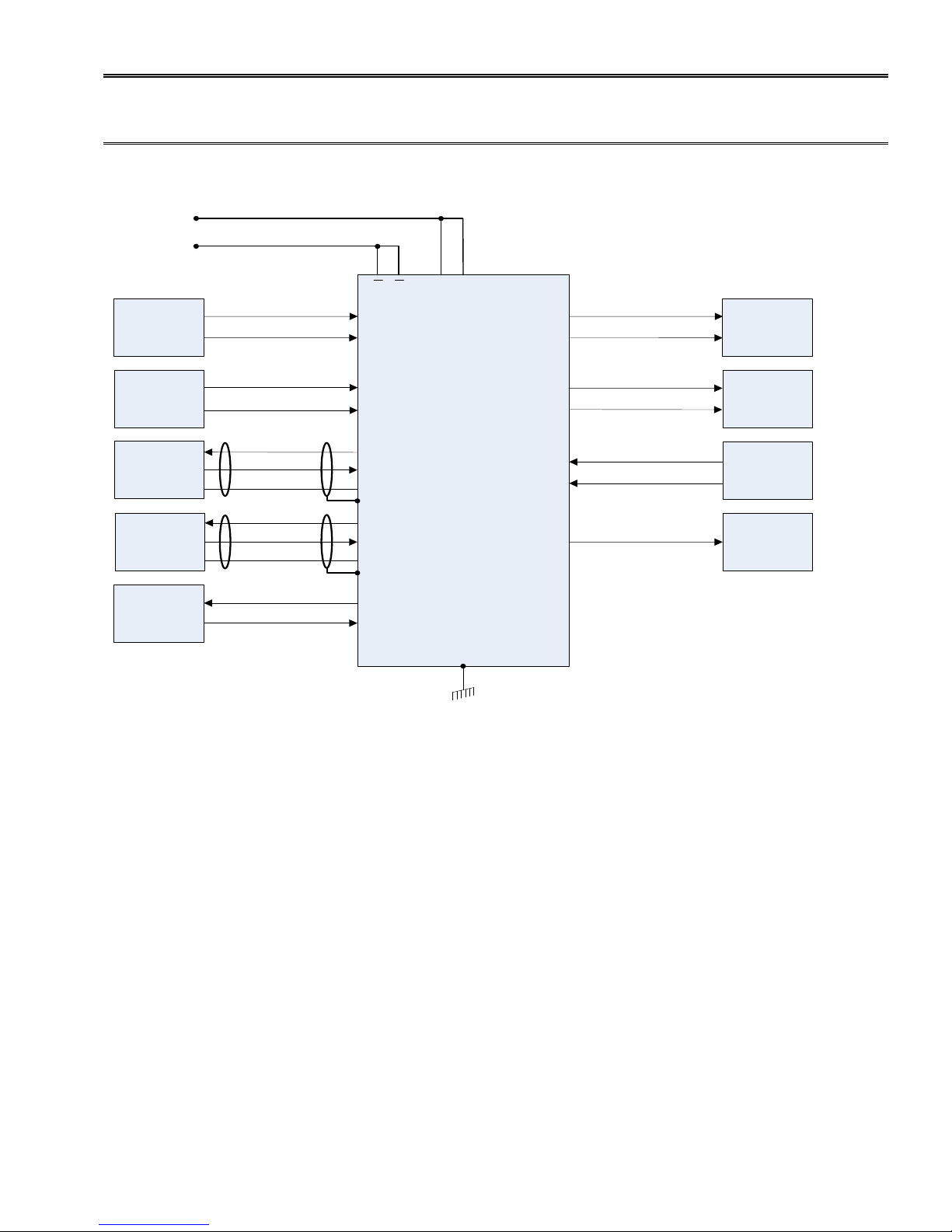

1.4 INPUTS
The AIS-380 accepts the following inputs
•Two Discrete Fuel Flow pulse/frequency signals
•One RS-232 Serial Interface for Maintenance
•One RS-422 Serial Interface compatible to fuel flow parameters
•Two ARINC 429 High Speed or Low Speed signals with Air Data and Heading labels as follows:
oChannel 1: 102, 203, 201, 205, 206, 207, 210, 211, 212, 213, 234, 235, 236, 237, 312, 314,
350, 353
oChannel 2: 320
1.5 OUTPUTS
The AIS-380 provides the following outputs
•ARINC label set described in section 1.4 forwarded from input
•Two ARINC 429 High Speed or Low Speed signals
oLabels 244 and 347 or Labels 351 and 352
•One RS-232 Serial Interface with fuel flow data
