Freestanding Canopy
Assembly Guide
ShadeFX Installation Guide 2
REV. 03/2021
Table of Contents
Introduction
How it Works 3
The Importance of Proper Assembly 3
Proper Handling 3
System Components
Base Assemblies 4
Structure Assembly 5
Track and Canopy Assemblies 5
Recommended Tools 6
Hardware 7
Assembly
Step 1: Locating, Securing, and Leveling the Base 10
Step 2: Assembling the Structure 14
Step 3: Attaching the Canopy 18
Post-installation
Rotating the Canopy 20
Winter Storage 21
Wind 21
Improper Uses of the Product 21
Lubricants 21
ShadeFX Installation Guide 3
REV. 03/2021
Introduction
How it Works
All ShadeFX systems utilize the patented single-track drive system. Fabric panels of the canopy assembly are
extended or retracted as the lead carrier and wing travel along the drive beam.
The Importance of Proper Assembly
Proper assembly will preserve the life of your ShadeFX Retractable Freestanding Canopy. Inadequate assembly
may result in avoidable and expedited wear on the system’s components. The assembly instructions outlined in
this guide are intended to assist with the successful deployment of your Freestanding Canopy.
It is recommended that a complete review of the assembly guide be conducted prior to assembly. If there are
questions regarding assembly that are not addressed in the guide, please contact ShadeFX before continuing.
Proper Handling
Proper care must be taken when handling the product during assembly as contact with hard, sharp or abrasive
surfaces could result in deformation, scratches or rips in the fabric and components of the system.
It is important to handle your canopy assembly with care, especially when lifting the canopy onto the structure. It
is recommended to work in a group of at least two people.
Questions
ShadeFX Retractable Freestanding Canopies are a unique product with limited comparable oerings. Whether you
are an experienced contractor or homeowner assembling the system for the rst time, questions may arise.
ShadeFX Canopies: (855) 509-5509
ShadeFX Installation Guide4
REV. 03/2021
System Components
Each ShadeFX Freestanding Canopy will include a base assembly, structure assembly, track assembly and a
canopy assembly. The nal product will resemble the following image.
Base Assemblies
Concrete Base Wood Base
ShadeFX Installation Guide 5
REV. 03/2021
Structure Assembly
Track and Canopy Assemblies
ShadeFX Installation Guide6
REV. 03/2021
Recommended Tools
The tools listed below are recommended to facilitate an ecient and eective assembly. Certain tools may be
substituted.
• Stepladder (x2)
• Tape or laser measure
• Level
• Pencil, marker (for base plate location marking)
• 9/16” Wrench
• 7/32” Socket Head Bit or Allen Key
• Rubber Mallet
• Chalk or string line
• If Wood Base Option: Drill and #2 Robertson (Square) drive
• If Concrete Base Option: Concrete drill, 9/16” socket drive, and 5/16” concrete drill bit
ShadeFX Installation Guide 7
REV. 03/2021
Hardware
Hardware is dependent on the number of units and base option selected. Hardware is categorized into four
groupings: general hardware, base assembly hardware, structure assembly hardware and track assembly
hardware.
General Hardware
A Removable Canopy Handle to extend and retract the canopy is included with each order. Gravity Clips “G-Clips”
are also included with every canopy to attach the canopy assembly to the track assembly. The number of G-Clips
is dependent on track length. Quantities listed below are on a per canopy basis.
Item Quantity Per Canopy Drawing
Removable Canopy Handle* x1
Gravity Clip “G-Clip”
x10 (8’ Track Length)
x12 (10’ Track Length)
x16 (12’ Track Length)
x18 (14’ Track Length)
x20 (16’ Track Length)
*Only one handle will be provided per order
Base Assembly Hardware
Base assembly hardware is dependent on the type of base selected and number of canopies purchased.
Quantities listed below are on a per post basis.
Concrete Base Hardware
Item Quantity Per Canopy Drawing
3/8” x 5” LDT Screw Anchor x4
3/8”x16 x 1” Flat Socket Cap
Screw x8
ShadeFX Installation Guide8
REV. 03/2021
Wood Base Hardware
Item Quantity Per Canopy Drawing
#10-8 x 4” Wood Screw x16
3/8”x16 x 1” Flat Socket Cap
Screw x8
Structure Assembly Hardware
Structure assembly hardware quantity is dependent on the number of canopies purchased. Quantities listed
below are on a per post basis.
Item Quantity Per Post Drawing
3/8” Washer x4
3/8”-16 Hex Nut x4
ShadeFX Installation Guide 9
REV. 03/2021
Track Assembly Hardware
Track assembly hardware quantity is dependent on the number of units purchased. Quantities listed below are on
a per canopy basis.
Item Quantity Per Canopy Drawing
Rotation Plate x2
3/8”-16 x 1-1/2” Flat Socket Cap
Screw x8
3/8”-16 x 1-1/2” Hex Bolt x4
3/8”-16 Hex Nut x2
3/8” Washer x4
ShadeFX Installation Guide10
REV. 03/2021
Assembly
The following instructions are intended to assist with the assembly of the Retractable Freestanding Canopy.
Please contact ShadeFX if you require clarication of any of the steps listed below.
The assembly of the Freestanding Canopy consists of three major steps:
1. Locating, Securing and Leveling the Base
2. Assembling the Structure
3. Attaching the Canopy
The steps of Locating, Securing and Leveling the Base will vary depending on the base type selected
(Concrete/Wood). Assembling the Structure and Attaching the Canopy remain constant across both base
options.
Step 1: Locating, Securing and Leveling the Base
In Step 1 you will connect the post to the base, locate & align the bases to each other and level & secure the
bases to the mounting surface.
Concrete Base / Wood Base
Concrete and wood bases follow the same set of steps. If wood base is selected, the deck must be reinforced
at base locations to ensure all screws are engaged in structural wood. Contact ShadeFX if deck reinforcement
recommendations are needed.

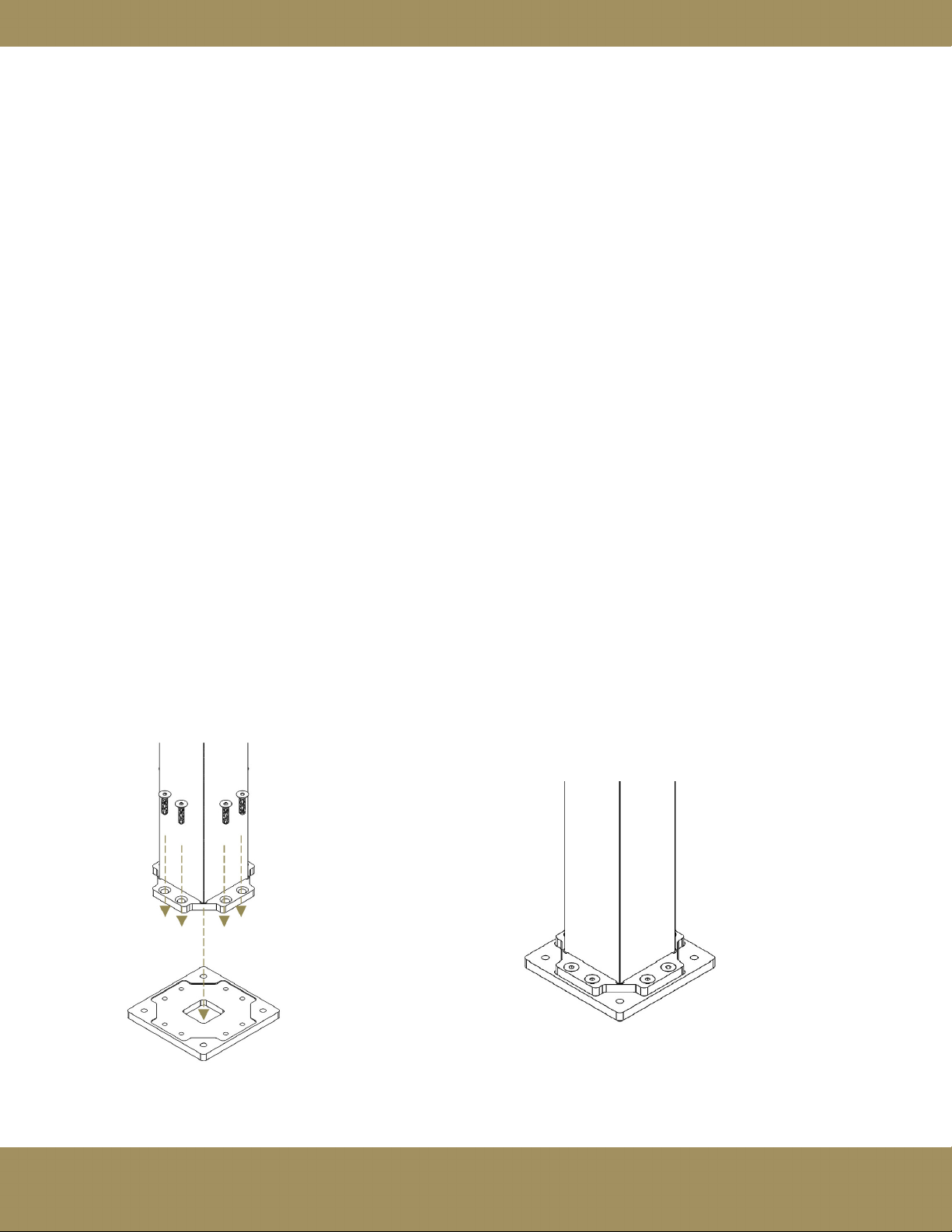

Connecting the Post to the Base
i. Connect post to base using 3/8”-16 x 1” at head socket screws (x8). The post plate aligns with
the recessed cutout in the base. Repeat for other post(s).
