PARTS
ASSEMBLY INSTRUCCIONS
Once the adaptor has been assembled you are then ready to t the TOP CASE. 1-Put the key in and leave in the vertical position. Slot the rear
tongue into the adaptor groove. Fit the front anchorage into its housing. WARNING.It is important to ensure that the case is properly xed to the
adaptor. Make sure you hear the click of the pin as it goes in and that the front opening lever is correctly positioned (Fig. F). 2- To open the
TOP CASE, insert the key in the vertical position. Operate the locking mechanism as shown in Fig. G.Turning the key in a clockwise direction will
lock the TOP CASE so that it can neither be opened nor detached from the adaptor. The key can be removed in either the locked or unlocked
position. 3- To remove the TOP CASE, insert the key in the vertical position, hold the case by the handle, operate the lower part of the opening
mechanism and lift up gently until the anchorage comes out of the case. Then pull to remove the upper tongue from the adaptor groove (Fig. H).
SH40-45-46
Fig. G
SH40-45-46
Fig. H
Fig. F
1. SH40 CARGO
1
2
3
Α:
.tnaC.feR.soP
48505031
42314032
.tnaC.feR.soP
44250023
The maximum load of the case is of:
SH40 - SH40 CARGO: 4 kg
SH42 - SH45 - SH46: 6 kg
CARGO
Fig. A:
(*) Place the TOP CASE bottom rack (1) in the assembly
position(*)on the motorcycle original packet-holder, fit the
anchoring flanges (2) under the most suitable tubes or supports
and secure using the screws (3), the rectangular washers(4),
the flanges (2), the washers (5) and the nuts (6). Fig. B on the
SHAD anchoring:
Situate the bottom rack of the TOP CASE (1)
in
the assembly position, remove the fastening clips (2), fasten
with
screws (7),the rectangular washers (4), the washers (5)
and the nuts (6). Tighten all the screws and nuts.
Fig. A
2
1
7
4
5
6
.tnaC.feR.soP
16051021
49401022
4)569NID04x6M(4414033
42/3170024
4)6Ø(0003035
4)6M(1202036
4)569NID03x6M(8504037
1805102/7051028
Fixation SHAD
PARTS
2. Rack D1B40PA
11
12
10
9
8
Then fit the covers (8) by bending it slightly to insert the tongues
(Fig. C).
It can only be used on the Top or Full master.
Included in the specific support.
10
9
Fig. D
Fig. E
PARTS
.tnaC.feR.soP
4*4051029
4**)21902x8M(47040301
4**)8Ø(02030311
4**)8M(42020321
Fig. C
3.
1
2
3
4
5
6
Fig. B
500791/1 user guide SH40_42_45_46 15/08/16 17:00 Página 3

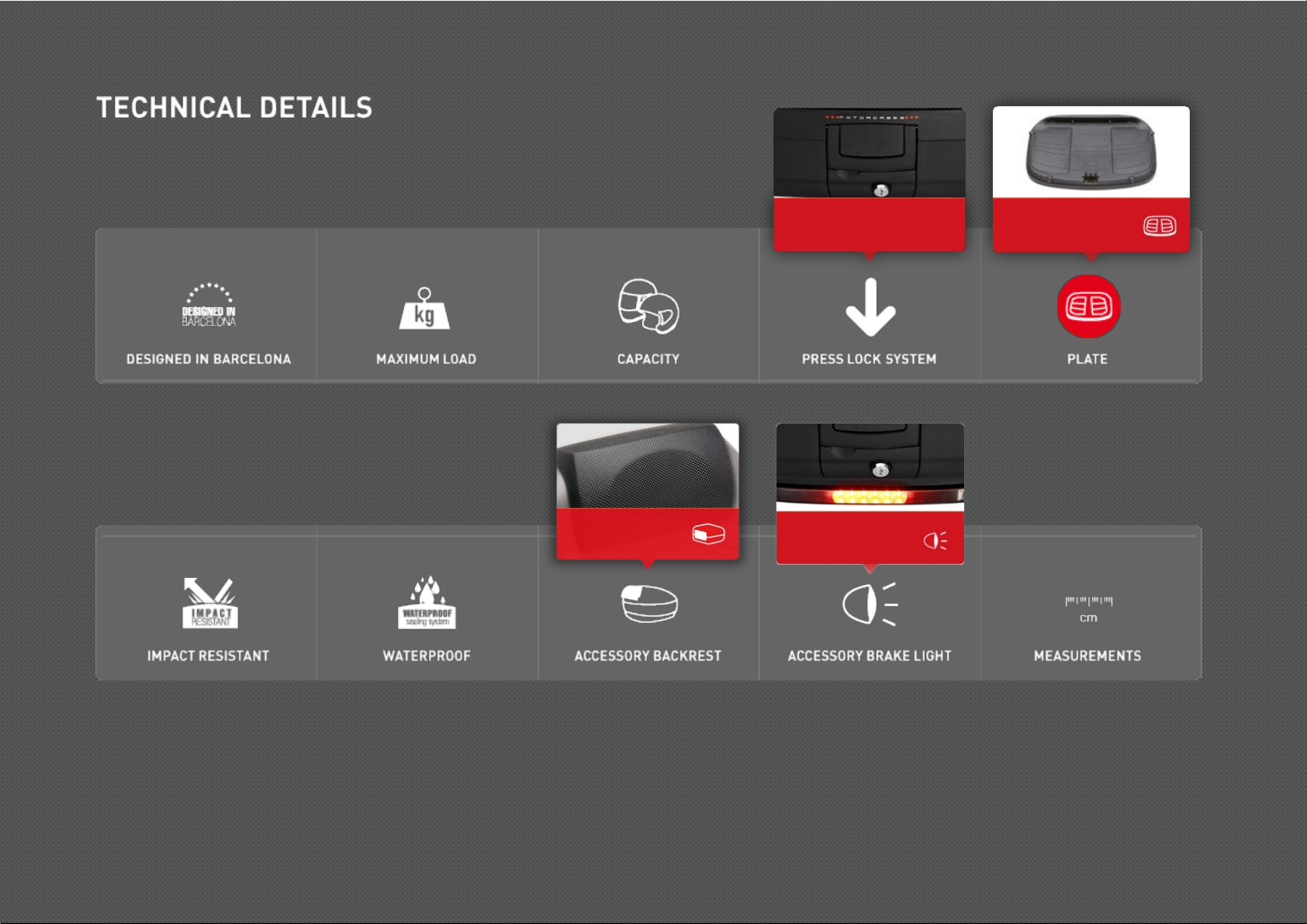

Maximum Load: 3 Normal helmet and jet helmet
Press Lock System D1B40PA plate
included
Waterproof Sealing System
Optional backrest as
an accessory Optional brake light as
an accessory Width: 49.2 / Height: 32.5 / Depth: 42.5
Find out more about luggage systems & saddlebags we have.
SHAD puts everything within reach.
