LB-100 LED BALLS

USER MANUAL REV. 1

Dimensions of LB-100 LED Balls

All dimensions in mm.

Drawing not to scale.

Manual_LED Ball_UK_170x113,3.indd 2 30/04/12 12.24

LB-100 LED BALLS

USER MANUAL REV. 1

companies disclaim liability for any injury, damage, direct or indirect loss, consequential

or economic loss or any other loss occasioned by the use of, inability to use or reliance

on the information contained in this manual. The SGM logo, the SGM name and all other

trademarks in this document pertaining to services or products by SGM or its afliates and

subsidiaries are trademarks owned or licensed by SGM or its afliates or subsidiaries.

LB-100 LED Balls uk

Manual_LED Ball_UK_170x113,3.indd 3 30/04/12 12.24

Contents

Safety Information....................................................................................................5

Read the Manual................................................................................................................................................6

Protection from Injury.........................................................................................................................................6

Introduction..........................................................................................................................7

Parts Identication and Terminology...................................................................................................................7

Features.................................................................................................................................................8

Connections Overview........................................................................................................................................9

Connecting to SGM Touring LED Driver TLD-612 or TLD-312.......................................................................10

Using custom power supply and SGM adaptor cable....................................................................................11

Service..............................................................................................................12

Cleaning......................................................................................................................................................12

Troubleshooting.............................................................................................................13

Specications: LB-100 (Part # 80080001)...........................................................................14

Users notes........................................................................................................................16

Manual_LED Ball_UK_170x113,3.indd 4 30/04/12 12.24

Safety Information

• This product is for professional use only. It is not for household use.

• This product presents risks of severe injury or death due to re hazards.

• When using a 12V DC custom power supply, always use an AC power source that complies with local building

and electrical codes and has both overload and earth

leakage protection.

• Never attempt to bypass the fuse. Always replace defective fuses with ones of the specied type and rating.

• Verify that the power feed cable is rated for the current draw of all connected xtures. See application informa-

tion on page 11.

• Do not modify the xture or install other than genuine SGM parts.

• Do not operate the system if the ambient air temperature (Ta) exceeds 40 ˚C (104 ˚F)

WARNING! Read the safety precautions in this section before

installing, powering, operating or servicing this product.

Manual_LED Ball_UK_170x113,3.indd 5 30/04/12 12.24

Read the manual

Read this manual before installing or powering the LED Balls, and follow the safety precautions.

Always observe all warnings in this manual and printed on the system. If you have questions about how to oper-

ate the system safely, please contact your SGM representative.

Protection from injury

• Ensure that any structure used for support as well as all fastened and connected hardware can hold at least 10

times the weight of all supported devices and equipment.

• Use a minimum of two approved secondary attachments (such as safety wires) to secure each product as de-

scribed in this manual. Safety wires must be approved by an ofcial body such (e.g. TÜV) as a safety attach

ment for the weight of all the products it secures. Safety wires must be capable of supporting a static suspended

load ten times the weight of the product.

• Check that all external covers and rigging hardware are securely fastened.

• Block access below the work area and work from a stable platform whenever installing, servicing or moving the

product.

Read this manual before installing, powering or servicing.

Manual_LED Ball_UK_170x113,3.indd 6 30/04/12 12.24

Introduction

Parts identication and terminology

See Fig. 1 for part terminology and identication.

A. One string LED Balls (7 LED balls)

B. One row of LED Balls consisting of 1 to 8 strings

(Max. 56 LED balls).

Fig. 1

Manual_LED Ball_UK_170x113,3.indd 7 30/04/12 12.24

Features

The SGM LED Balls form a modular semi-transparent LED video curtain with a 12cm pixel pitch, which can be

viewed in a 360° angle. One LED Ball driver is capable of producing a seamless image of 6.6 meters vertically

and for as long in the horizontal direction as the number of drivers permit (Fig.2).

The system features

• 12cm pixel is capable of producing a seamless image at 3.96m2 per Touring LED driver.

• Rich RGB color

• Color resolution of 8 bits per color

• 360° viewing angle

Each string consists of 7 balls with RGB color LEDs and each string connects to both

the driver as well as to the corresponding string with 4 pin RJ765 connectors. As many

as 8 strings can be linked to form a row of strings with a total of 56 balls on each row.

Fig. 2

6 meters 60 centimeters

Manual_LED Ball_UK_170x113,3.indd 8 30/04/12 12.24

Connections Overview

The LED ball string has a female 4 pin RJ765 connector at the inlet (before ball 1), and a male 4 pin RJ765 con-

nector at the outlet (after ball 7). Fig. 3 shows the pin layout.

4 pin female RJ765 connector

Connector front shown

Fig. 3

Manual_LED Ball_UK_170x113,3.indd 9 30/04/12 12.24

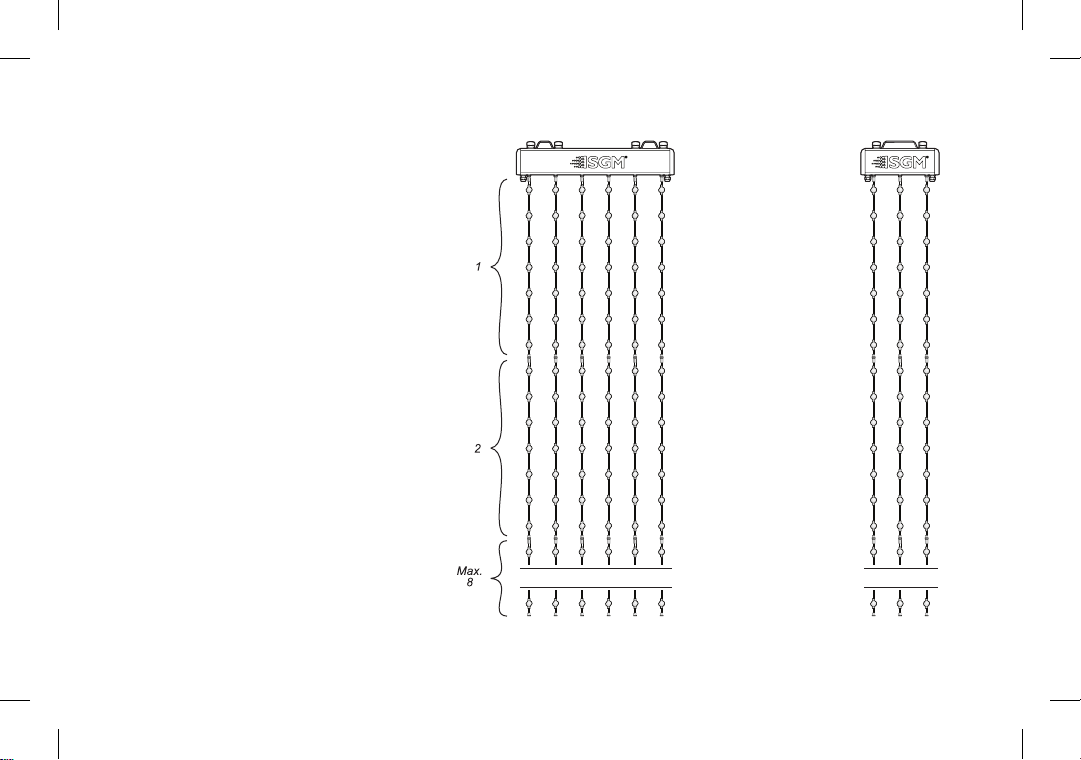

Connecting to

SGM Touring LED Driver

TLD-612 or TLD-312

TLD-612

(Part #: 80070201) TLD-312

(Part #: 80070202)
