AQUAPHON®
AF 50 receiver
Operating Instructions
AF 50 receiver
Arrow keys
●Up key

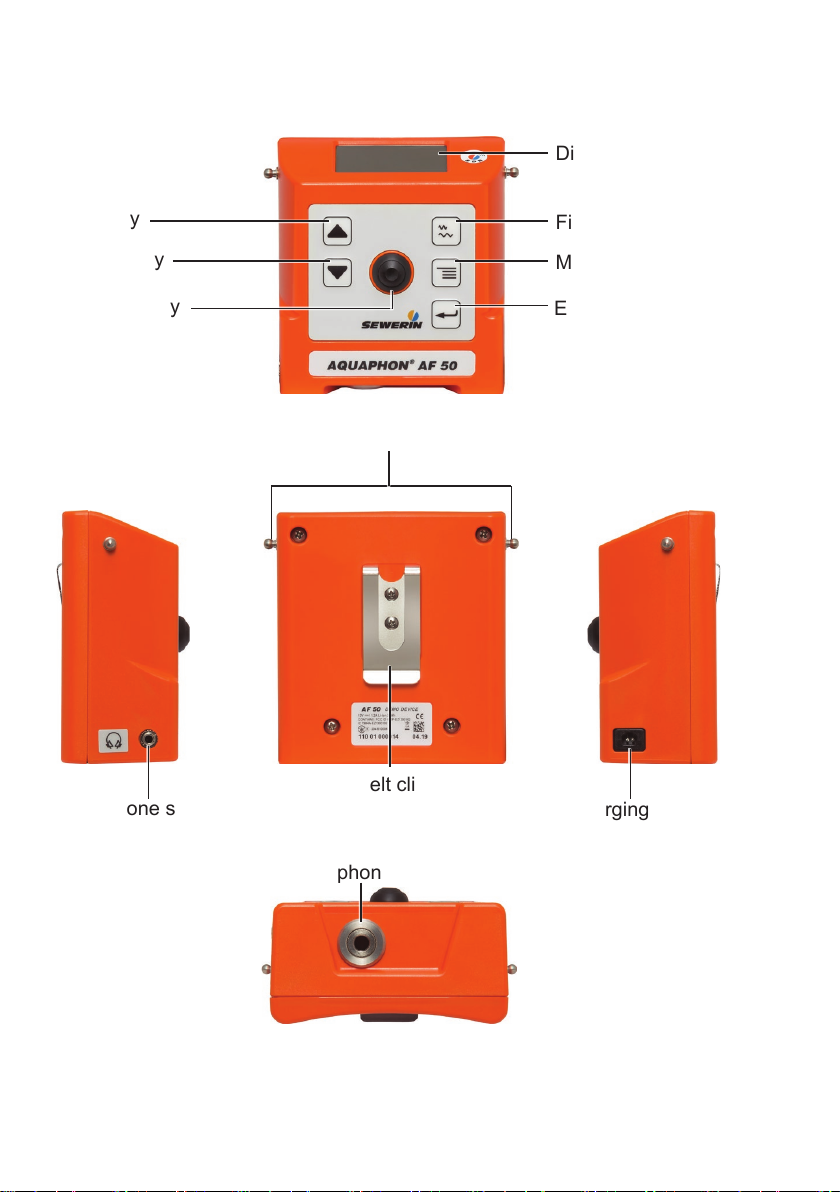

Fig. 1: Receiver AF 50 viewed from various angles
●Down key
Activation key
Display
Filter key
Menu key
Enter key
Belt clip
Headphone socket
Connection for
microphone/search coil
Charging socket
Fastener knobs
AF 50 receiver

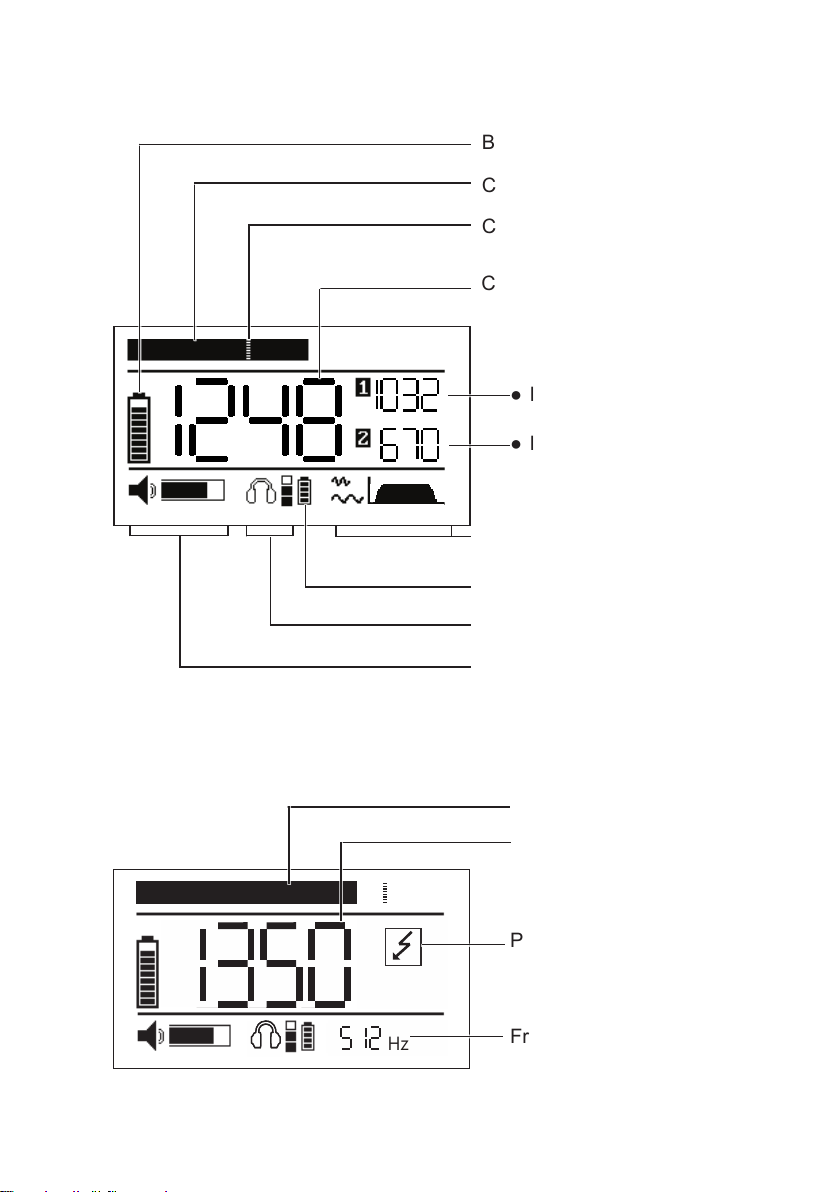

Fig. 2: Display with main view during water leak detection
Battery symbol for receiver
Current noise level (bar)
Current minimum noise level
(marker)
Minimum noise level
●last but one
Filter level
Battery symbol
wireless headphones
Hearing protection level
Volume
Current minimum noise level
●last
Hz
Fig. 3: Display with main view during pipeline location
Power line
Frequency
Field strength
●Bar display
●Numerical display
Illustration of warnings in this document
AWARNING!
Risk of personal injury. Could result in serious injury or death
ACAUTION!
Risk of personal injury. Could result in injury or pose a risk
to health.
NOTICE!
Risk of damage to property.
Contents│ I
1 Introduction .............................................................................1
1.1 Information about this document...............................................1
1.2 Purpose.....................................................................................1
1.3 Intended use .............................................................................2
1.4 Safety information .....................................................................2
2 AQUAPHON system................................................................4
2.1 Acoustic water leak detection....................................................4
2.2 Pipe location..............................................................................4
2.2.1 Passive pipeline location........................................................4
2.2.2 Active pipeline location...........................................................4
2.3 Hearing protection.....................................................................5
2.4 System components..................................................................5
2.4.1 Overview ................................................................................5
2.4.2 AF 50 receiver........................................................................7
2.4.2.1 Setup...................................................................................7
2.4.2.2 Display rotation ...................................................................8
2.4.2.3 Carrying the system ............................................................8
2.4.2.4 Activation key......................................................................8
2.4.3 Display of the results in the main view ...................................9
2.4.4 Power supply........................................................................ 11
2.4.5 UM 50 universal microphone ...............................................12
2.4.6 SK 3 search coil ...................................................................13
2.5 Dierencesbetweenapplicationswhenlocating ....................13
3 Using the system ..................................................................14
3.1 Preparing the system ..............................................................14
3.2 Starting up the system ............................................................14
3.2.1 Connecting the microphone or search coil...........................14
3.2.2 Connecting headphones ......................................................15
3.2.2.1 F8 wireless headphones ...................................................15
3.2.2.2 K3 headphones.................................................................15
3.3 Adjusting the volume...............................................................16
3.4 Performing water leak detection..............................................16
3.4.1 Starting and ending a measurement ....................................16
3.4.2 Adjustingthelter.................................................................17
3.4.2.1 Adjusting the bandpass.....................................................17
3.4.2.2 Activatingthenotchlter...................................................18
II │Contents
3.5 Performing pipe location .........................................................19
3.5.1 Setting the frequency ...........................................................19
3.5.2 Using the maximum or the minimum method.......................19
3.5.3 Applyingautomaticamplieradjustment..............................21
3.6 Switchingothesystem..........................................................21
4 Settings ..................................................................................22
4.1 Overview .................................................................................22
4.2 Backlight (LIGHT)....................................................................22
4.3 Operating mode (ACTIVATION) ..............................................23
4.4 Display rotation (DISPLAY) .....................................................24
4.5 Hearing protection (MUTE) .....................................................25
4.6 Hearing protection threshold (PROTECT) ..............................25
4.7 Factory settings (RESET) .......................................................27
5 Maintenance ..........................................................................28
5.1 Charging the batteries.............................................................28
5.1.1 Charging the batteries in the case .......................................28
5.1.2 Charging batteries individually using the AC/DC adapter
or vehicle cable ....................................................................29
5.2 Handling faulty lithium ion rechargeable batteries ..................30
5.2.1 Identifying faulty batteries ....................................................31
5.2.2 Removing the battery from the receiver ...............................31
5.3 Care ........................................................................................32
5.4 Servicing .................................................................................32
6 Appendix................................................................................33
6.1 Technical data .........................................................................33
6.1.1 AF 50 receiver......................................................................33
6.1.2 UM 50 universal microphone ...............................................35
6.2 A 50 receiver ...........................................................................36
6.2.1 Adjustablelters...................................................................36
6.2.1.1 Bandpass ..........................................................................36
6.2.1.2 Notchlter.........................................................................36
6.2.2 Factory settings....................................................................37
6.3 Accessories.............................................................................38
6.4 Declarations of conformity.......................................................38
6.5 Advice on disposal ..................................................................38
7 Index.......................................................................................39
1 Introduction│ 1
1 Introduction
1.1 Information about this document
This document is a component part of the product.
●Read the document before putting the product into operation.
●Keep the document within easy reach.
●Pass this document on to any subsequent owners.
● Unlessotherwisespecied,theinformationinthisdocument
refers to the product as delivered (factory settings) and applies
to all product variants.
Translations
Translations are produced to the best of our knowledge. The
original German version is authoritative.
Right of reproduction
Nopartofthisdocumentmaybeedited,duplicatedorcirculated
in any form without the express consent of Hermann Sewerin
GmbH.
Registered trademarks
Registered trademarks are generally not indicated in this docu-
ment.
1.2 Purpose
The AQUAPHON system with the AF 50 receiver is designed for
waterleakdetectionandpipelinelocation,especiallyinbuildings.
The system can be used for:
●
Preliminarydetectionofwaterleaksinttings(e.g.hydrant,
slide gate)
● Pinpointingwaterleaksonpavedsurfaces(e.g.asphalt,con-
crete,paving,ush-mounted)
●Locating and tracking lines
2 │1Introduction
Note:
These operating instructions describe the functions of the AF 50
receiverwithrmwareversion1.xxx.
All descriptions in these operating instructions refer to the system
as delivered (factory settings). The manufacturer reserves the
right to make changes.
1.3 Intended use
The product is suitable for the following uses:
●professional
●industrial
●commercial
Theproductmustonlybeusedfortheapplicationsspeciedin
section 1.2.
Note:
The appropriate specialist knowledge is required for using this
product.
1.4 Safety information
This product was manufactured in keeping with all binding legal
and safety regulations.
The product is safe to operate when used in accordance with the
instructionsprovided.However,whenhandlingtheproduct,there
mayberiskstopersonsandproperty.Forthisreason,observe
the following safety information without fail.
●Observe all the applicable safety standards and accident pre-
vention regulations.
●Use the product only as intended.
●
Donotmake any changes ormodications to theproduct
unless these have been expressly approved by Hermann
Sewerin GmbH.
1 Introduction│ 3
●
Only use accessories and consumables approved by Hermann
Sewerin GmbH.
●Always observe the permitted operating and storage temper-
atures.
● Handletheproductcarefullyandsafely,bothduringtransport
and when working.
● Alwaysadequatelycordonotheworkarea.
● Whenyouarewearingheadphones,youarenotfullyaware
ofambientnoise.Beespeciallyvigilant,especiallyinenviron-
mentswithanincreasedriskofaccident(e.g.roadtrac).
●Do not use the product if it is damaged or faulty.
● Protecttheportsandsocketsagainstdirt,andelectricalports
in particular against moisture.
4 │2AQUAPHONsystem
2 AQUAPHON system
2.1 Acoustic water leak detection
Water leak detection includes preliminary detection and pinpoint-
ing. A microphone must be connected to the AF 50 receiver to
be located acoustically with the AQUAPHON system. The mi-
crophone picks up noises and plays them back through a set
of headphones. This means that leak noise can be detected in
pipelines.
2.2 Pipe location
Analternatingcurrentmustowthroughalinetobelocated.
The SK 3searchcoildisplaystheeldstrengthfromtheAF 50
receiver and transmits it as an audible signal to the connected
headphones.
A distinction is made between the following location techniques:
●Passive
●Active
2.2.1 Passive pipeline location
Forlinesthatarenotonlyenergizedbutalsounderload,the
alternating current required for location is already available. The
appropriate receiving frequency can be set at the AF 50 receiver:
●50 Hz
●60 Hz
2.2.2 Active pipeline location
The alternating current is produced using a generator (e.g. gen-
erator FG 50). The following frequencies can be set at the AF
50 receiver:
●512 Hz
●1.1 kHz
●9.95 kHz
