2-2
3-1

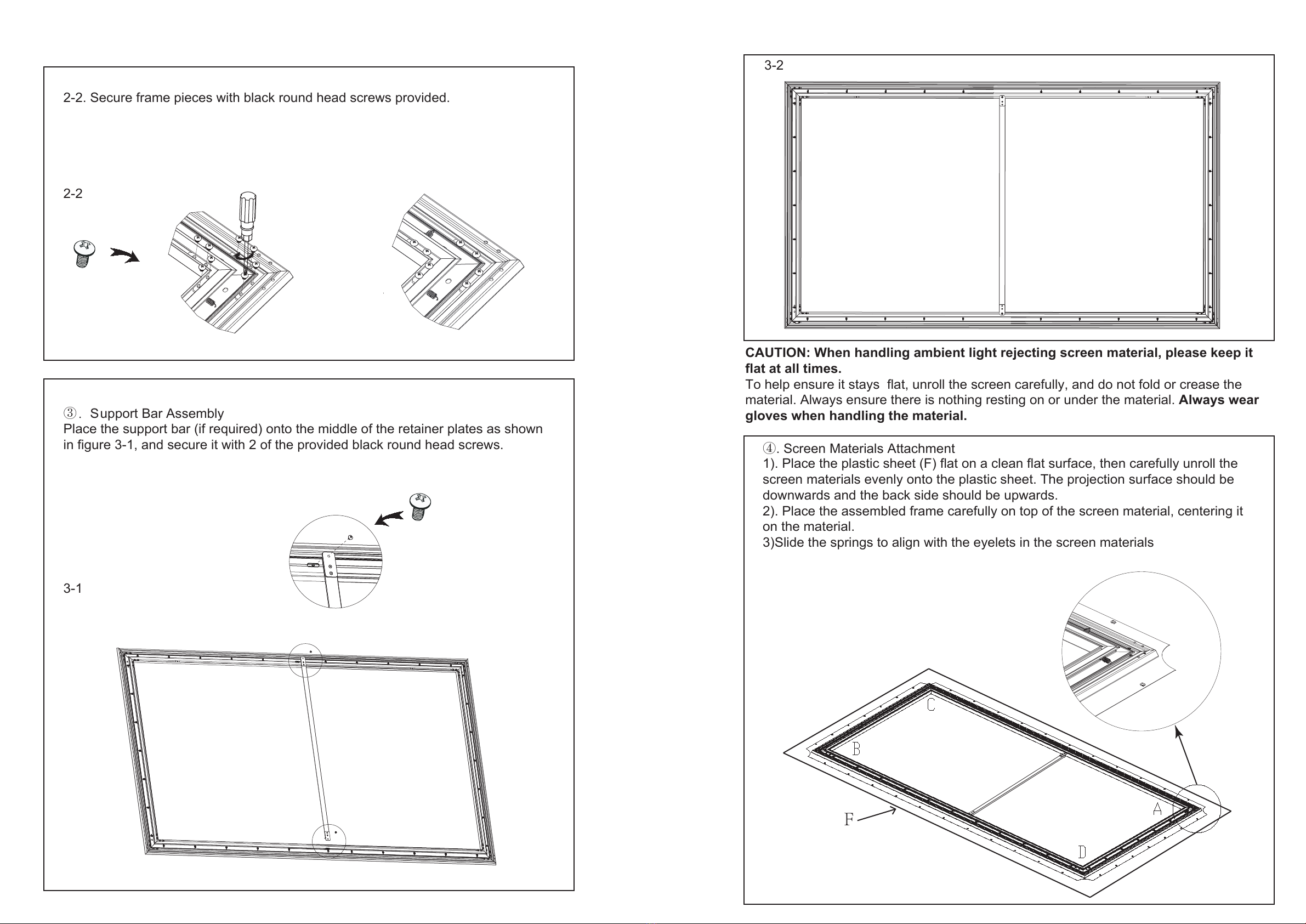

2-2. Secure frame pieces with black round head screws provided.
③．Support Bar Assembly
Place the support bar (if required) onto the middle of the retainer plates as shown
in figure 3-1, and secure it with 2 of the provided black round head screws.
3-2
F
④. Screen Materials Attachment
1). Place the plastic sheet (F) flat on a clean flat surface, thencarefully unroll the
screen materials evenly onto the plastic sheet. The projection surface should be
downwards and the back side should be upwards.
2). Place the assembled frame carefully on top of the screen material, centering it
on the material.
3)Slide the springs to align with the eyelets in the screen materials
CAUTION: When handling ambient light rejecting screen material, please keep it
flat at all times.
To help ensure it stays flat, unroll the screen carefully, and do not fold or crease the
material. Always ensure there is nothing resting on or under the material. Always wear
gloves when handling the material.
