E01FI09011
FIAT INFODAPTER
INSTRUCTION MANUAL
2
ABOUT
The SETMA Infodapter for Fiat 500X 2015> vehicles allows vehicle setting and parking
sensor information to be displayed on any aftermarket head unit with rear camera input.
The Infodapter also allows the use of the steering wheel controls with almost every
steering wheel control compatible head unit on the market.
DIP SWITCH SETTINGS
See Fig 1.
Up = Off, Down = On
1: On = Pioneer head units. Off = All other head units
2: Setting for reverse camera. On = PAL, Off = NTSC. The default setting is Off (NTSC).
3: Resets the display settings back to default. If the display settings have been
manipulated in a way that it is no longer possible to make adjustments, change the
DIP switch #3 from Off to On and back. This will reset the screen settings to the factory
defaults. During this procedure the screen background will change to red. While the
background is red, no settings can be made.
4: Not applicable

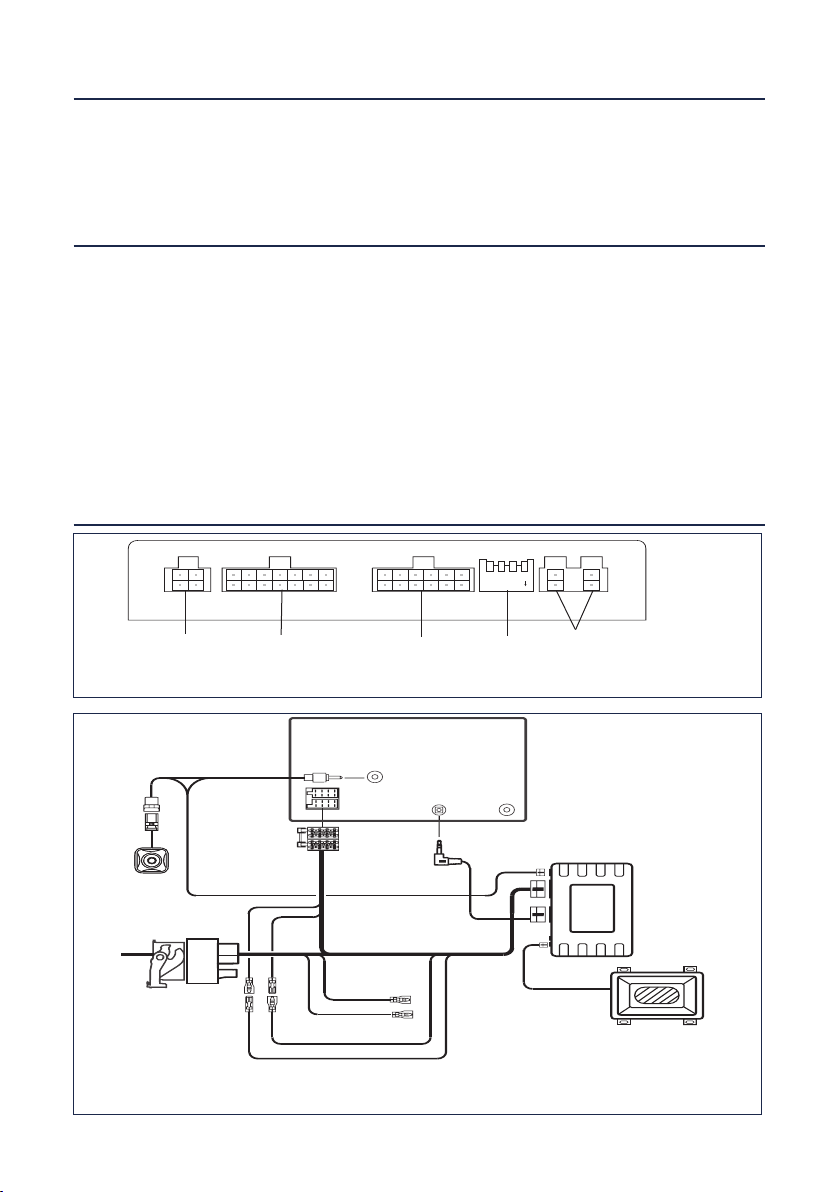

Interface Connections
Fig 1.
1234
DIP ON
Reverse Camera output
to head unit and reverse
camera input from
optional camera
Power Harness Steering Wheel
Remote control
connector to
head unit
Dip Switches Not Used
Fig 2.
Á
Æ
Mute(Grey)
Speed Pulse (Pink)
Reverse (Purple)
ÀAftermarket head
Infodapter
Ã
Steering Wheel
Control Input
Ä
ISO
Connector
Reverse Camera Input
Ç
È
10 Reverse camera
(optional)
To car connector
Â
Å
3
À Speech Button
Á Track Up/Down
Fig 3.
Steering Wheel Controls
Conguration Menu
To access the menu, push and hold the speech button for 2 seconds (Fig. 3).(if no speech
button, pick up can be used) This will enable the conguration menu. To navigate
through the menu options use the Track Up/ Track Down buttons. To select a menu
Conguration Menu
Vehicle Settings
Infodapter Settings
Language
Version
< Back
Á
Vehicle Settings
Display
Clock
Doors and Locks
Lights
Safety and Driving Assistance
Vehicle Off Options
< Back
• Vehicle Settings
Vehicle settings can be adjusted via
the menu. All vehicle setup options
that were available with the original
head unit, are now available through
the aftermarket head unit. See the
vehicle handbook for more information
regarding these features.
Screen Size/Position
Horizontal Size
Horizontal Position
Vertical Size
Vertical Position
< Back
• Infodapter Settings
oScreen Size/Position -
Make sure all 4 corner markers
are touching the corners of the
aftermarket head unit display.
À
4
Conguration Menu...continued
Preferences
Park Assist Version 0
Camera Connected Yes
Reverse Priority Park Assist
Park Brake Source Speed
Restore factory settings
< Back
oPreferences -
Park Assist Version - Select according to the
colour conguration of the park assist tted to
the vehicle.
Camera Connected - Select Yes if an optional
camera is connected.
Reverse Priority* - Select which image (Camera
or Park Assist) will be shown by default when
reversing. The driver can select the desired
image by pushing the Source button (Fig.3)
while reversing. (*Note this option is only
available when Camera Connected is set to
Yes)
Park Brake Source - Set to Speed, Brake or
Always On.
Restore factory settings - Reverts all
Infodapter settings to factory defaults.
(This does not restore vehicle settings)
Infodapter Settings
Screen Size/Position
Picture Settings
Preferences
<Back
oPicture Settings -
Adjust Brightness, contrast and
colour saturation.
