Serene HD 40P Manuel utilisateur
Copyright © 2008 Serene Innovations, Inc. All rights reserved. 06-08 !
HIGH DEFINITION AMPLIFIED TELEPHONE
Operating Guide
HD 40P
Manueldel’utilisateur
2
Important safety Instructions
Read all the instructions before using the appliance.1.
To reduce the risk of injury, close supervision is2. necessary when an appliance is used near children.
Do not contact moving parts or any exposed metal
3. surface.
Only use attachments recommended or sold by the
4. manufacturer.
Do not use outdoors. Do not use near water, for
5. example, near a bath tub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming
pool.
To disconnect, turn all controls to the off position,
6. then remove plug from outlet.
Do not unplug by pulling on cord. To unplug, grasp
7. the plug, not the cord.
Unplug from outlet when not in use and before servicing or
8. cleaning.
Do not operate any appliance with a damaged cord or plug, or
9. after the appliance malfunctions or is dropped or damaged in
any manner. Return appliance to the nearest authorized service
facility for examination, repair, or electrical or mechanical
adjustment.
Use only the power cord and batteries indicated in the manual.
10. Do not dispose of batteries in fire. They may explode. Check
local codes for possible special disposal instructions.
Plug any power adapter to the socket-outlet that near the
11. equipment and should be easily accessible.
Avoid using any telephone product during an electrical storm.
12. There may be a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of
13. the leak.
“SAVETHESE INSTRUCTIONS”
WARNING – When using telephone equipment or electric appliances, basic precautions should always be followed to reduce the risk
of fire, electrical shock and injury to persons, including the following:

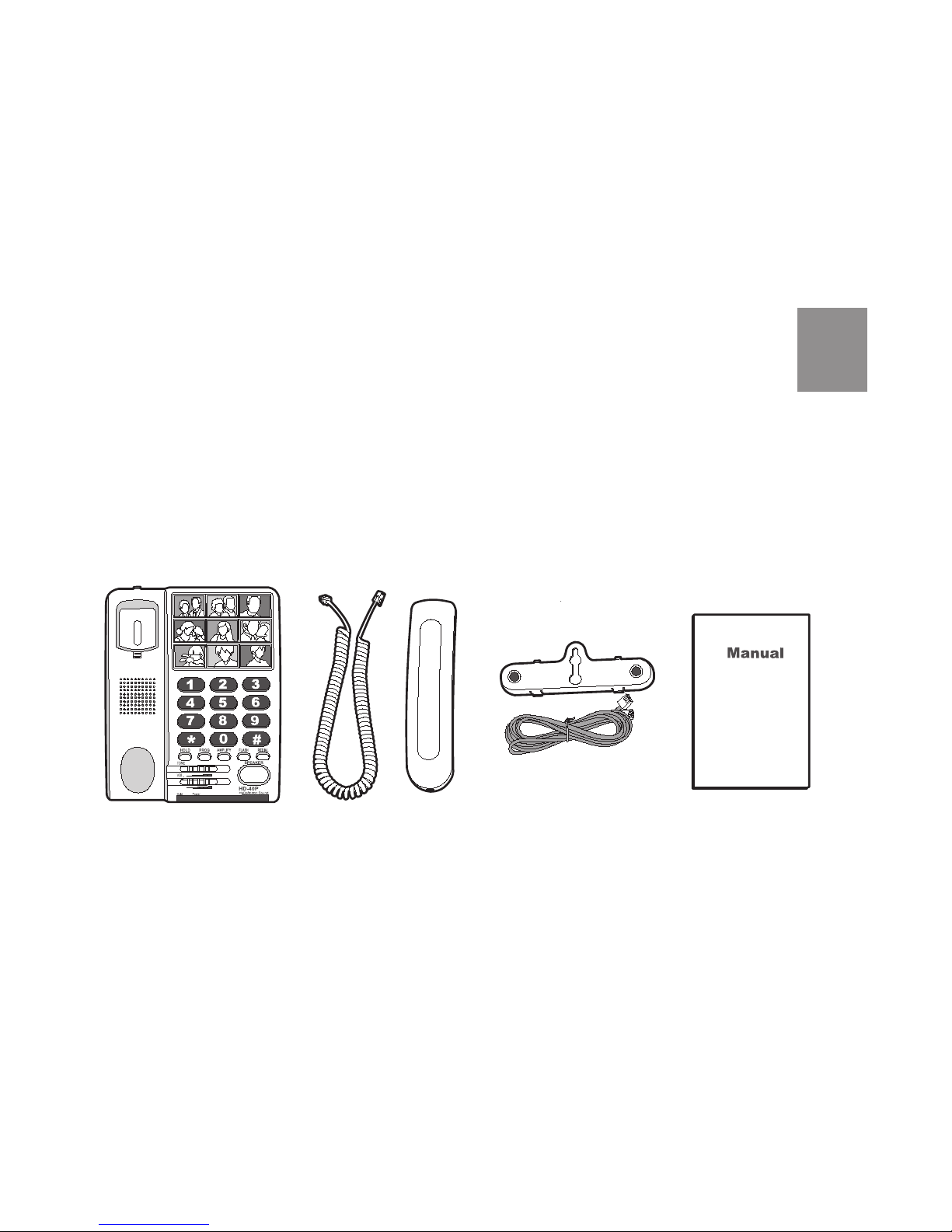

Package Contents
Your package includes all the items as shown here. If there
is anything missing, please contact our Customer Care
Department immediately.
English
4
16
123 4 5 6 7
10
9
11
15 12 13 14
8
Handset hook (for wall mounting use only)1.
One-touch memory dialing buttons2.
Hold (press to put call on hold and to mute the handset, lift the3.
handset or a quick press of the hook switch releases the Hold)
Prog (press to program number into memory)4.
Amplify (press to turn on/off the powerful handset amplifier5.
manually)
Flash (press to switch between current call and the call waiting)6.
Redial (This is a dual function button. It is a last number redial7.
button during normal usage. However, it becomes a PAUSE
button during memory programming. Press this button inserts
a 2-second pause into the phone number string. For example:
9 PAUSE 755 8222 dials 9 and then pauses for 2-second before
dialing out rest of the phone number.)
Tone/Pulse (This slide switch selects tone dialing or pulse8.
dialing. Tone dialing is faster).
Ringer Tone (to select a ring tone to suit your hearing)9.
Feature Identification
Ringer Volume (to select a ringing volume level to suit your10.
hearing)
Speaker on/off with indicator (Press this button to turn11.
on / off the speakerphone for hands-free dialing or
conversation. Handset must be on its cradle in order for
this feature to work.)
Tone (to enhance speech clarity; move it until you hear the12.
best incoming speech clarity while on the phone. Positions
1 thru 4 enhance low, mid, mid-high, and high tone part of
the speech respectively)
Volume (to adjust the volume of the handset).13.
Amplify LED indicator14.
Call-on-hold visual indicator.15.
Amplifier Auto On/Off (On: the amplifier will come on16.
automatically and return to the previous level setting
every time you lift the handset. Off: the amplifier will not
come on automatically; you must press Amplify to turn
on the amplifier).
English
6

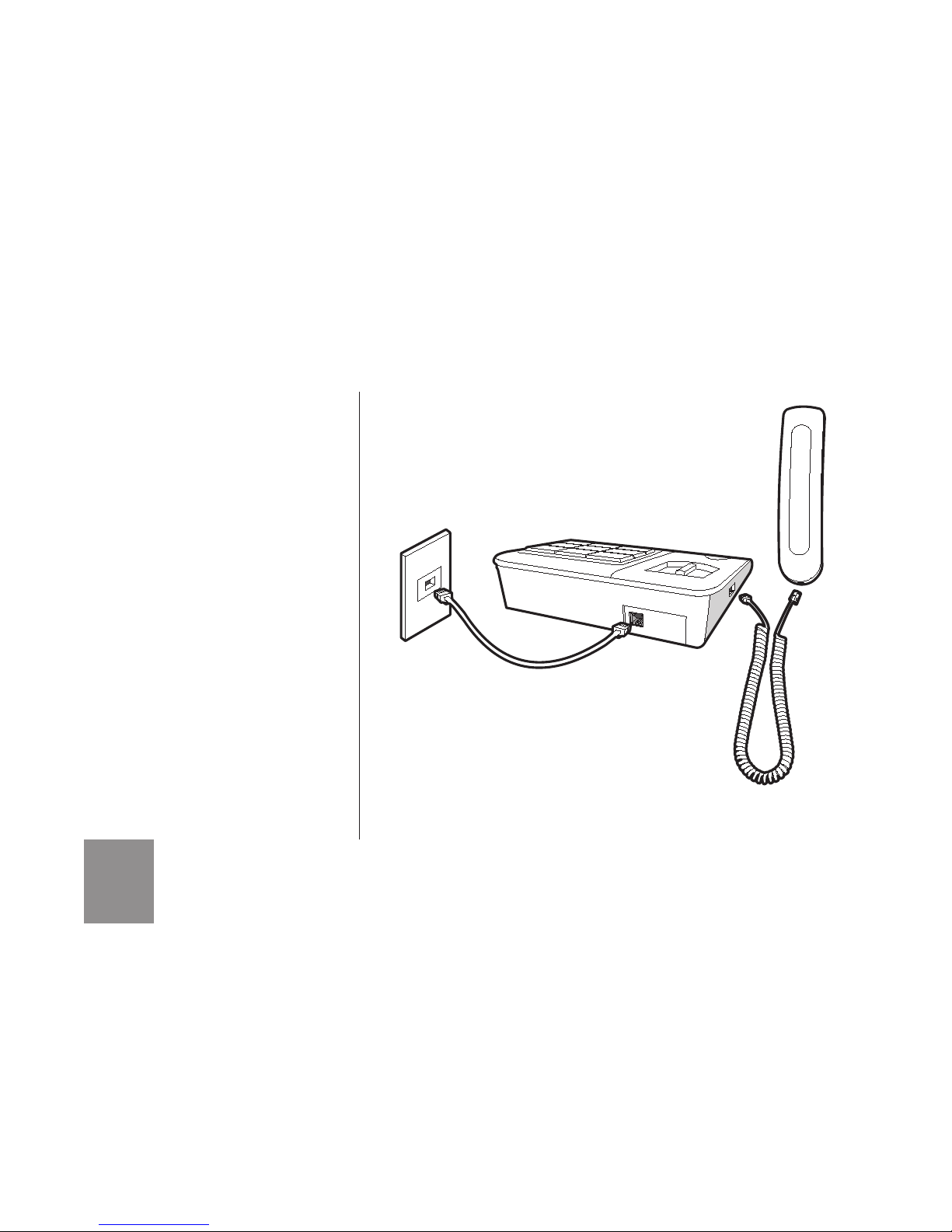

Connect your phone as shown. When
finished, lift handset to test. If you hear a
dial tone, your telephone is ready. If not,
check all connections again.
Connections
English
Slide out the handset hook, turn it upside down and reinsert. This hook keeps the
1. handset in place when wall mounted.
Fit the wall mount bracket into the base of the phone.
2.
Connect the short phone cord. Align and put the mounting holes over the heads3. of the wall plate screws (make sure the screw head protrude enough, if not, use
a screw driver to adjust) and slide the phone downward slightly to lock the phone
in place.
Wall Mounting
1
3
2
8
Using the Speakerphone
Press the Speaker button to turn on the speakerphone. Or, if1.
you are on the phone, press the Speaker button then returns the
handset back to its cradle.
Adjust the Volume switch to reach a comfortable level.2.
Press the Speaker button again to end the call.3.
Press the HOLD button during a call mutes the microphone and4.
the call is placed on Music-On-Hold mode. Press it again releases
the hold and un-mutes the microphone.)
12 3

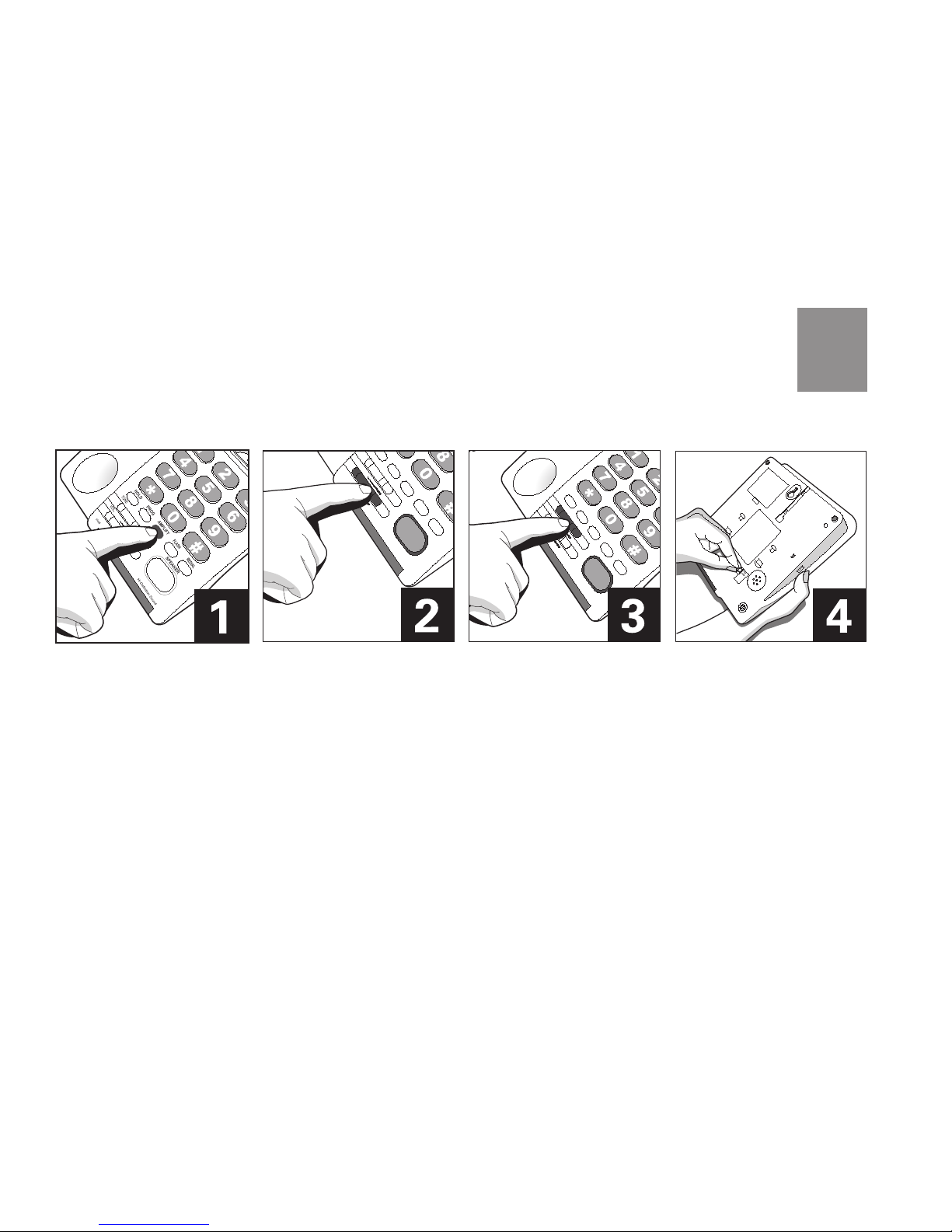

Amplifying incoming sounds Manually/Automatic
English
When you are on the phone, press the Amplify button to turn on1.
the amplifier
Adjust the Volume switch to reach a comfortable sound level.2.
Adjust theTone switch until you can hear the incoming voice3.
clearly.This needs to be done the first time you use the phone only
and you can leave this setting for all future calls.
If you want the amplifier to come-on automatically every time4.
you use the phone, slide the Amplifier Auto On/Off switch on the
underside to the On position.To turn off the amplifier (for the non
hard-of-hearing user), press the Amplify button.To return to the
Auto-on mode, press
Amplifier again.
10
Programming Number for One-Touch Memory Dialing
1
34
2
Lift the handset, press PROG.1.
Dial the phone number you wish to save (maximum of 15 digits).2.
Press PROG again.3.
Press the memory button you wish to store the phone4.
number, then hang up the phone.
