SPS1500P / FIC1500P DOC: 10040534 Rev AA
Operation Manual Page 4 of 13
Table of Contents
1.0 Overview ...............................................................................................................5

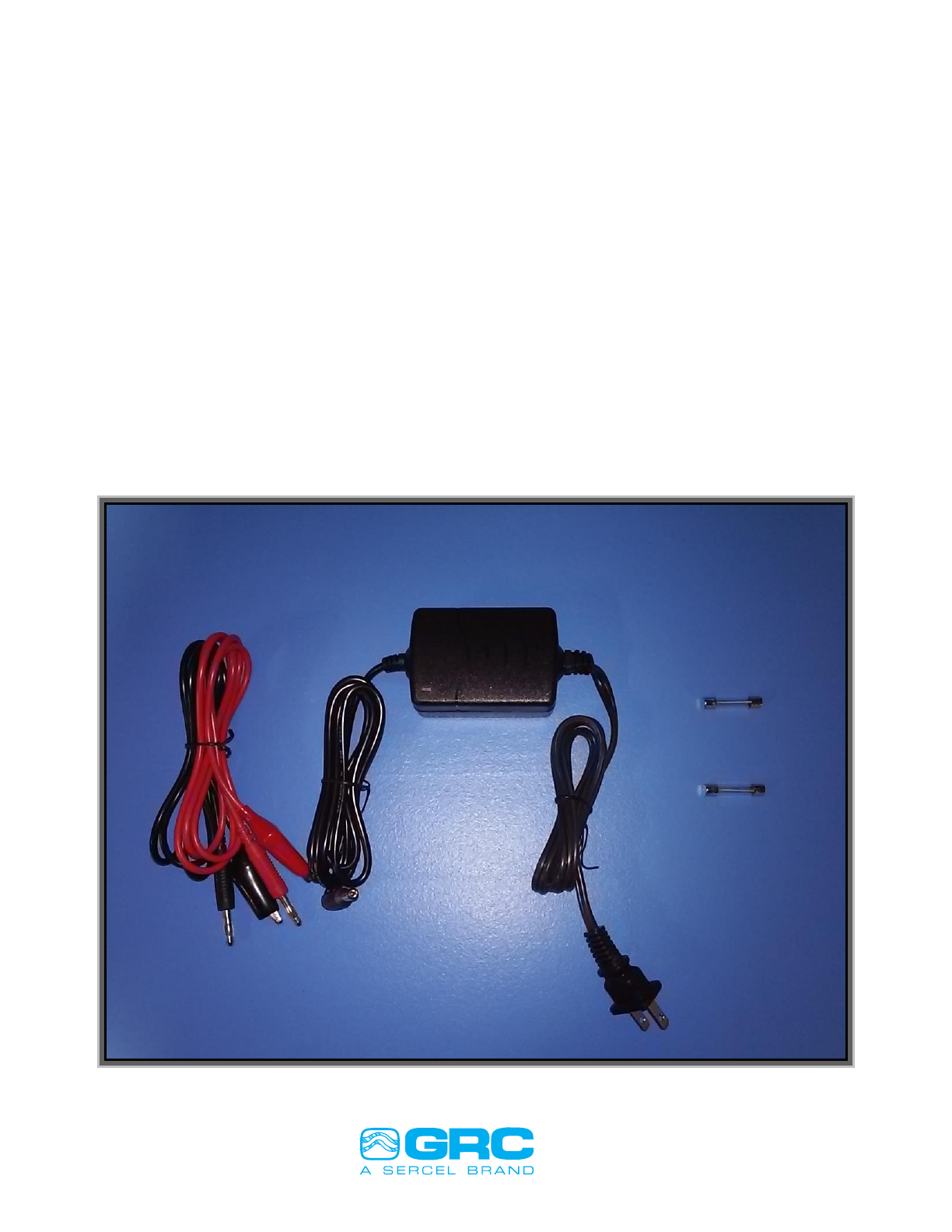

2.0 Accessories ..........................................................................................................5

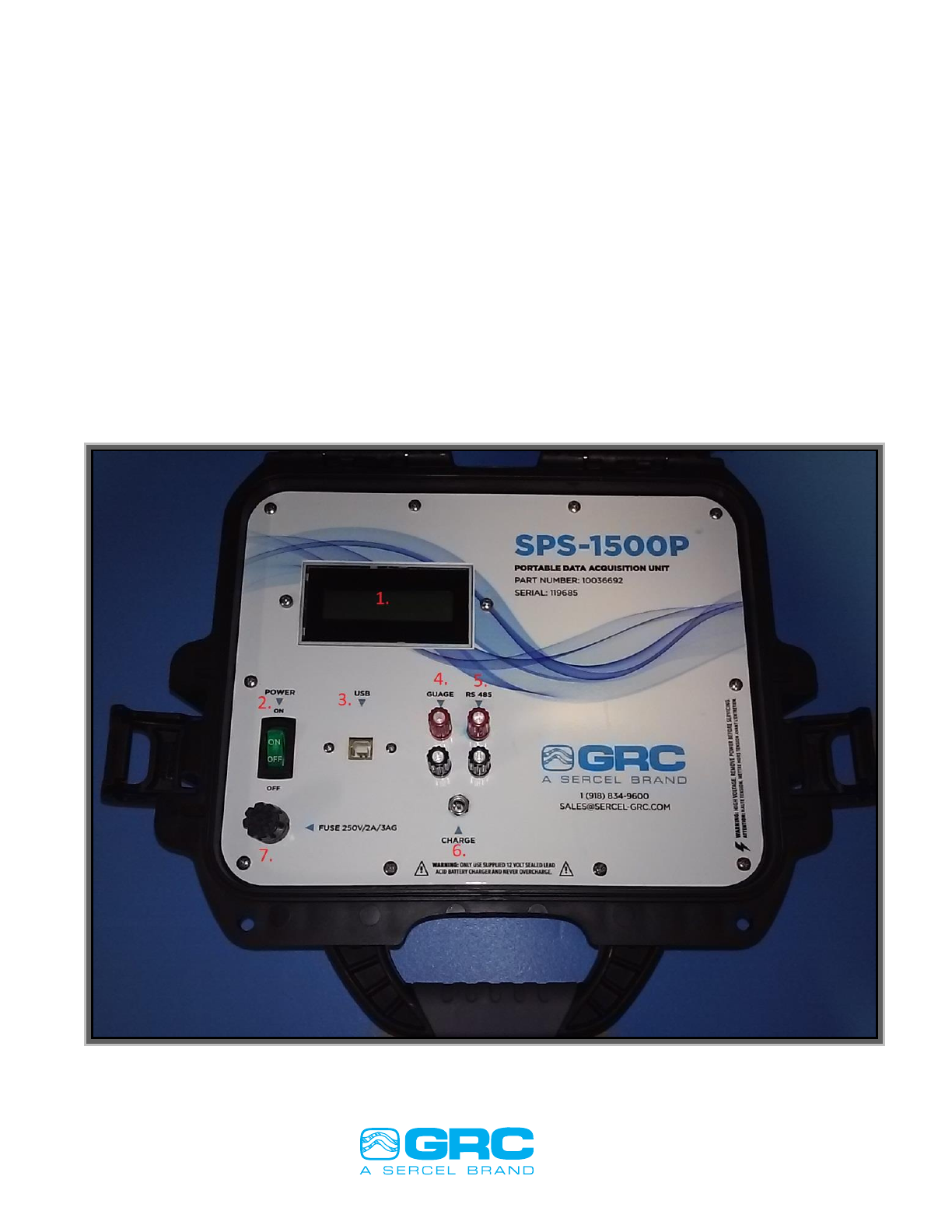

3.0 Interface Panel......................................................................................................6
3.1 Module Display .................................................................................................7
3.2 Power Switch....................................................................................................7
3.3 USB Port...........................................................................................................7
3.4 Gauge Output...................................................................................................7
3.5 RS 485..............................................................................................................7
3.6 Charge Port ......................................................................................................7
3.7 Fuse Holder......................................................................................................7
4.0 Connections..........................................................................................................8

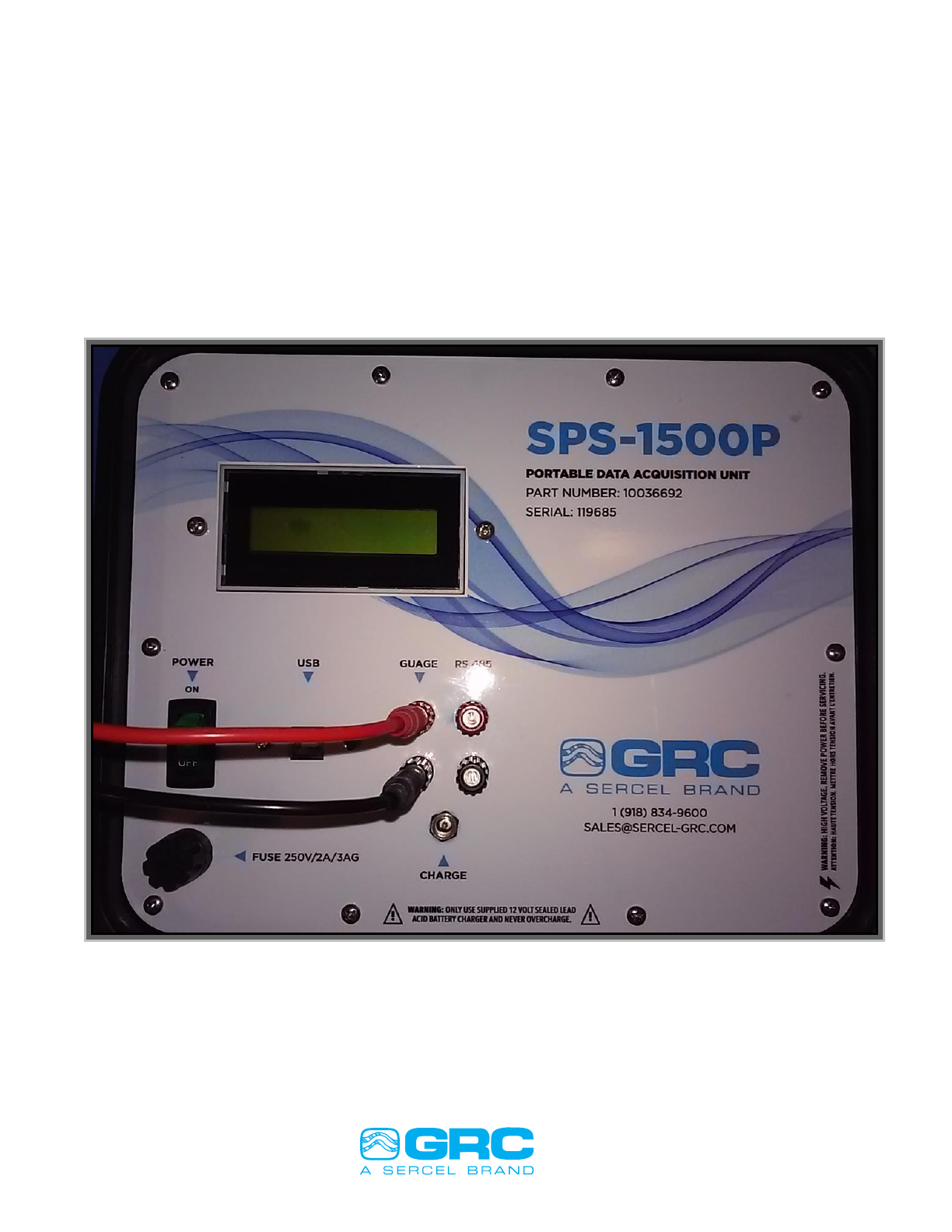

4.1 Gauge Connection............................................................................................8
4.2 Charging...........................................................................................................9
4.3 SPS1500 and FIC1500 Module......................................................................10
5.0 Additional Information .......................................................................................10
6.0 Specifications.....................................................................................................11
7.0 Troubleshooting.................................................................................................12
** WARNINGS **
WARNING AND ADVISORY INFORMATION TRAINED QUALIFIED PERSONEL MUST
PERFORM CONNECTIONS. HIGH VOLTAGES CAN BE PRESENT WHEN CONNECTING
TO HIGH VOLTAGE WELL. DISCONNECT ALL CIRCUIT POWER FROM SOURCE
BEFORE CONNECTING. ALWAYS EXERCISE CAUTION AROUND ELECTRONIC
EQUIPMENT. TO REDUCE THE RISK OF ELECTRIC SHOCK. NEVER PERFORM
WIRING ON A “LIVE” ASSEMBLY WHERE VOLTAGES ARE PRESENT.
