Separett Tiny Manuel utilisateur

Tiny with urine tube art.no. 1271-01

Installation Manual

Tiny®

12356-01

WARNING!

Before making holes in walls or oors. Ensure that the location for wall penetration

allows for a hole to be made and that the pipingmeets construction regulations. Keep

in mind that the wall may conceal, for example: electrical wiring,piping,waterproong,

load-bearing construction.

IMPORTANT! Alwaysconsult your local environmental ofce to nd out what rules apply in your munici-

pality. Alwaysfollow local regulations. Please view our installation video at www.ecoo.com.au.

To make sure the toilet stays odour free, the fan in the toiletshould always be running for it to ventilate

and receive fresh air to ventilate out. To achieve this, the followingis required:

1. Noother fan/ventilation system may affect the same room.

2. Ensure that fresh air from the outside enters the room. The air entry point should be as close to the

toilet as possible.

Useful tools

Hole sizes:

51mm (1,5”)- ventilation

33mm (1 3/8”)- urine outlet

1 x 90-degree connection

1 x Ventilation pipe 40 cm

(15.75”)

1 x Sample drain cleaner

10 x Compostable wastebags Tiny

1 x Sample Absorb pad Tiny

1 x Urine bowl extension

3 x Mounting screws for wall or

oor mountings

1 x Lid for solid waste container

1 x Adaptor ventilation pipe 50

mm to 1.5”(schedule 40)

1 x Basket for bioblock

1 x Pipe cap with insect net

50 mm/1.5”

1 x Ventilation cowl 50 mm/1.5”

2 x Screw for ventilation cowl

1 x Tube of silicone

1 x Installation template

1 x Power adapter

1 x 12 V battery cable

1 x Fan lter

1 x Urine hose

1 x Straight joint 32 mm pipe

1 x 90-degree joint

32 mm pipe

Included with the product

Installation steps

Please read more under each heading

1. Toilet placement

2. Make holes according to the installation template

3. Install ventilation pipe

4. Install urine hose

5. Install ventilation pipe cap or ventilation cowl

6. Power supply for toilet

7. Connect the toilet to the ventilation pipe and urine tube

8. Fix the toilet to the wall and/or oor

9. Install xed fan lter

10. Place basket in the urine drain

Toiletplacement

Separett Tiny has no requirements for room temperature and works in both cold and warm spaces. The only

requirements are that you must be able to lead the urine away and t a ventilation pipe.

The toilet is made to be placed on the oor against the wall, and for extra stability it should be attached either

to the oor, wall or both.

Make holes according to installation template

The enclosed installation template shows possible installation options for urine drains and ventilation pipes

through the wall behind the toiletor through the oor. These options enable an installation without visible

pipes.

Install ventilation pipe

The toiletis designed for 50 mm pipes (outer diameter). For optimal function it is recommended that you use

Separett’s own installation kitthat has pipes and angles in the correct dimensions.

Separett Tiny can be installed with up to 5 meters of ventilation piping and 2 90-degree bends. Ventilated air

can go through a wall,oor or roof, for example, up into an attic and out through a suitable side of the house.

If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to

that duct,provided that it is not smaller than 50 mm and that it meets the pipingrequirements. Should you

need longer piping that exceeds the recommendations above, you may install an extra fan (art. no.: 13008)

The toilet comes with a coupling for connecting the included 40 cm-long 50 mm pipe to a 1.5 inch pipe (sche-

dule 40). For more information on this, please read section X.

X. When connecting the toilet to 1.5 inch pipes

Ensure as short and simple a piping as possible, as the inner diameter of these

pipes is smaller than the pipes in the Separettventilation kit, hence the air-

ow restrictions. For these installations, a maximum of 4 meters of pipe and 2

90-degree bend is recommended.

This toilet is designed for direct connection with 50 mm pipes. A coupling to

connect the toiletto a 1.5 inch pipe (schedule 40) is also included. The inclu-

ded 50 mm pipe is to be connected to the toilet or to the supplied 90-degree

bend. The 50 mm pipe should be cut to a suitable length. Use a coupling to

continue the installation with 1.5 inch pipes (schedule 40).

1.5 inch pipes (schedule 40) have a smaller inner diameter and when using

these pipes, as short and simple installation as possible is desirable to ensure

high functionality. The total length of the pipes must be less than 4 meters

and a maximum of 2 x 90-degree bends is recommended.

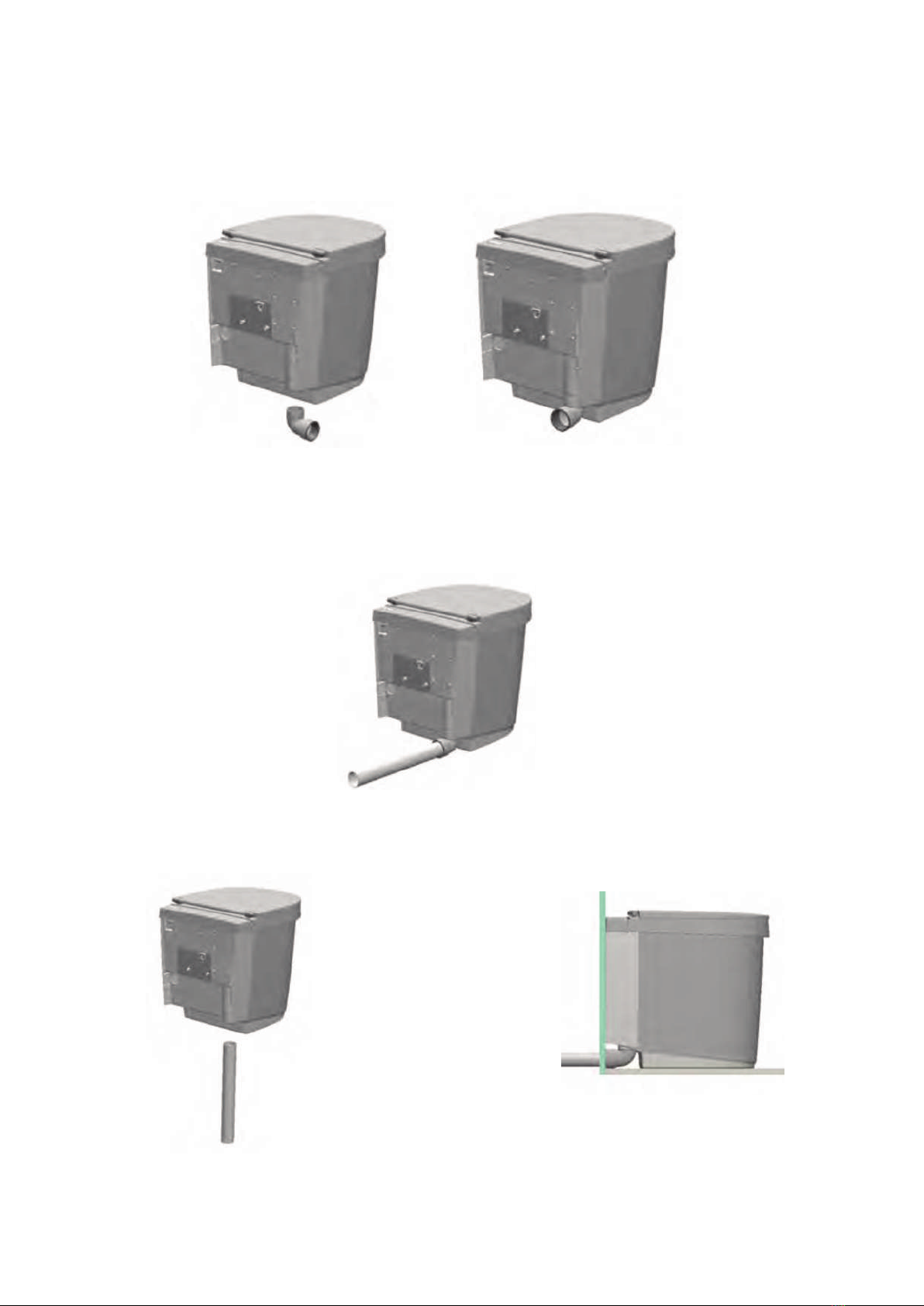

Installation without visible pipes

The included 90-degree bend is used to lay pipes backwards or to the side. The bend is placed as shown

below and turned in the rearward direction. The bend can be difcult to getin place. Vaseline or a similar

product may be used to facilitate the assembly.

The supplied ventilation pipe is then connected to the 90-degree bend. The pipe is 40 cm (15,7”)long, which

generally is enough to reach through an outer wall. If additional pipes are needed to direct the air out of

the house, the Separett ventilation kit (art. no. 1344) is recommended for Tiny. It includes 4 meters of piping

and bends to ensure a simple extended installation. These can also be used to extend the pipingonto the

facade of the house. Please note that as short an installation as possible is recommended to guarantee full

function throughout the year.

If the installation is to go through the

oor, the pipe should be connected

directly to the toilet, as shown below.

The picture below shows what a con-

nection to Tiny can look like.

Alternative installation – visible pipes

In cases where installation with hidden pipes is not possible, the ventilation duct is guided to the right or

left by turning the 90-degree bend according to the pictures below. The piping must then be carried out in

accordance with the recommendations for the installation of ventilation pipes.

If additional pipes are needed to direct the air out of the house, the Separett ventilation kit (art. no. 1344) is

recommended for Tiny. It includes 4 meters (13 ft) of piping and bends to ensure a simple extended installa-

tion. These can also be used to extend the piping onto the facade of the house. Please note that as short an

installation as possible is recommended to guarantee full function throughout the year.

Install urine hose

The toiletis delivered with a 2-meter (6,6 ft) urine hose. To connect this to the toilet,use the included

straight joint or the 90-degree joint. Like the installation of the ventilation pipes, it is possible to connect the

urine tube so that no pipe is visible where the toilet is installed. This is achieved by angling the 90-degree

connection downwards or using the straight connection, as shown in the pictures below.

Recommendations for installation of urine hose

As with the ventilation duct, Tiny provides the option of installing the urine hose without any visible pipes/tu-

bes in the bathroom. Below are a few tips that should be followedto maintain a well-functioning urine outlet

over time and all year round.

• If you are goingto go through an insulated wall or a wall with an air gap between the inner and outer wall,

you must use a pipe for the penetration, or lead the hose through a pipe. Pipes are used to reduce the risk

of pests causing damage to the tube.

• If you are going to run the urine a longer distance than the 2 meters (6,6 ft) of the supplied hose, you

should switch to a pipe after the 2 meters (6,6 ft). Since urine contains minerals that can accumulate in pi-

pes/hoses, we recommend that the subsequent pipe have a diameter of at least 40 mm to avoid blockages.

• Make sure that you always have a downward inclination of at least 2 degrees (2 cm per meter or 0,8 inch

per 40 inch) throughout the piping,also make sure that there are no air pockets created by bends in the

hose.

• If the toilet is to be used in winter, outdoor pipes must have a diameter of at least 40 mm (1,6”).

• If the toilet is to be used in winter, we recommend that you insulate outdoor pipes with pipe insulation.

This insulation can be bought in most DIYstores.

• An important rule for longer installations (over 2 meters (6,6ft)) is that the sooner you switch to pipes with

a larger diameter, the lower the risk of blockages in the pipes.

• Do not place pipe joints near electrical appliances or wall sockets. This is to prevent liquid from coming

into contact with electricity in the event of a leak.

Installation without visible urine hose

For installation without visible pipes, the 90-degree bend is used to guide the urine downwards or the

straight joint to go backwards as shown in the pictures below. Use the enclosed installation template to

make holes in the wall or oor in the correct positions.

Installation with visible urine hose

In cases where installation without visiblepipes is not possible, a 90 degree bend is used to install the urine

hose to the side (right or left) according to the pictures below.

If the urine hose is to be laid sideways and the toilet is to be installed against the wall,the urine hose must be

led through the side of the toilet,which requires a hole to be made in the plastic. For optimal results, use the

same drill you would use for making holes in the wall. The toilethas marks on either side to show where the

hole should be made, see pictures below. If you nd it difcult to drill from the inside, use a smaller drill to make

a small hole in the center, and then continue to drill from the outside. Use a knife or sandpaper to get a good

border.

If the urine hose is to be led further within the room, use the supplied Wall mount for urine hose.

Make sure that the urine hose has a downward inclination all the way and that you have read through the

recommendations for installingthe urine hose.

The pipe cap can be xed to the pipe through the visible screw markings.

When the pipe end is vertical, the supplied ventilation cowl is to be used together with a pipe cap to ensure

that rain and snow do not enter the pipe.

Pipe cap and ventilation cowl are mounted together with the two supplied screws as shown below.

Installation of pipe cap or ventilation cowl

It is important to ensure that the end of the ventilation pipe is protected from rain and snow, and prevents

insects from entering the toilet. To achieve this, the toilet comes with a pipe cap that is equipped with an

integratedinsect net. This pipe cap should be used when the pipe end is horizontal and must be mounted

with the screen upwards to ensure protection from rain and snow. The pipe cap ts both 50 mm and 1.5

inch pipes. 50 mm pipes go half way in and 1.5 inch pipes go all the way in. See picture below.
