Sentex SW2200 Manuel utilisateur

Doc 01-G0181

Rev A

Installation Instructions

Swing Gate Operator

Model SW2200

2Contents

Doc 01-G0181

Rev A

Contents

Safety Information______________________________________________ 3

Definitions _____________________________________________________________ 3

Important Safety Information _______________________________________________ 3

Classifications___________________________________________________________ 5

Specifications__________________________________________________ 6

Mechanical _____________________________________________________________ 6

Electrical_______________________________________________________________ 6

Site Preparation _______________________________________________ 10

Pad Mounting __________________________________________________________ 10

Installation___________________________________________________ 11

Mechanical ____________________________________________________________ 11

Electrical______________________________________________________________ 13

Basic Setup and Device Connections ______________________________ 14

Setup ______________________________________________________________ 14

Device Connections _____________________________________________________ 16

Operator Programming Menu (LCD Screen)________________________ 17

Definitions and Options __________________________________________________ 17

Troubleshooting_______________________________________________ 19

Diagnostic Screen_______________________________________________________ 19

Entrapment Adjustment __________________________________________________ 20

No Position or Speed ____________________________________________________ 20

Replacement Parts Assembled____________________________________ 21

Parts List______________________________________________________________ 22

Maintenance _________________________________________________ 23

Cold Weather Operation__________________________________________________ 23

Appendix ____________________________________________________ 24

Wire Sizes and Distances _________________________________________________ 24

Non-Standard Installation_________________________________________________ 24

Safety Information 3

Doc 01-G0181

Rev A

Safety Information

Definitions

ENTRAPMENT

The condition when an object is

caught or held in a position that

increases the risk

of injury.

CAUTION

Indicates a potentially hazardous situation

which, if not avoided, may result in minor

or moderate injury. It may also be used to

alert against unsafe practices.

DANGER

Indicates an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.

This signal word is to be limited to

the most extreme situations.

WARNING

Indicates a potentially hazardous

situation which, if not avoided,

could result in death or serious

injury.

NOTE

DANGER or WARNING should not

be considered for property damage

accidents unless personal injury risk

is appropriate to these levels is also

involved.

CAUTION is only permitted for

property damage accidents.

PASSPOINT

A reference point to set/find open/close

limits. When gate reaches passpoint, PP

LED blinks.

Important Safety Information

WARNING

Read and follow all instructions.

TO REDUCE THE RISK OF INJURY OR DEATH . . .

Never let children operate or play with gate controls. Keep the remote

control away from children.

Always keep people and objects away from the gate. No one should cross

the path of the moving gate.

Test the gate operator monthly. The gate must reverse when any safety

device is activated. After adjusting or setting limits of an operator, retest the

gate operator. Failure to adjust and retest the gate operator properly

can increase the risk of injury or death.

Use the emergency release only when the gate is not moving.

Keep gates properly maintained. Read the owner’s manual. Have a

qualified service technician make repairs to gate hardware.

The entrance is for vehicles only. Pedestrians must use separate entrance.

Save these instructions!

4Safety Information

Doc 01-G0181

Rev A

INSTALL THE GATE OPERATOR ONLY IF . . .

The operator is appropriate for the construction of the gate and the usage

class of the gate.

All openings are guarded or screened to prevent access by arms or legs

through openings anywhere in the gate.

All exposed pinch points are eliminated or guarded.

The operator is intended only for installation on gates used for vehicles.

Pedestrians must be provided with a separate access opening.

NOTES: The gate must be installed in a location so that sufficient

clearance is provided between the gate and adjacent structures when

opening and closing to reduce the risk of entrapment. Swinging gates

should not open into public access areas.

The gate must be properly installed and work feely in both directions prior

to the installation of the gate operator.

NON-CONTACT SENSORS (E.G., PHOTOCELL)

Read the following for gate operators utilizing non-contact sensors:

See instructions on the placement of non-contact sensors for each type of

application.

Exercise care to reduce the likelihood of nuisance tripping.

To prevent gate entrapment, install non-contact sensors on both sides of

the gate to cover the gate perimeter during closing and opening.

LOOP VEHICLE DETECTORS

Read the following for gate operators utilizing loop vehicle detectors:

WARNING

Loop Detectors do not provide protection for people! Loops should

only be used for vehicular control.

Follow manufacturers instructions for loop installation.

Gates can be made of metal and will therefore react with the loop system,

creating false tripping. Please note loop manufacturer’s recommendations

for minimum gate clearance.

Loop sense wiring must be secure within its ground track. Loose wiring will

cause false triggering. Leader wires from the loop track to the detector

must be wrapped 5 times per foot minimum to prevent false tripping.

Safety Information 5

Doc 01-G0181

Rev A

Classifications

CLASS I

Residential Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in a home or one-to-four

single family dwelling, or a garage or parking area associated therewith. Required

additional equipment—Type B1 non-contact sensor.

CLASS II

Commercial/General Access Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in a commercial location or

building such as a multi-family housing unit (five or more single family units) hotel,

garages, retail store, or other building servicing the general public. Required

additional equipment—Type B1 non-contact sensor, or Type E—an audio alarm.

CLASS III

Industrial/Limited Access Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in an industrial location or

building such as a factory or loading dock area, or other locations not intended to

service the general public.

CLASS IV

Restricted Access Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in a guarded industrial

location or building such as an airport security area or other restricted access

locations not servicing the general public, in which unauthorized access is

prevented via supervision by security personnel.

6Specifications

Doc 01-G0181

Rev A

Specifications

Mechanical

GENERAL SPECIFICATIONS

Overall Size Weight

19”L x 23”W x 31”H 190 Pounds

Table 1

GENERAL CONSTRUCTION

Electroplated, welded steel frame with

a dual gearbox reduction of 600:1 and

an ultimate strength of 2,000 foot

pound. The cover is UV durable

plastic.

GATE CAPACITY

This operator is designed for maximum

size gates. In general, the operator may

work with any gate below 1000 pounds

and 22 feet, with low wind resistance,

sturdy construction, and good hinges.

Electrical

Always use a qualified electrician and follow your local construction codes when

connecting power. General guidelines are:

Line voltage required is 115 VAC

(10% [103-127]) single phase. Wire size, accessory power (18-gauge

recommended).

Line amperage Required 15 Amps

Max. Device controls - any insulated wire can

be used (18-24 gauge recommended).

Wire size, operator power – see

Wire Sizes and Distances on

page 24.

NOTE: The operator is permanently

wired; it does not use a grounding plug.

ELECTRICAL BOX

See Figure 1. Stamped aluminum housing for the processor, motor VFD drive, and

front panel PCB's. For factory repair, the complete panel can be quickly removed

and replaced.

CAUTION

Do not repair or open box!

There is a potential shock

hazard from the High Voltage

capacitor! Danger exists even

when power is disconnected!

Specifications 7

Doc 01-G0181

Rev A

Figure 1

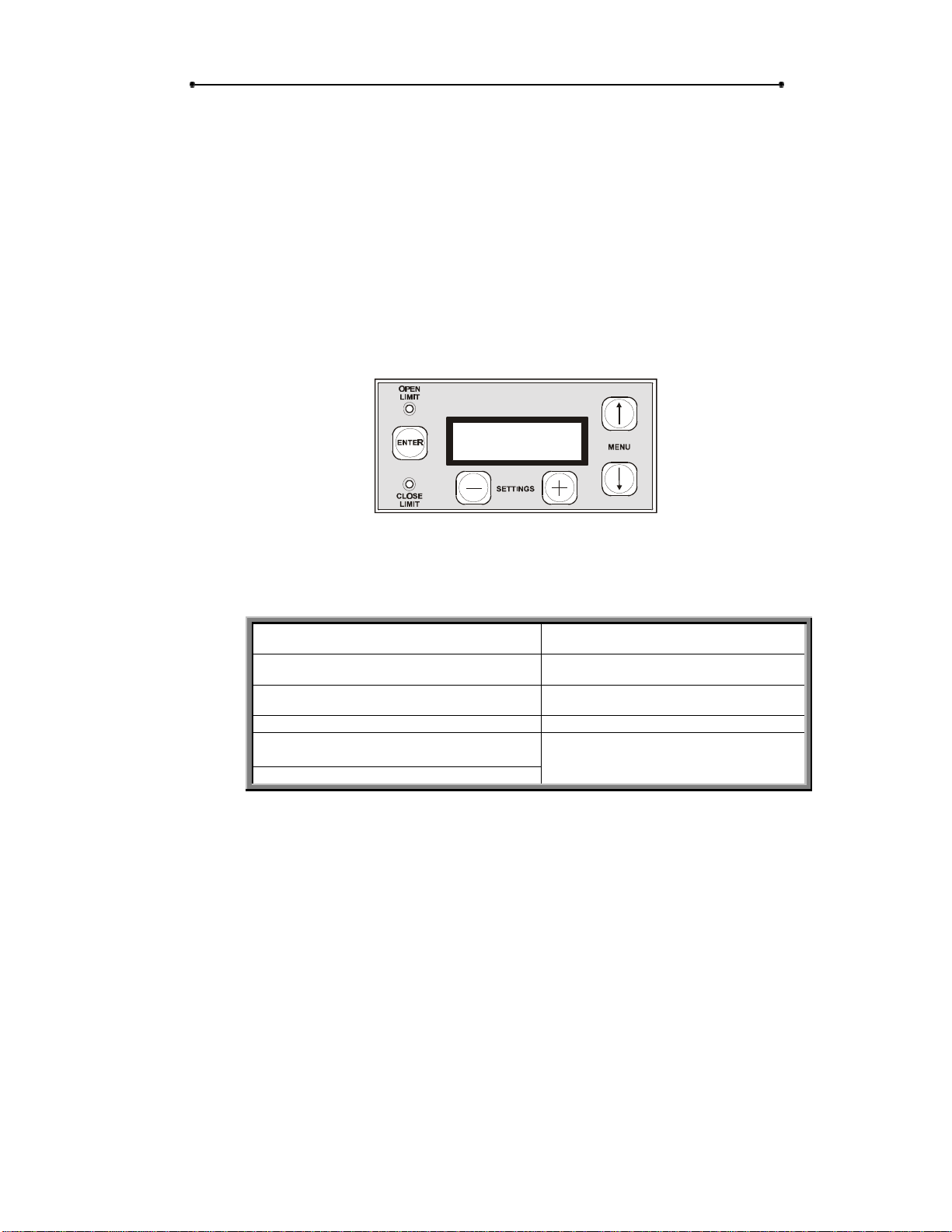

PROGRAMMING

Programming is accomplished with a 5 button, 2 LED membrane switch located on

top of the control box. Programming instructions are presented on a 2 row, 16

character LCD screen (see Figure 2).

Sentex

systems

01-16169F1

Figure 2

DEVICE CONNECTIONS

Connections are made to the lower half (exposed half) of the front panel PCB.

Provisions are made for:

J2 – Safety edge open (trailing edge contact

sensor); N/O & N/C J8 – Hold open (no timer); Single Button

J3 – Safety edge close (leading edge contact

sensor); N/O & N/C J9 – Photo eye (non-contact sensor); N/O

& N/C Contacts

J4 – 3 loop detectors JP5, JP6, JP7, & JP8 – Output relays for

lights, etc.

J5 – Close; Open w/ Timer JP5, JP6, JP7 – Master/Slave connections

J6 – Not Used

J7 – Stop (required N/C connection)

JP9 – 24 VDC power

JP12 – 24 VAC power

JP14 – 115 VAC power

8Specifications

Doc 01-G0181

Rev A

01-20211F1

(NO)

OPENW/

TIMER

Figure 3

MASTER/SLAVE CONNECTIONS (OPTION)

Sentex Systems recommends18-20 gauge wire for the minimal wattage required to

run a pair in master/slave setups.

WHITE

BLACK

CLOSE RELAY

STOP RELAY

OPEN RELAY

MASTER

RED GREEN

SLAVE

STOP

(NC)

STOP

HOLDSINGLE

OPENBUTTON

01-20211F2

COM

Figure 4

Specifications 9

Doc 01-G0181

Rev A

FULL BATTERY BACKUP (OPTION)

24 hours continuous operation with normal use of accessory! This is the only

operator offered with transparent battery backup.

Site Preparation 10

Doc 01-G0181

Rev A

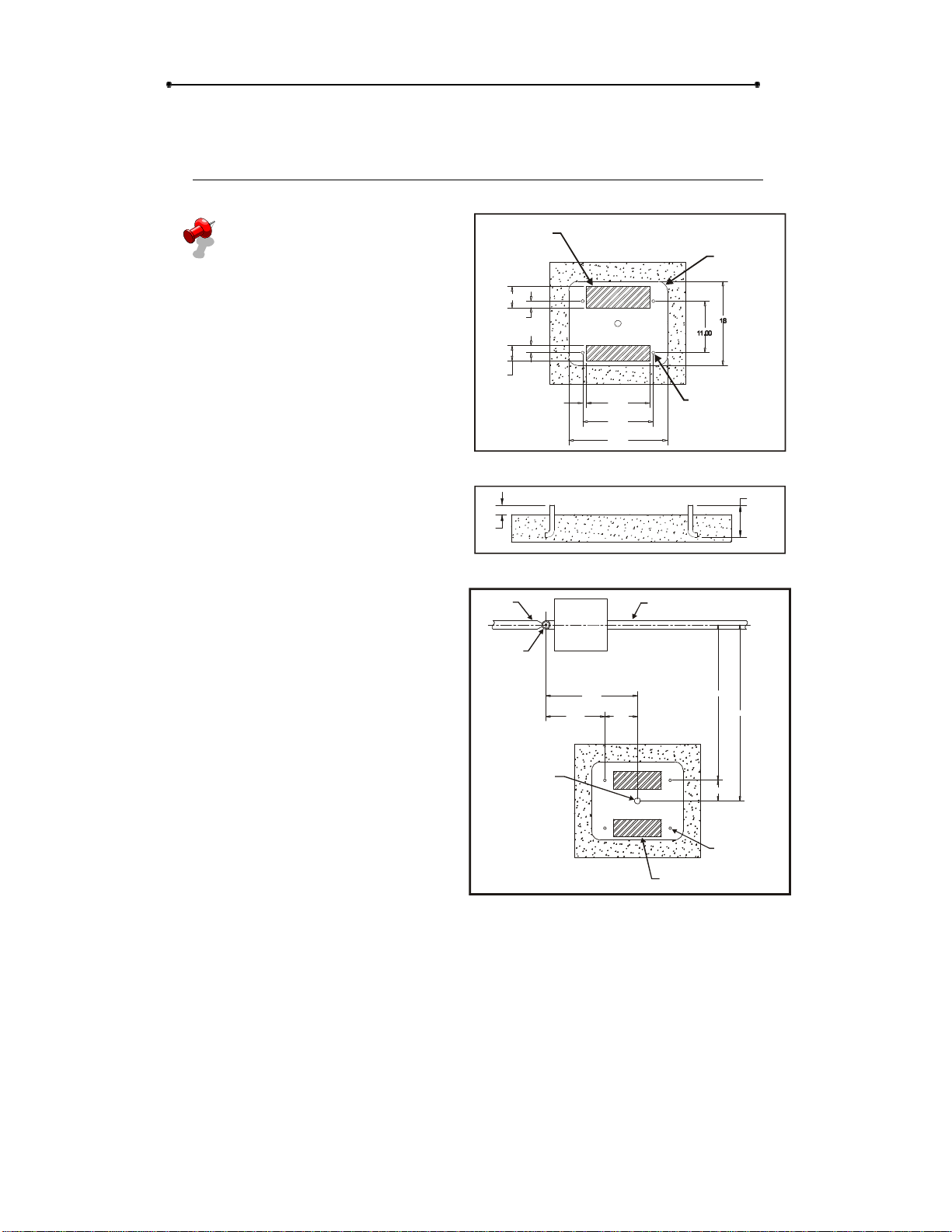

Site Preparation

Pad Mounting

For pad mounting instructions, perform the steps below and refer to the Figures below.

AVAILABLE CABLE

ENTRY ZONE

(Keep All Conduits

Within Shaded Area)

4.50

1.37

1.50

3.25

0.75

TYP. 13.50

15.00

21.00

1/2” ANCHOR BOLTS

FOUR (4) PLACES TYP.

COVER

OUTLINE

01-G0181F5

Figure 5

1”

6” min.

01-G0181F6

Figure 6

1Excavate to the depth required by

local code or below frost line.

2Situate pad according to Figure 7.

3Using a license and qualified

electrician, route wiring for operator

power and controls prior to pouring

concrete. Situate conduit on pad

as shown in Figure 5.

4Pour concrete ensuring that the

pad is level and, 2" to 4" above

ground line.

5Sink (4) 1/2" x 6" minimum length

L-bolts (not supplied) as detailed in

Figure 6and Figure 7. The bolts

should protrude 1" above the pad.

The shipping crate bottom may be

used as a bolt pattern template.

6Allow concrete to set for 2 days

before installing operator.

7If there is existing concrete on the

site, use 1/2" anchor bolts (not

supplied) to secure the unit. If

needed, use washers to shim the

operator level with the gate.

NOTE: Local Codes - This

manual does not supersede

local codes for construction,

and was written to be used by

a qualified and licensed

electrician.

For non-standard installations or

retrofit applications, see Non-

Standard Installation on page 24

for instructions.

GATE

HINGE PIN

COLUMN FENCE

21.00

13.50

OPERATOR

SHAFT

LOCATION

CABLE ENTRY

ZONES

ANCHOR BOLT

LOCATION

4.75

35.75

40.50

7.50

01-G0181F7

Figure 7

Table des matières

Autres manuels Sentex ouvre-porte

Sentex

Sentex SW470 Manuel utilisateur

Manuels ouvre-porte populaires d'autres marques

Elite

Elite CSW200UL Manuel utilisateur

CAME

CAME FROG-PM4 Manuel utilisateur

SOMFY

SOMFY FX230 Manuel utilisateur

Aprimatic

Aprimatic ONDA 500 Manuel utilisateur

Turnstiles

Turnstiles FSW 900 Manuel utilisateur

Erreka

Erreka BUL BL33 Mode d'emploi

Erreka

Erreka VULCAN S Manuel utilisateur

Beninca

Beninca R1-2 WBV Manuel utilisateur

Erreka

Erreka VULCAN D Manuel utilisateur

Motorline professional

Motorline professional FORT Mode d’emploi

Beninca

Beninca BOB5024 Manuel utilisateur

AGA

AGA GATEMASTER 900 HD Manuel utilisateur

Chamberlain

Chamberlain MotorLift HC280ML Manuel utilisateur

SOMFY

SOMFY Dexxo RTS Pro Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Westfalia

Westfalia 85 27 06 Manuel utilisateur

CAME

CAME F500 Manuel utilisateur

Extel

Extel VERA Manuel utilisateur
