Sensear Sp1r Manuel utilisateur

SP1R

MANUAL

ENGLISH

DOC00091

Rev.02

DOC00091 SP1R Manual rev 02

Boom mic.

headset

with

earplugs

Earplugs with

in-ear mic.

SP1R

unit +PTT

SP1R

unit +PTT

two-way

radio

two-way

radio

INTRODUCTION

The SP1R is a state-of-the-art hearing protection (i.e., protects

against harmful noise) communication system that allows you to

retain situational awareness while remaining in full contact with your

team via two-way radio communication.

There is an Intrinsically Safe variant of the product that meets

international standards for use in explosive gas environments.

Situational awareness is provided by processing technology

and environmental microphones mounted within the headset.

The SP1R headset draws power from the two-way radio. It must be

connected by the appropriate SRCK7xxx radio cable to utilize both

the situational awareness and two-way radio communications.

SRCK7xxx part numbers vary depending on the radio connector and are

sold separately. For language translated manuals and further

information, please refer to the website.

The SP1R is designed to beworn with the main housingattaching to the belt ofpant

seam, and the inline PTT attaching to the shirt/upper garment.

English

DOC00091 SP1R Manual rev 02

SP1R ANATOMY

Boom mic

headset with

earplugs

(SP1RM02, SM1RMIS02)

Earplug headset

OR within-ear mic

(SP1RE02, SM1REIS02)

Hirose quick

release connector

Hirose quick

release connector

SENS mode

ON/OFF/Volume

Control knob

SP1R base unit

and PTT

Two-Way Radio

cable SRCK7xxx

Two-Way Radio

(

Not included

)

Hirose quick

release connector

English

DOC00091 SP1R Manual rev 02

FITTING THE

EARPLUGS

The SP1R comes with a detachable earpiece assembly designed for

ease of serviceability and hygiene for users who share the base unit.

For further information and to order additional earpiece assemblies,

please contact your supplier or visit www.sensear.com.

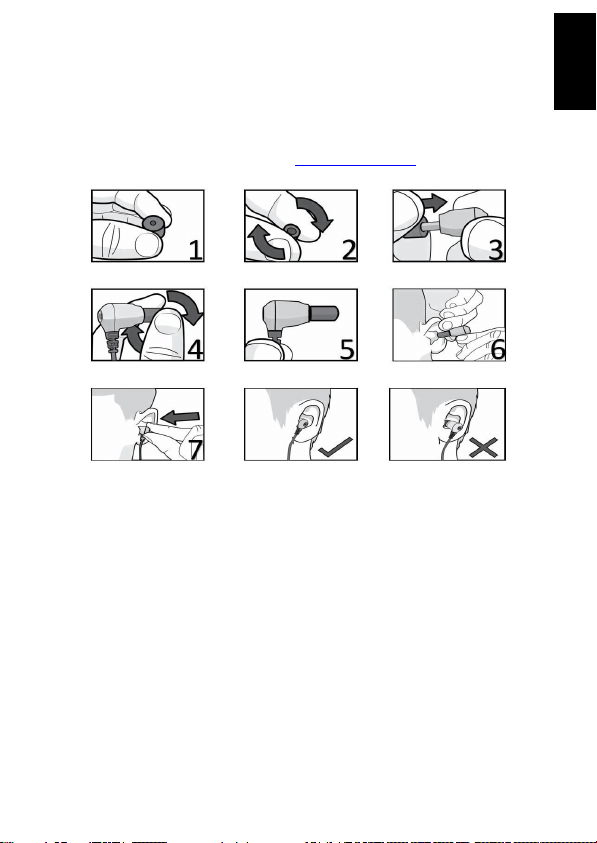

1. Place disposable foam tip between thumb and forefinger.

2. Roll foam tip to a compressed, crease-free cylinder.

3. Push the foam tip all the way onto the earpiece spout.

4. Roll the foam tip again between the thumb and forefinger.

5. Ensure the foam tip remainsa compressed crease-free cylinder.

6. Using your opposite hand, pull your ear upward and outward.

7. Insert the earpiece and hold in place for 30 seconds while the

foam tip expands. Proper fit is ensured by not having any of

the foam tip visible while the earpiece is in the ear.

English

DOC00091 SP1R Manual rev 02

POWER ON:

OPERATING THE HEADSET

1. Connect the SRCK7xxx radio cable to the Hirose connector on

the bottom of the main unit.

2. Connect the SRCK7xxx cable to the two-way radio.

3. Turn the two-way radio on.

4. The headset will power up. An audible “Sensear, sounds good

to me” will be heard through the headset.

POWER OFF:

Option 1. Turn the two-way radio off from the two-way radio.

Option 2. Disconnect the headset cable from the SRCK7xxx cable.

(Option 2. Reverts audio back to the two-way radio automatically)

ENVIRONMENTAL MODES

& QUIET MODES:

mode can be turned on and off by turning the volume knob to

the on/off position with a click, which will toggle the unit into

mode or quiet mode, while also controlling the volume level. This

allows for easy muting of Sensear’s situational awareness feature

when, and if, this is preferred by the user.

English

DOC00091 SP1R Manual rev 02

COMMUNICATING

COMMUNICATING OVER TWO-WAY RADIO:

To transmit over the two-way radio:

•

Press and hold the built-in PTT button located on the SP1R unit

•

Release the inline PTT button to cease transmission

Two-Way Radio VOX: VOX can be used on VOX-enabled two-way

radios when using the SP1R Boom Mic headset option. Refer to the

two-way radio documentation for the setup and use of the VOX

feature. To enable VOX on the SP1R, press the SP1R’s PTT before

putting the two-way radio into VOX mode. To disable VOX, you can

either turn VOX off on the two- way radio or press the SP1R’s PTT

once, depending on which two-way radio model you use.

English

DOC00091 SP1R Manual rev 02

USER MAINTENANCEAND STORAGE

This product may be adversely affected by certain chemical substances.

Further information should be sought from the manufacturer.

The headset should be stored at room temperature (between 15°C/59°F

and 25°C/77°F).

ACCESSORIES AND SPARE PARTS

The following accessories and spare parts may be ordered separately:

SRCK7xxx Various models, two-way radio interface cables for

most popular two-way radios

SRCK7xxx0001

Various models, intrinsically safe two-way radio

interface cables for most popular two-way radios

SP1RE02 SP1Rearpieces with Hirose connector

SP1RM02 SP1RBoom Mic headset with earplugs with Hirose

connector

FETSM010 Foam ear tip – small (10.5mm) – 10 pair

FETMD010 Foam ear tip – medium (12mm) – 10 pair

FETLG010

Foam ear tip – large (14mm) – 10 pair

Further information may be obtained from your Sensear

representative, via the Sensear website, or by emailing or writing to

the address on this User Manual.

English

DOC00091 SP1R Manual rev 02

INTRINSICALLY SAFE CERTIFICATION

The SP1R-IS meets the following standards for use inhazardous gas

environments:

•

TIA-4950-A Rev. May 13, 2014

Requirements for Battery-Powered, Portable Land Mobile

Radio Applications in Class I, II, III, Division 1 Hazardous

(Classified)Locations

•

CSA C22.2 No. 157-92 (R2012) + UPD1 + UPD2

Intrinsically Safe and Non-Incendive Equipment for Use in

Hazardous Locations

•

UL913 5th Edition. February 21, 1997

•

Standard for Intrinsically Safe Apparatus and Associated

Apparatus for Use in Class I, II, III, Division 1

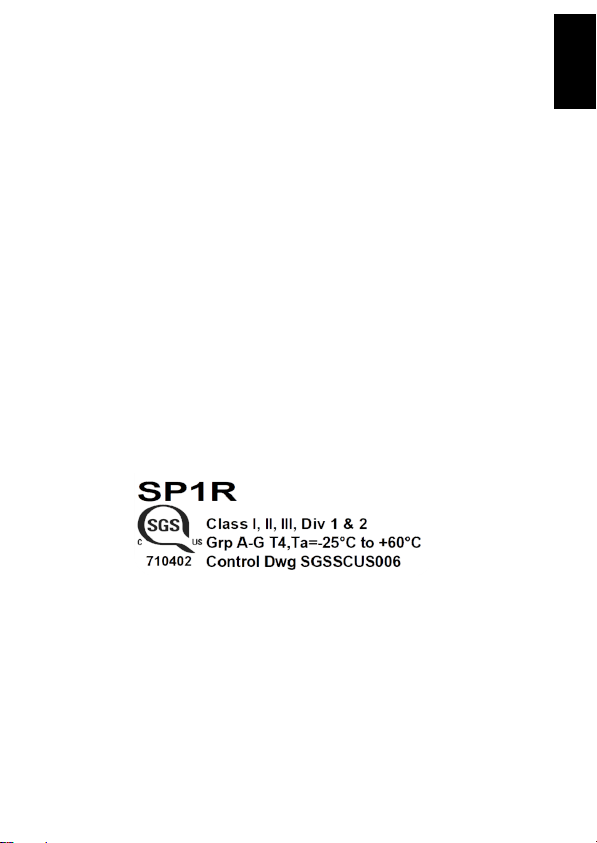

MARKINGS

TheSP1R-IS contains the following markings:

Manufacturer’s name, Hazardous location class and group and temperature

class

English

DOC00091 SP1R Manual rev 02

ENTITY PARAMETERS

The entity parameters for the SP1R-IS when used with the two-way

radio cables (SP1R-IS Interface Cable SRCK7xxx0001)

Vmax =8.4 V

Ci = 70 uf

Li = 4.84 uH

SRCK7xxx0001 –Cable with Heavy Duty inline PTT

SRCK7xxx0001 is the interface cable to connect SP1R-IS with any radio

that utilizes a 7.6 V typical mobile radio battery pack.

English
