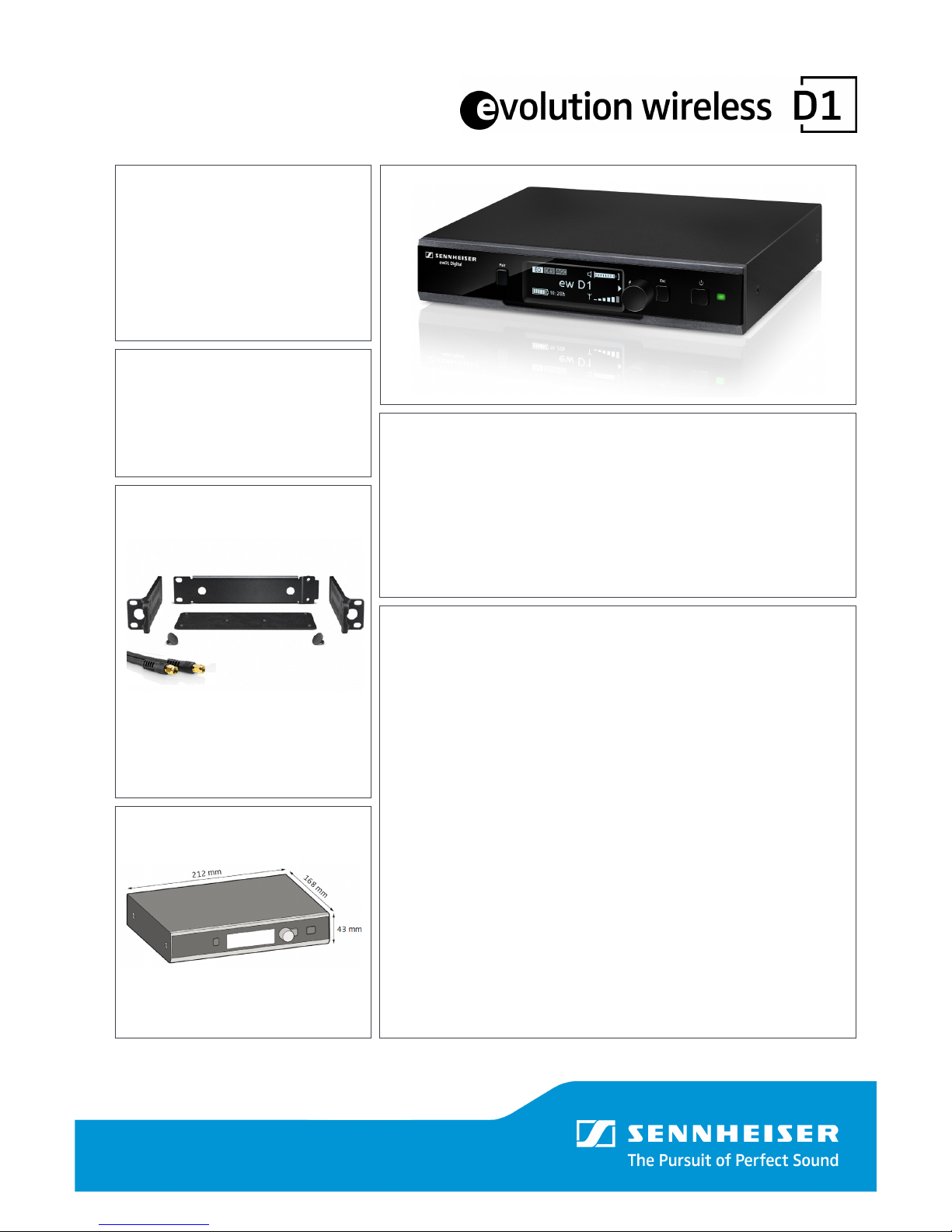

Sennheiser EM D1 Manuel utilisateur

FEATURES

Clear and intuitive OLED display with

self-explanatory menu structure for easy

handling and quick set-up

Self-conﬁguration of multiple receivers –

no manual frequency settings necessary

License-free 2.4 GHz band, no registration

costs

Rugged metal housing

DESCRIPTION

The EM D1 is a 1/2 19“ digital wireless receiver for HD Live Sound. Its clear and intuitive

OLED display offers a self-explanatory menu structure for easy handling and quick

set-up operating in a license-free 2.4 GHz band. Its automatic channel management

and self-conﬁguration of several receivers in parallel operation eliminates the need for

manual settings. EM D1 comes in rugged, stage-proof metal housing, with 2 antennas,

power supply and a rackmount kit.

TECHNICAL DATA

SYSTEM

AF frequency response .............................................. 20 to 20.000 Hz

Dynamic range ............................................................. > 135 dB (A)

THD (1 kHz) .................................................................. typ. < 0,1 %

Audio sampling ........................................................... 24 bit/48 kHz

Signal-to-noise ratio .................................................. ≥105 dB (A)

RF frequency ranges .................................................. 2,400 to 2,483.5 MHz

Modulation ................................................................... GFSK with back channel

Transmission method ................................................ TDMA

time diversity

frequency diversity

fast switching antenna diversity

Latency .......................................................................... 3.9 ms

Audio codec .................................................................. APT-X Live

Temperature range* ................................................... relative air humidity max. 95 %

Operation: – 10 °C to +55 °C

Storage: – 20 °C to +70 °C

* The temperature range is inﬂu-

enced by the battery characte-

ristics

Continued on page 2

EM D1

for use with SKM D1 and SK D1

GA 4 rackmount kit for EM D1

SCOPE OF SUPPLY

EM D1 rackmount receiver

2 antennas

Power supply

GA 4 rackmount kit

User manual

DIMENSIONS

EM D1 for use with SKM D1 and SK D1

TECHNICAL DATA

EM D1

RF sensitivity ...............................................................<-90 dBm

RF output power .........................................................back channel 10 mW/100 mW

(country-speciﬁc)

Audio output level gain .............................................Mic/line level switch –24 dB/0 dB

XLR, balanced max +18 dBu

Jack, unbalanced/balanced max

+12 dBu/max +18 dBu

Audio effects

Low cut .......................................................................–3 dB at 120 Hz

Equalizer ....................................................................7-band graphic equalizer

De-esser .....................................................................multi-frequency targets

Automatic gain control (AGC) .................................compression/expansion with automatic

make-up gain function

Display ...........................................................................OLED

AF connection sockets ...............................................XLR/¼“ (6.3 mm) jack

Antenna sockets .........................................................2 x Rev-SMA

Network socket ...........................................................RJ45

Network protocol ........................................................Media Control Protocol

TCP/IP IPv4 (DHCP, Manual)/IPv6

Power supply ...............................................................12 V DC hollow jack

Current consumption .................................................350 mA

Weight ...........................................................................approx. 824 g

PRODUCT VARIANTS

505808 EM D1-H-EU .....................................................Stationary Receiver, EU power supply

505817 EM D1-H-UK .....................................................Stationary Receiver, UK power supply

505828 EM D1-NH-US...................................................Stationary Receiver, US power supply

505848 EM D1-NH10 ....................................................Stationary Receiver, US power supply

506154 EM D1-NH-NT...................................................Stationary Receiver, multiple adapter power supply

FRONT

BACK
