Sennheiser HDVD 800 Dimensions

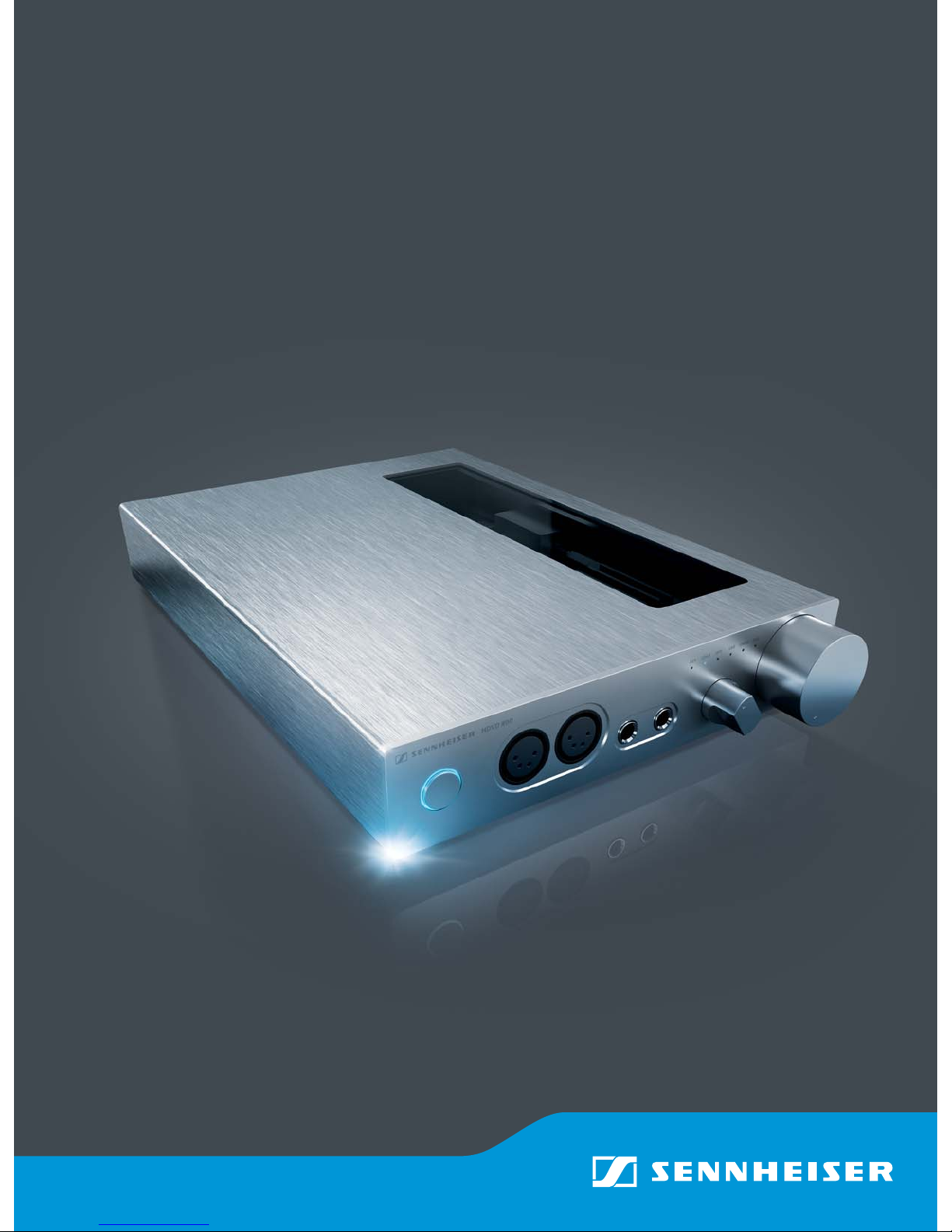

HDVD 800

The

Soundraiser.

EAN 4044155079067

UPC 615104229716

Article. No. 505590

Power supply Digital SPDIF (TosLink)

Input voltage: 100..240 V AC / 50..60 Hz Max. sampling frequency: 192 kHz (AES3-compatible)

Power consumption: < 30 VA Max. resolution: 24 bit

Audio inputs

Analogue input (XLR-3)

Digital AES/EBU (XLR-3)

Max. sampling frequency: 192 kHz (AES3-compatible)

Max. input voltage

(symmetrical, eff): 14 dBV

Max. resolution: 24 bit

USB (USB-B)

Input impedance:

10 kOhm USB standard: USB 2.0 / USB 3.0

Analogue input (RCA) USB audio class: USB Audio 2.0

Max. input voltage (eff):

20 dBV Audio data

Input impedance:

10 kOhm Frequency response: 0.3 Hz to 100 kHz (-3 dB)

Digital SPDIF (RCA) Total harmonic distortion: < 0.001 %

Max. sampling frequency:

192 kHz (AES3-compatible) Weight of product: 2.2 kg

Max. resolution:

24 bit Dimension of product

(W x H x D): approx.

224 x 44 x 306 mm

Packaging

Packaging type Closed carton box, e-ﬂute

Content of Delivery ampliﬁer, CD with user manual plus driver software for Windows, Quick Guide and Safety Guide

Dimensions of product

packaging (W x D x H)

approx. 390 mm x 272 mm x 80 mm

Weight of product and

packaging

approx. 2.85 kg

Dimension of

Master carton (W x D x H)

approx. 500 x 320 x 280 mm

Weight of Master carton approx. 10 kg

Units per Master carton 3

HDVD 800

Pure audio in perfection. Get the most from

your high-end headphones –

with the HDVD

digital headphone

ampliﬁer from Sennheiser.

Fully symmetrical

signal processing and

extremely low

harmonic distortion allow for

pure, unbeatable

listening enjoyment.

Symmetrical signal processing with exact

signal transmission over the entire

frequency spectrum and very low

harmonic distortion

Operation with up to four dynamic,

high-impedance headphones

High transmission bandwidth and signal

ﬁdelity thanks to short signal paths

Symmetrical XLR-4 sockets and high-

quality 6.35 mm jack sockets for

connecting headphones

High level of ﬂexibility thanks to wide

range of connection options

548727 08/12 Printed in Germany Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG www.sennheiser.com

Technical Data
