SEM Revolution Z-7789 Manuel utilisateur

iP-100

CONTENTS

IMPORTANT SAFETY & NOTICE

..............................................................................................................E-1

SYSTEM BASICS

Location of Controls - Main Unit..........................................................E-2

Location of Controls - Remote..............................................................E-3

Power Supply AC Operation.................................................................E-3

Preparation of Remote Control .............................................................E-3

DIGITAL CLOCK

How to Set Correct Time ......................................................................E-4

Automatic Power On/Off Timer Function.............................................E-5

GENERAL FUNCTIONS

Automatic Power Off Sleep Function ...................................................E-6

Jog Wheel .............................................................................................E-6

Electronic Volume Control....................................................................E-6

Music Equalizer....................................................................................E-6

Text Display Mode................................................................................E-6

Play Mode (P-Mode) Function..............................................................E-7

Using The Audio Line in Connection....................................................E-7

Mute Function.......................................................................................E-7

RADIO FM

Operation of Radio................................................................................E-8

Manual Frequency Adjustment .............................................................E-8

Automatic Frequency Adjustment.........................................................E-8

Radio Memory ......................................................................................E-8

CD AUDIO

Insertion & Removal Of Compact Discs...............................................E-9

Normal CD Operation...........................................................................E-9

Programming The CD-player................................................................E-9

Programming for Regular CD-Audio Discs ..........................................E-9

Programming for CD-MP3..................................................................E-10

CD-MP3

What is MP3?......................................................................................E-11

How to Play CD-MP3 Discs ...............................................................E-11

USB & SD CARD

Folders on MP3-CD Discs ..................................................................E-12

USB-Drive & SD-Card MP3 Playback ...............................................E-12

iPod OPERATION

Preparation of iPod Dock....................................................................E-13

Operation with iPod............................................................................E-14

NETWORK STREAM

Setting up a Music Server...................................................................E-15

Sharing Media with Windows Media Player.......................................E-15

Sharing Folders on a Windows PC......................................................E-16

Domain/Workgroup Conﬁguration......................................................E-16

Setting up a New User Account ..........................................................E-16

Sharing Folders on Non-Windows Computers....................................E-17

Setting up the Unit to Work with Shared Folders................................E-17

INTERNET RADIO

Operation of Internet Radio ................................................................E-18

Connecting to a Network ....................................................................E-19

Internet Radio Portal Registration.......................................................E-20

DAB/DAB+

What is DAB.......................................................................................E-21

Operation of DAB/DAB+ Radio........................................................E-21

DAB/DAB+ Radio Memory................................................................E-22

Dynamic Range Compression.............................................................E-22

Station Order.......................................................................................E-22

ENCODING FUNCTIONS

Recording to MP3 File........................................................................E-23

Encoding from Internet Radio.............................................................E-24

Encoding from DAB...........................................................................E-24

Encoding from Aux-In ........................................................................E-24

SPECIFICATIONS & SET UP

Speciﬁcations......................................................................................E-25

Set up Procedure.................................................................................E-25

Connection of Speaker Boxes.............................................................E-25

WALL MOUNT SET UP

Wall Mount Set up ..............................................................................E-26

E-1E-1

The lightning ﬂash and arrowhead within the triangle is a warning sign alerting you of “dangerous

voltage” inside the product.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING:

To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable

parts inside. Refer servicing to qualiﬁed service personnel.

CAUTION:

The exclamation point within the triangle is a warning sign alerting you of important instructions

accompanying the product.

Grounding or polarization. The precautions should be taken so that the wider blade of the AC plug

must match the slot in receptacle “wall socket”.

Do not expose to dripping or splashing liquids!

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

WARNING:

To reduce the risk of ﬁre or electric shock, do not expose this appliance to dripping or splashing liquids.

NOTE:

Caution symbols are printed on rear of unit. Please refer to instruction manual.

PLEASE NOTE:

You will ﬁnd the caution rating label for this product located on the rear of the unit.

To ensure safe use of this product, please follow the advice below:

1. The apparatus and its accessory AC power adaptor should not be exposed to dripping or splashing, liquids

and no objects containers with liquids should be placed on the apparatus.

2. The on/ standby key does not isolate the product from the power supply. To completely disconnect the

product from the mains power supply you must unplug the power cord by pulling out the plug (do not

pull the cord as this may damage it and create a risk of electric shock).

3. The mains plug should not be obstructed and should be easily accessible during use.

4. Under the inﬂuence of electrostatic phenomenon, the product may malfunction and power will need to be

reset.

5. Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Danger of explosion if battery is incorrectly installed. Replace only with the same or equivalent type.

7. When electrostatic discharge (ESD) occurs at the front surface (whether metal or plastic) or near any

part or any button of this unit, or at the USB port and/ or SD-card slots, there may be a possibility that

the product may stop operating and/ or shut down immediately. This is a normal condition and intended

to protect the unit and internal components against damage. In such a case, please reset the unit (by

disconnecting and reconnecting the AC-power source) to revert the unit to normal operation.

IMPORTANT SAFETY & NOTICE

E-2

SYSTEM BASICS

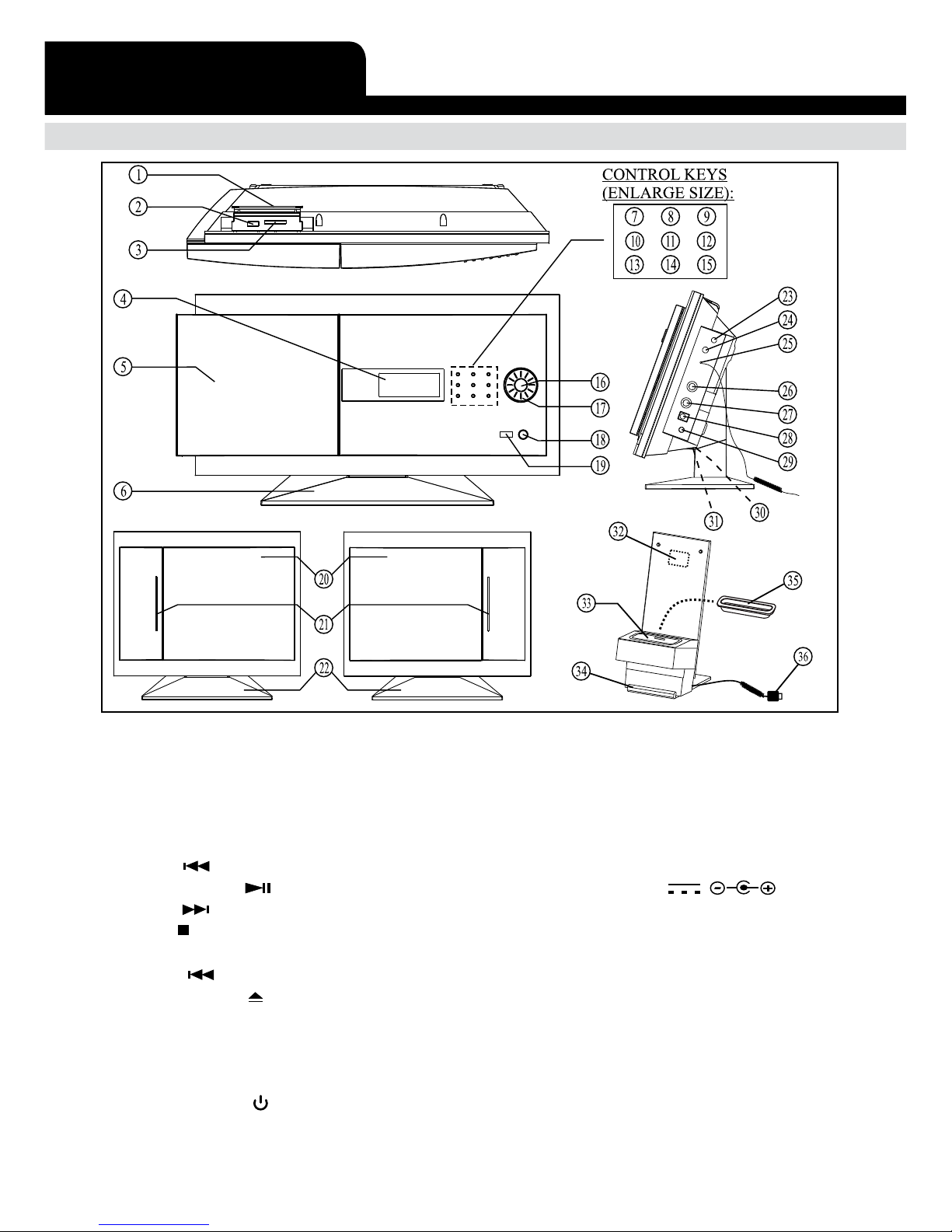

LOCATION OF CONTROLS - MAIN UNIT

1. USB/ SD COMPARTMENT DOOR

2. USB SOCKET

3. SD CARD SOCKET

4. BLUE BACKLIT DISPLAY

5. CD DOOR

6. STAND (FOR UNIT)

7. PREV. KEY

8. PLAY/ PAUSE / FM STEREO

9. NEXT KEY

10. STOP / INFO. KEY

11. RECORD KEY

12. MENU KEY

13. OPEN/ CLOSE KEY

14. FUNCTION KEY

15. VOLUME/ JOG MODE KEY

16. ENTER KEY

17. MULTI JOG WHEEL

18. ON/ STANDBY KEY

19. REMOTE CONTROL SENSOR

20. SPEAKERS (LEFT & RIGHT)

21. AMBIENT LIGHTING (ON SPEAKERS)

22. STANDS (FOR SPEAKERS)

23. HEADPHONES SOCKET

24. SUBWOOFER OUTPUT SOCKET

25. FM ANTENNA WIRE

26. LEFT SPEAKER SOCKET

27. RIGHT SPEAKER SOCKET

28. DC JACK (DC 15V )

29. AUX INPUT SOCKET

30. iPod INPUT SOCKET

31. LAN RJ45 INPUT SOCKET

iPod Docking Platform:

32. POWER AND AUDIO SOURCE

INDICATOR LIGHTING

33. CAVITY FOR DOCK ADAPTOR

34. STAND (FOR iPod DOCKING PLATFORM)

35. DOCK ADAPTOR FOR iPod (SEVERAL

DIFFERENTADAPTORSARE PROVIDED)

36. iPod DOCKING PLATFORM CONNECTOR

E-3

SYSTEM BASICS

LOCATION OF CONTROLS - REMOTE

1. ON/ STANDBY KEY

2. NUMBER KEYS

3. MENU KEY

4. UP/ FOLDER UP KEY

5. FUNCTION KEY

6. PREV KEY

7. SELECT KEY

8. NEXT KEY

9. SLEEP KEY

10. DOWN/ FOLDER DOWN KEY

11. REC KEY

12. PLAY/ PAUSE/ FM STEREO KEY

13. STOP KEY

14. OPEN KEY

15. VOLUME UP KEY

16. VOLUME DOWN KEY

17. PROG/ PLAY MODE KEY

18. EQ KEY

19. MUTE KEY

20. INFO. KEY

21. BATTERY COMPARTMENT

POWER SUPPLYAC OPERATION (EXTERNALAC-DC POWER ADAPTOR)

- This set is equipped with a “DC-Jack” capable of accepting

AC-adaptors with a rating of DC = 15V, 3A, and with a plug

with the following polarities as shown (center positive) :

- Please use only the supplied AC-adaptor to operate the unit.

Useof otheradaptors maydamage theunit orcause itto malfunction.

- Plug the tail end of the AC-adaptor into the DC-jack (socket) on the side of the main unit.

- Insert the plug the ac-adaptor into the wall ac socket.

- Press the On/Standby key to switch on the unit.

- This unit is designed to operate without ever being totally powered “OFF”.

It will either be “on” or in “standby mode”.

- In standby mode, the blue back-light of the digital display will be dimmed but the display

will show the current time (clock function).

- Anytime during standby mode, you can switch “on” the unit by pressing the On/Standby

key (on remote control or front panel of the main unit).

- Save energy by switching the system to “standby” mode.

PREPARATION OF REMOTE CONTROL

- Remove (gently pull out) the plastic “tab” from the battery compartment at the rear of the

remote control.

- Test the remote control by pressing the (On/Standby) key to check that the unit switches

on properly using the remote control.

E-4

DIGITAL CLOCK

HOW TO SET CORRECT TIME

- The set has a built in digital clock, which is displayed in two situations:

(1)When the set is in ‘Standby Mode’, the display will only show the current time.

(2)When the set is in “On Mode” (the display is brighter and blue lights on speaker’s is

“On” in this mode), the LCD display will automatically show the current time and

additional information on the selected function media.

To set the time, follow the below steps:

1. Switch unit to “Standby” mode (display light dimmed)

2. Press Menu to display “Set Clock/ Set Timer/ Reset” options

3. Press /Next or /Prev till “Set Clock” is displayed and press then press the

Select/Enter key to conﬁrm your selection

4. The display shall show “Set Clock Type”. Press /Next or /Prev repeatedly

to highlight the desired clock display type (12H/24H) and then press key to conﬁrm

choice.

5. Press /Next or /Prev repeatedly to set the correct hour in the display and

then press the Select/Enter key to conﬁrm.

6. Press /Next or /Prev repeatedly to set the correct minute in the display and

then press Select/Enter key to conﬁrm.

7. The correct time is now set and will be shown in the display.

*Important: During the time-setting procedure, if no key is pressed with 10 seconds,

the set will return to its normal (previous) operating mode and settings not saved.

E-5

DIGITAL CLOCK

AUTOMATIC POWER ON/OFF TIMER FUNCTION

This set has a timer function to enable you to program the unit to automatically switch “on”

or “off” at preset times. This is useful as a morning alarm clock.

Note:

This timer function only works after the clock has been set, and for waking to CD, USB,

Card, iPod or FM Radio source.

HOW TO SET TIMER

1. Press the ‘Menu’ key to display “set clock/Set timer/reset” options.

2. Press the /Next or /Prev keys till “set Timer” is displayed and then press the

Select/Enter key to conﬁrm.

3. The display will show the “Enable/Disable” option for the timer. Press the /Next or

/Prev key to highlight “Enable” and then press the ‘Select/Enter’key to conﬁrm. The

display will show the “New Timer: Yes/No” options. Press the /Next or /Prev to

highlight “Yes” and then press the ‘Select/Enter’ key to conﬁrm. (Note: Selecting “No”

will show a review of the last alarm settings).

4. Press the /Next or /Prev key repeatedly to now set the correct timer-on “Hour”

and then press the Select/Enter key to conﬁrm.

5. Press the /Next or /Prev key repeatedly to now set the correct timer-on “Minute”

and then press the Select/Enter key to conﬁrm.

6. Repeat the above two steps to now set the timer-off “Hour” and “Minutes”.

7. Press the /Next or /Prev key to select the source (from CD/USB/Card/iPod or

FM Radio) for playback between timer-on & Timer-off.

8. Press the /Next or /Prev key to select the playback source volume between

timer-on & timer-off.

9. The display will now brieﬂy show the timer-on, timer-off, playback source and playback

volume information.

HOW TO DISABLE THE TIMER:

1. Press the Menu key to display “Set clock/Set timer/Reset” options.

2. Press the /Next or /Prev keys till “Set Timer” is displayed and then press the

Select/Enter key to conﬁrm.

3. The display will show the “Enable/Disable” option for the timer. Press the /Next or

/Prev key to highlight “Disable” and press the Select/Enter key to conﬁrm.

*Important: During the time-setting procedure, if no key is pressed with 10 seconds, the set

will return to its normal (previous) operating mode and settings not saved.

E-6

AUTOMATIC POWER OFF SLEEP FUNCTION

- This set has a special sleep timer function which can automatically switch off the unit.

This is useful for sleeping to music at night.

- At any time while the unit is operating, press SLEEP key (on remote control) repeatedly

to choose the automatic off time.

MINS 30

MINS 45

MINS 60

MINS 75

MINS 90

MINS OFF*

(*OFF MEANS SLEEP TIMER IS DEACTIVATED AND DISPLAY RETURNS TO

PLAYBACK INFORMATION)

JOG WHEEL (VOLUME & NAVIGATION)

This system has a unique “Jog Wheel” that has been specially designed with the ability to

control both volume levels and easy navigation of the many function interfaces – allowing

for a intuitive and complete audio experience.

Use the ‘Volume/Jog Mode’ key to toggle the jog wheel controls between volume and

navigation.

ELECTRONIC VOLUME CONTROL

- To increase or decrease the loudness of unit, simply adjust by the Jog wheel on unit or the

Volume Up/ Volume Down key on remote control.

- Sometimes, especially during listening to the radio, you may notice a

“CLICK-CLICK-CLICK” (repeating) sound when you are increasing or decreasing the

volume. This is a normal condition & the sound will disappear when you release the key

(when you reach the desired volume level).

MUSIC EQUALIZER

- Press EQ key repeatedly to choose the desired sound effect according to the music you

are listening to :

EQ OFF CLASSIC ROCK POP JAZZ

TEXT DISPLAY MODE (id3 display)

- This unit is capable of displaying the “TEXT INFORMATION” (id3 tag) of an MP3 song

on the LCD display.

- This function is stareled. Simply press “info” key to view any additional details that maybe

available. Simply press and hold the “id3” key (on remote control).

IMPORTANT

MP3 FILE NAME FORMAT

Please take care to use only regular english alphabets (a to z) & numerals (0 to 9)

in the ﬁle names of mp3 songs. Characters such as “ _ ” (underscore) & “ ”

(space) may result in the ﬁles being unreadable or inconsistently unrecognizable

by the player.

GENERAL FUNCTION

E-7

PLAY MODE (P-MODE) FUNCTION

- At anytime during playback, press “PROG/PLAY MODE” key on unit

repeatedly to select the following options:

REPEAT = To repeat the current track

REPEAT ALL = To repeat all tracks (full CD)

REPEAT FOLDER = To repeat all songs from currently selected

folder(directory)

INT = To “sample” all the music (about ﬁrst 10 secs.

of every song will be played)

RND = Shufﬂe all songs and play in “random” order.

USING THE AUDIO LINE IN CONNECTION (AUX-INPUT)

- You can connect the audio output of an external device such as a MP3 player to this unit,

to listen to the sound of that device through the high quality ampliﬁer of this music system.

- To connect the external device please use a standard stereo headphone

(3.5mm to 3.5mm plugs) cable to connect the “headphone-out or audio line-out” of the

device to the AUX-input socket of this unit.

- Switch the function to “AUX” using the Function key.

- Make sure that the speakers are connected to the main unit.

- Switch on the unit and the external device (eg. MP3-PLAYER).

- Start playback of the external device and adjust the volume control of the main unit to the

desired level.

- Remember to switch off the unit when you are ﬁnished using the external device.

MUTE FUNCTION

- This set has a mute function to enable you to turn off the volume temporarily.

- Press the Mute key (on remote control) once, the volume will turn off and the volume

bar will ﬂash.

- To resume the sound, simply press the Mute key again.

GENERAL FUNCTION

Autres manuels pour Revolution Z-7789

Table des matières

Manuels Radio populaires d'autres marques

EisSound

EisSound KBSound iSelect Manuel utilisateur

Midland

Midland 1001LWX Manuel utilisateur

Konig

Konig HAV-SR41 Manuel utilisateur

Roberts

Roberts exprssion Manuel utilisateur

VDigi

VDigi DD3.0 Manuel utilisateur

Radio Shack

Radio Shack 21-1863 Manuel utilisateur

Roberts

Roberts Stream 207 Manuel utilisateur

Sony

Sony Walkman SRF-M97 Manuel utilisateur

Stanley

Stanley FatMax FMC770 Manuel utilisateur

auna

auna DAB-Radio 10026947 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER UR190 Manuel utilisateur

HYT

HYT TC-320 Manuel utilisateur

auna multimedia

auna multimedia Yellowstone 10026851 Manuel utilisateur

B-Tech

B-Tech GMRS-V2 Manuel utilisateur

Weierwei

Weierwei VEV-V8 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER DAB750 Manuel utilisateur

Telefunken

Telefunken TF-1505 Manuel utilisateur

Makita

Makita LXRM03 Manuel utilisateur
