Seko PoolMatch pH Manuel utilisateur

0000138883 rev. 1.0

PoolMatch

pH · ORP

INSTRUCTIONS MANUAL

HANDBUCH

MANUAL DE INSTALACION

MANUEL D’INSTALLATION

MANUALE D’INSTALLAZIONE

0000138883 rev. 1.0

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

1. PACKAGE CONTENT

*The values from the table represents the number of items inside the package.

A: Tapping saddle

for securing PSS3

onto 2” hose

(=50 mm)

B: Foot filter

(PP riser)

C: Mounting

bracket kit

(=6 mm screws)

D: FPM Lip valve

(3/8” GAS)

E: PSS3 probe-

holder (1/2” GAS)

F: pH probe

G: Redox probe

H: pH 7 Buffer

solution

I: pH 4 Buffer

solution

J: 475 mV

Calibration solution

K: Water

L: 4x6 (IDxOD mm)

PVC tube (4m)

M: 4x6 (IDxOD mm)

PE tube (5m)

N: Reducer for

injection valve

(1/2” M to 3/8” F)

Item*

System

PoolMatch pH

PoolMatch ORP

WARNING!

Before carrying out ANY work inside control panel of the PoolMatch

device, make sure you disconnect it from the power supply.

Failure to comply with the instructions contained in this manual

could cause injury to people and/or damage to the appliance and

the system.

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

WARNING!

These products are DANGEROUS and require special precautions during use, handling and storage.

•NEVER mix chemical products.

•NEVER allow children or people who have not read this manual to use or tamper with PoolMatch or any

of its peripheral components (including chemical products).

pH chemical products:

•ABSOLUTELY not recommended => pure sulphuric acid

•Recommended for lowering pH => negative pH (with a sulphuric acid base)

•Recommended for raising pH => positive pH (sodium carbonate or bicarbonate)

ORP chemical products:

•ABSOLUTELY not recommended => all types of organic chlorine

The pH / ORP probes are subject to wear and tear and therefore are not covered by the warranty.

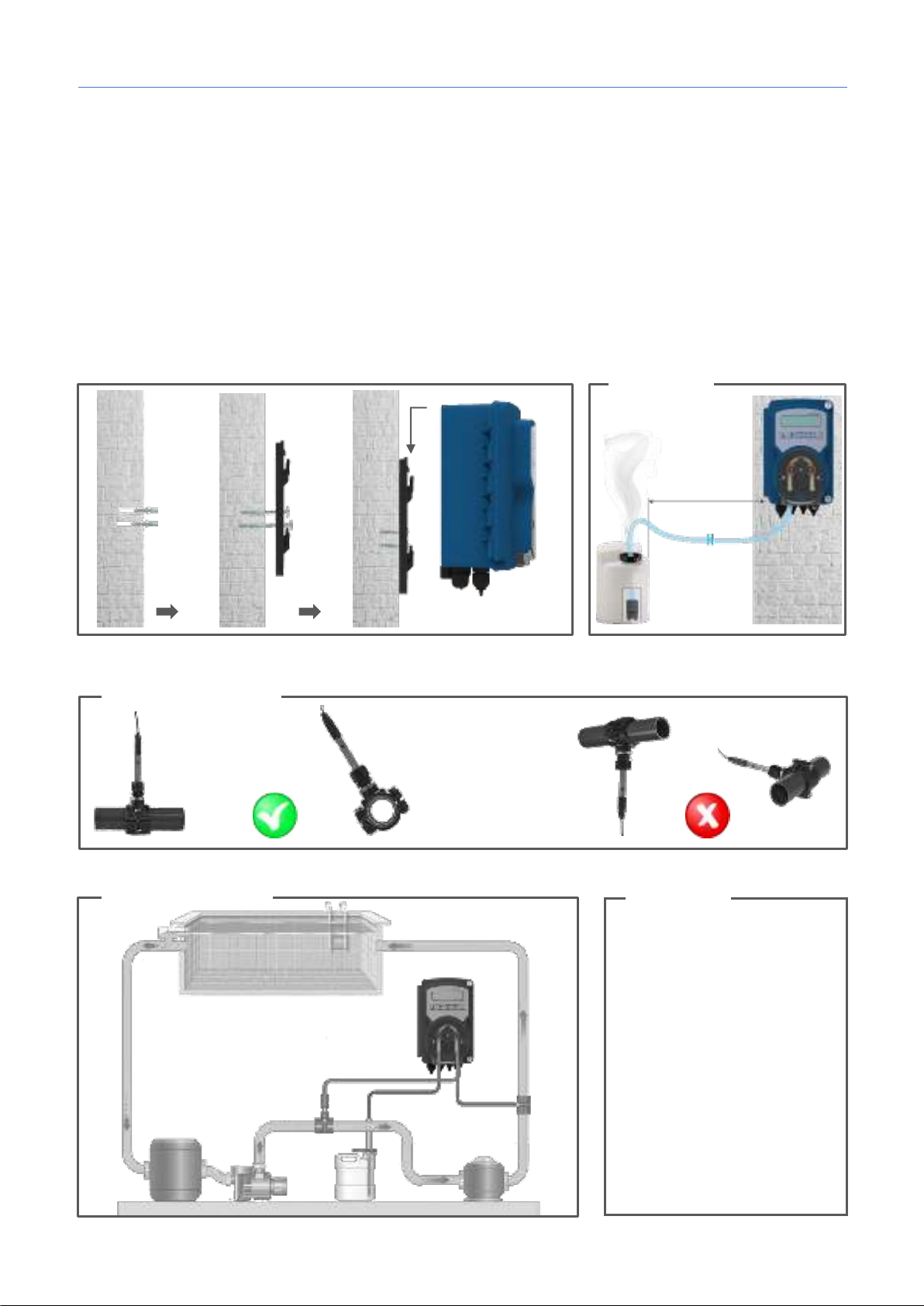

2. INSTALLATION INSTRUCTIONS

Use with salt chlorinator:

For the pH systems, to prevent the

risk of system malfunctioning or

damage, observe the following

instructions:

1. Position the pH measuring

probe prior to the chlorinator

cell.

2. To eliminate eddy currents,

connect the pool water to an

electrical ground point

3. Position the product injection

point after the chlorinator cell.

The probe’s angle of

inclination must never

exceed 45° from

vertical.

For optimum probe

reading, position it

perpendicular to the

tubing.

Probe positioning

Installation plant

Warning!

Make sure that the injection pressure is below 1.5 bar

2 m

Warning!

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

3. ELECTRICAL CONNECTIONS

Connect the power supply cable to the mains and the servocontrol pre-wired cable to the auxiliary contact of the

filter box (230 Vca).

Wiring diagram:

1. Input Level Probe (Product Tank)

2. Input Frequency signal by Water meter pulse sender

3. RS485 Serial Port (optional)

4. Input Temperature Probe (PT100 sensor not included)

5. Output Relay Auxiliary Pump (Dry contact, Relay 250 Vac 10 A)

6. Output Relay Alarm remote (Dry contact, Relay 250 Vac 10 A)

4. TECHNICAL SPECIFICATIONS

Specifications

PoolMatch pH

PoolMatch ORP

Measure range

3.0 ÷ 10.0 pH

200 ÷ 999 mV

Set Point range

6.0 ÷ 8.0 pH

400 ÷ 850 mV

Alarm range

5.0 ÷ 9.0 pH

300 ÷ 900 mV

Accuracy

± 0.04 pH

± 2 mV

Resolution

0.01 pH

1 mV

Power supply

230 VAC 50 Hz

Insulation class

Consumption

10 W

Pump flow rate

1.6 l/h

Max. back-pressure

1.5 bar

Probe calibration

Automatic

Pump state

Proportional dosing

Peristaltic tube (ID x OD mm)

Norprene 4.8 x 8 mm

Dimensions (H x W x D mm)

185 x 124 x 110 mm

Weight

1.0 kg

Recirculating pump

230V

PT100 temperature probe

2 wires 3 wires

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

5. SETUP INSTRUCTIONS POOLMATCH SYSTEM

Program Setup –Press for 5 seconds

At the entry of each menu item, the parameter can be directly modified using the arrow keys ( and ).

Confirmation of the current setting and switching to the next item is done by pressing the button.

The menu has a circular structure: once you arrive at last item, the confirmation of the parameter set by

pressing , determines the return to the first menu item.

1 –It is possible to select between 5 available languages: EN, FR, IT, DE, ES

2 –7.4pH (5-9pH) / 700mV (300-900mV)

3 –Acid (Acid/Alka) / Low (Low/High)

4 = 30seconds (range from 1 to 360 seconds)

5 = 60seconds (range from 1 to 360 seconds)

4.1 –(Enabled/disabled)

4.2 –(Auto/Manual 25°C)

4.3 –(0-60min.)

4.4

This menu is available only for models that have the RS485 Modbus connector

▪Baud Rate (2400, 4800, 9600 or 19200)

▪Polarity (Even, Odd or None)

▪Address (from 1 to 240)

▪RS485 Watchdog (Off, 1-30000 seconds)

▪Watchdog Config (Hardware Reset, Watchdog Alarm, Stop Dosing, Reset Comunication)

4.5

▪Pulse/ liter 1:1

▪Unit measure m³, l.

4.6

▪Two points

▪Single point

▪Referece

4.7

▪On/Off

▪Timed

▪Prop

▪Off

1) Button to increase the value

2) Button to decrease the value

3) Button Menu/Esc

4) Button Cal/OK

5) Button to set the setpoint

6) Digital display

* Timed dosing only

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

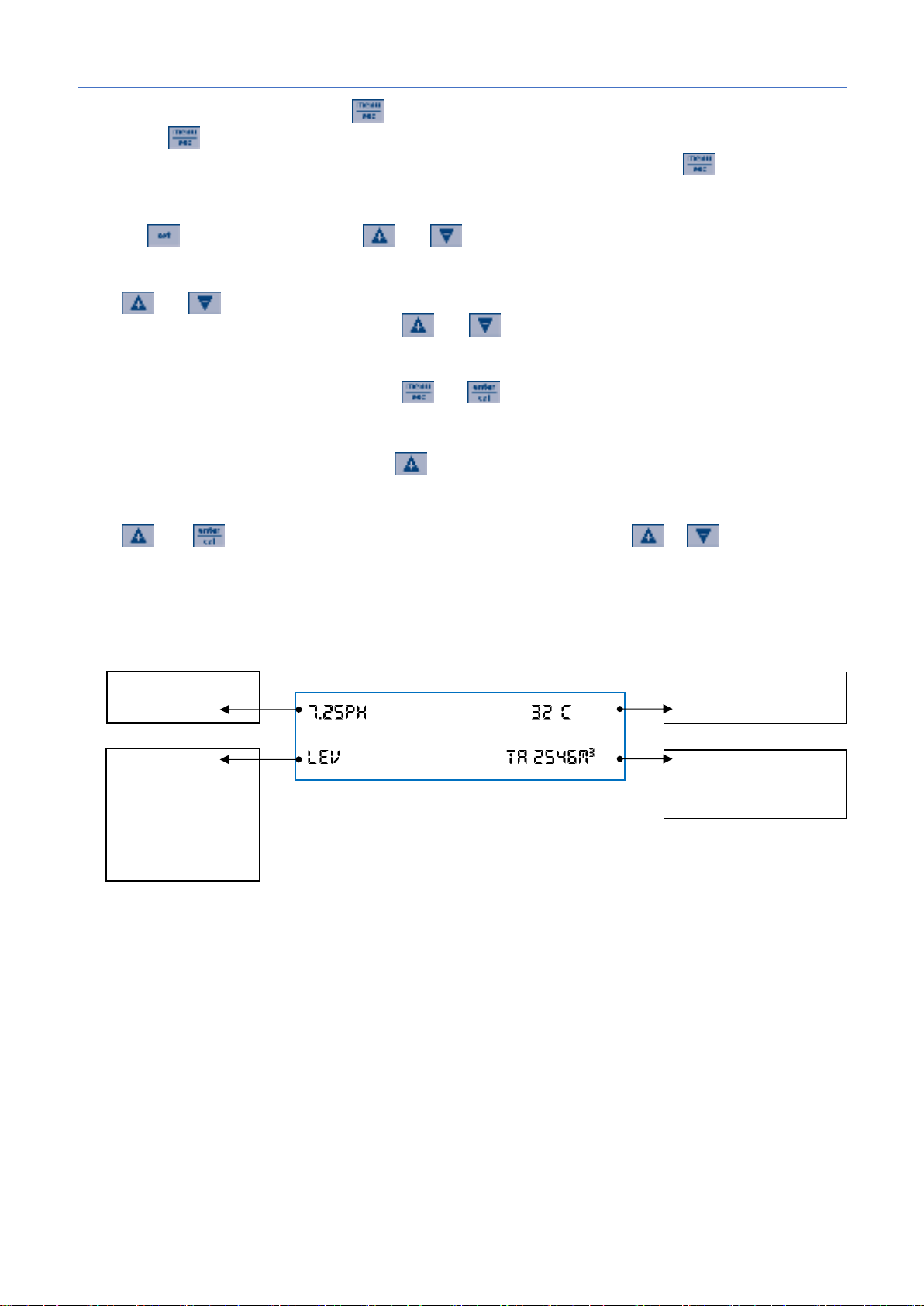

Save and exit Program setup –Press

Pressing the key determines the exit from the programming menu with saving of the parameters, if the

parameter of the menu item in which one is in has not been changed when pressing the key.

Set Point adjustment

Press the button for 3 seconds, use and to set the desired value.

Stand-by mode (backlight on)

Press and buttons simultaneously for 5 seconds to switch off the unit backlight. Dosage and

calibration are disabled. To exit standby, press and buttons simultaneously.

Priming

Only while the pump is in stand-by press down and in the same time.

Flowrate counter reset

To reset value of "Permanent Totalizer" press button for 3 seconds, in stand-by mode only.

Offset/Slope Menu

Press and buttons the unit show Offset/Slope calibration value, press or to scroll the

menu.

Alarm list

- LEV

- WDG

- OFA1 & OFA2

- Stand By

- Flow

Flowater totalizer

Absolut

Resetable

Temperature

measure

pH/ORP

measure

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

6. pH CALIBRATION

5 s

Set pH calibration

4 pH

60 s

7 pH

60 s

4 pH calibration

7 pH calibration

H2O

Save and exit

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

7. ORP CALIBRATION

5 s

Set ORP calibration

475mV

60 s

H2O

475 mV calibration

Save and exit

PoolMatch | pH · ORP

0000138883 rev. 1.0 EN

8. PROPORTIONAL DOSING

Setpoint = 7.4 pH

Dosing mode = Acid

Setpoint = 700 mV

Dosing mode = Low
