Seiko 5M54A Guide de démarrage rapide

[SPECIFICATIONS]

Item Cal. No.

Power generator

Rechargeable

battery

Monthly rate: less than 15 seconds (worn on the wrist at temperature

range between 5 and 35 ºC)

Nil

Use 10-second gate

Movement: less than 0.80 µA

Circuit block: less than 0.20 µA

Automatic generating system

TC 920 Titanium carbon lithium rechargeable battery

0.45V - 2.20V

From full charge to stoppage: approximately 6 months

6 jewels

1/22

PARTS LIST/TECHNICALGUIDE

KINETIC Cal. 5M54A

5M54A

Driving system

Additional function

Crown operation

Loss/Gain

Regulation system

Gate time for rate measurement

Current consumption

Power supply

Operating

voltage range

D u r a t i o n o f

charge

Number of jewels

Interval of hands movements

Normal position

1st click position

2nd click position

Coil resistance

MON

TUE

WED

THU

FRI

SAT

SUN

• 3 hands (Hour/Minute/Second)

• Calendar Date (date dial)

Day (retrograde day indicator)

1 second

Stepping motor 2 pieces

•Power reserve indicator (second hand)

• Energy depletion forewarning function

• Overcharge prevention function

• Electronic circuit reset function

• Day and date correction function

• Second hand stop function

Free

Day and date setting

•　Deameter

Outside :

Ø 27.6 mm

Casing :

Ø 27.0 mm

• Height: 4.3

Time setting (Hour and Minute)

Movement

Coil block: 1.70 - 2.10 KΩ

Generating coil block: 280 - 380Ω

TG 5M54A.indd 1 08.9.25 2:14:15 PM

Cal.5M54A

2/22

SPECIFICATIONS

10 seconds 20 seconds 30 seconds

Between 7 days and 1

month

Approx.

1 month

Approx. between

4 and 6 months

Between

1 and 7 days

5 seconds

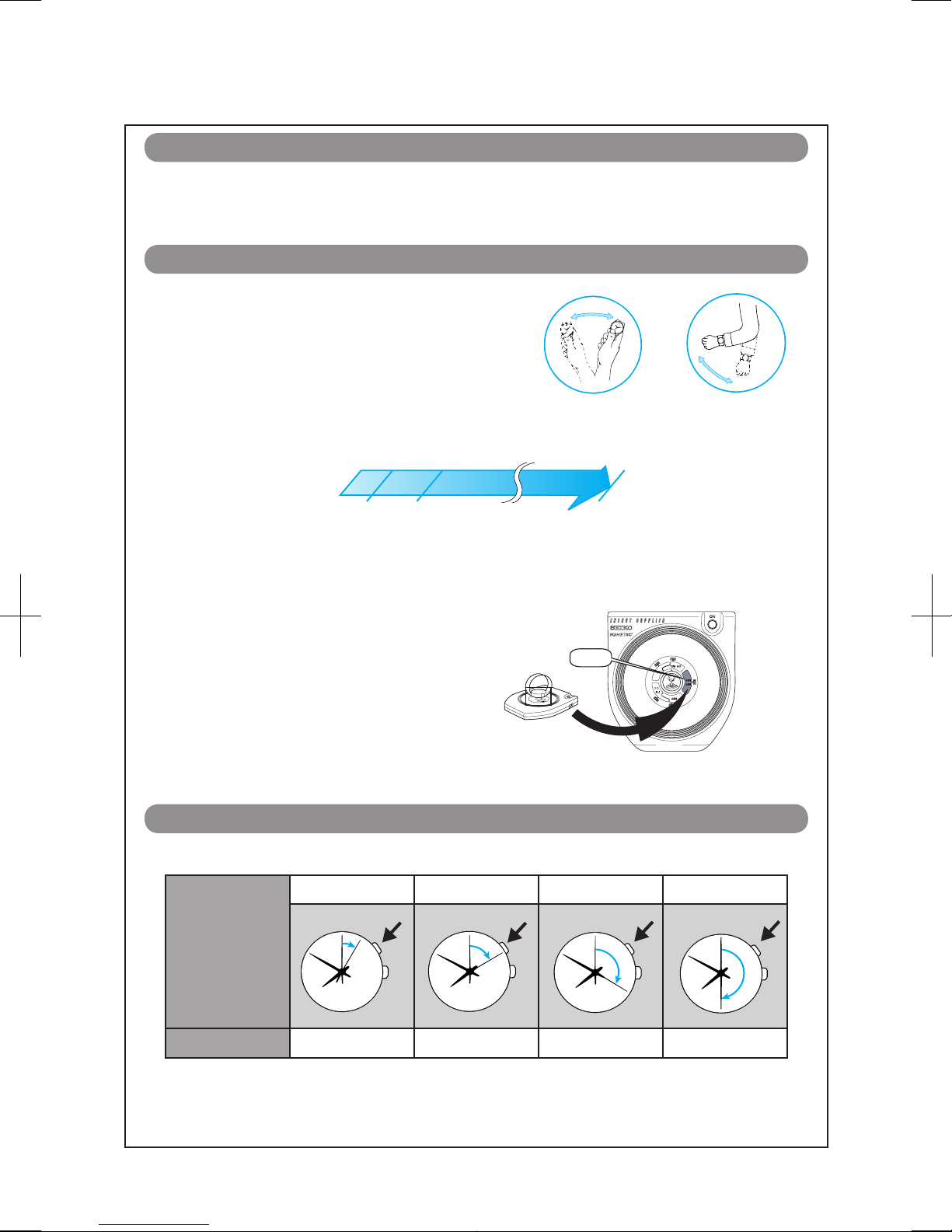

POWER RESERVE

QUICK MOVEMENT OF

SECOND HAND

SEIKO KINETIC Cal. 5M54 is an analogue quartz watch equipped with the Kinetic technology

developed by SEIKO. It generates the electric energy to power the watch, utilizing the movement of

your body, and stores it in the rechargeable battery, which requires no periodical replacement unlike

conventional button-type batteries.

1. When the watch stops completely, or if you ﬁnd

the second hand moving at two-second intervals,

swing the watch from side to side at a rate of

twice a second.

1. By swinging the watch

2. By using the KINETIC Energy Supplyer YT02A

2. 250 swings will reserve up to 1 day of power.

The second hand will start moving at one-second intervals.

Set the crown to the 5M position.

•Make sure that the watch is correctly

positioned as it may affect the amount of

power generated.

•The amount of power generated may vary

depending the models of the watch.

Cal. 5M54A is equipped with a power reserve indicator. The current power reserve can be checked by

reading the posisiton of the second hand after pressing the button at the 2 o'clock position.

* The second hand will resume normal movement after the indicated 5, 10, 20 or 30 seconds have

elapsed.

* To allow easy reading of the second hand, press the button when the second hand is at the 12 o’clock

position.

* It is recommended that the watch be swung further until 2 days of power is reserved. As a

guideline of recharging, additional 200 to 250 swings, about 450 to 500 swings in total will

reserve 2 days of power.

POWER RESERVE INDICATOR

POWER

RESERVE

NUMBER OF

SWINGS 250 450 ~ 500

1 DAY 2 DAYS

APPROX.

6 MONTHS

FULL

FEATURES

HOW TO CHARGE THE WATCH

TG 5M54A.indd 2 08.9.25 2:14:20 PM

Cal.5M54A

3/22

PARTSLIST

Disassembling procedures Figs. : 1 65

Reassembling procedures Figs. : 65 1

Lubricating: Types of oil

Watch Oil AO-3

Watch Oil AO-2

SEIKO Watch Oil S-6

Silicone oil 500,000 c.s.

Oil quantity

Normal quantity

Please see the remarks on the following pages.

Lubricating of some parts is shown in“ II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

1 CASE BACK

2 CASE BACK GASKET

4 4281500

CONTACT POINT SPRING (*)

5 MOVEMENT

8 BUTTON SPRING

6 BUTTON SPRING CLIP

7 BUTTON

* The contact point spring is not

assembled in models with screw-lock

type crown.

3 SETTING STEM

[CASING PARTS ASSEMBLY]

TG 5M54A.indd 3 08.9.25 2:14:23 PM

0012354

DAY LEVER GUARD SCREW

0837503

DAY LEVER GUARD

1002516

DAY WHEEL

1017503

DAY LEVER

1018504

DAY LEVER SPRING

0871502

DAY STAR WHEEL

0491735

DIAL WASHER

0022247

DAY LEVER BRIDGE SCREW

0808514

DATE DIAL GUARD

0878B43

DATE DIAL

0810660

DATE JUMPER

0989660

INTERMEDIATE DAY CORRECTOR WHEEL

0737670

DATE CORRECTOR WHEEL

0962670

INTERMEDIATE DATE CORRECTOR WHEEL

0816670

DATE DRIVING WHEEL

0271607

HOUR WHEEL

DAY LEVER BRIDGE

0866780

HOLDING RING FOR DIAL

SPACER FOR DIAL

4408564

4408559

III

IIII

SEIKO

PRE MIER

KIN ET IC

MON

TUE

WED

THU

FRI

SAT

SUN

RETROGRADE DAY HAND

DIAL

HOUR, MINUTE AND SECOND HANDS

Cal.5M54A

4/22

PARTSLIST

Please see the remarks on the following pages.

Lubricating of some parts is shown in“ II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

[CALENDAR MECHANISM/

DIAL AND HANDS SETTING]

TG 5M54A.indd 4 08.9.25 2:14:35 PM

Cal.5M54A

5/22

PARTSLIST

Please see the remarks on the following pages.

Lubricating of some parts is shown in“ II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

30 0022490

OSCILLATING WEIGHT SCREW

31 0500663

OSCILLATING WEIGHT

32 1002662

OSCILLATING WEIGHT WHEEL

33 0022247

RECHARGEABLE BATTERY CLAMP SCREW

34 4225519

RECHARGEABLE BATTERY CLAMP

36 302344Z

RECHARGEABLE BATTERY UNIT

37 0022247

CIRCUIT BLOCK COVER SCREW

38 4457760

CIRCUIT BLOCK COVER

39 4000732

CIRCUIT BLOCK

40 0022247

OSCILLATING WEIGHT BRIDGE SCREW

41 4459500

CONDUCTIVE PLATE

42 0198662

OSCILLATING WEIGHT BRIDGE

43 4002514

GENERATING COIL BLOCK

44 1002660

INTERMEDIATE WHEEL FOR GENERATING ROTOR

35 4216519

INSULATOR FOR RECHARGEABLE BATTERY

45 4146518

GENERATING ROTOR

46 4239519

GENERATING STATOR

47 0022247

COIL BLOCK SCREW

48 4002516

COIL BLOCK

[AUTOMATIC GENERATING

MECHANISM/ELECTRONIC

CIRCUIT]

TG 5M54A.indd 5 08.9.25 2:14:38 PM

Cal.5M54A

6/22

PARTSLIST

Please see the remarks on the following pages.

Lubricating of some parts is shown in“ II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.

50 0125661

TRAIN WHEEL BRIDGE

51 0391660

TRAIN WHEEL SETTING LEVER

52 4271515

RECHARGEABLE BATTERY

CONNECTION (+)

53 0241667

FOURTH WHEEL AND PINION

55 0701670

FIFTH WHEEL AND PINION

56 4146531

STEP ROTOR

57 0261670

MINUTE WHEEL

58 0281670

SETTING WHEEL

59 4450730

SWITCH LEVER

60 0384661

YOKE

61 0383662

SETTING LEVER

62 4239518

ROTOR STATOR

3 SETTING STEM

63 0282672

CLUTCH WHEEL

64 0221667

CENTER WHEEL AND PINION

65 01006564 (FOR STANDARD CASE TYPE)

0100659 (FOR ONE-PIECE CASE TYPE)

MAIN PLATE

54 0231530

THIRD WHEEL AND PINION

49 0022247

TRAIN WHEEL BRIDGE SCREW

[GEAR TRAIN MECHANISM/

SETTING MECHANISM]

TG 5M54A.indd 6 08.9.25 2:14:41 PM

Cal.5M54A

7/22

PARTSLIST

lHow to ﬁnd the correct parts, if not determined by 4 digit caliber number

Following parts are determined based on the design of watches, such as hands height, dial color,

and design of cases. Please refer to the SEIKO WATCH PARTS CATALOGUE in order to choose

corresponding parts.

Remarks

4 CONTACT POINT SPRING 4281500

The contact point spring is not assembled in models with screw-lock type crown.

12 HOLDING RING FOR DIAL 0866780

23 DATE DIAL

Part code Position of crown Position of calendar

frame Color of ﬁgure

Color of back

ground

0878 B42 3 o'clock 3 o'clock White Black

0878 B43 3 o'clock 3 o'clock Black White

0878 B25 3 o'clock 6 o'clock White Black

0878 B26 3 o'clock 6 o'clock Black White

3 SETTING STEM 0351653

TG 5M54A.indd 7 08.9.25 2:14:42 PM

Cal.5M54A

8/22

PARTSLIST

lHow to discriminate resembled parts

36 RECHARGEABLE BATTERY UNIT

Though the RECHARGEABLE BATTERY UNIT for Cal. 5M54 and 5M6 Series is of a completely

different type from the CAPACITOR UNIT for Cal. 5M4 Series, they have a close resemblance in

shape. They can be discriminated by the shapes of their minus lead terminals as illustrated below.

When repairing the RECHARGEABLE BATTERY UNIT, check the shape of its minus lead terminal to

make sure you are using a RECHARGEABLE BATTERY UNIT properly.

Minus lead terminal

[RECHARGEABLE BATTERY UNIT for Cal. 5M54 and 5M6 Series ]

Part code: 302344Z

Marking on the battery: maxell TC920

[CAPACITOR UNIT for Cal. 5M4 Series ]

Part code: 3029113

Marking on the capacitor: SII SL920

Minus lead terminal

Current type Old type

TG 5M54A.indd 8 08.9.25 2:14:43 PM

Cal.5M54A

9/22

PARTSLIST

0022247

• DAY LEVER BRIDGE SCREW (3 PCS.)

• RECHARGEABLE BATTERY CLAMP SCREW (2 PCS.)

• CIRCUIT BLOCK COVER SCREW (2 PCS.)

• OSCILLATING WEIGHT BRIDGE SCREW (2 PCS.)

• COIL BLOCK SCREW (1 PC.)

• TRAIN WHEEL BRIDGE SCREW (1 PC.)

0022490

• OSCILLATING WEIGHT SCREW (1 PC.)

39 CIRCUIT BLOCK 4000732

The CIRCUIT BLOCK for Cal. 5M54 and 5M6 Seriesand thatfor Cal. 5M4 Series have a close resemblance

in shape. They can be discriminated in the point that the CIRCUIT BLOCK for Cal. 5M54 and 5M6

Series has no diode element unlike that for Cal. 5M4 Series. When repairing the CIRCUIT BLOCK,

check that it has no diode element to make sure you are using the proper one.

Having no diode element Diode element

[ CIRCUIT BLOCK for Cal. 5M54 and 5M6 Series ] [ CIRCUIT BLOCK for Cal. 5M4 Series ]

43 GENERATING COIL BLOCK 4002514

The GENERATING COIL BLOCK for Cal. 5M54 and 5M6 Series and that for Cal. 5M4 Series have a close

resemblance in shape. They can be discriminated by the size of the pattern on the lead terminal. If

the GENERATING COIL BLOCK for Cal. 5M4 Series is assembled by mistake, no electricity will be

generated. When repairing the GENERATING COIL BLOCK, check the size of the pattern on the lead

terminal to make sure you are using the proper one.

Smaller pattern Larger pattern

[ GENERATING COIL BLOCK for Cal. 5M54 and 5M6 Series ] [ GENERATING COIL BLOCK for Cal. 5M4 Series

]

TG 5M54A.indd 9 08.9.25 2:14:47 PM

Cal.5M54A

10/22

PARTSLIST

lTools and consumables required for disassembling/reassembling

• Movement holder

Universal movement holder (S-682)

• Watch oils

SEIKO watch grease (S-6) and watch oils (AO-3 and AO-2)

S-6 AO-2

AO-3

TG 5M54A.indd 10 08.9.25 2:14:50 PM

Table des matières

Autres manuels Seiko Montre

Seiko

Seiko A860A Manuel de l'installateur

Seiko

Seiko 5T82 Manuel utilisateur

Seiko

Seiko ASTRON Guide d'installation

Seiko

Seiko Astron SSJ009J Manuel utilisateur

Seiko

Seiko MOMENTUS CC238 Manuel utilisateur

Seiko

Seiko PROSPEX 600 Manuel utilisateur

Seiko

Seiko 3M62A Manuel de l'installateur

Seiko

Seiko 5Y89 Manuel utilisateur

Seiko

Seiko Prospex S23629J Manuel utilisateur

Seiko

Seiko SSC642P Manuel utilisateur

Seiko

Seiko V192 Manuel utilisateur

Seiko

Seiko 2A22A Guide de démarrage rapide

Seiko

Seiko 5J22A Guide de démarrage rapide

Seiko

Seiko SDWE21P1 Manuel utilisateur

Seiko

Seiko 4F56A Guide de démarrage rapide

Seiko

Seiko KINETIC 7D46 Manuel utilisateur

Seiko

Seiko 7T84 Manuel utilisateur

Seiko

Seiko Grand Seiko SPRING DRIVE DIVERS 9R65 Manuel utilisateur

Seiko

Seiko Conceptual SUR455P Manuel utilisateur

Seiko

Seiko 7T85 Guide de démarrage rapide

Seiko

Seiko Cal. 8R39 Manuel utilisateur

Seiko

Seiko 7K52A Manuel de l'installateur

Seiko

Seiko S149 Manuel utilisateur

Seiko

Seiko H021 Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur

iTOUCH

iTOUCH 3360 Manuel utilisateur
