Seicane S168005 2009-2012 MAZDA 5 PREMACY aftermarket car
radio pgrade installation replacement instr ction
Seicane S168005 2009-2012 MAZDA 5 PREMACY car radio a ter installation
Tips abo t the installation:
1.Please disconnect the power be ore the installation.
2.Please prepare a lever and a screwdriver be ore the removal and the installation.
3.Please keep all the separate parts rom the car. Please take great care o the dashboard to avoid
scratching it during its detachment and installation. Please keep handy any parts rom the car
and make use o all the original screws rom the car as much as possible. so each related part o
the unit can be ixed securely.
4. For your convenience, here’s the recommended tools or removal and installation rom
Seicane, please check or more details: http://www.seicane.com/car-dvd-dismantling-device-
srd-400
www.seicane.com
2009-2012 MAZDA 5 PREMACY car radio installation g ide

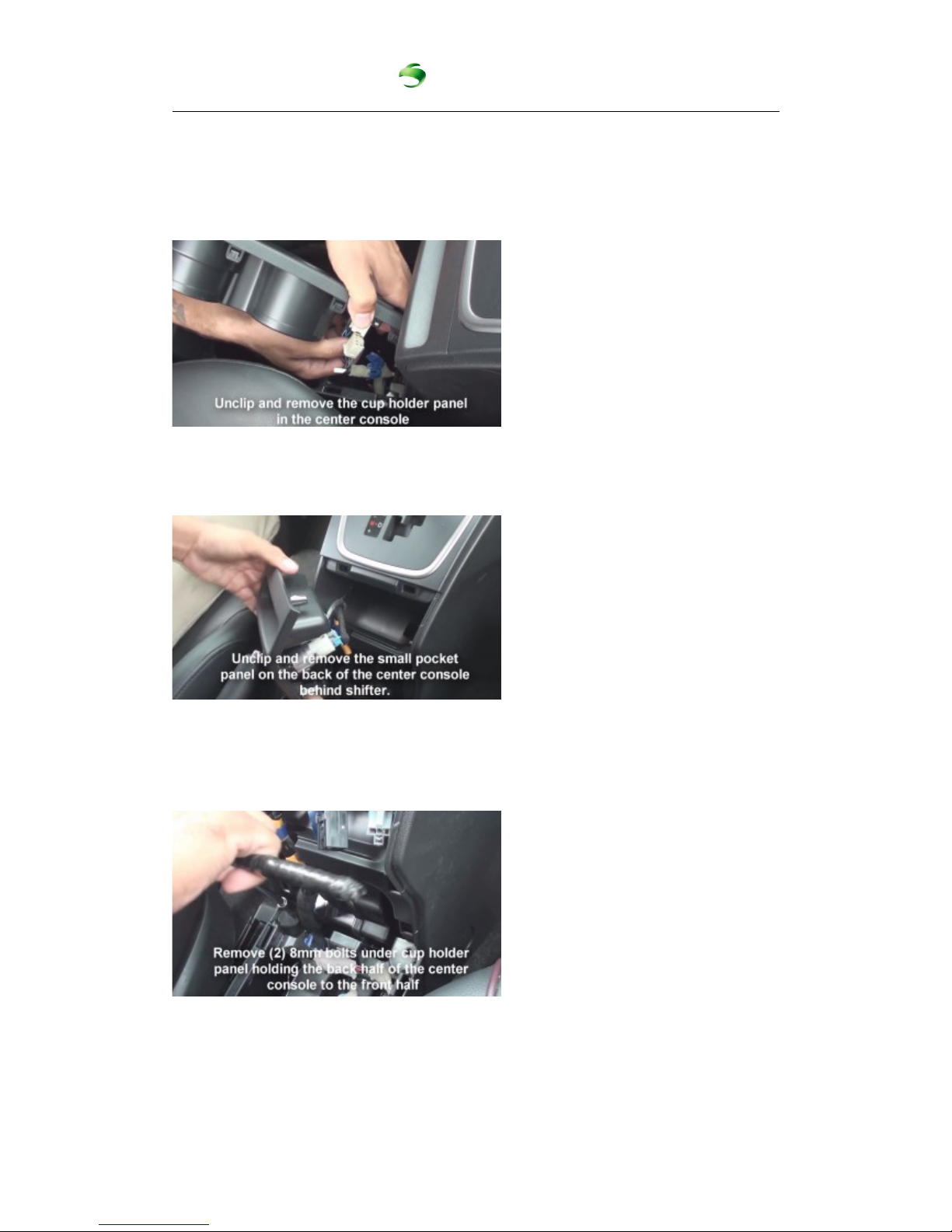

1.Unclip and remove the cup holder panel in the center console.
2. Unclip and remove the small pocket panel on the back o the center console behind shi ter.
3. Remove 2 8mm bolts under cup holder panel holding the back hal o the center console to the
ront hal .
www.seicane.com
4. Unscrew and remove the shi t knob.
5. Unclip and remove the shi ter trim panel.
6. Unclip and remove the shi ter trim panel.
7. Unclip and pull back the panels at the lower ront sides o the center console.
www.seicane.com
8. Unclip and pull back the panels at the lower ront sides o the center console.

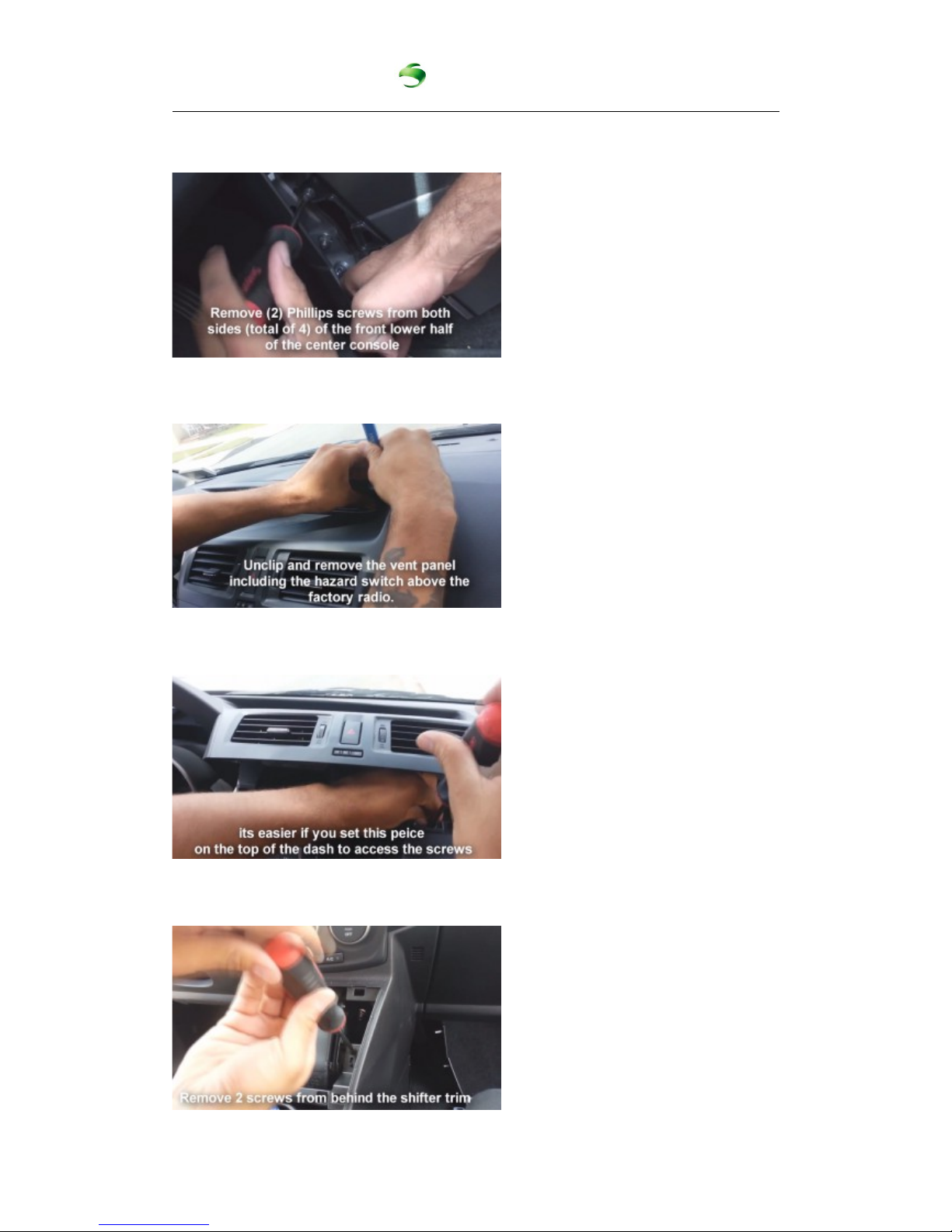

9. Unclip and remove the vent panel including the hazard switch above the actory radio.
10. Its easier to remove 2 screws by setting this piece on the top o the dash.
11. Remove 2 screws rom behind the shi ter trim.
www.seicane.com
12. Pull center console toward, this will help gain access to 2 screws under the climate controls.
13. Remove 2 screws.
14. Unclip harness and pull rear center console backwards.
15. Press in shi ter release trigger and pull shi ter down, make sure to have e brake on.
www.seicane.com
16. Press in side prongs to release climate controls.
17. Remove one screw and one 10mm bolt.
18. Pull actory stereo out to release clips, then unplug original radio’s connectors.
19. Connect the harnesses to the back o the new Seicane car radio.
20. Connect the Seicane car radio to your original car radio 's plugs.
21. Turn on the new Seicane radio to have a care ul check i everything works well. I it doesn't,
please check whether all the cables are connected correctly.
22.Put the new Seicane radio into the dash.
23. Put everything into their original place. All the installation is done.
Please note:
We suggest you arrange a pro essional to install it. I you have any questions about installation,
please send us photos about your original car's plugs, we can make a wiring diagram or your car.
