Securitytec SW-11Z-I1-V1 Manuel utilisateur

─DVR ─

User Manual

SW-11Z-I1-V1.0-E

This document contains preliminary information and subject to change without notice.

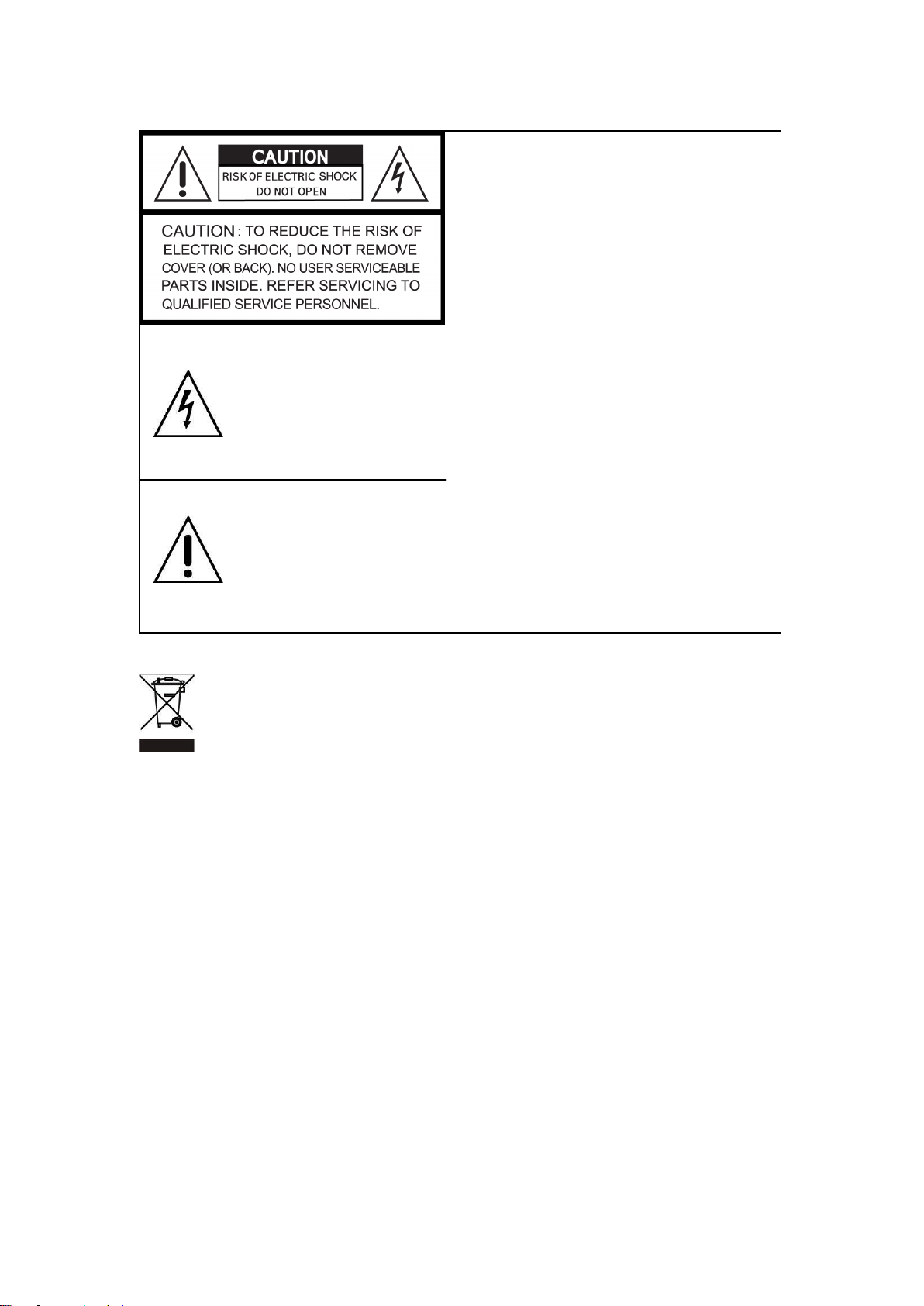

This symbol is intended to

alert the user to the presence

of unprotected “Dangerous

voltage" within the product's

enclosure that may be strong

enough to cause a risk of

electric shock.

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR

MOISTURE.

NOTE: This equipment has been tested

and found to comply with the limits for a

class digital device, pursuant to part 15 of

the FCC Rules. These limits are designed

to provide reasonable protection against

harmful interference when the equipment is

operated in a commercial environment.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential

area is likely to cause harmful interference

in which case the user will be required to

correct the interference at his own expense.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European

Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated

as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment and

human health, which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources. For more detailed

information about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

Notice: Ghosting or fractured images may occur on the screen when there is a suddenly surge

or lightning stroke which cause damage on IC in the DVRs.

Table of Contents

CHAPTER 1 MAIN MENU SETUP ____________________________________ 4

1-1 RECORD SETUP ____________________________________________ 5

1-1.1 Quality & Frame Rate Setup _____________________________ 6

1-2 EVENT SETUP ______________________________________________ 6

1-2.1 MOTION SETUP ________________________________________ 7

1-2.1.1 MOTION AREA SETUP______________________________ 7

1-2.2 SENSOR SETUP________________________________________ 8

1-3 SCHEDULE SETUP __________________________________________ 9

1-3.1 Schedule Record Setup _________________________________ 9

1-3.2 Holiday Setup _________________________________________ 10

1-4 CAMERA SETUP ___________________________________________ 10

1-5 ACCOUNT SETUP __________________________________________ 11

1-5.1 Permission Setup______________________________________ 11

1-5.2 User Picture Setup ____________________________________ 12

1-6 NETWORKING SETUP_______________________________________ 12

1-6.1 NETWORKING SETUP __________________________________ 13

1-6.1.1 DHCP ___________________________________________ 13

1-6.1.2 LAN_____________________________________________ 13

1-6.1.3 ADSL____________________________________________ 14

1-6.1.4 3G ______________________________________________ 14

1-6.2 HTTP Setup___________________________________________ 15

1-6.3 DDNS Setup __________________________________________ 16

1-6.4 Mail Setup ____________________________________________ 17

1-7 PTZ & RS485 SETUP _______________________________________ 18

1-8 SYSTEM SETUP____________________________________________ 19

1-8.1 DISPLAY SETUP_______________________________________ 19

1-8.2 DATE/TIME SETUP _____________________________________ 20

1-8.2.1 CHANGE DATE & TIME____________________________ 21

1-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP____ 21

1-8.2.3 INTERNET TIME SETUP ___________________________ 22

1-8.3 BUZZER & RELAY SETUP ______________________________ 22

1-8.4 SPOT SETUP__________________________________________ 23

1-9 UTILITY SETUP ____________________________________________ 24

1-10 DIAGNOSTIC______________________________________________ 25

CHAPTER 2 BACKUP & SEARCH___________________________________ 26

2-1 BACKUP SETUP____________________________________________ 26

2-2 SEARCH SETUP____________________________________________ 29

2-2.1 EVENT SEARCH_______________________________________ 29

2-2.1.1 CRITERIA SETUP FOR EVENT SEARCH _____________ 30

2-2.2 TIME SEARCH_________________________________________ 31

CHAPTER 3 Remote Software Installation and Setup ___________________ 32

3-1 AP Software Installation and instruction ______________________ 32

3-2 How to do remote monitoring through IE _____________________ 34

3-3 How to do remote monitoring through JPEG VIEWER(Only Monitor

Function) _____________________________________________________ 35

3-4 AP Software Operation______________________________________ 37

CHAPTER 4 Specification __________________________________________ 38

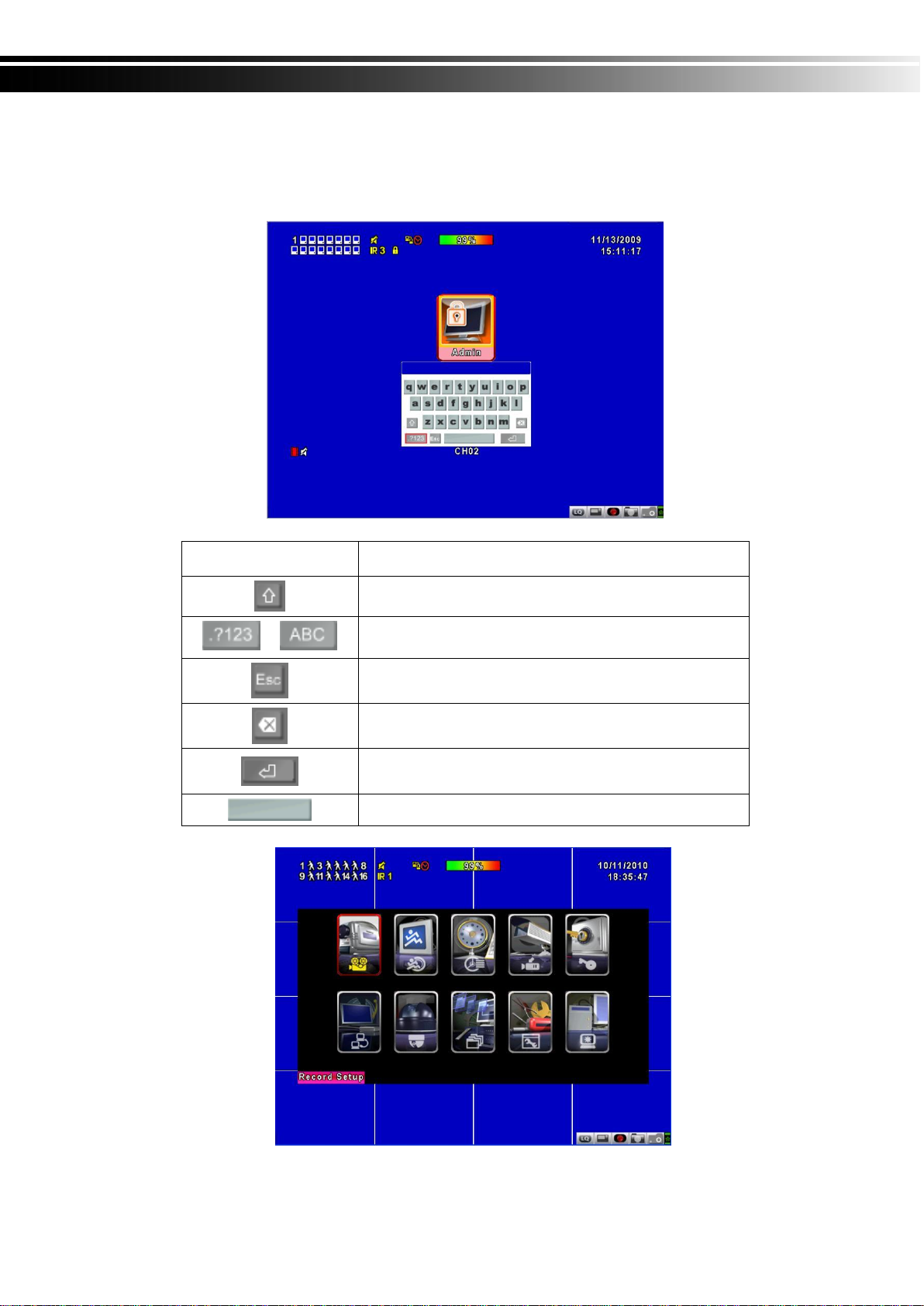

CHAPTER 1 MAIN MENU SETUP

To enter the main menu and set up DVR, log-in account and user password are required.

The default password of the administrator is “123456”. Please check the “Account Setup”for

related setup of other log-in users.

Table 1-0.1 Some definition of virtual keyboard.

Item

Description

Switch between capital and small letters.

Switch between numbers and letters.

Press to cancel the setup, and re-choose the login

account.

Delete the last character.

Enter to identify the password. It will enter the set

up menu, If the password is verified.

Space key

Table 1-0.2 The operation of remote control under the setting menu

Item

Description

Switch to different options under one item

Switch to different items

Save setup and back to LIVE mode

ESC

Back to Upper level of menu without saving

ENTER

Enter the menu, or display virtual keyboard

PS. The initialization of new-installed HD is required before recording, please refer to “UTILITY

SETUP”for detail.

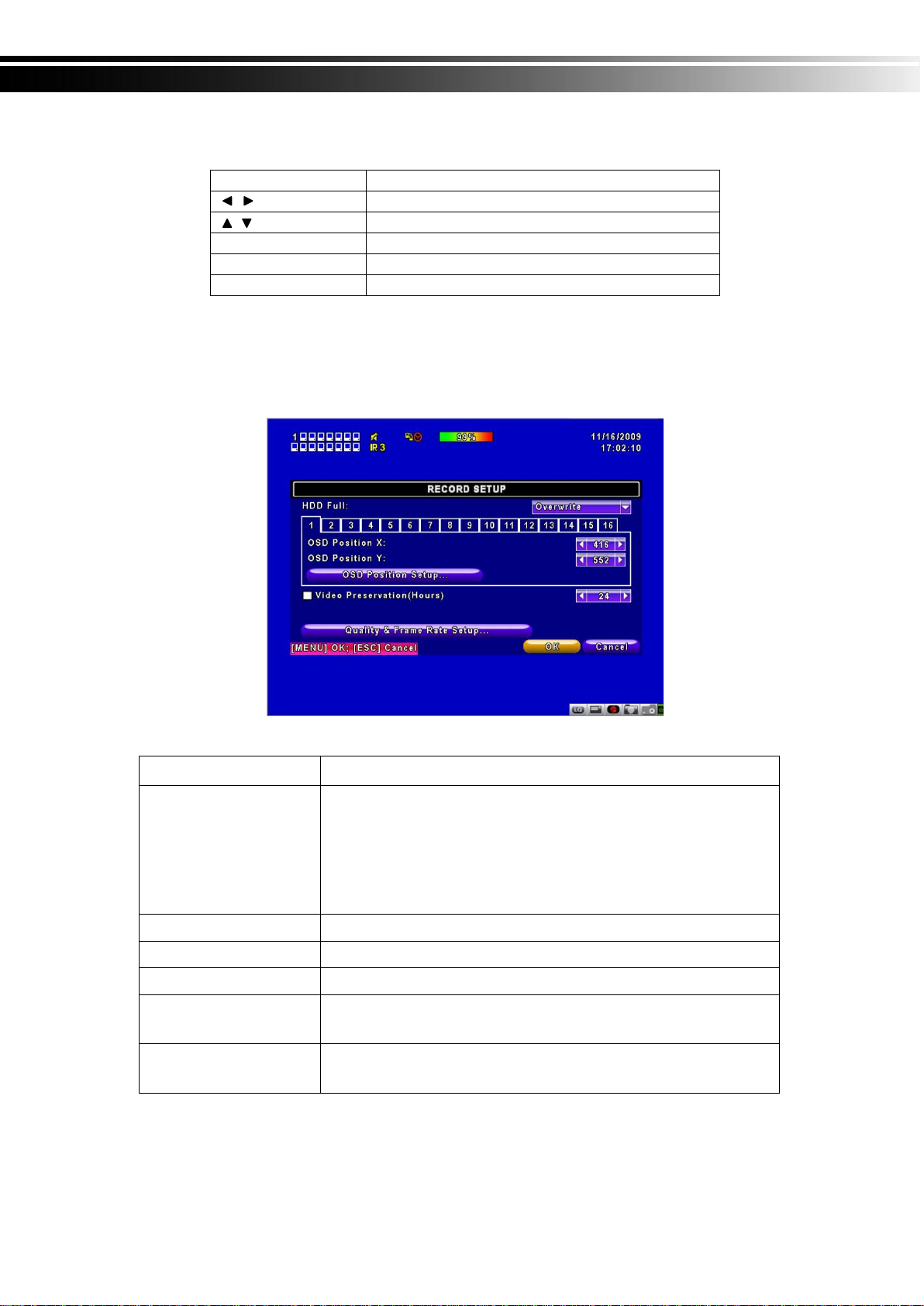

1-1 RECORD SETUP

Item

Description

HDD FULL

Select STOP to stop recording or OVERWRITE to reuse the

HDD when HDD is full

「Stop」： Stop Recording

「Overwrite」： Start to overwrite that begin from the oldest data

of HDD, and continue to record.

OSD position X

Setup OSD X axis

OSD position Y

Set up OSD y axis

OSD position setup

Set up OSD axis

Video Preservation

Setup the video preservation period. Recorded video will be

deleted automatically after expiry of preservation period.

Quality & Frame Rate

Setup

Setup the quality and frame rate for each channel under normal

recording and event recording type.

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

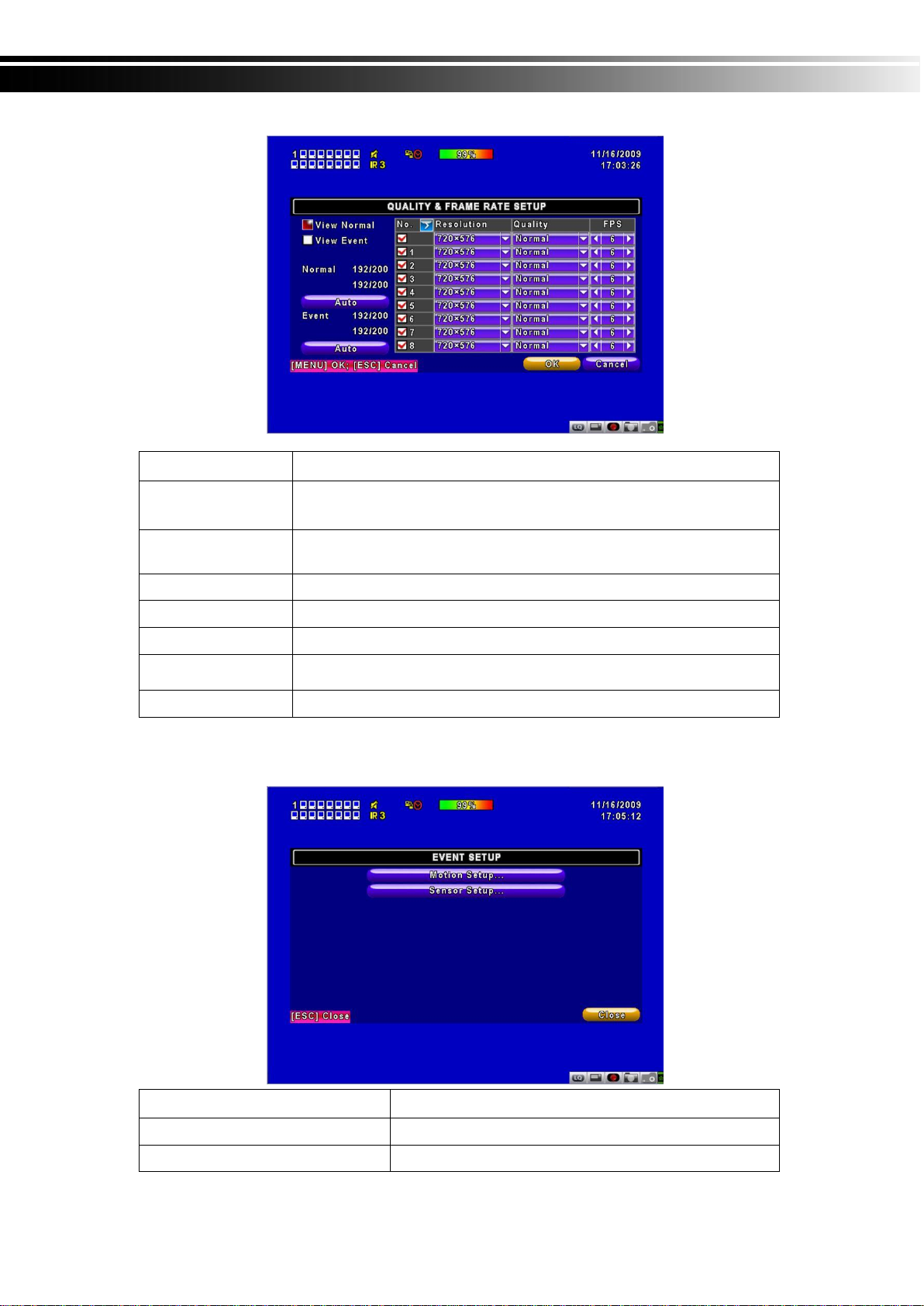

1-1.1 Quality & Frame Rate Setup

Item

Description

Normal setup/

event setup

Select recording mode

Resolution

Select recording resolution: NTSC:352x240, 704x240, 704x480

PAL:352X288,704X288,704X576

Record Type

You can setup quality and FPS separately for record type.

No.

Check/uncheck the box enable/disable selected channel recording

Quality

Select quality: Below Basic/ Basic/ Normal/ High/ Highest

FPS

Select recording frame rate.

(The number of sheets in accordance with the actual models)

Auto

Assign each channel with its maximum accessible fps

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-2 EVENT SETUP

Item

Description

Motion Setup

Enter to set up motion detection

Sensor Setup

Enter to set up sensor detection

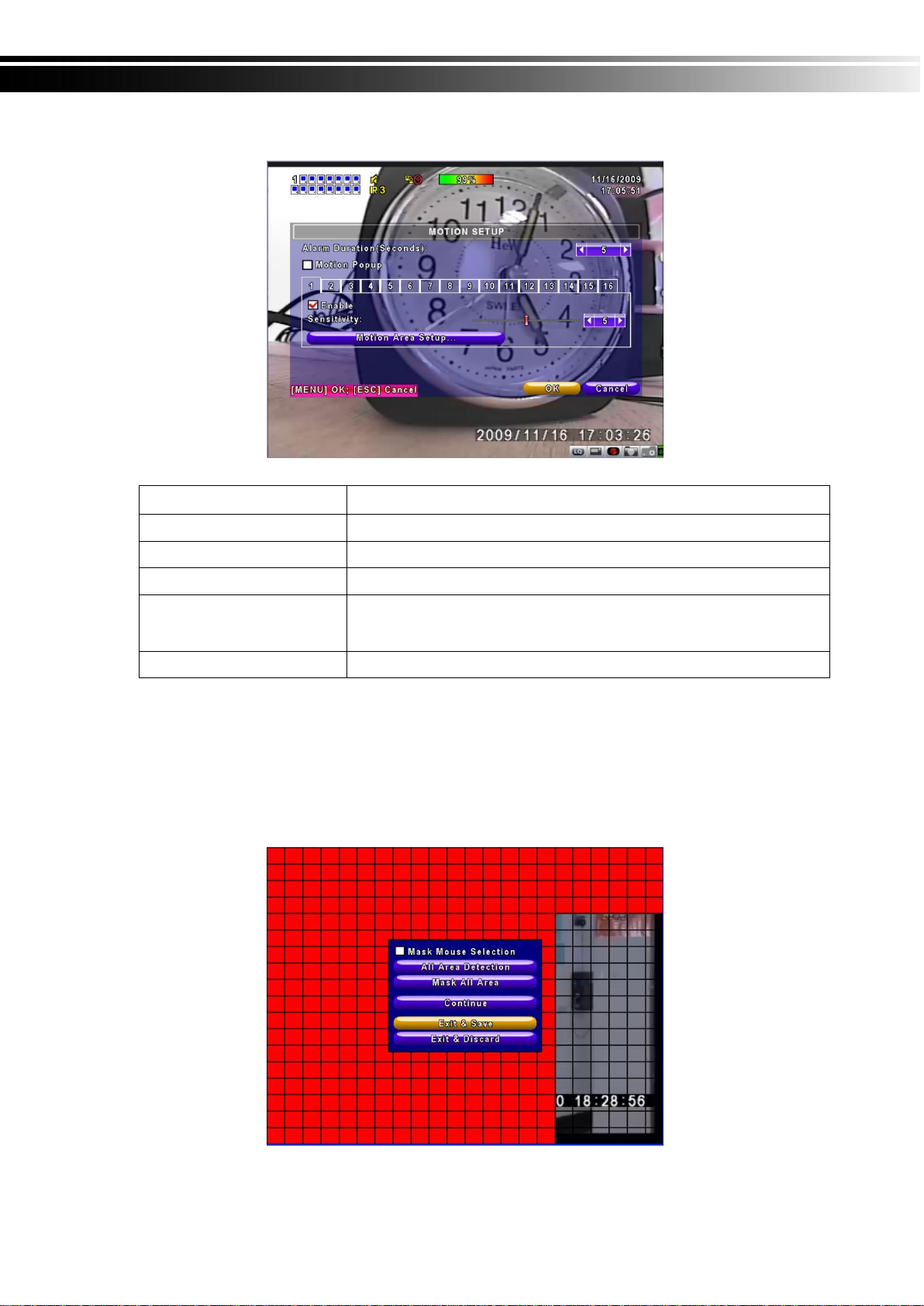

1-2.1 MOTION SETUP

Item

Description

Alarm Duration(Seconds)

When motion detect，the number of seconds continuous alarm

1~16

You can setup independently for each channel.

Enable

Check the box to Enable/Disable motion detection for each channel.

Sensitivity

Drag the white bar or press ◀▶to set up Sensitivity from

value 0 to 10 for each channel. The higher value you set the

higher sensitivity it will be.

Motion Area Setup

Enter to setup motion detection area

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-2.1.1 MOTION AREA SETUP

The motion detection has been divided into 22x18 grids. The default detection area is

full screen as it marked in transparent for local DVR and purple for remote access.

Areas deselected for motion detection are marked in red for both local and remote site.

Item

Description

Mask Mouse Selection

Switch between “select”and “deselect”for cursor-dragging function

All Area Detection

Select entire screen as detection area.

Mask All Area

Deselect entire detection area.

Continue

Continue setup

Exit & Save

Save setup and leave

Exit & Discard

Cancel setup and leave

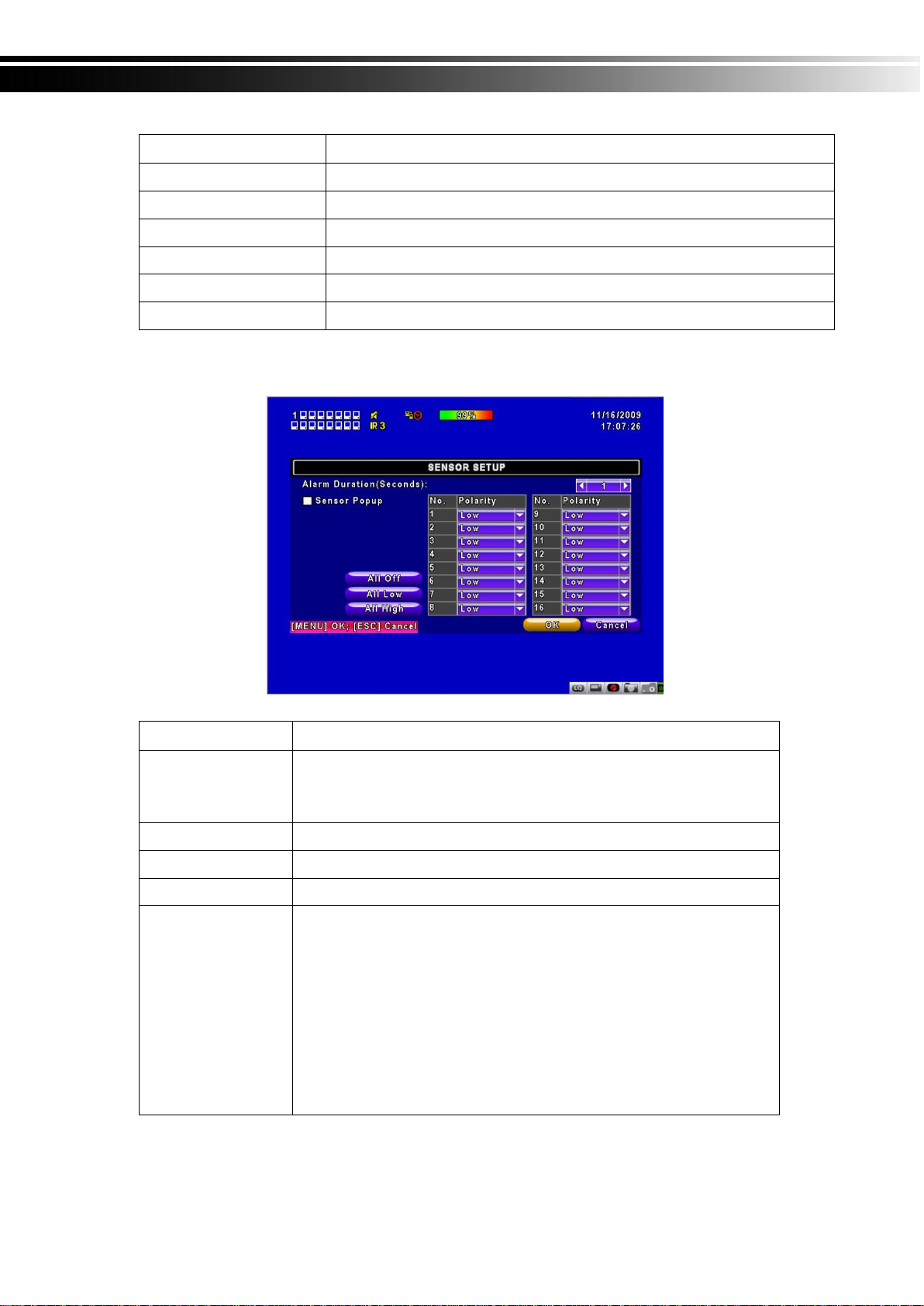

1-2.2 SENSOR SETUP

Item

Description

Sensor Popup

Check the box to Enable/Disable popup screen function for all

channels. When Sensor is detected in LIVE mode, the detected

channel image will pop up in full screen display.

All Off

Set all sensor off

All Low

Set all sensor polarity low

All High

Set all sensor polarity high

Sensor Polarity

Click or press ▼to select between HIGH, LOW voltage for

triggering sensor detection or OFF to turn off polarity for each

channel

Low Polarity：Sensor has not been triggered. When connected,

sensor will be turned on..

High Polarity：Sensor has been triggered. When connected, sensor

status will be turned off..

Off ：Sensor is deactivated, and will not be turned on/off.

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

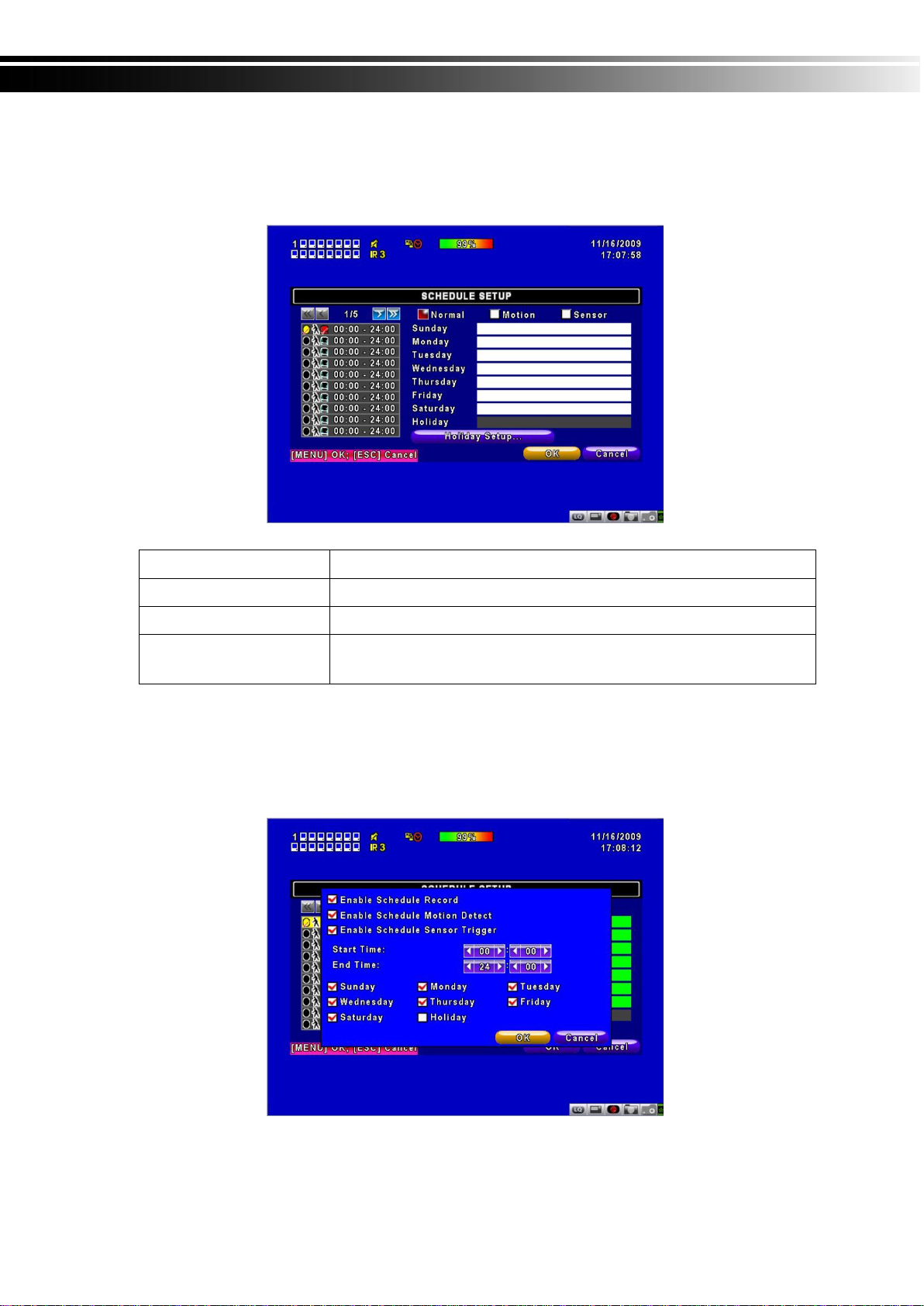

1-3 SCHEDULE SETUP

Except from starting recording manually, you can also setup the recording time by weeks

and schedule including normal, motion detect, and recording type.

Item

Description

Page

Each page provides 10 schedules for setup. 5 pages in total.

Holiday Setup

Enter to setup holiday, up to 50 days, other than weekends,.

View Event/ Motion/

Sensor Setup

View Normal/ Motion/Sensor

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

1-3.1 Schedule Record Setup

Click on the time on the left side. The setup menu will be displayed. You can have

detail setup by dates, Time and event.

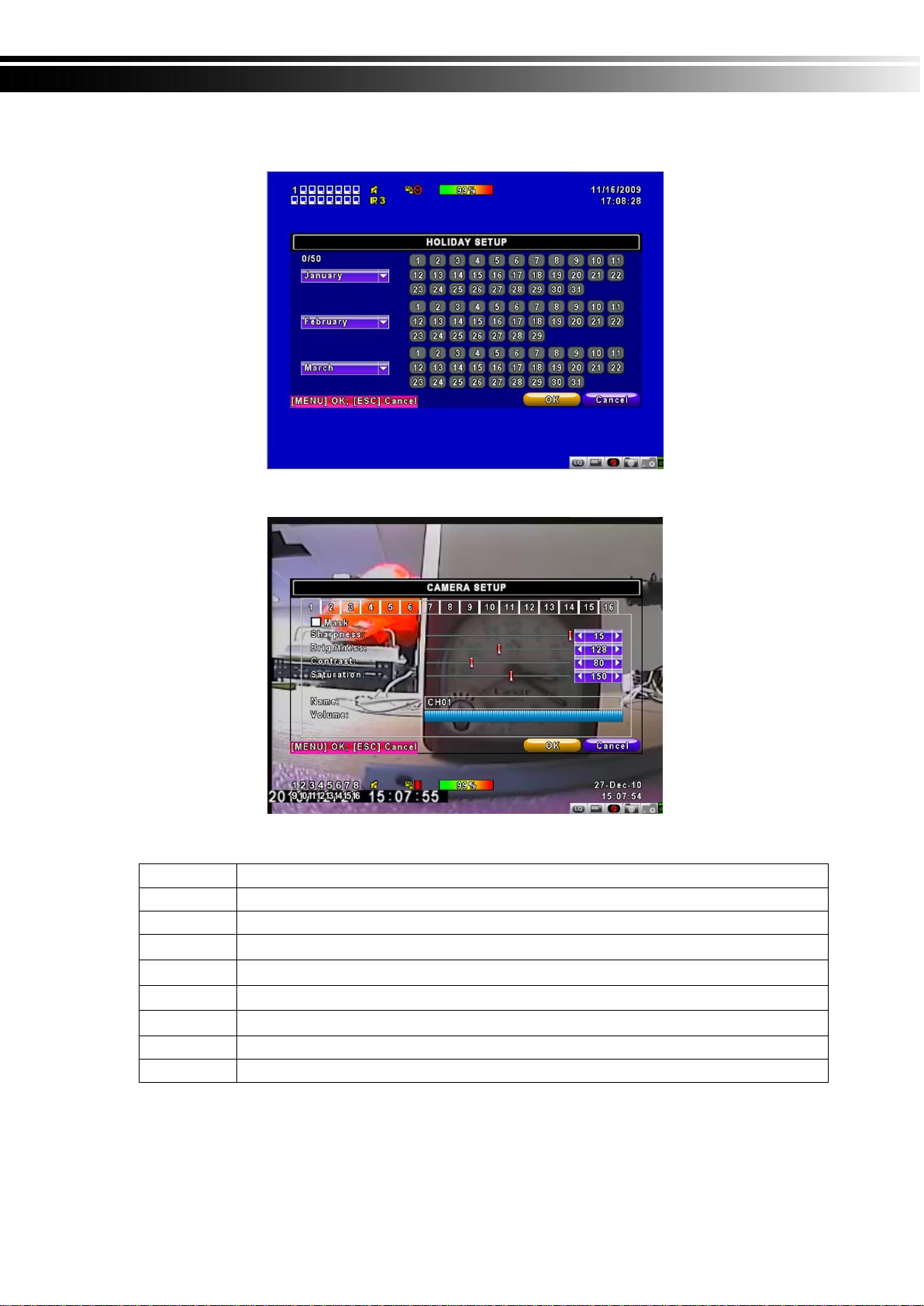

1-3.2 Holiday Setup

Since holidays are different by different country and region, you can setup the holiday of

your location accordingly.

1-4 CAMERA SETUP

Item

Description

1~16

You can setup independently for each channel.

Mask

Check the box to Enable/Disable mask function for LIVE mode

Sharpness

Drag the bar or press ◀▶to adjust Sharpness of your camera from value 0 to 15.

Brightness

Drag the bar or press ◀▶to adjust Brightness of your camera from value 1 to 255.

Contrast

Drag the bar or press ◀▶to adjust Contrast of your camera from value 1 to 255.

Saturation

Drag the bar or press ◀▶to adjust Saturation of your camera from value 1 to 255.

Name

Set up name of each channel

Volume

Audio volume under LIVE mode and recording mode can be adjusted.

Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels.

Table des matières

Autres manuels Securitytec DVR

Securitytec

Securitytec DS-8004HCI-S Manuel utilisateur

Securitytec

Securitytec DVRMP4 Manuel utilisateur

Securitytec

Securitytec DVR8MP4 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
