NEVADA 3 DRAWER BEDSIDE

ASSEMBLY INSTRUCTIONS

IMPORTANT

PLEASE READ BEFORE YOU CONTINUE FURTHER

CARE AND MAINTENANCE

PAGE 1

FOR DOMESTIC USE ONLY

05/20/SP

Part Number Part Code Part Description Quantity Carton

1 100-103-059-SP1-01 Le Side anel/RED 1 1/1

2 100-103-059-SP1-02 Right Side Panel/BLUE 1 1/1

3 100-103-059-SP1-03 Back Baseboard 1 1/1

4 100-103-059-SP1-04 Front Baseboard 1 1/1

5 100-103-059-SP1-05 Top Panel 1 1/1

6 100-103-059-SP1-06 Back Panel 1 1/1

7 100-103-059-SP1-07 Drawer Side/BLUE 6 1/1

8 100-103-059-SP1-08 Drawer Back Panel/RED 3 1/1

9 100-103-059-SP1-09 Drawer Front 3 1/1

10 100-103-059-SP1-10 Drawer Botom 3 1/1

PAGE 2

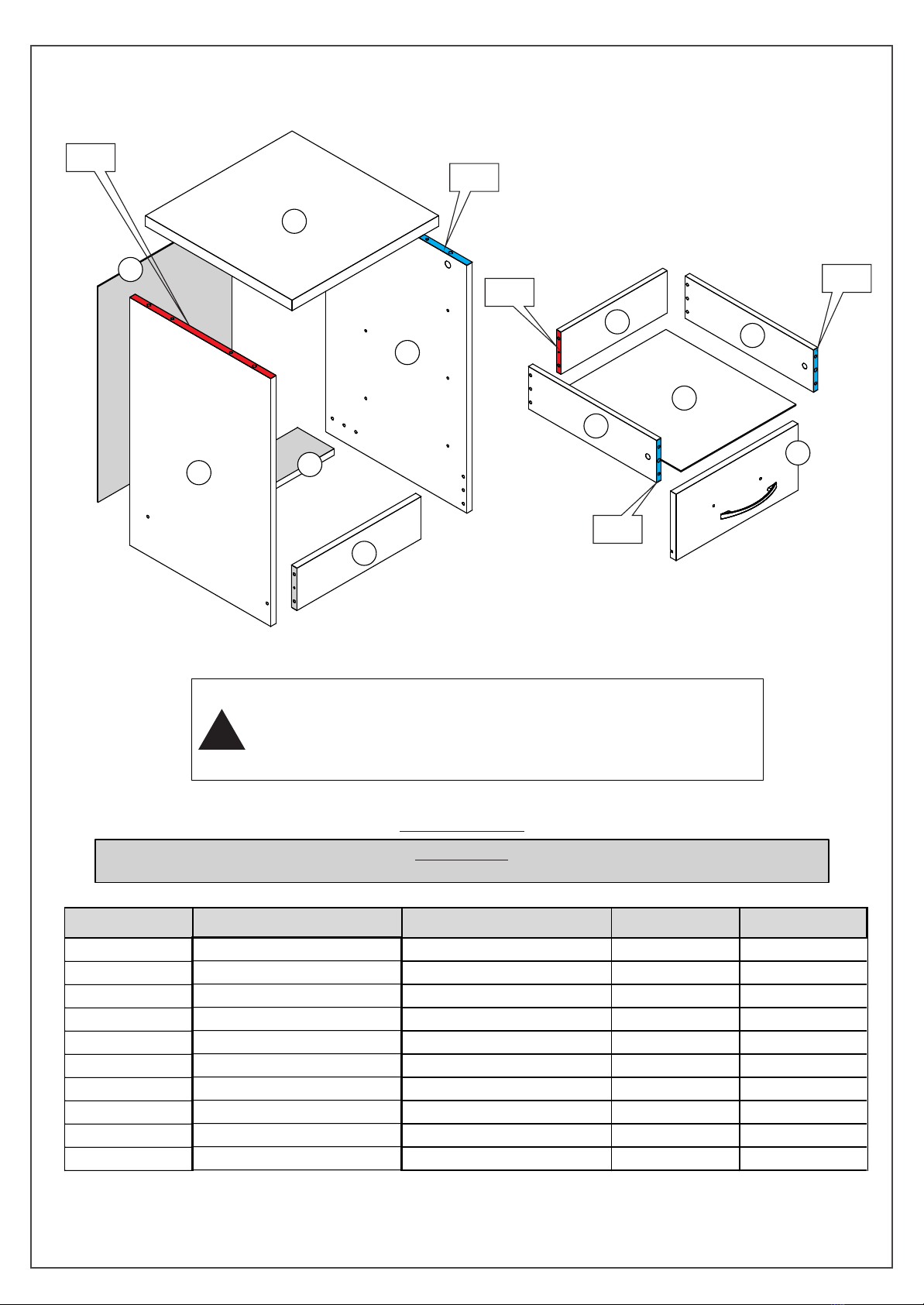

PARTS LIST

The below highlighted parts have been number/colour coded to help identify them during assembly.

Please Note:

* Use of power tools to assemble this product will invalidate any claim and damage this

product making it unsafe !!!

* Please assemble on a clean soft surface to avoid damage.

* Please check contents and read the instructions before commencing assembly.

* Assemble this product following the enclosed instructions carefully.

* Please take care to avoid damaging panels during assembly.

RED

BLUE

RED

BLUE

05/20/SP

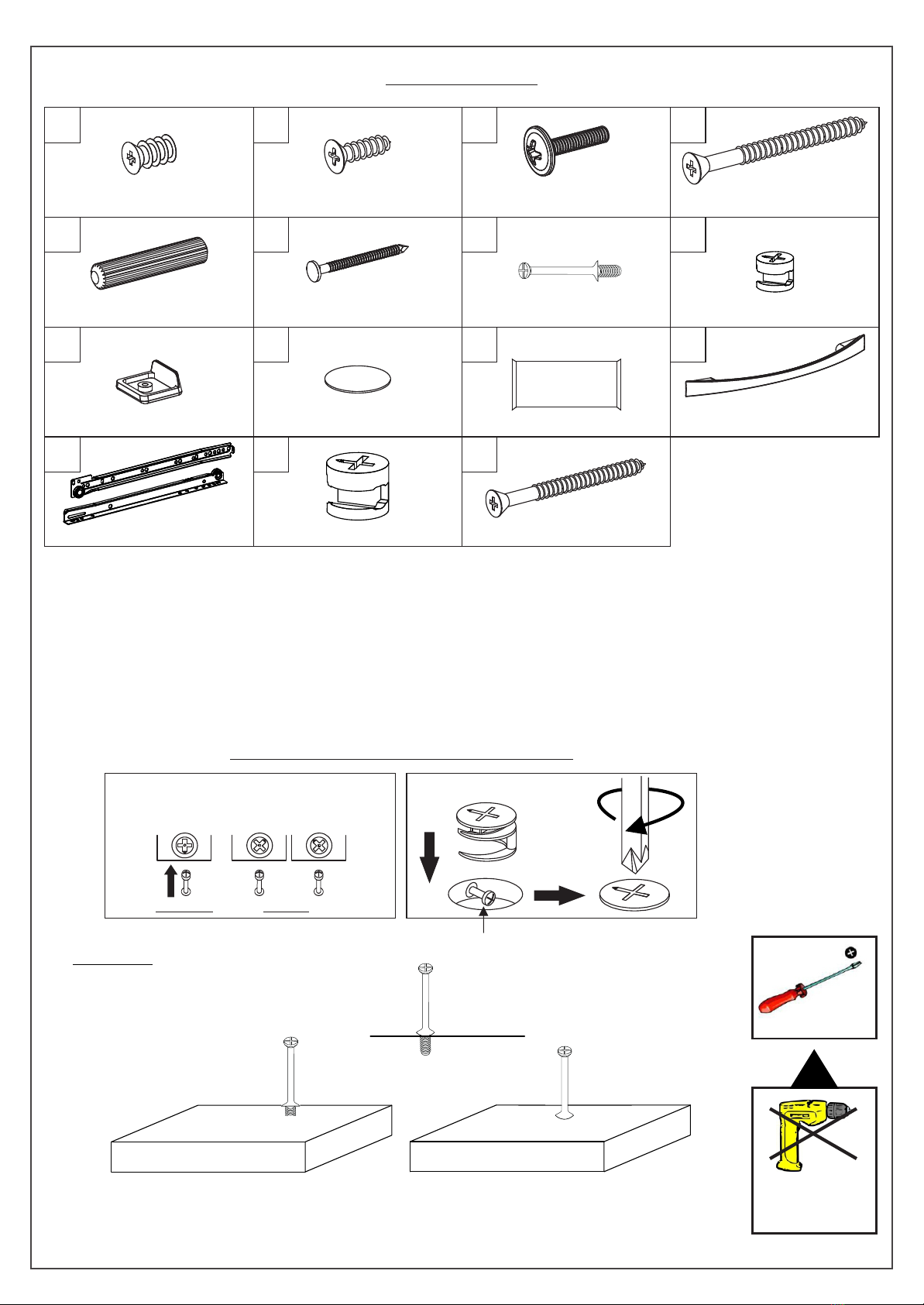

FITTINGS LIST

A B C D

E F G H

I J K L

Drawer Runners (3x)

Cam Bolt (10x)

USE

DO NOT

USE

TIPS FOR FITTINGS CAM-LOCKS

WHEN FITTING CAM NUT. ENSURE STARTING

POSITION IS CORRECT BEFORE YOU INSERT

CONNECTING CAM BOLT TURN CLOCKWISE UNTIL

SECURE

CORRECT WRONG

Cam bolt head needs to be in centre

CAMBOLT

Tighten until shoulder in ﬂush with

panel. Do not overtighten or

undertighten (see example below) Shoulder

Panel Panel

Flat Head Screw

Ø6,0 x 10mm (12x)

Flat Head Screw

Ø3,5 x 14mm (18x)

Flan Head Screw

ØM4X20mm (6x)

Flat Head Screw

Ø4,0 x 50mm (4x)

Ø3,5 x 40mm (6x)

Dowel Ø6,0 x 30mm (36x) Nail 1,8x23 (42x) Cam Nut Ø12mm (6x)

Plastic Foot (4x) Hole Plugs (10x) Glue (1x) Handle (3x)

Glue

Cam Nut Ø15mm (4x)

PAGE 3

+/2 +/2 +/1 +/2

+/2

+/2 +/2 +/2 +/1

+/1 +/2

+/1

05/20/SP

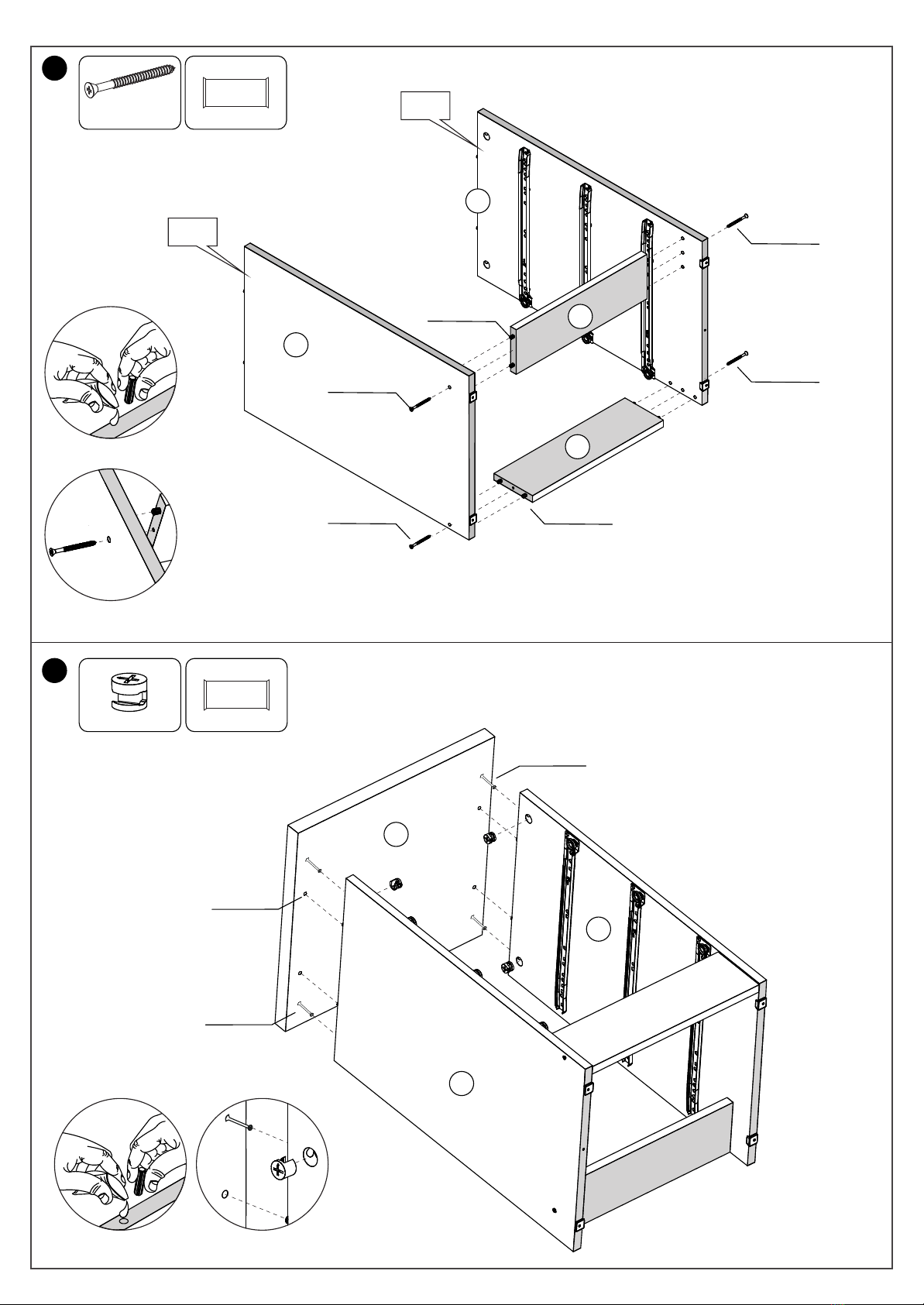

Detail 1

Detail 5

Detail 1

Detail 4

Detail 5

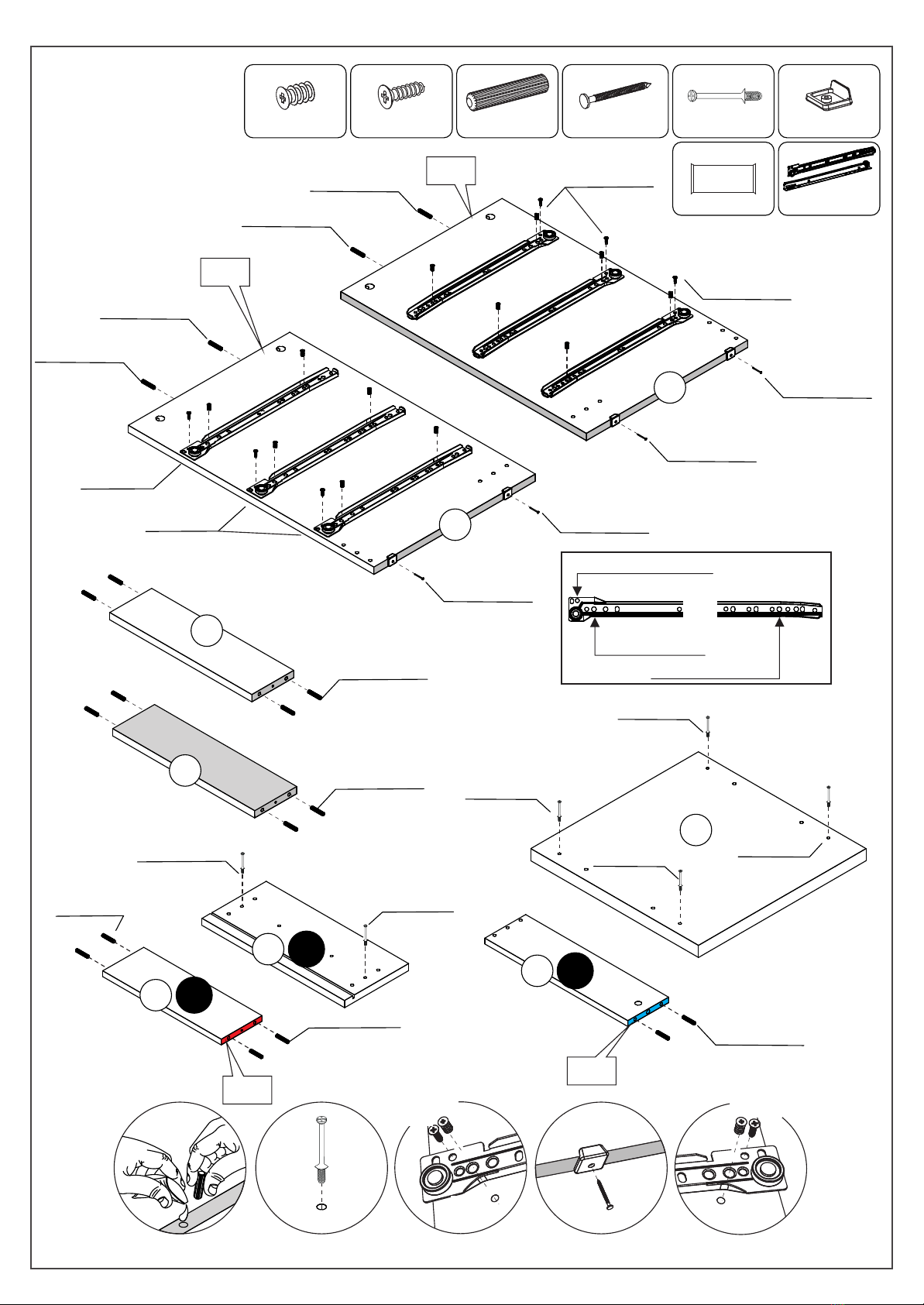

Pre-Assembly

M-Drawer

Runners (3x)

Glue

K-Glue

A-Flat Head Screw

Ø6,0 x 10mm (12x)

E-Dowel

Ø6,0 x 30mm (36x) F-Nail 1,8x23 (4x) I-Plastic Foot (4x)

Detail 4

Detail 5Detail 1

E+K

Detail 2

G-Cam Bolt (10x)

B-Flat Head Screw

Ø3,5 x 14mm (6x)

Detail 1

Detail 4

Detail 3

Detail 1

Detail 4

Detail 3

PAGE 4

UP SECOND HOLE

SECOND HOLE

LAST FIFTH HOLE

Detail 2

Detail 1

Detail 2

Detail 1

Detail 3

RED

BLUE

RED

05/20/SP

N-Cam Nut (4x)

Detail 7

Glue

K-Glue

Detail 1

E+K

Detail 1

PAGE 5

Detail 7

Detail 1

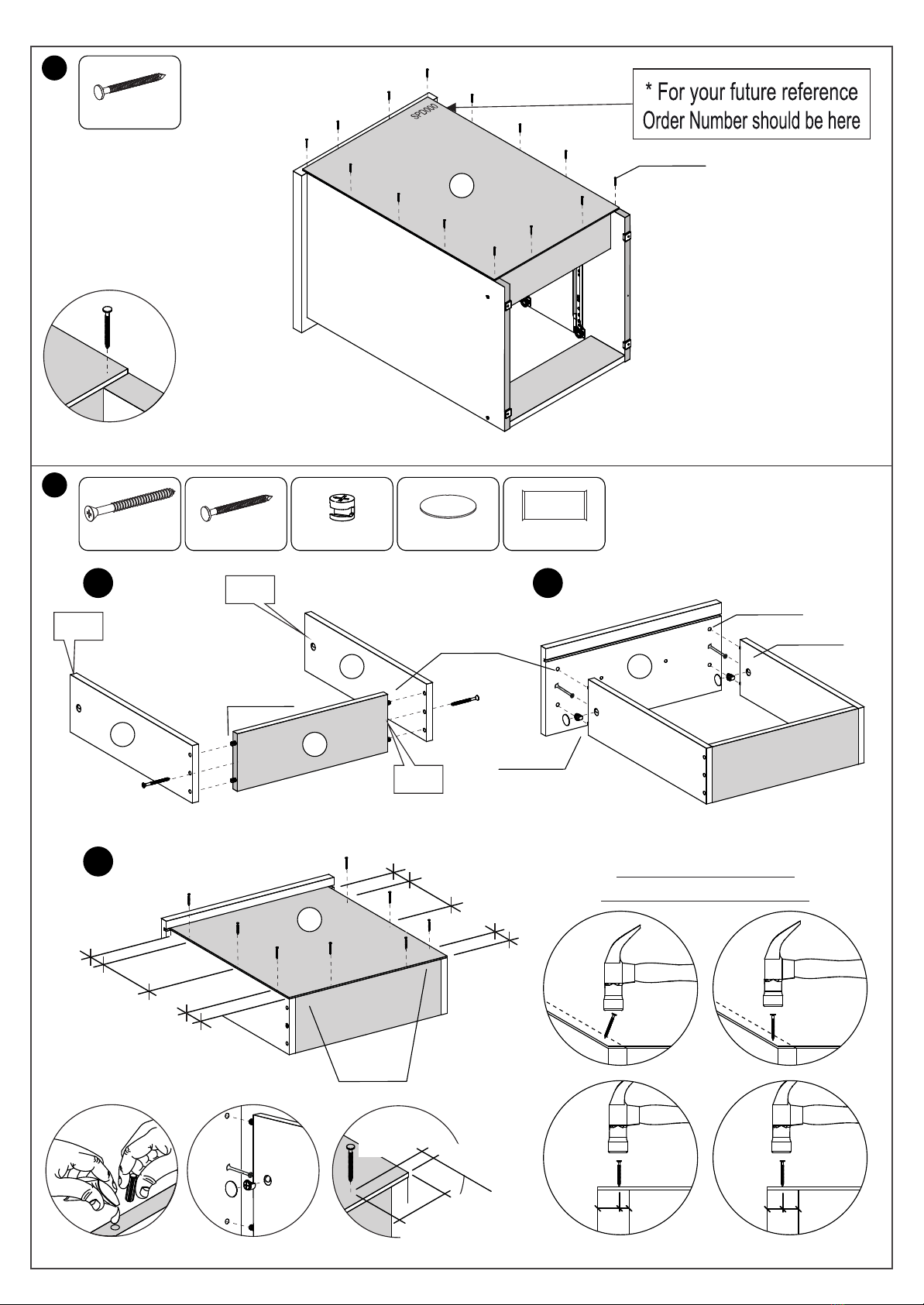

E+K

D-Flat Head Screw

Ø4,0 x 50mm (4x)

Detail 6

Glue

K-Glue

Detail 1

Detail 6

Detail 1

RED

BLUE

05/20/SP

F-Nail 1,8x23 (24x) H-Cam Nut (6x) J-Hole Plugs (6x)

Glue

K-Glue

O-Flat Head Screw

Ø3,5x40mm (6x)

1º 3x

2º

3º

Detail 9

Detail 1

F-Nail 1,8x23 (14x)

Detail 8

PAGE 6

Detail 1

E+K

Detail 9

Detail 10

Detail 8

FFF

Detail 10

X=117mm

Y=60mm

90mm

6mm

6 6

10 2

TIPS FOR FIXING

DRAWER BOTTONS

RED

BLUE

05/20/SP

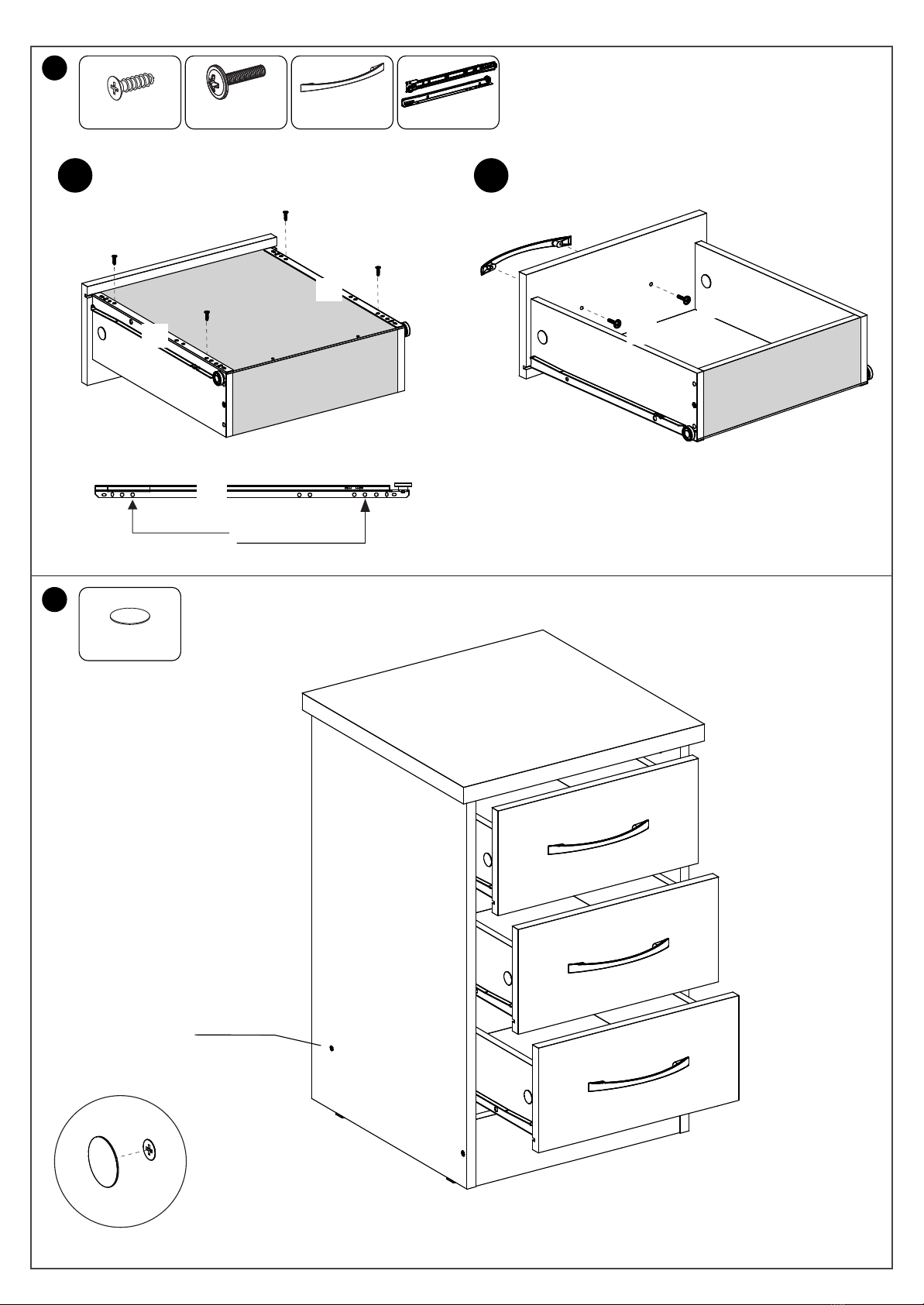

L-Handle (3x)

C-Flan Head Screw

ØM4X20mm (6x)

PAGE 7

Detail 11

J-Hole Plugs (4x)

Detail 11

5º

4º

FOURTH HOLE LAST FOURTH HOLE

BFlat Head Screw-

Ø3,5 x 14mm (12x)

M-Drawer

Runners (3x)
