Sears 790.42732404 Manuel

42732400.eps L21C0011-1.eps L21T0008.eps 318046807-1.eps 318046807-2.eps

REPAIR

PARTS

LIST

790.42732404

790.42734404

790.42739404

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

ELECTRIC COOK-TOP RANGE

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Publication number 5995552337

790.4273

09/09 2

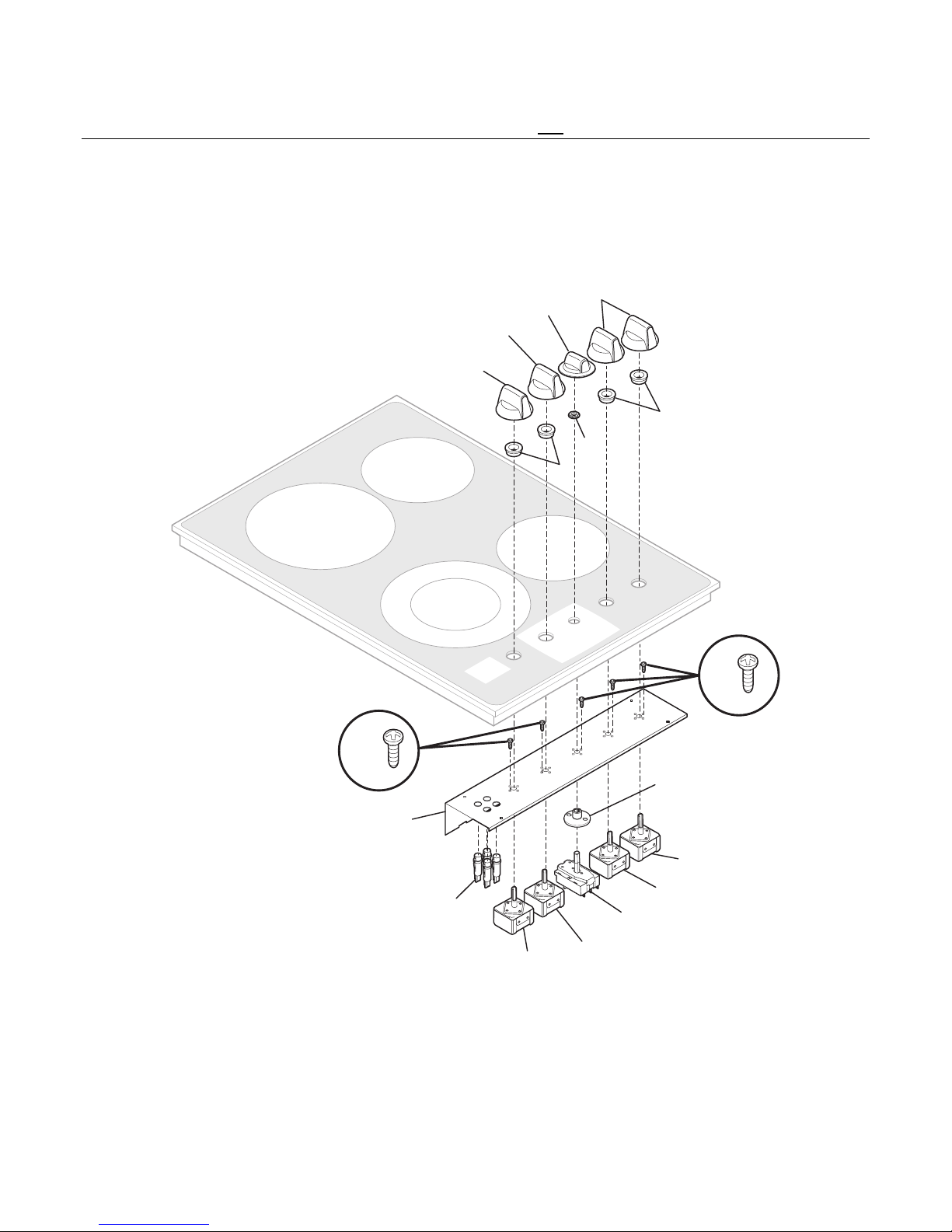

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

L21C0011-1

74A

54C

54B

54A

36A

790.4273

# Functional Parts 3 09/09

* Non-Illustrated Parts

CONTROL PANEL

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A790.4273 (790.42732404)

B790.4273 (790.42734404)

C790.4273 (790.42739404)

POS. NO PART NO. DESCRIPTION

16 318096330 A B C Box, instrument mtg

* 5303323130 A B C Screw, 8 x 1/4, (6)

35 5304400795 A B C Bushing, snap-in, nylon

36 318921100 A - - Knob, control, white, (4)

36 318921127 - B - Knob, control, bisque, (4)

36 318921101 - - C Knob, control, black, (4)

36A 318549000 A - - Knob-on-off, white

36A 318549001 - B - Knob-on-off, bisque

36A 318549002 - - C Knob-on-off, black

51 # 318044830 A B - Light, indicator, natural, (5)

51 # 318044827 - - C Light, indicator, clear

54 # 318293824 A B C Switch, surface element, small

54A# 318191003 A B C Switch, infinite, dual

54B# 318120505 A B C Switch, surface unit, small/large

54C# 318282400 A B C Switch, selector

69 5303323134 A B C Screw, 8-32 x 3/16, (8)

74 318148900 A B C Bushing, switch

74A 318146010 A B C Bushing, switch

* # 318052595 A B C Wire harness, pilot light

* 5995552337 A B C Repair Parts List

* 318203632 A B C Owners Manual

* 318205409 A B C Installation Instructions

* 318046807 A B C Wiring Diagram

790.4273

09/09 4

MAIN TOP/SURFACE UNITS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4273

# Functional Parts 5 09/09

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

CAUTION: Use the Kenmore part number to order part, not the illustration number.

Model Index: A790.4273 (790.42732404)

B790.4273 (790.42734404)

C790.4273 (790.42739404)

POS. NO PART NO. DESCRIPTION

2 318235712 A B C Foil, aluminum

15 # 318198830 A B C Element, surface, 6", 1200W, (2), radiant

15A# 316465001 A B C Element, surface, 6"/9", 1400/3000W, radiant

15B# 316418401 A B C Element, dual, 9"/6", surface, 1300W/1200W, (2), radiant

16 318358800 A - - Main Top Assy, glass/steel, enamel, white, 16

16 318358801 - B - Main Top Assy, glass/steel, enamel, bisque, 16

16 318358802 - - C Main Top Assy, glass/steel, enamel, black, 16

20 318121902 A B C Bracket, retainer

* 5303300265 A B C Screw, 8-18 X 1/2, silver, (4)

23 318194705 A B C Panel, service, black

* 5303307980 A B C Screw, 8-32 x 0.437, (8)

46 318077235 A B C Burner Box

52 318122006 A B C Spring, element mtg, small

52A 318122010 A B C Spring, element mtg, 3000W

150 318106050 A B C Insulation, 2 x 8, (9)

159 318125126 A B C Deflector

162 318161402 A B C Deflector

163 318531702 A B C Spacer, (6)

170 318124911 A B C Screen, thermal

* # 318199449 A B C Harness, wiring, main

* 318231847 A B C Harness, wiring, limiter

* # 318078571 A B C Box & wires assy

* 316112100 A B C Cleaner, glass

* 316459400 A B C Pad, cleaning

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303323140 A B C Screw, ground, 10-32 x 0.375

790.4273

09/09 6

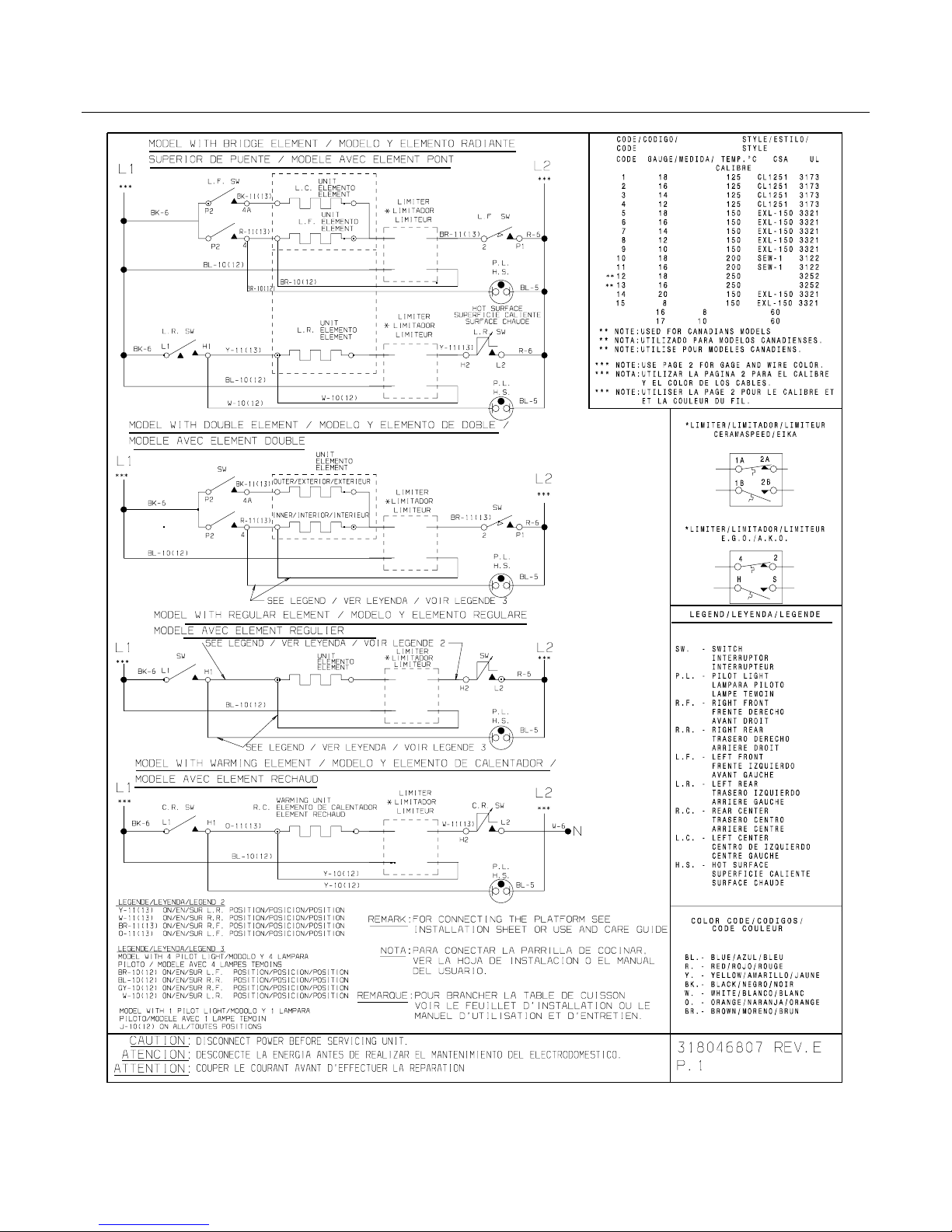

WIRING DIAGRAM

790.4273

# Functional Parts 7 09/09

* Non-Illustrated Parts

WIRING DIAGRAM
