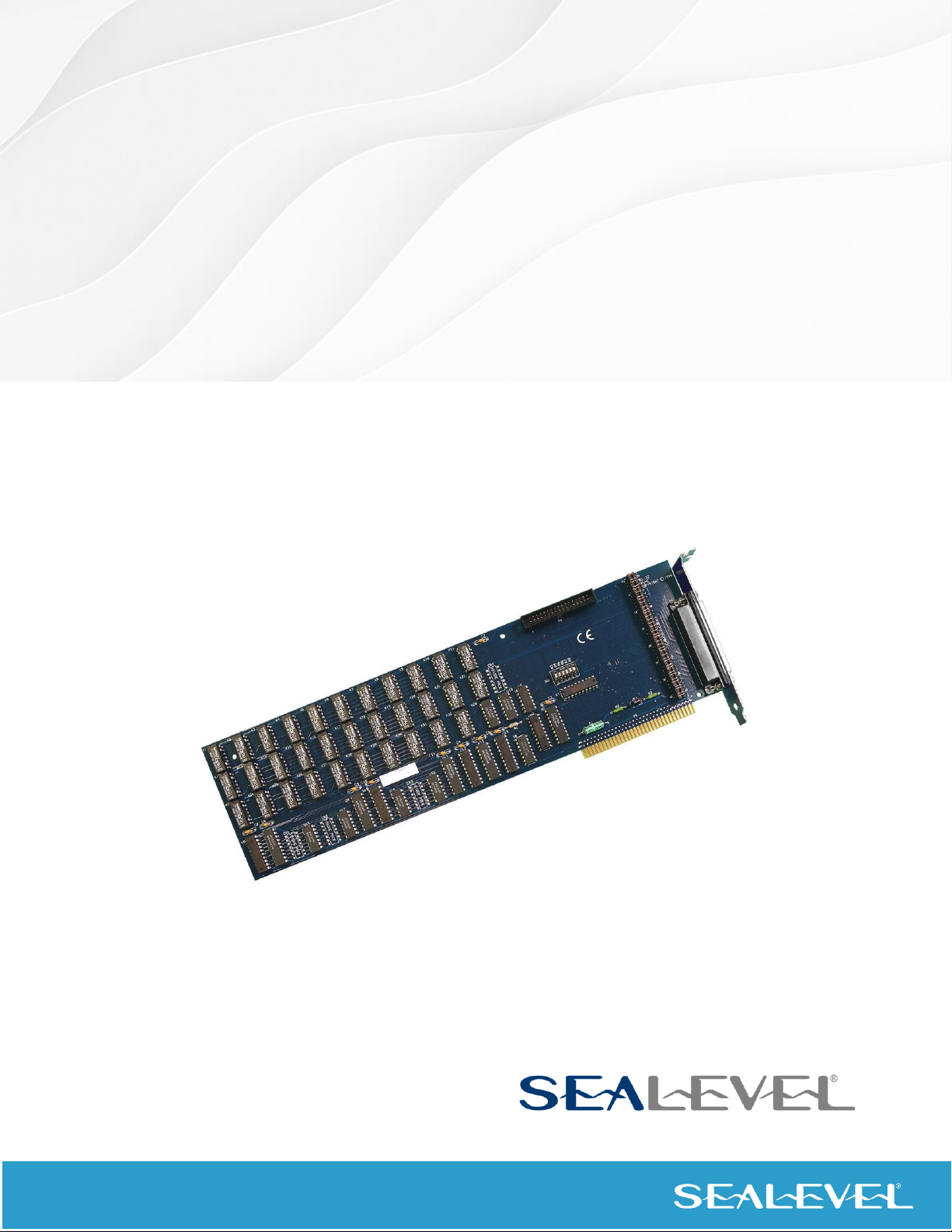

SeaLevel REL-32 Manuel utilisateur

REL-32

User Manual | 3098

Contents

CONTENTS............................................................................................................................................................................................................................2

INTRODUCTION...................................................................................................................................................................................................................3

BEFORE YOU GET STARTED..............................................................................................................................................................................................4

CARD SETUP........................................................................................................................................................................................................................6

INSTALLATION.....................................................................................................................................................................................................................9

PROGRAMMING THE REL-32.........................................................................................................................................................................................12

ELECTRICAL CHARACTERISTICS...................................................................................................................................................................................19

SPECIFICATIONS...............................................................................................................................................................................................................20

EXAMPLE CIRCUITS .........................................................................................................................................................................................................21

APPENDIX A –TROUBLESHOOTING.............................................................................................................................................................................22

APPENDIX B –HOW TO GET ASSISTANCE..................................................................................................................................................................23

APPENDIX C –SILK SCREEN –3098 PCB .................................................................................................................................................................24

APPENDIX D –COMPLIANCE NOTICES........................................................................................................................................................................25

WARRANTY ........................................................................................................................................................................................................................26

Introduction

Overview

The REL-32 provides 32 reed relays that can switch power, data, or other electronic signals for control

applications. The outputs provide high quality, long life, low current (10 Watt maximum), dry contact switch

closures. Reed relays are well suited for low current applications. The relays are normally open and will

close when energized.

The REL-32 is designed to be used with a variety of Operating Systems including Windows

98/NT/ME/2000/XP, Linux, and DOS. The SeaI/O API (Application Programmer Interface) included on CD

with the REL-32 provides a variety of useful high-level function calls implemented as a Windows dynamic

link library (DLL) and as a Linux kernel module and library. In addition to the API, SeaI/O includes sample

code and utilities to simplify software development.

Other Sealevel ISA Digital I/O Products

Model No.

Part No.

Description

DIO-16

(P/N 3096)

- 8 Reed Relay Outputs / 8 Opto-Isolated Inputs

ISO-16

(P/N 3094)

- 16 Optically Isolated Inputs

REL-16

(P/N 3095)

- 16 Reed Relay Outputs

DIO-32B

(P/N 3093)

- 16 Reed Relay Outputs / 16 Opto-Isolated

Inputs

PIO-48

(P/N 4030)

- 48 TTL Inputs/Outputs

Before You Get Started

What’s Included

The REL-32 is shipped with the following items. If any of these items is missing or damaged, please

contact Sealevel for replacement.

•REL-32 Adapter

•CA1752 6’ DB78M to dual DB37M Cable

Advisory Conventions

Warning

The highest level of importance used to stress a condition where damage could result to the

product, or the user could suffer serious injury.

Important

The middle level of importance used to highlight information that might not seem obvious or a

situation that could cause the product to fail.

Note

The lowest level of importance used to provide background information, additional tips, or other

non-critical facts that will not affect the use of the product.

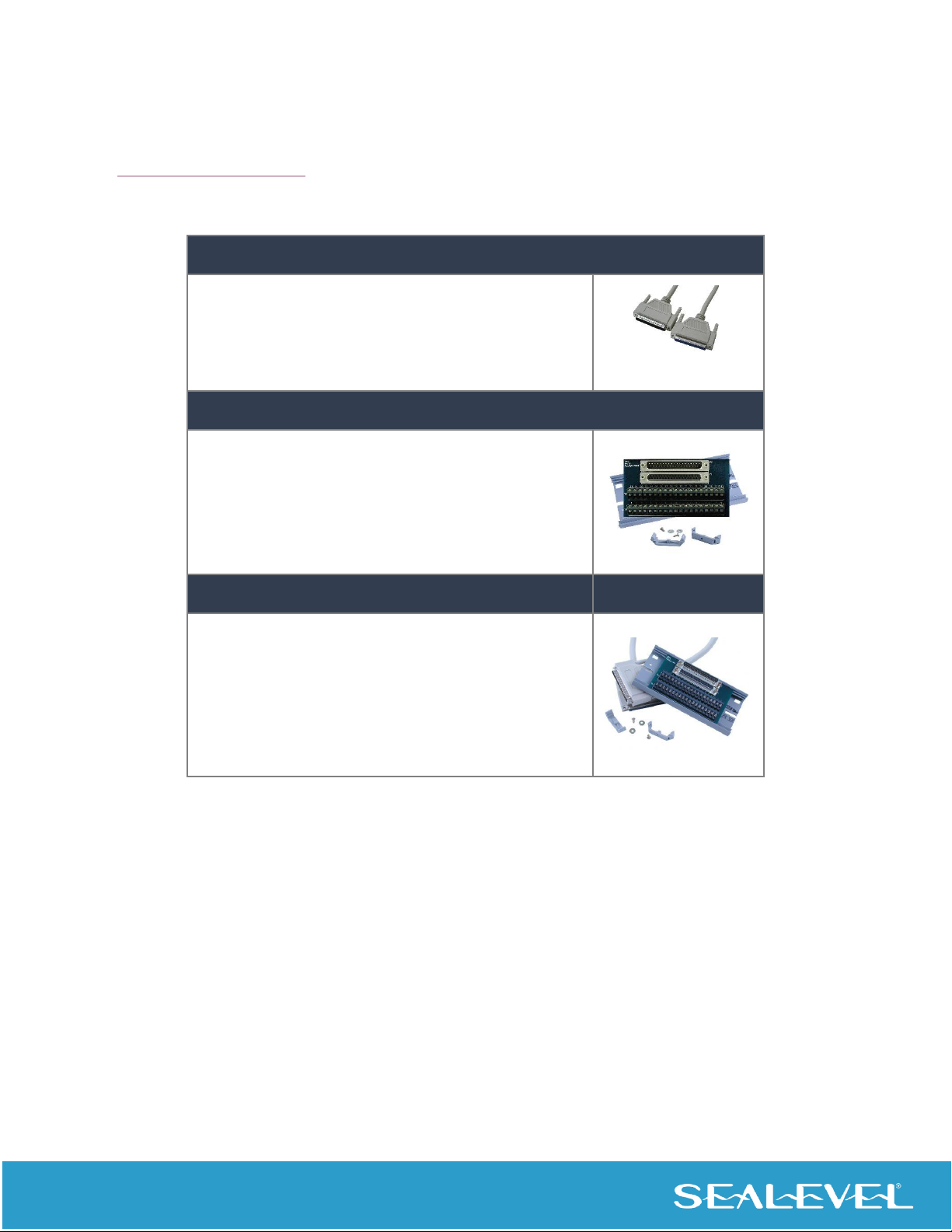

Optional Items

Depending upon your application, you are likely to find one or more of the following items useful for

interfacing the REL-32 to real-world signals. All items can be purchased from our website

(https://www.sealevel.com/) or by calling (864) 843-4343.

DB-37 Male to DB-37 Female 6’Extension Cable (Item# CA112)

The CA112 is a cable that extends the DB-37 connector

on the CA172 cable an additional six feet and is pinned

one-to-one.

DB-37 Male/Female Terminal Block (Item# TB02-KT)

Break out serial and digital connectors to 37 screw

terminals for easy field connection. The TB02 terminal

block is designed with both DB-37 male and female

connectors, therefore; it can be used with any DB-37

board regardless of the board’s port gender.

Cable and Terminal Block Kit (Item# KT101)

For convenient and easier ordering, the KT101

includes the TB02-KT terminal block and CA112

cable in a single kit.

Card Setup

The REL-32 contains several jumper straps for each port that must be set for proper operation.

Address Selection

The REL-32 occupies 4 consecutive I/O locations. The DIP-switch (SW1) is used to set the base address

for these locations. Be careful when selecting the base address as some selections conflict with existing

PC ports. The following table shows several examples that usually do not cause a conflict.

Address

Binary

Switch Settings

280-283

000010

Off

288-28A

100010

Off

2A0-2A3

010100

Off

328-32B

100101

Off

330-333

100110

Off

Address Selection Table

The following illustration shows the correlation between the DIP-switch setting and the address bits used

to determine the base address. In the example below, address 300 is selected as the base address. Address

300 in binary is XXX 100000 XXX where X = a non-selectable address bit and address bit A9 is always a 1.

DIP - Switch Illustration

Setting the switch ‘On’ or ‘Closed’ corresponds to a ‘0’ in the address, while leaving it ‘Off’ or ‘Open’

corresponds to a ‘1’.

Options Header

Function

Switch 1B

Common 1

Switch 1A

Switch 2B

Common 1

Switch 2A

Switch 3B

Common 1

Switch 3A

Switch 4B

Common 1

Switch 4A

Switch 5B

Common 1

Switch 5A

Switch 6B

Common 1

Switch 6A

Switch 7B

Common 1

Switch 7A

Switch 8B

Common 1

Switch 8A

Switch 9B

Common 2

Switch 9A

Switch 10B

Common 2

Switch 10A

Switch 11B

Common 2

Switch 11A

Switch 12B

Common 2

Switch 12A

Switch 13B

Common 2

Switch 13A

Switch 14B

Common 2

Switch 14A

Switch 15B

Common 2

Switch 15A

Switch 16B

Common 2

Switch 16A

Switch 17B

Common 3

Switch 17A

Switch 18B

Common 3

Switch 18A

Switch 19B

Common 3

Switch 19A

Switch 20B

Common 3

Switch 20A

Switch 21B

Common 3

Switch 21A

Switch 22B

Common 3

Switch 22A

Switch 23B

Common 3

Switch 23A

Switch 24B

Common 3

Switch 24A

Switch 25B

Common 4

Switch 25A

Switch 26B

Common 4

Switch 26A

Switch 27B

Common 4

Switch 27A

Switch 28B

Common 4

Switch 28A

Switch 29B

Common 4

Switch 29A

Switch 30B

Common 4

Switch 30A

Switch 31B

Common 4

Switch 31A

Switch 32B

Common 4

Switch 32A

GND

Common 1

5V/12V

GND

Common 2

5V/12V

GND

Common 3

5V/12V

GND

Common 4

5V/12V

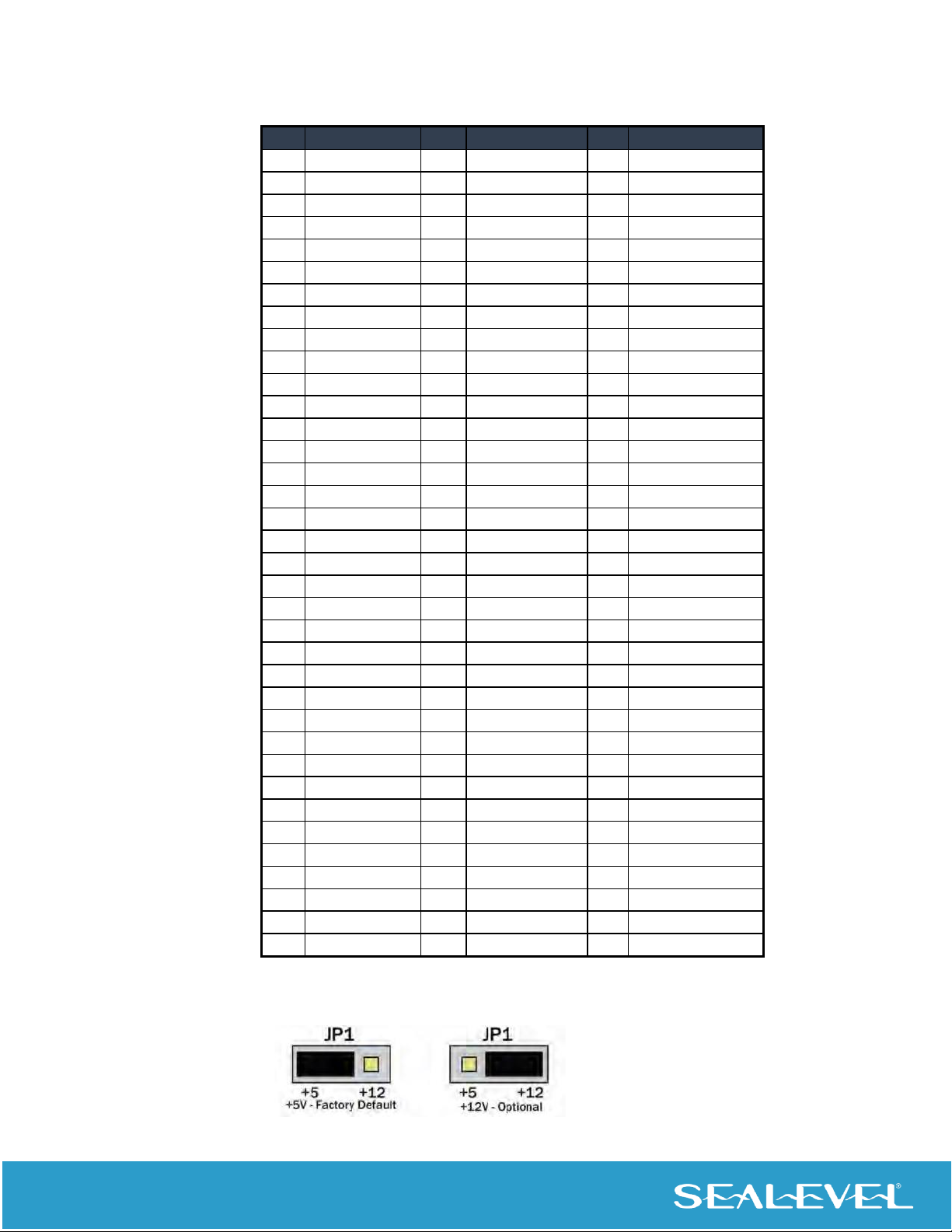

Header JP1

Optional Header, Continued

IRQ Header E2

Header JP1 provides a means of connecting +5 VDC and +12 VDC from the PC bus to the Options

Header. The center pin of this header is connected to P3 pins 3336.

Optional Cable Connector P4

Discrete access to both sides of all relays is provided by attaching the optional cable (CA-108) to pin header

P4 with the colored edge of the ribbon cable attached to pin one. Removing all the jumpers connecting row

P1 to P2 places the A-side of each relay at the on-board DB-37 and the B-side at the optional cable’s DB-37.

Installation

Software Installation

Windows 98/ME/NT/2000/XP Installation

Do not install the Adapter in the machine until the software had been fully installed.

For Windows Users

1. Begin by locating, selecting, and installing the correct software from the Sealevel software driver

database.

2. Select the Part Number (3098) for your device from the listing.

3. Click the ‘Download Now’ button. The SeaIO software is available for Windows and Linux.

4. The setup file will automatically detect the operating environment and install the proper

components.

5. A screen may appear with the declaration: “The publisher cannot be determined due to the

problems below: Authenticode signature not found.” Please select the ‘Yes’ button and proceed

with the installation. This declaration simply means that the Operating System is not aware of the

driver being loaded. It will not cause any harm to your system.

6. During setup the user may specify installation directories and other preferred configurations. This

program also adds entries to the system registry that are necessary for specifying the operating

parameters for each driver. An uninstall option is also included to remove all registry/INI file entries

from the system.

To confirm that the SeaIO driver has been successfully installed, click on the ‘Start’ button, and then

select ‘All Programs’. You should see the ‘SeaIO’ program folder listed.

You are now ready to proceed with connecting the 3098 to your system. Refer to the Hardware

Installation section for details.

Windows NT Card Installation: After accomplishing the above steps, bring up the Control Panel

and double-click on the SeaIO Devices icon. To install a new card, click “Add Port”. Repeat this

procedure for as many SeaIO cards as you wish to install.

Installation, Continued

Other Operating Systems

Refer to the appropriate section of the Serial Utilities Software.

You MUST have “root”privileges to install the software and drivers.

LINUX INSTALLATION

Refer to Linux Archives - Sealevel. This link contains valuable information on installing your serial

adapter in the various Linux releases. Also included is a series of files explaining proper Linux syntax and

typical Linux serial implementations.

For additional software support, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our

technical support is free and available from 8:00AM-5PM Eastern Time, Monday through Friday. For

email support contact: mailto:sup[email protected]om.
