Seaira Global STORM ELITE Manuel utilisateur

Tools Needed:

•Philips Head Screwdriver

•Replacement Sensor

1. First, undo the side and base latches so you can open the cover.

2. Next, you will need to remove the cover from the control board. Use the screwdriver

to remove the two screws at the top of the cover.

Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445

www.seairaglobal.com

How To Replace the Control Board

Storm ELITE

Control Board

Remove

Screws

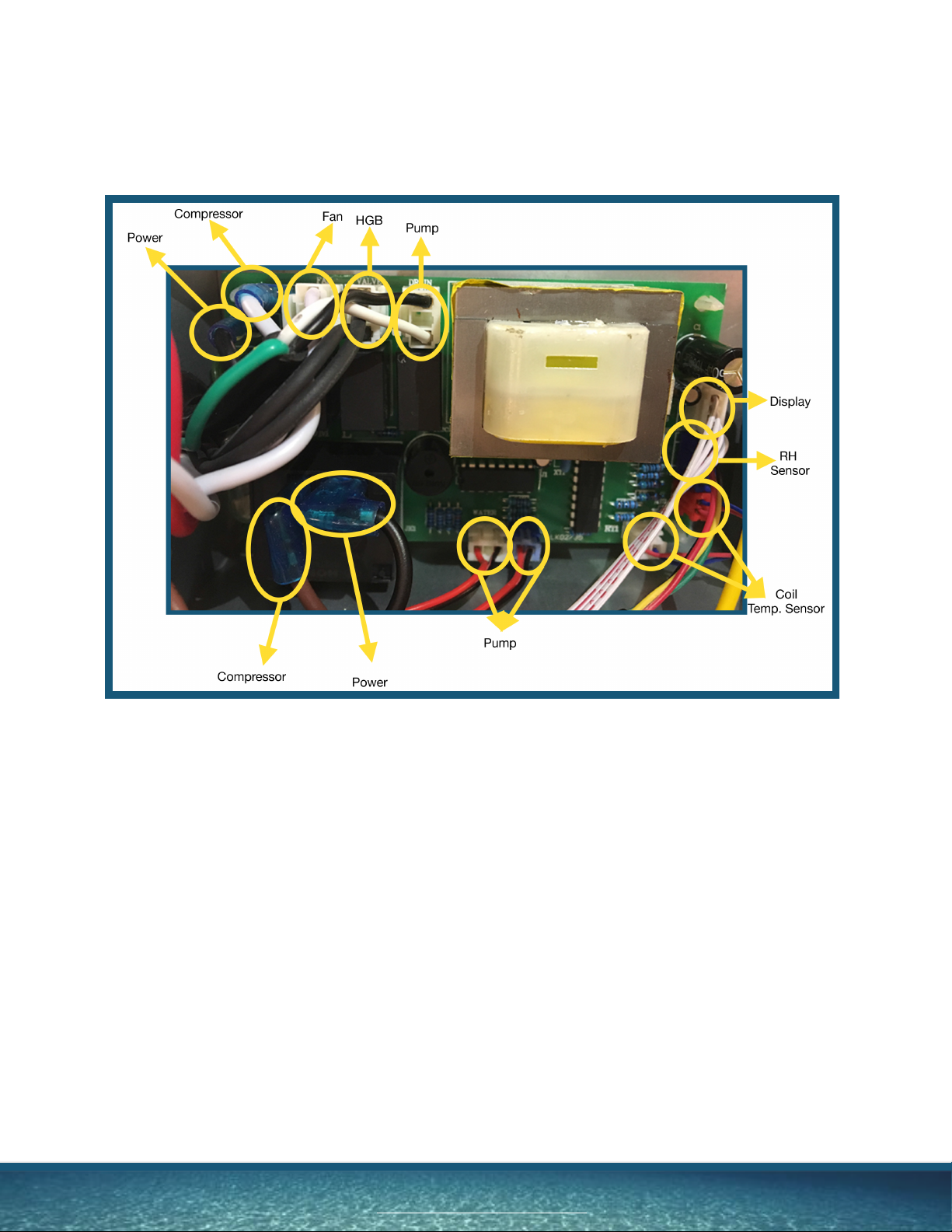

3. At this point, you will need to unplug the following wires on the control board (starting

in the upper left corner and moving clockwise).

•Power (black with blue cover)

•Compressor (white with blue cover)

•Fan (white)

•Hot Gas Bypass (black)

•Pump (white and black)

•Display (white with red)

•RH sensor (black)

•Coil Temp. Sensor #1 (red and blue)

•Coil Temp Sensor #2 (red and blue

•Pump #1 (black and red)

•Pump # 2 (black and red)

•Power (black with blue cover)

•Compressor (brown with blue cover)

4. Once the wires are unplugged, you can lift the the control board out of the

machine. To do this, you will need to use the needle nose pliers. Use the pliers to push in

Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445

www.seairaglobal.com

the 4 “arrowhead” tabs (one in each corner). Simply squeeze each tab with the pliers

so the control board can be lifted over the tab.

5. Now you’re ready to set the old control board aside and insert the new one.

Carefully set the replacement control board in place, ensuring the tabs secure into

place.

6. Next, reinsert the wires into the control board.

7. Once the wires are plugged in, screw in the control board cover, and close the

machine.

Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445

www.seairaglobal.com

Seaira Global • 14021 NC Highway 50 • Surf City, NC 28445

www.seairaglobal.com
