NOTE

Dear 2002 GTX DI watercraft owner. Informations on the RX DI model in the

2002 Operator’s Guide (P/N 219 000 145) apply to your GTX DI except for

the following.

smo2002-005a.book Page 1 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net

GO TO 219 000 145

TABLE OF CONTENTS

NOTE....................................................................................................... 1

TABLE OF CONTENTS ................................................................ 2

LOCATION OF THE IMPORTANT LABELS ................................... 3

LOCATION OF CONTROLS, COMPONENTS AND

INSTRUMENTS ........................................................................... 4

FUNCTIONS OF CONTROLS, COMPONENTS AND

INSTRUMENTS ........................................................................... 5

4) Engine Start/Stop Button .................................................................. 5

5) Variable Trim System Button (VTS)................................................... 5

6) Variable Trim System Gauge (VTS) ................................................... 5

12) Information Center Gauge/Buttons................................................... 5

13) Glove Box.......................................................................................... 6

17) Front Storage Compartment Cover................................................... 6

21) Tool Kit .............................................................................................. 7

24) Seat Latch ......................................................................................... 7

25) Seat Extension Latch ........................................................................ 7

27) Rear Storage Basket ......................................................................... 8

34) Boarding Step ................................................................................... 8

35) Cooling System Bleed Outlet............................................................ 9

42) Fuses ................................................................................................ 9

43) Battery .............................................................................................. 9

44) Side Vanes ........................................................................................ 9

OPERATING INSTRUCTIONS ...................................................... 10

SPECIAL PROCEDURES.............................................................. 10

Towing the Watercraft in Water.............................................................. 10

MAINTENANCE .......................................................................... 11

Fuses ....................................................................................................... 11

TRAILERING, STORAGE AND PRE-SEASON PREPARATION....... 13

Storage .................................................................................................... 13

SPECIFICATIONS ........................................................................ 17

smo2002-005aTOC.fm Page 2 Wednesday, September 26, 2001 11:39 AM

www.SeaDooManuals.net

GO TO 219 000 145

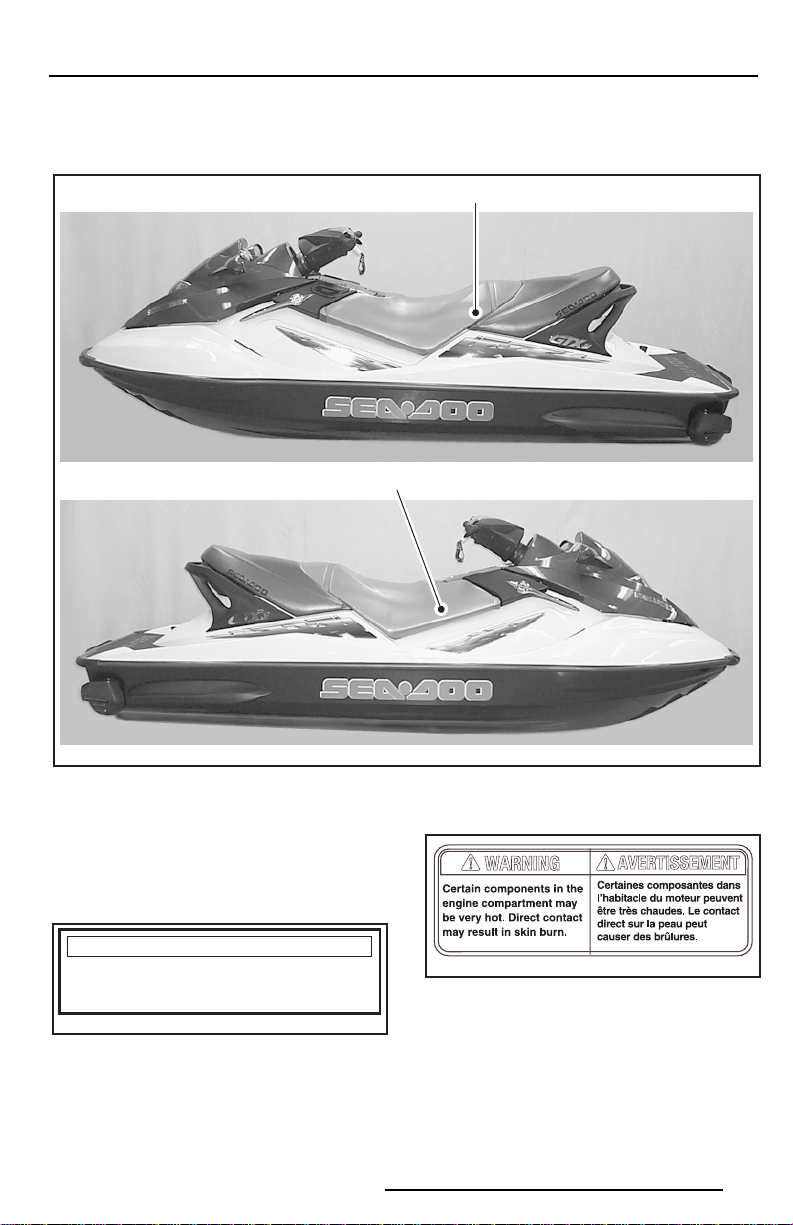

LOCATION OF THE IMPORTANT LABELS

GTX DI Model

TYPICAL

GTX DI Model Only

The location of this label differs on the

GTX DI model.

Label 6

Label 14

F18L03L

 WARNING

DO NOT BOOST BATTERY

WHILE INSTALLED.

F00L050

F00A1AY

smo2002-005a.book Page 3 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net

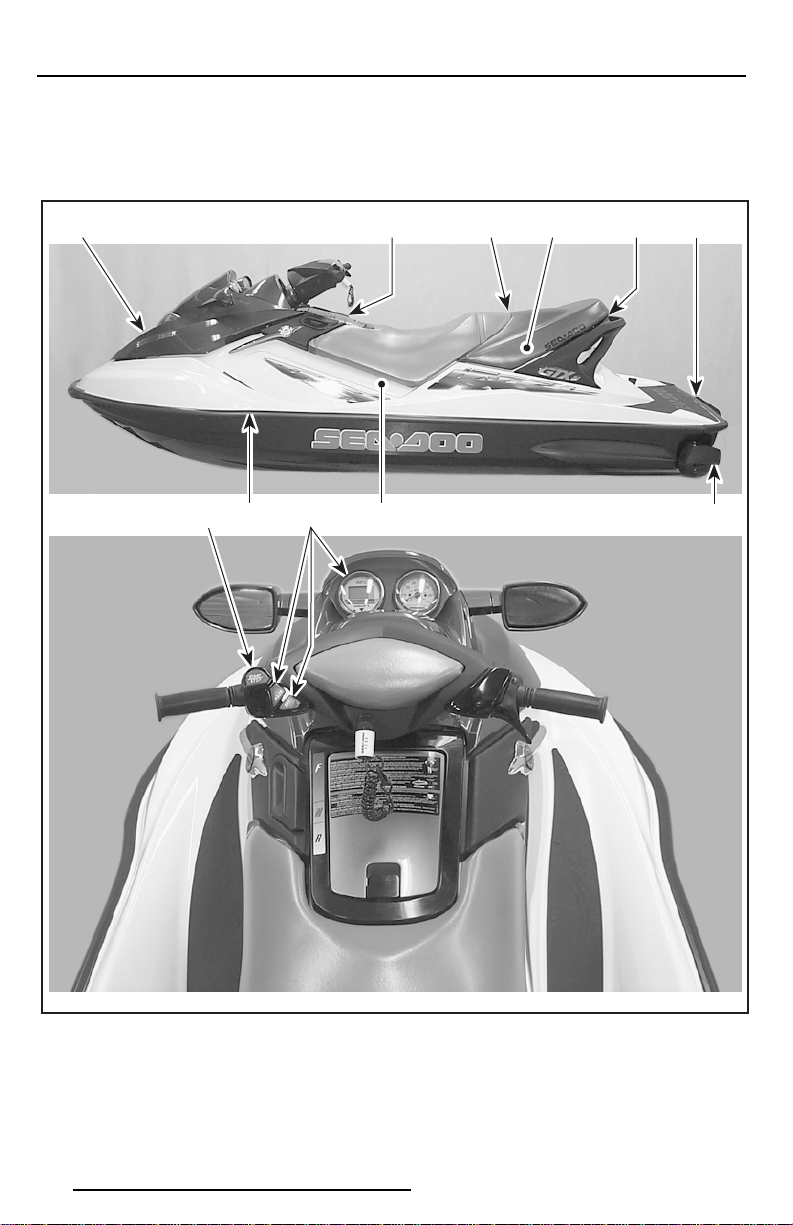

LOCATION OF CONTROLS, COMPONENTS AND

INSTRUMENTS

GTX DI Model

F18L05L

42-43

13 24 21-27 25 34

4435 124

smo2002-005a.book Page 4 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net

4. Engine Start/Stop Button

12. Information Center Gauge/Buttons

13. Glove Box

17. Front Storage Compartment Cover

21. Tool Kit

24. Seat Latch

25. Seat Extension Latch

27. Rear Storage Basket

34. Boarding Step

35. Cooling System Bleed Outlet

42. Fuses

43. Battery

44. Side Vanes

NOTE: Some components shown in the 2002 Sea-Doo Operator’s Guide do not

apply to this watercraft.

FUNCTIONS OF CONTROLS, COMPONENTS

AND INSTRUMENTS

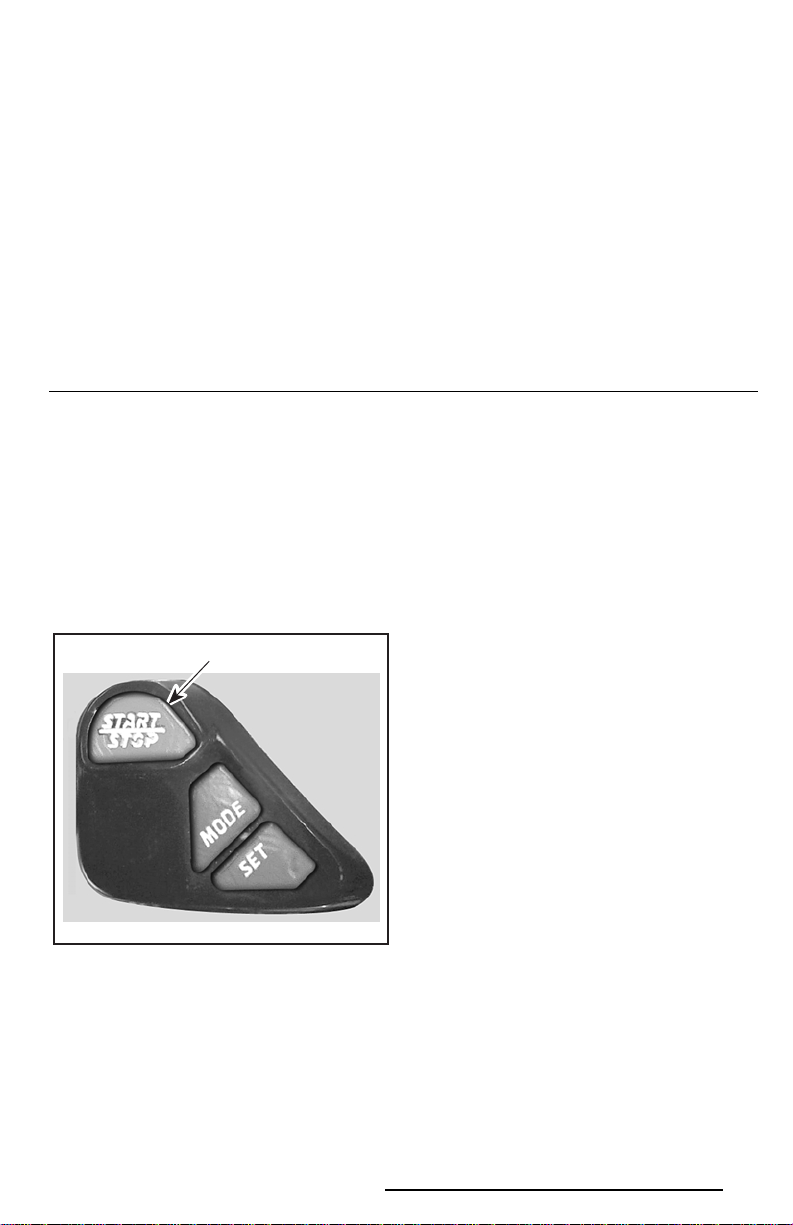

4) Engine Start/Stop

Button

It is the same operation as explained

in the 2002 Operator’s Guide. Only the

shape and arrangement differ. Refer to

the following updated illustration.

1. Start/Stop button

5) Variable Trim System

Button (VTS)

There is no VTS on the GTX DI model.

6) Variable Trim System

Gauge (VTS)

There is no VTS on the GTX DI model.

12) Information Center

Gauge/Buttons

It is the same operation as explained

in the 2002 Operator’s Guide. Only the

location differs. Refer to LOCATION

OF CONTROLS, COMPONENTS AND

INSTRUMENTS section and the fol-

lowing updated text and illustrations.

F18L09Y

smo2002-005b.fm Page 5 Wednesday, September 26, 2001 11:49 AM

www.SeaDooManuals.net

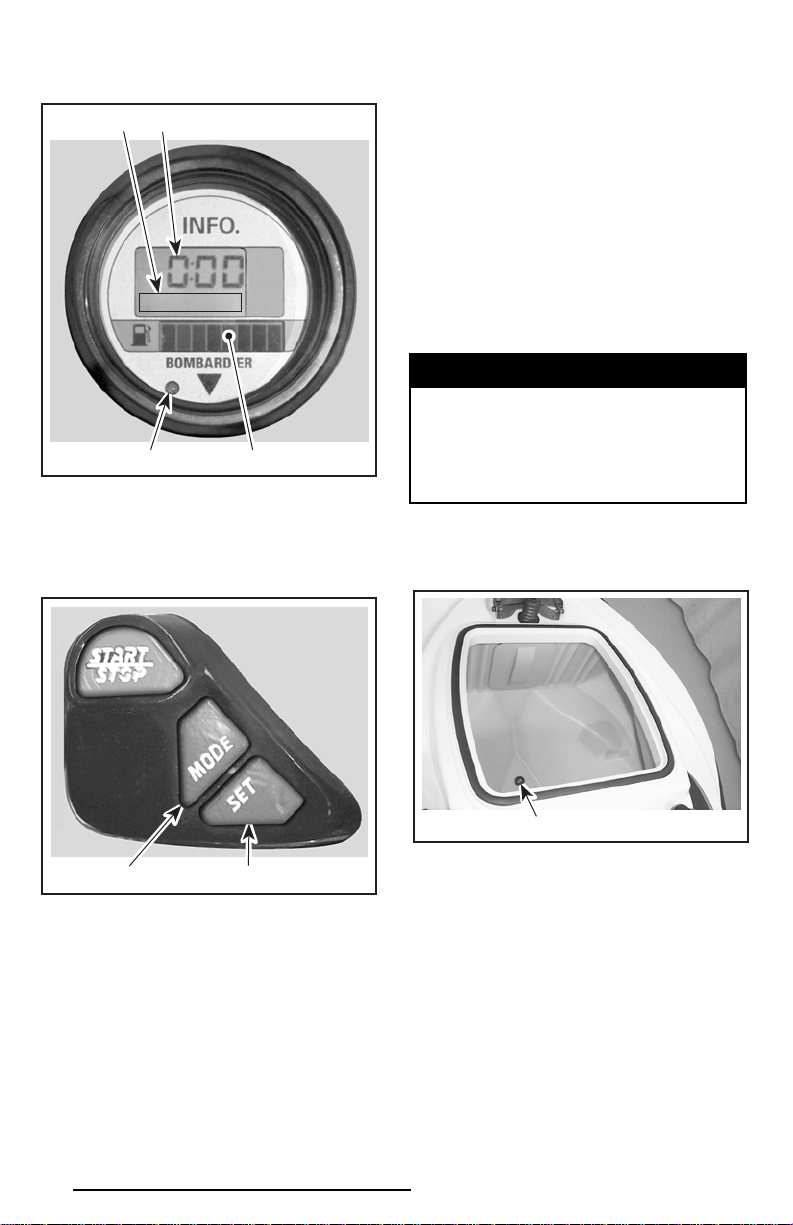

Gauge Description

1. General display

2. Message/units display

3. Warning light

4. Fuel level display

Function Buttons

1. To change display mode

2. To set or reset a function

13) Glove Box

It is the same operation as explained

in the 2002 Operator’s Guide. Only the

location differs. Refer to LOCATION

OF CONTROLS, COMPONENTS AND

INSTRUMENTS section.

17) Front Storage

Compartment Cover

Refer to the following updated text

and illustrations.

It gives access to the front storage com-

partment. Always relatch cover after

closing.

Front Storage Compartment

A convenient watertight area to carry

personal articles. Ideal location for tow-

rope, first aid kit, etc.

If there is water in the storage area,

pull out the drain plug to let water go

out. Reinstall the plug when done.

1. Drain plug

NOTE: The water will flow to the bilge.

If there is an important quantity of wa-

ter, ensure to drain the bilge (out of wa-

ter) prior to using the watercraft.

F18L06Y 4

F18L09Z 2

WARNING

Never leave any heavy or breakable

objects loose in the storage area.

Never operate the watercraft with

any storage compartment cover

open.

F18L0KY 1

smo2002-005a.book Page 6 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net

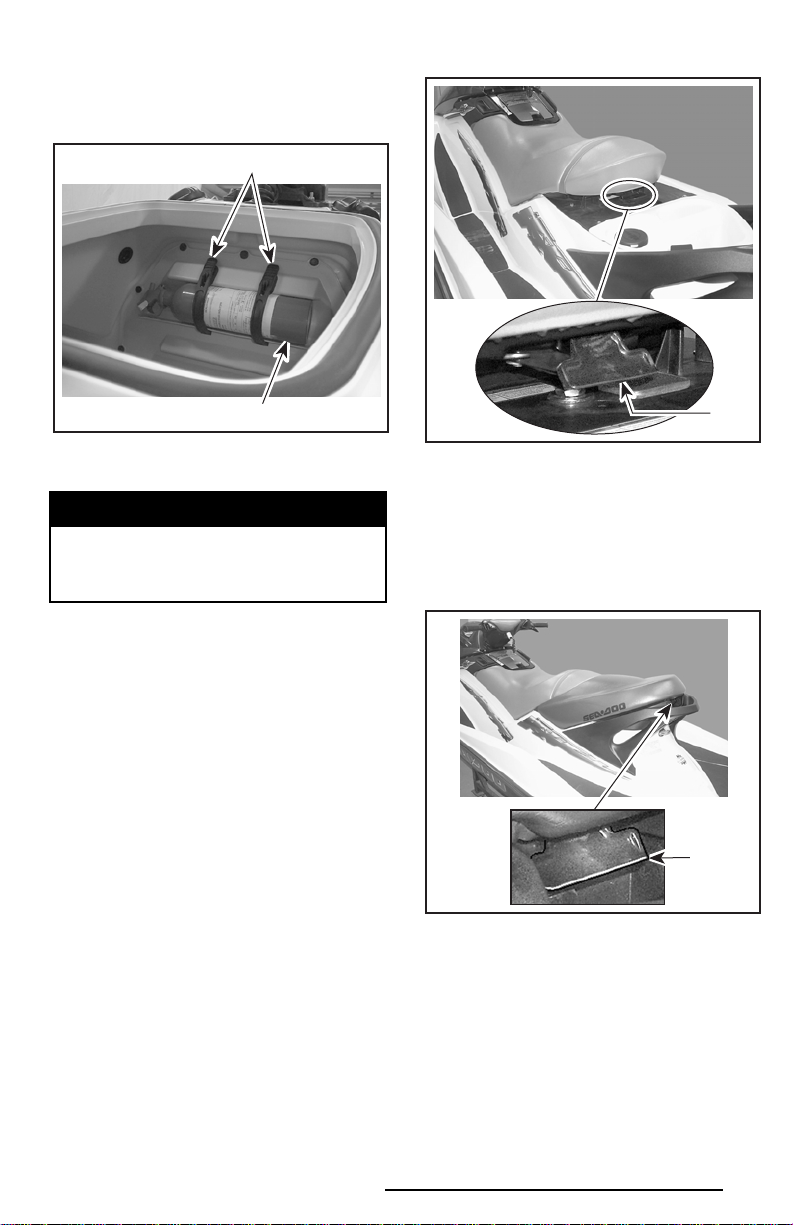

The front storage area includes a latch

to hold an approved fire extinguisher

(sold separately).

1. Retaining straps

2. Extinguisher (sold separately)

21) Tool Kit

It is the same information as explained

in the 2002 Operator’s Guide. Only the

location differs. Refer to LOCATION

OF CONTROLS, COMPONENTS AND

INSTRUMENTS section.

24) Seat Latch

It is the same operation as explained

in the 2002 Operator’s Guide for 3-up

seat models. Refer to the following

updated illustration.

1. Seat latch

25) Seat Extension Latch

It is the same operation as explained

in the 2002 Operator’s Guide for 3-up

seat models. Refer to the following

updated illustration.

1. Seat extension latch

WARNING

Ensure to properly secure extin-

guisher with the supplied retaining

straps.

F18L0LY

F18L0CY

F18L0FY

smo2002-005a.book Page 7 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net

27) Rear Storage Basket

It is the same operation as explained

in the 2002 Operator’s Guide for 3-up

seat models. Refer to the following

updated illustration.

1. Rear storage basket

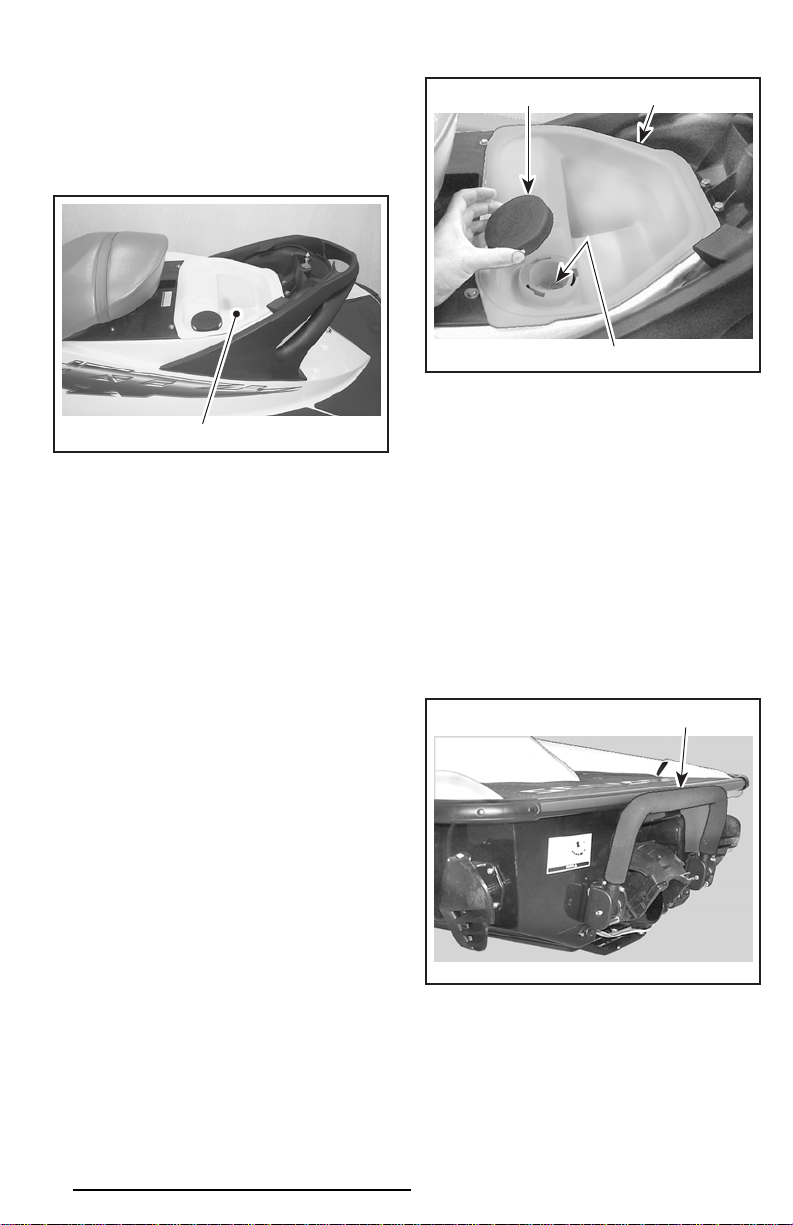

Spare Spark Plug Holder

The storage basket features a spare

spark plug holder.

To keep spare spark plugs dry and pre-

vent shocks that might affect the ad-

justment or break them, a holder is

provided.

Unscrew cap counterclockwise to ex-

pose the holder and insert spark plug

in their holes. Reinstall cap.

1. Storage basket

2. Spare spark plug holder cap

3. Spark plug holder

NOTE: Adjust spare spark plug gap ac-

cording to SPECIFICATIONS before in-

stallation.

NOTE: Spare spark plugs are not sup-

plied with the watercraft.

34) Boarding Step

It is the same operation as explained

in the 2002 Operator’s Guide for some

models. Refer to the following updat-

ed illustrations.

1. Boarding step

F18L0GY

F18L0HY 3

F18L0IY

smo2002-005a.book Page 8 Friday, September 7, 2001 11:34 AM

www.SeaDooManuals.net
