Operator’s Instructions

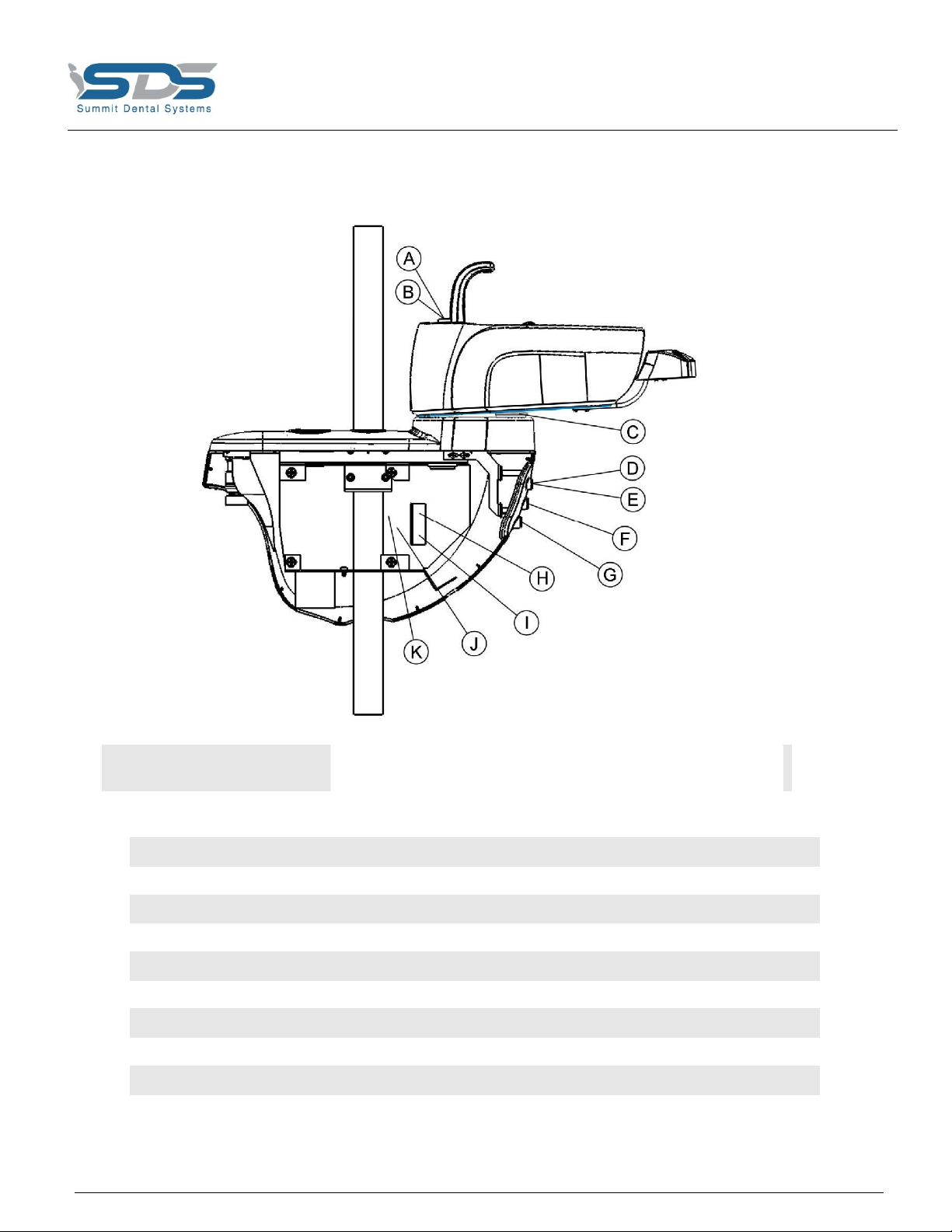

A. Automatic Cup Fill Control
B. Timed Bowl Rinse
C. Solids Collector
D. City/Bottle Switch
E. Water Bottle Switch
F. Air Quick Disconnect
G. Water Quick Disconnect
H. Cup Fill Level Control
I. Bowl Rinse Time Control
J. Bowl Rinse Pressure Control
H. Cup Fill Pressure Control
•Press and release cup fill button. The Cup Fill will automatically turn
off
•Press and release bowl rinse button. The Bowl Rinse will
automatically turn off
•Move cuspidor to access collection screen for disposal
•Alternate from city or bottled water
•Pressurizes the self-contained water bottle system
•Air supply to accessories
•Water supply to accessories
•Adjusts the water level in the cup fill.
•Adjusts the amount of time water flow in the bowl rinse.
•Pinch valve on tubing. Controls amount of pressure at rinse nozzle.
•Pinch valve on tubing. Controls water pressure from cup filler spout
